AED

MULTISUB 18"

Name: MULTISUB 18"
Brand: AED Audio
Availability: OutOfStock

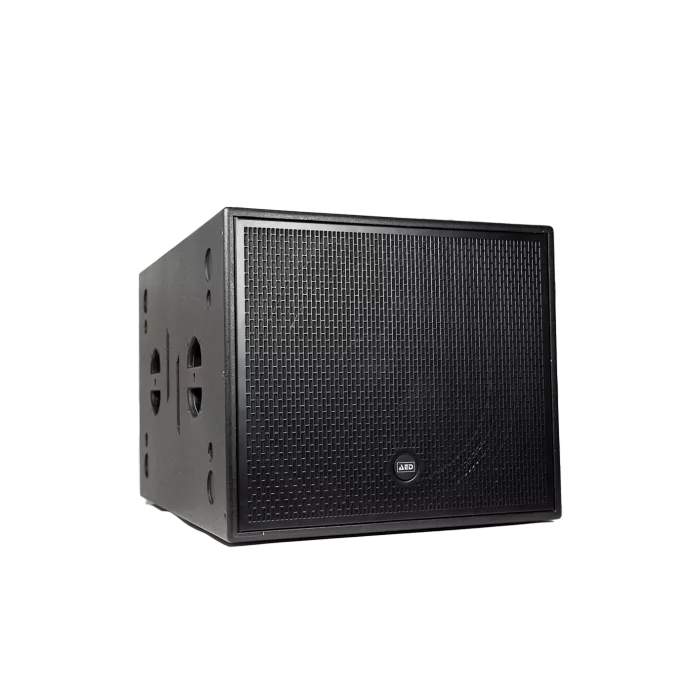

AED Audio MULTISUB

High-Power Professional Active Subwoofer

Active | 134 dB Peak

Element 18" Ferrite

Power 1200W Peak

Weight 40 kg

Acoustics & Performance

Frequency response: 30 Hz - 140 Hz
DSP modes: Concert, Club, Vocal
Max SPL: 134 dB
Amplifier: Class D (500W RMS)

Technology & Construction

Connection: XLR, BT, RFID
Power: PowerCon True1
Material: Aluminum & Wood-hybrid
Finish: RAL 9011 (Anthracite)

Powerful system base: MULTISUB is designed for optimal integration with MULTI12 and FLEX6. Its hybrid construction minimizes resonance while the advanced DSP provides full control in all environments.

Product Information

The MULTISUB is a state-of-the-art powered subwoofer designed to work alongside the MULTI12 to deliver exceptional sound quality and versatile performance. It features a robust single 18” ferrite driver, ensuring deep and powerful bass. The frequency response ranges from 35Hz to 120Hz at -6 dB and extends from 30Hz to 140Hz at -10dB. This subwoofer can achieve a maximum SPL of 134 dB, making it suitable for various high-demand audio environments. Its Class D amplifier is capable of 500W RMS and peaks at 1200W, providing ample power for sustained performance.

1x 18" woofer Temperature controlled variable speed fan 110V/230V AC, 50 Hz / 60 Hz CE and UKCA pending

Specifications

Max SPL: 134 dB
Amplifiera power: 1.000W peak - 500W RMS
Connectivity: Analog
Weight: 40 kg
Dimensions: 585 x 500 x 750 mm
Configuration: Powered subwoofer
LF transducer: 1x 18” ferrite driver
Frequency response (-6 dB): 35 Hz to 120 Hz
Freq. response (-10dB): 30 Hz to 140 Hz
Coverage angle: 90° x 60°

Files and media

Download User manual | AED Audio MULTISUB V1.1.4
