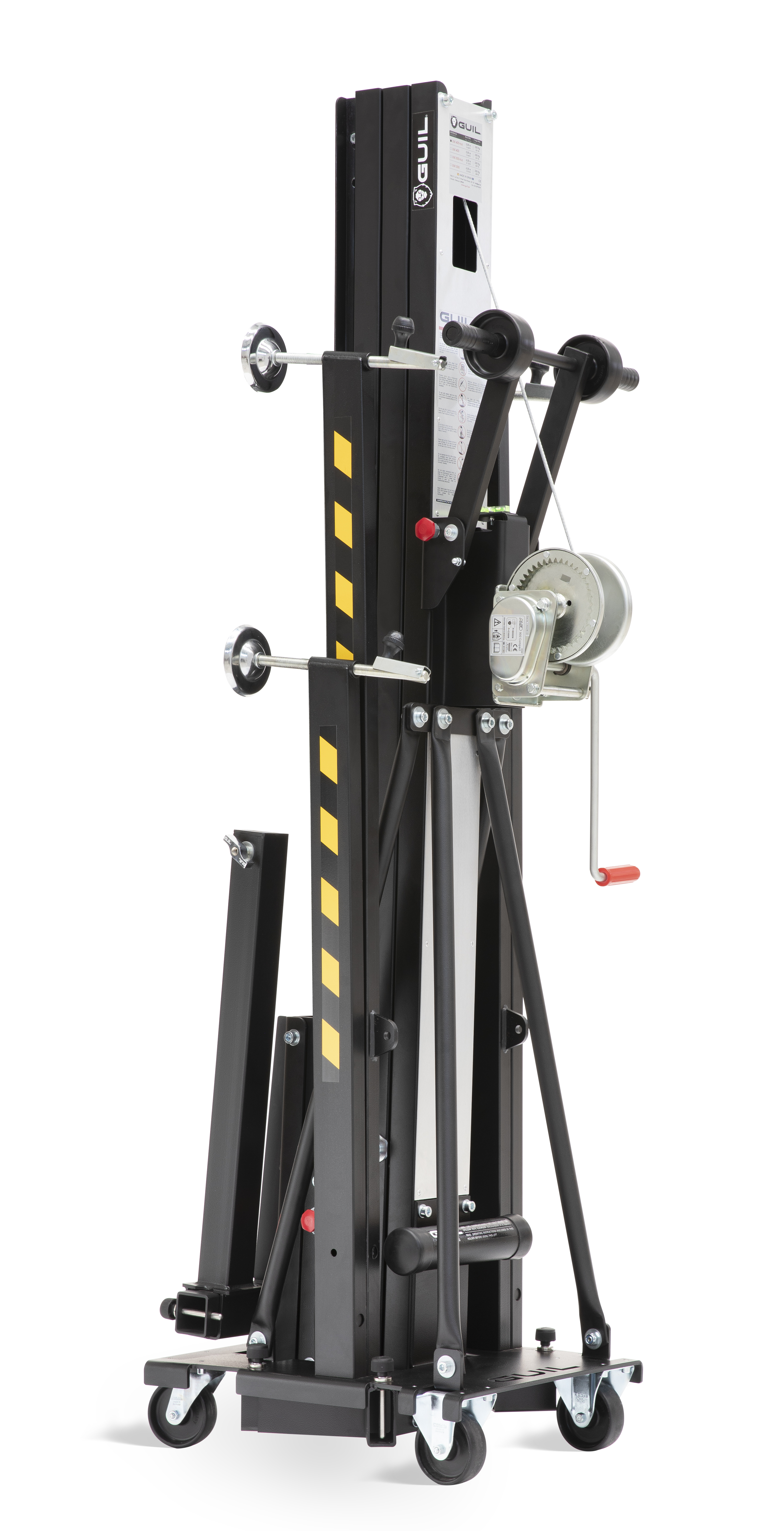

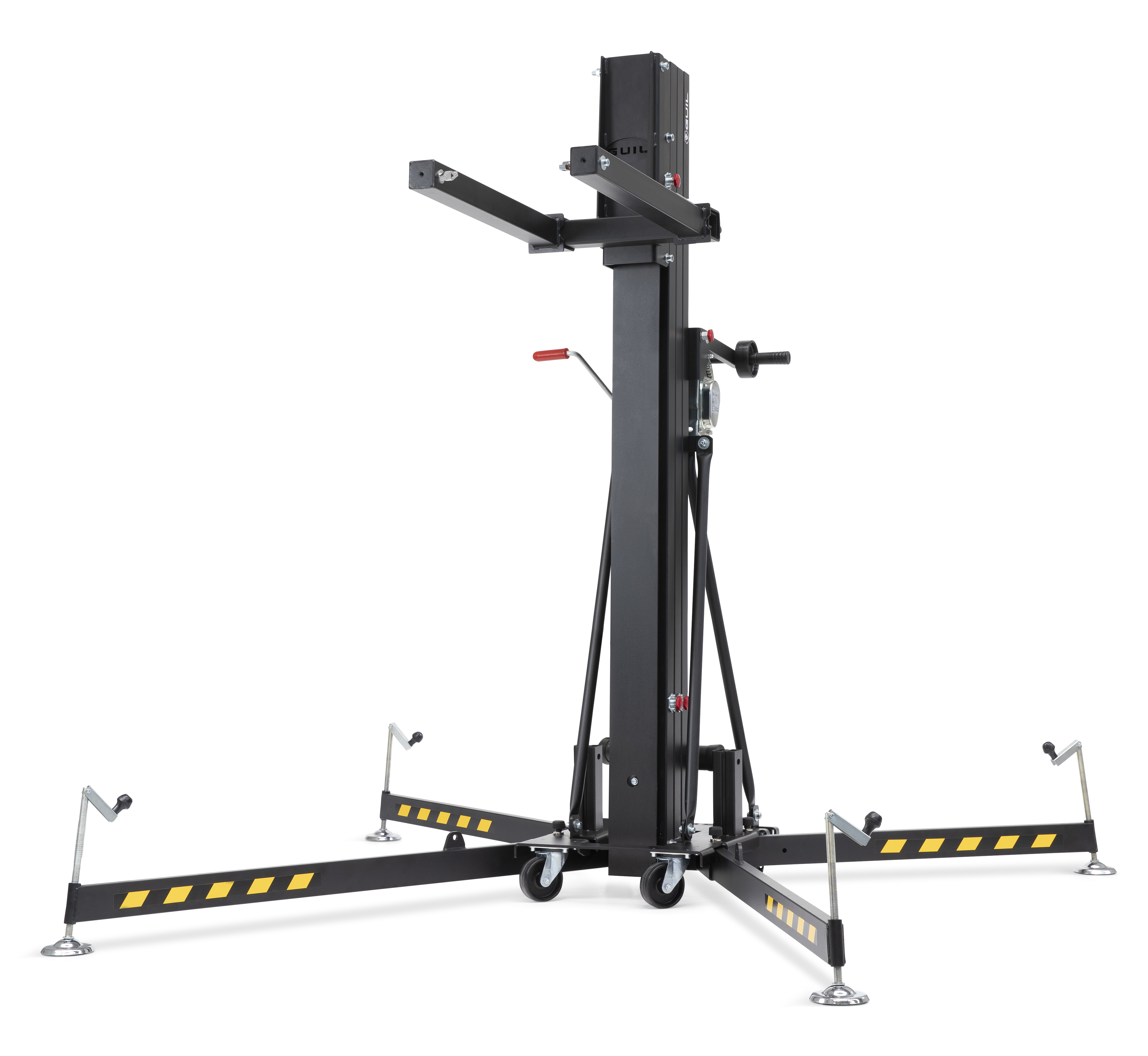

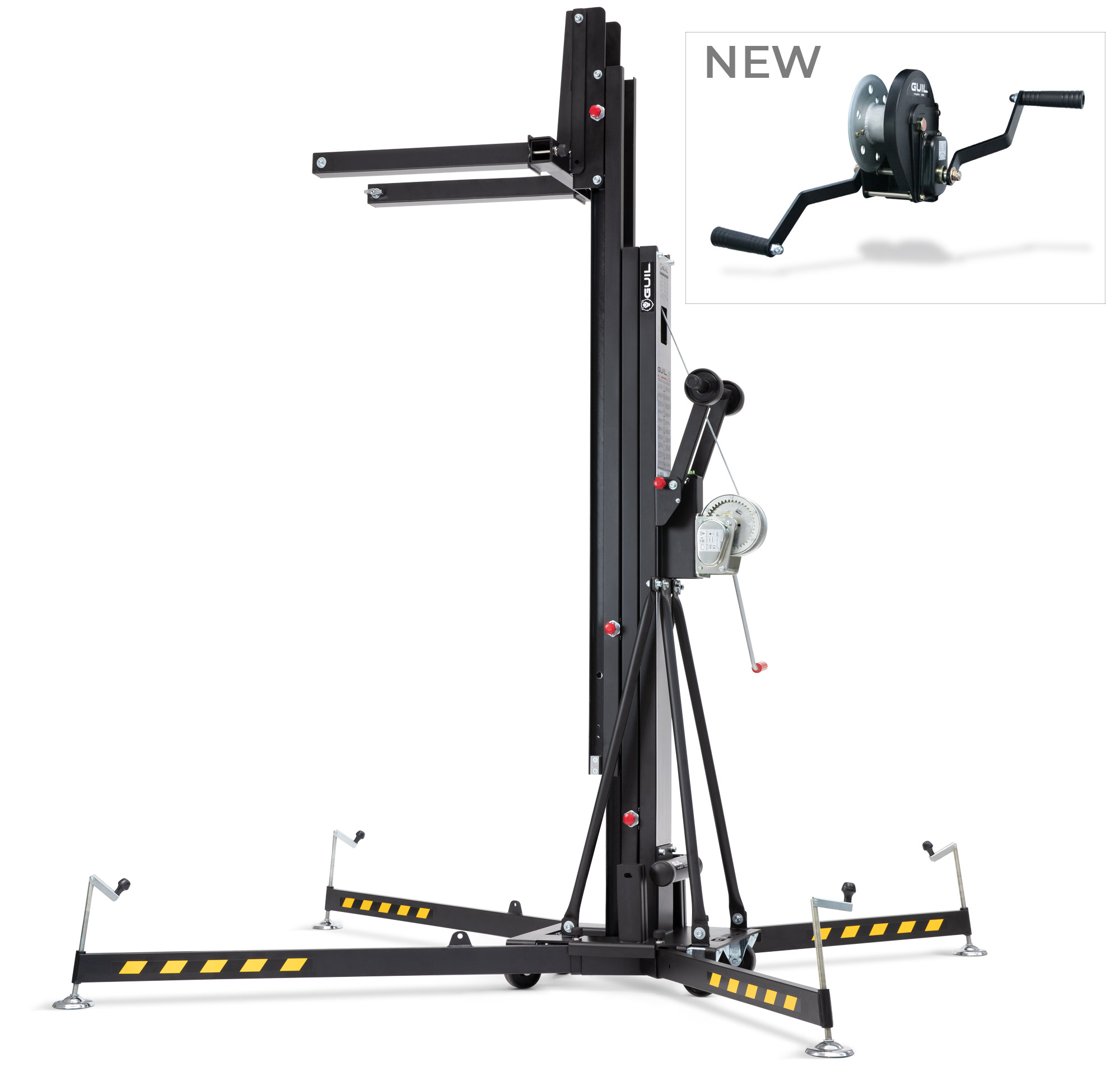

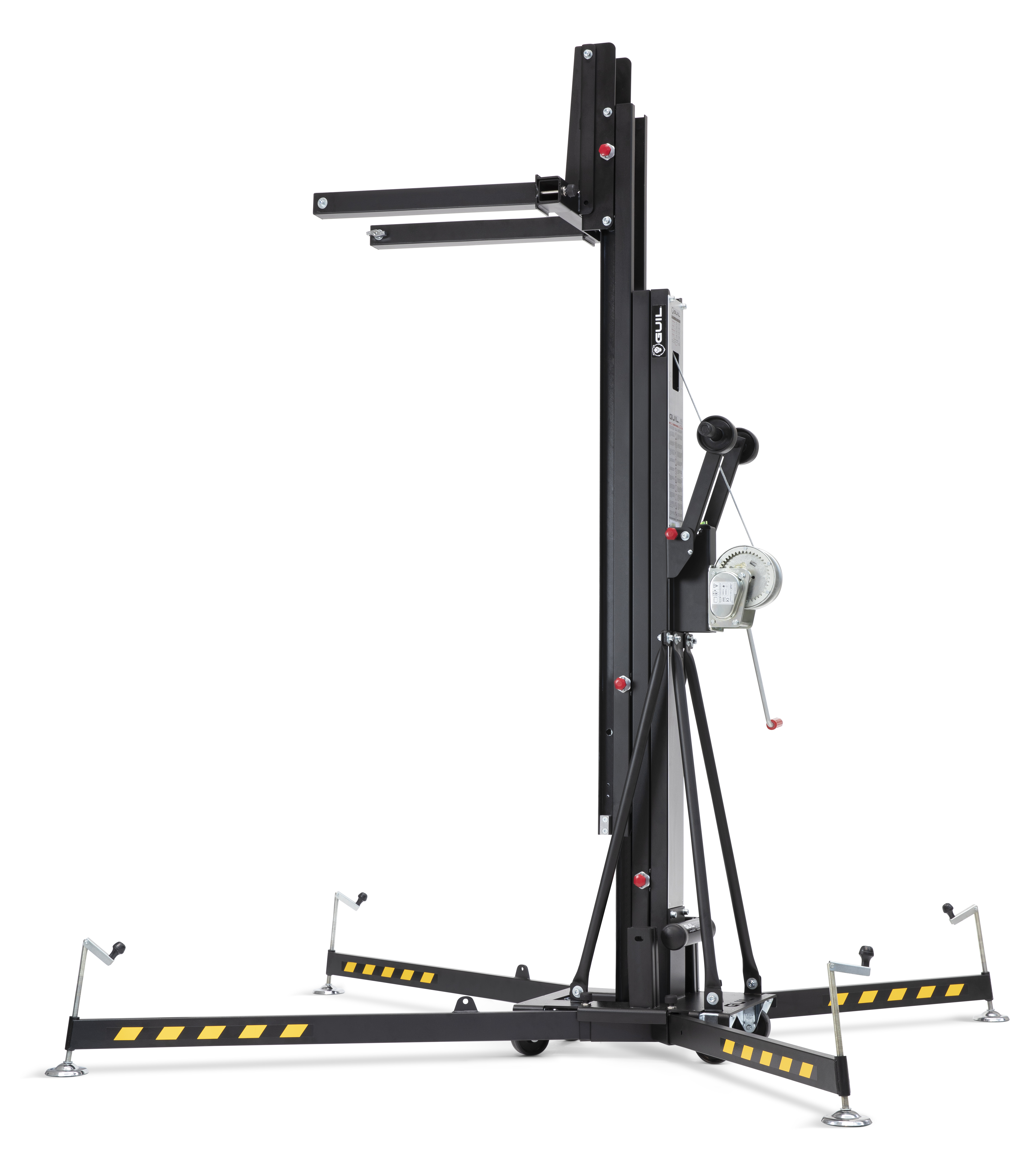

ULK 400 PLUS - 5 m / 250kg

ULK 400 PLUS - Compact lifting tower for heavy loads

This lifting tower is specifically developed to handle heavy loads at high altitudes with precision and safety. Its user-friendly and robust construction makes the ULK 400 PLUS an excellent choice for all types of events, where both strength and compact design are essential.

Features and Benefits:

• Safety: Equipped with three advanced safety systems that include a double-handle brake winch, ASB system for automatic blocking and IPB system for internal pendulum brake function.
• Easy handling: Quick and easy assembly, making the ULK 400 PLUS one of the most practical and functional hoists on the market.
• Maneuverability: Equipped with a MSU (Mast Section Unblocking) to easily unblock mast sections without having to dismantle the entire tower.
• Important Information: The ULK 400 PLUS is not intended to be used as an elevator for lifting, supporting or transporting people. For outdoor installation, the tower should be secured with slings, cables, ropes, etc., to prevent movement caused by wind and to ensure maximum stability.

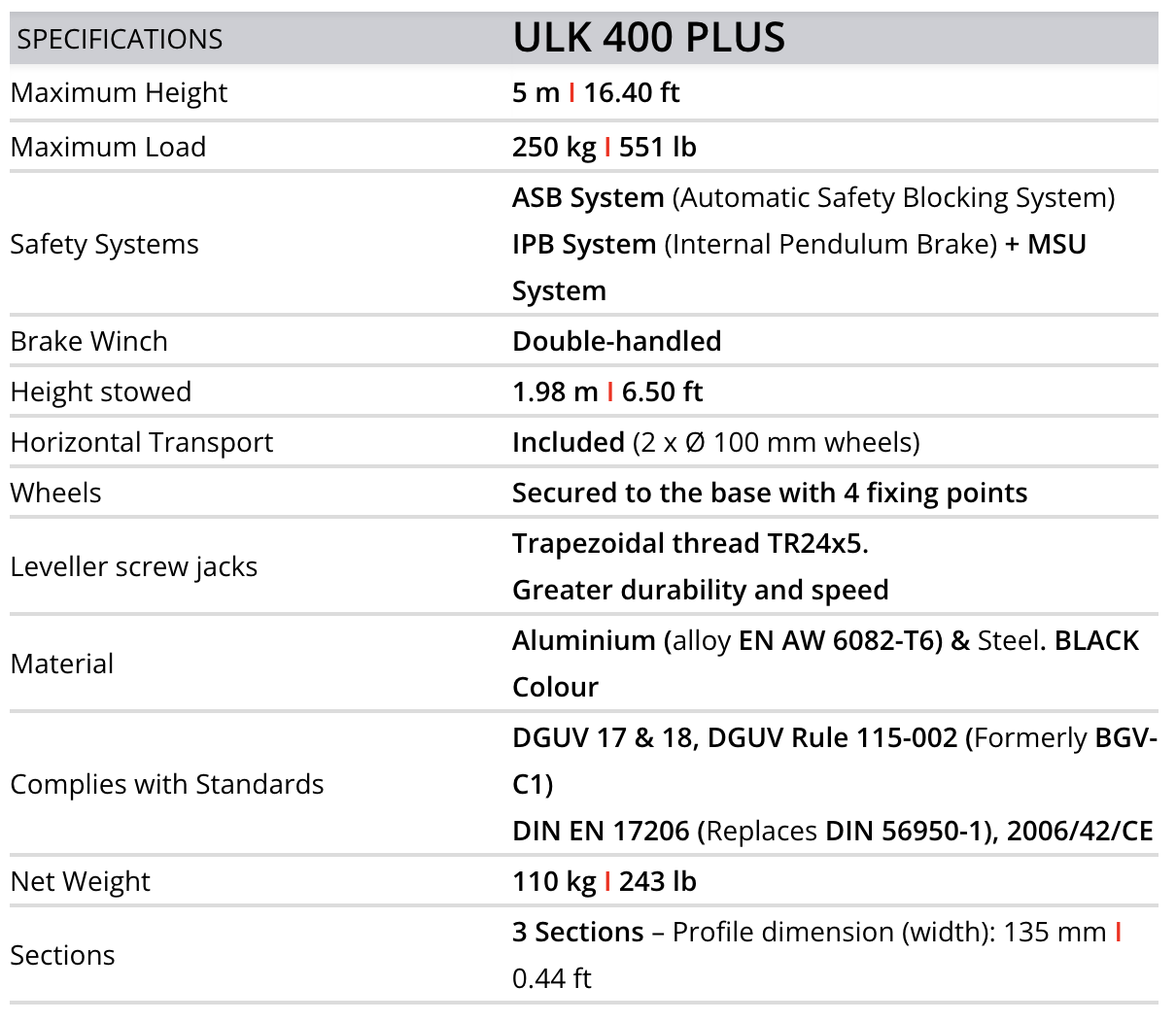

• Maximum height: 5 m | 16,40 ft
• Maximum load: 250 kg | 551 lb
• Safety systems: ASB (Automatic Safety Blocking System), IPB (Internal Pendulum Brake), MSU (Mast Section Unblocking)
• Brake winch: Double handle
• Height when folded: 1.98 m | 6.50 ft
• Horizontal transportation: Included (2 x Ø 100 mm wheels)
• Wheels: Secure to base with 4 fixing points
• Adjustable screw jack: Trapezoid thread TR24x5
• Material: Aluminum (EN AW 6082-T6) & Steel, Black color
• Compliant standards: DGUV 17 & 18, DGUV Rule 115-002, DIN EN 17206, 2006/42/CE
• Net weight: 110 kg | 243 lb
• Sections: 3 sections - Profile dimension (width): 135 mm | 0,44 ft
