BRANDSGUILLifting Towers for Audio, Lighting, & LEDFront loading towersLifting towers - ULK (Line array and truss)ULK 400 - 5.15 m / 250kg - compact design
GUIL

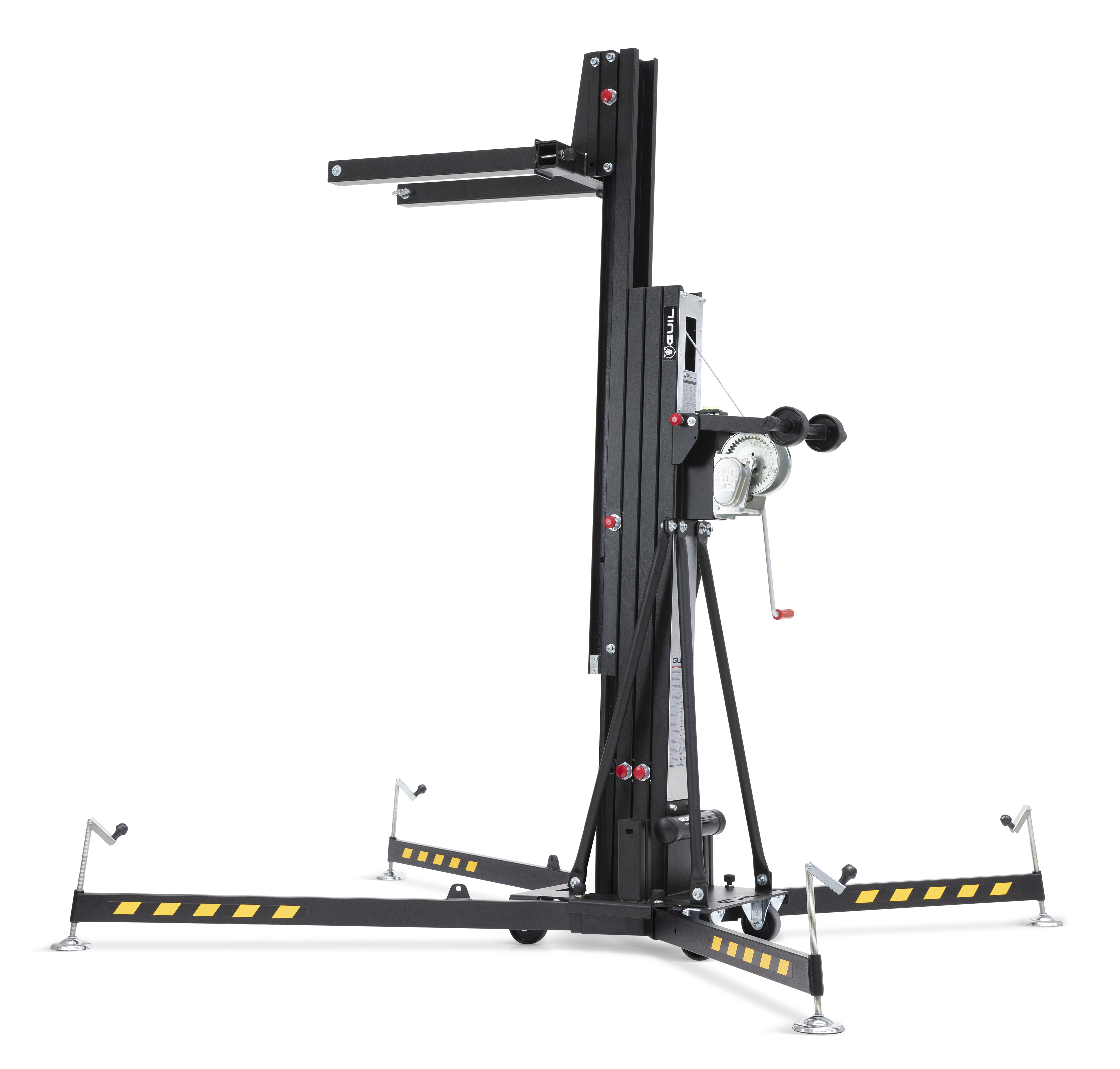

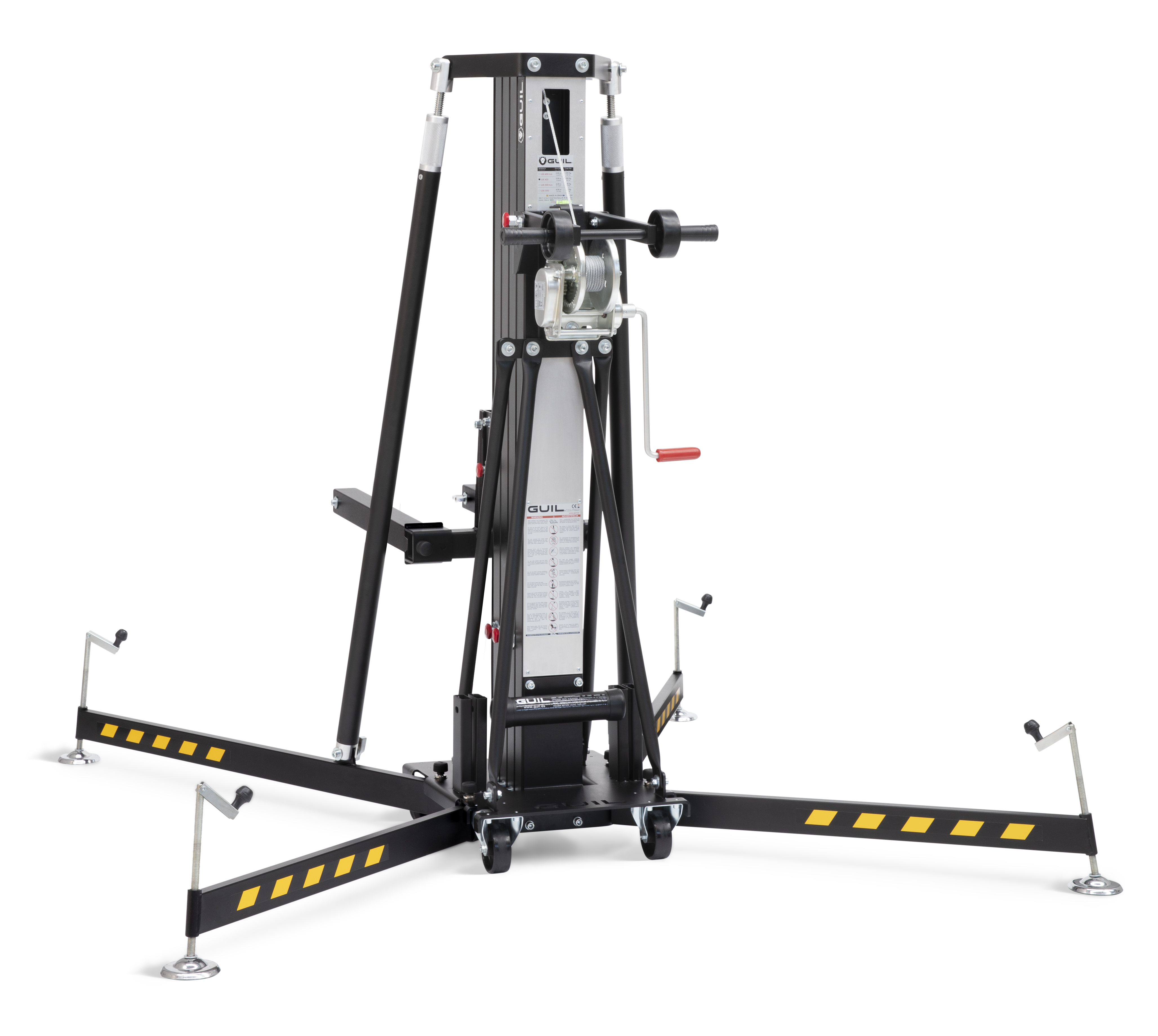

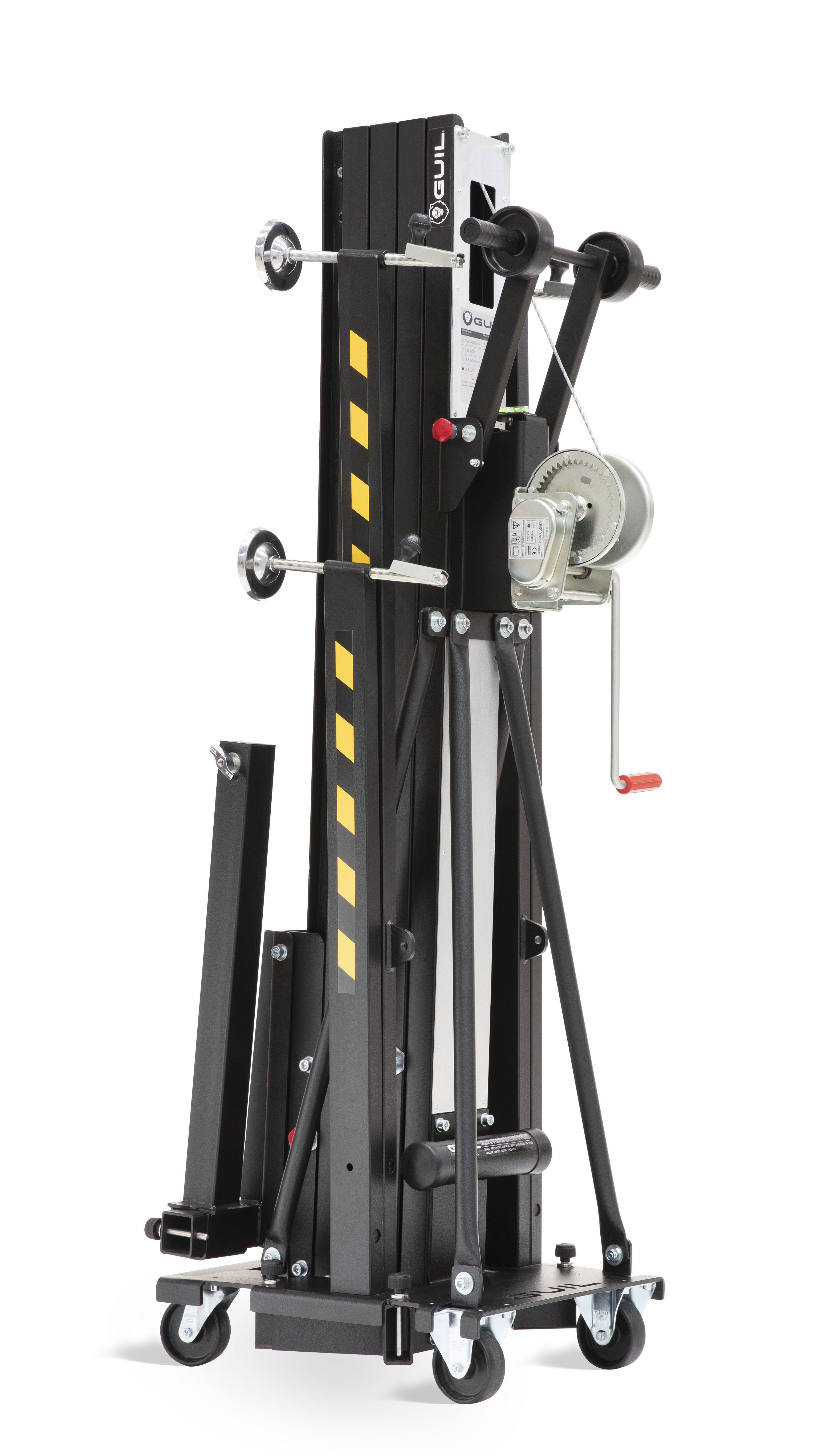

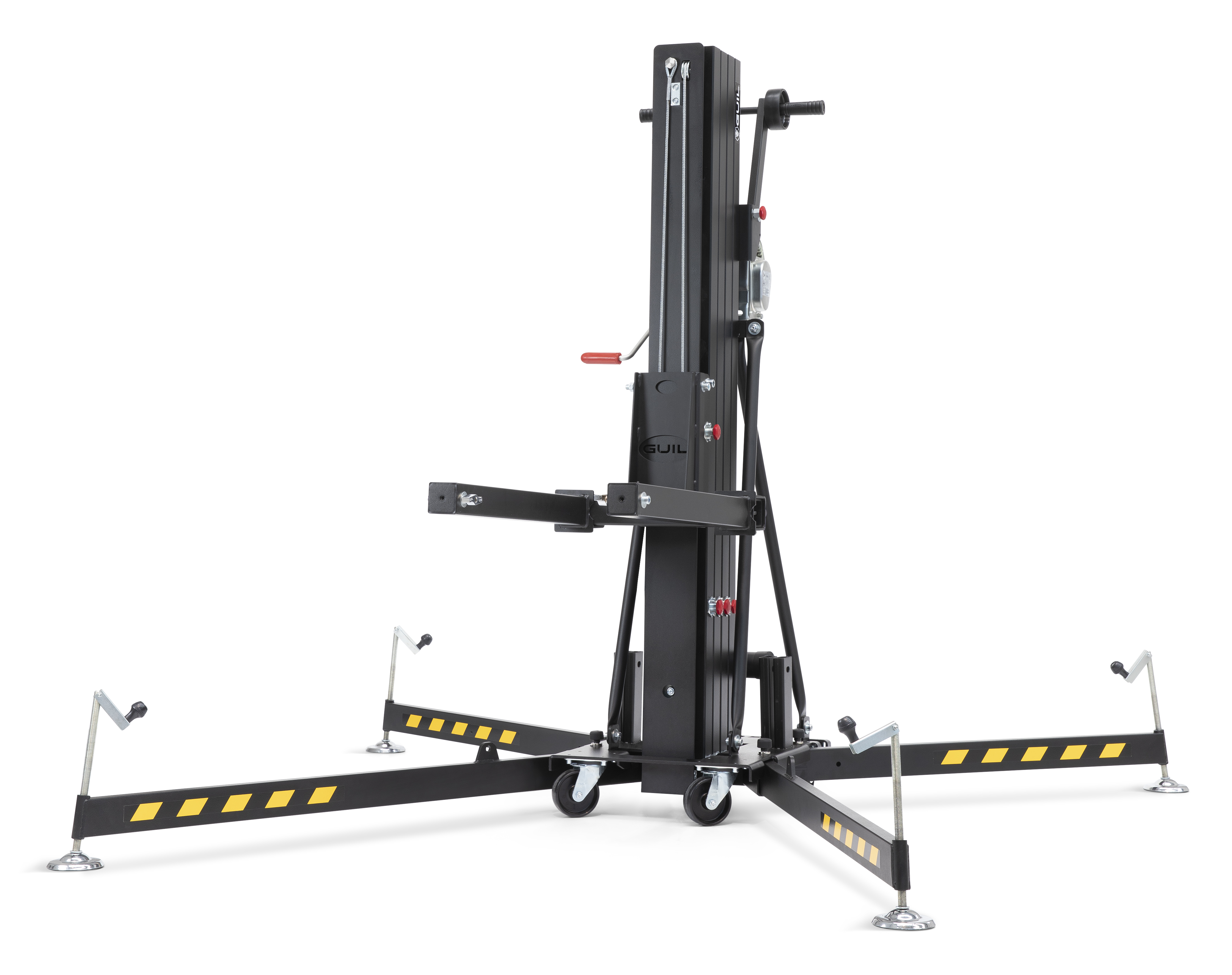

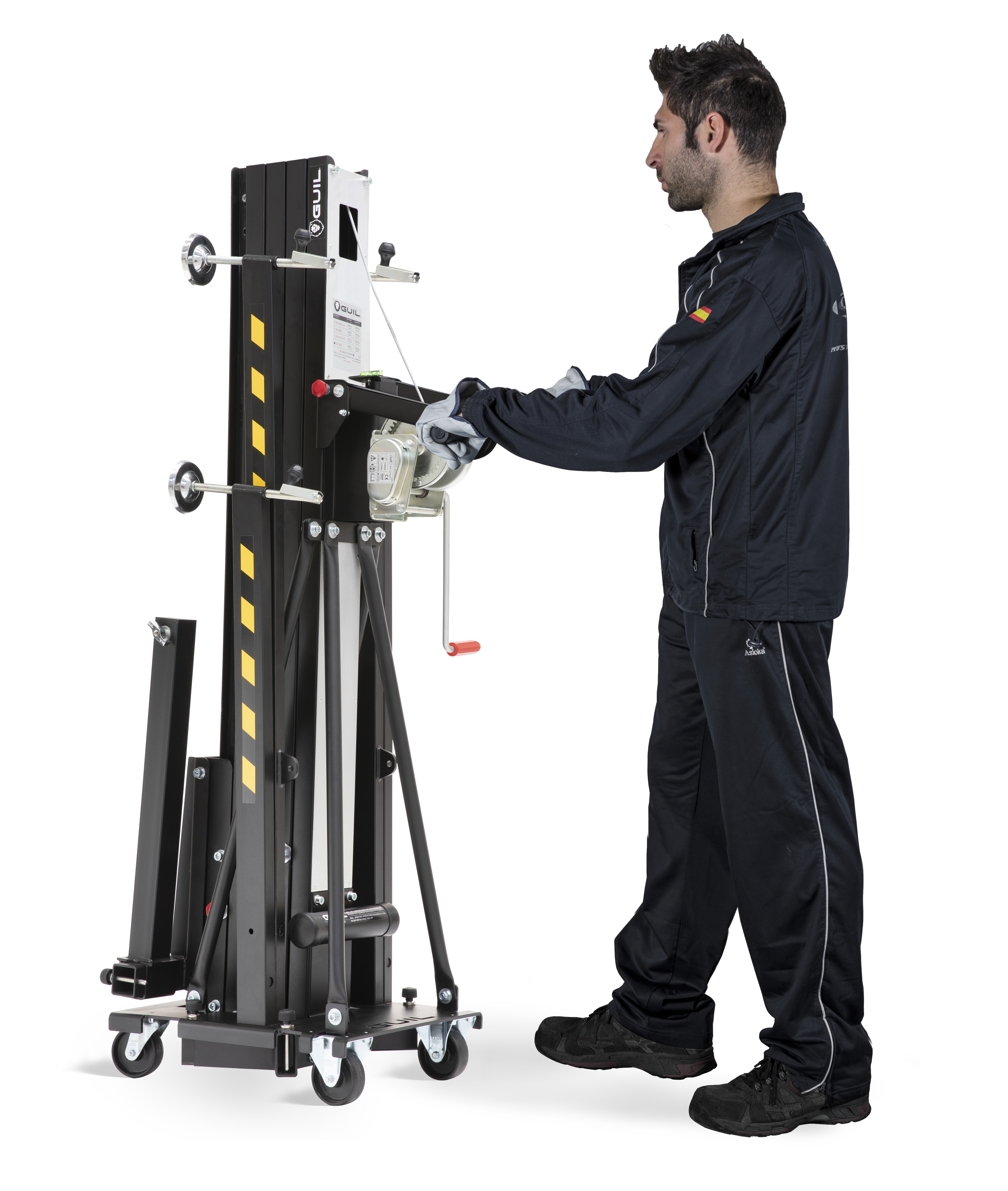

ULK 400 - 5.15 m / 250kg - compact design
ULK 400 - 5.15 m / 250kg - compact design
ULK 400 - 5.15 m / 250kg - compact design - 2
ULK 400 - 5.15 m / 250kg - compact design - 3

ULK 400 - 5.15 m / 250kg - compact design

This crane, the ULK 400, is compact but robust, designed to lift loads of up to 250 kg (551 lb) to a maximum height of 5.15 m (16.90 ft). Despite its compact size, the ULK 400 offers an impressive level of detail and reliability.
Read more...

In stock: 2

  • Phone number: 040-546511
  • E-Mail: contact@stagebrands.com
  • BrandGuil
  • ManufacturerGuil

Description

Article no.: ULK 400

Product information

ULK 400 - Compact Lifting Tower

The ULK 400 combines strength and ease of use in a compact design, making it ideal for all types of events where safe and efficient lifting capacity is required.

The tower is equipped with a double-handled winch with automatic brake and three advanced safety systems - ASB (Automatic Safety Blocking), IPB (Internal Pendulum Brake) and MSU (Mast Section Unblocking) - for maximum stability during lifting.

The ULK 400 is built in aluminum (EN AW 6082-T6) and steel with black finish. The tower can be transported horizontally on two wheels (Ø 100 mm) and has adjustable screw jacks (TR24x5) for quick and safe set-up.

Important: The tower must not be used to lift, support or transport people. For outdoor installation, the tower should be secured with wires, ropes or lashings to counteract movements caused by wind.

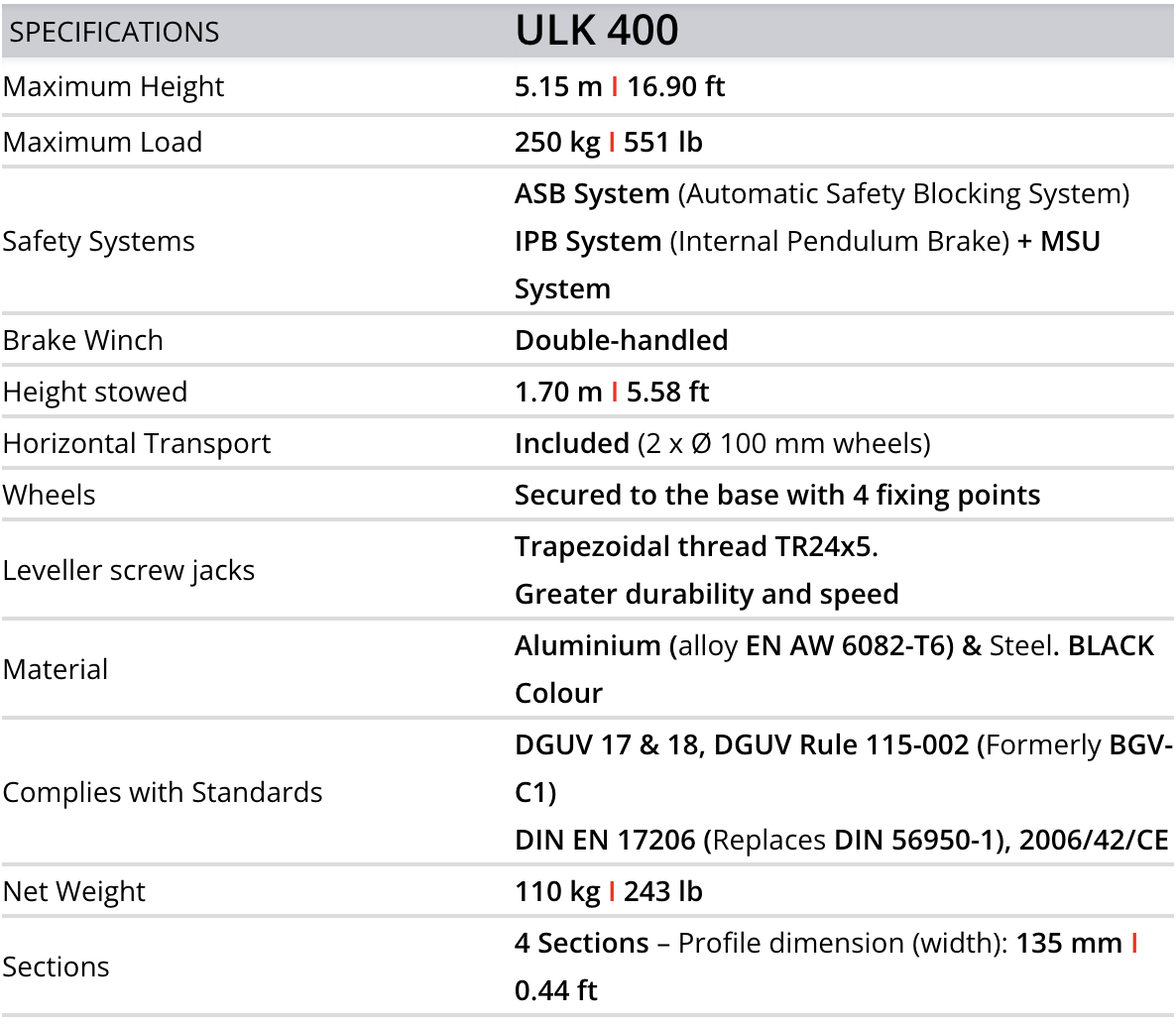

Specifications of the tower

  • Maximum Height: 5.15 m (16.90 ft)
  • Maximum Load: 250 kg (551 lb)
  • Safety systems: ASB System, IPB System + MSU System
  • Winch: Double handle with automatic brake
  • Height at Stowed Position: 1.70 m (5.58 ft)
  • Horizontal Transport: 2 wheels Ø 100 mm
  • Wheels: Attached to the base with 4 fixing points
  • Adjustable Screw jacks: Trapezoid TR24x5
  • Material: Aluminum (EN AW 6082-T6) & Steel, black
  • Net weight: 110 kg (243 lb)
  • Sections: 4 sections - Profile width: 135 mm (0.44 ft)
  • Standards: DGUV 17 & 18, DGUV Rule 115-002, DIN EN 17206, 2006/42/CE
  • Application: Indoor and outdoor
