ULK 700 - 5 m / 380kg

ULK 700 - Lifting Tower for heavy rigs

The ULK 700 Lifting Tower is designed to safely and efficiently handle heavy rigging and line array systems, making it ideal for both professional touring and stationary installations.

The ULK 700 Lifting Tower is a reliable and robust solution for lifting heavy loads up to 380 kg at a height of 5 meters. It is equipped with advanced safety systems, including the Automatic Safety Blocking (ASB) system and the Internal Pendulum Braking (IPB) system, ensuring maximum safety and reliability during use.

Thanks to its user-friendly design and easy set-up, the ULK 700 is one of the most practical and functional lifters on the market, ideal for events where heavy sound or light equipment needs to be lifted and handled efficiently.

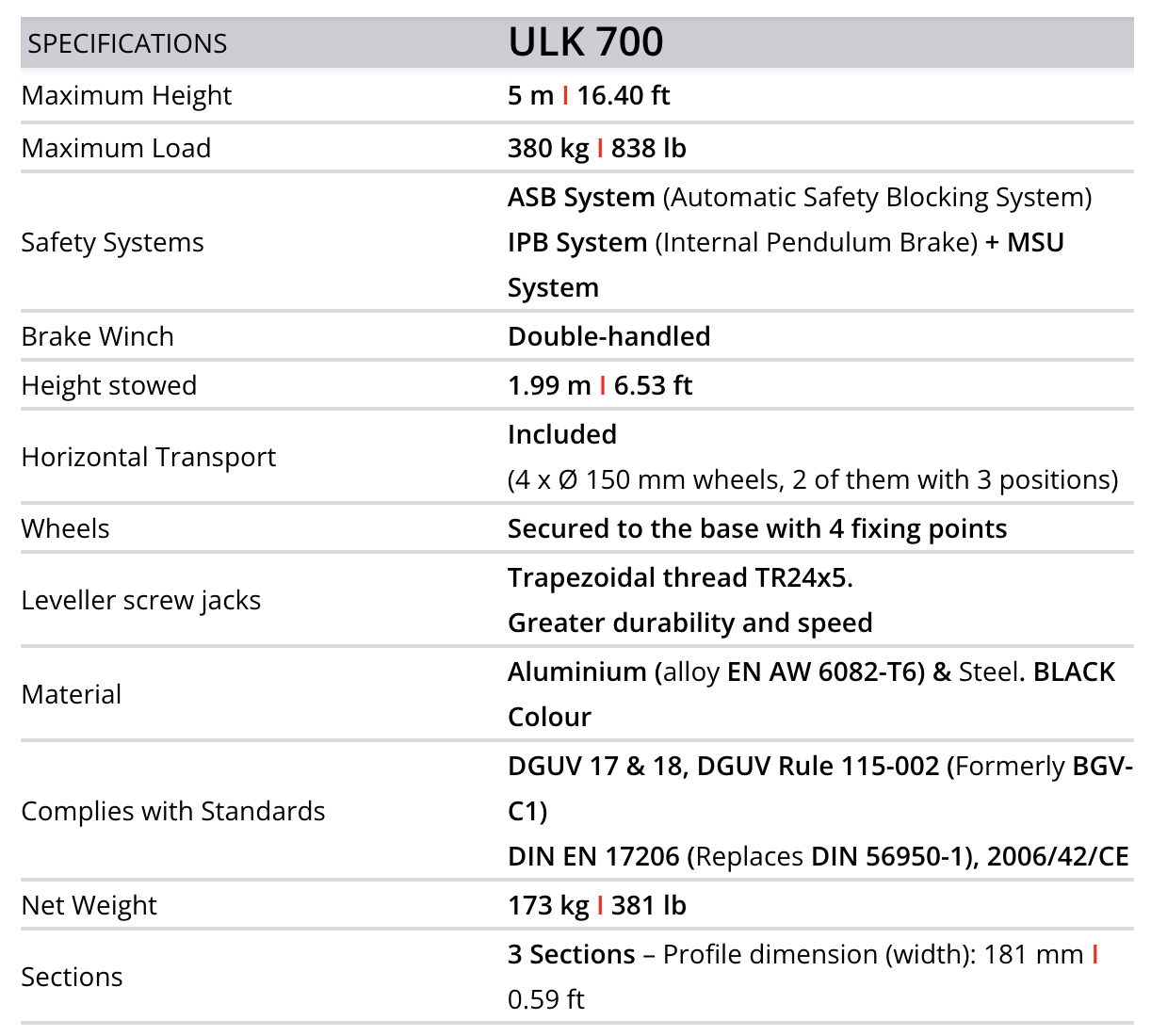

• Maximum Height: 5 m (16.40 ft)
• Maximum Load: 380 kg (838 lb)
• Safety systems: ASB (Automatic Safety Blocking System), IPB (Internal Pendulum Brake), MSU System

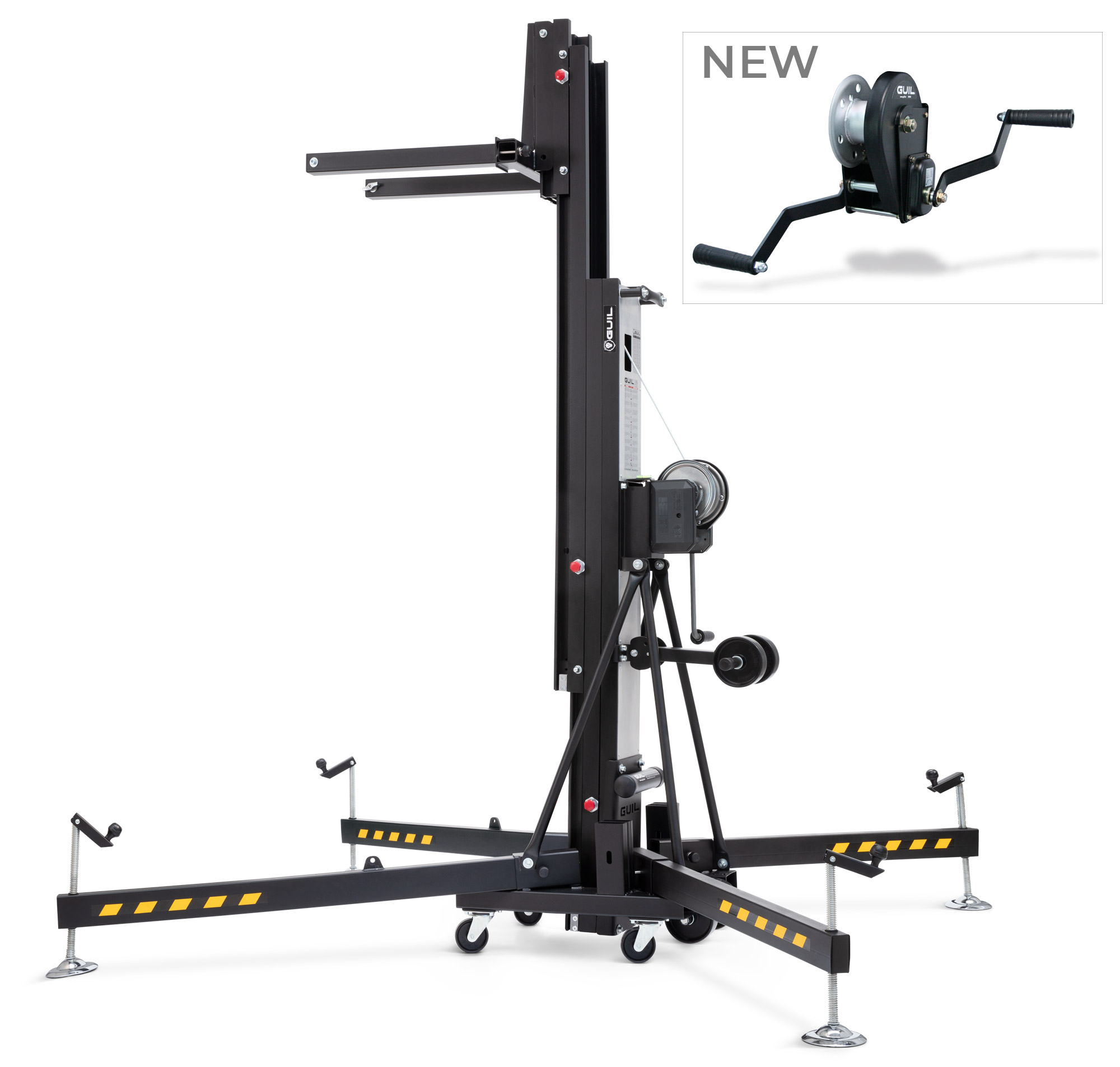

• Winch: Double handle with automatic brake
• Transport height: 1.99 m (6.53 ft)
• Transportation: Includes four Ø 150 mm wheels, two of which have three positions
• Wheels: Attached to the base with four fixing points
• Adjustable screw jacks: Trapezoidal thread TR24x5
• Materials: Aluminum (EN AW 6082-T6) & Steel, black color
• Standards: DGUV 17 & 18, DGUV Rule 115-002, DIN EN 17206, 2006/42/CE
• Weight: 173 kg (381 lb)
• Sections: 3 sections - Profile width: 181 mm (0.59 ft)
