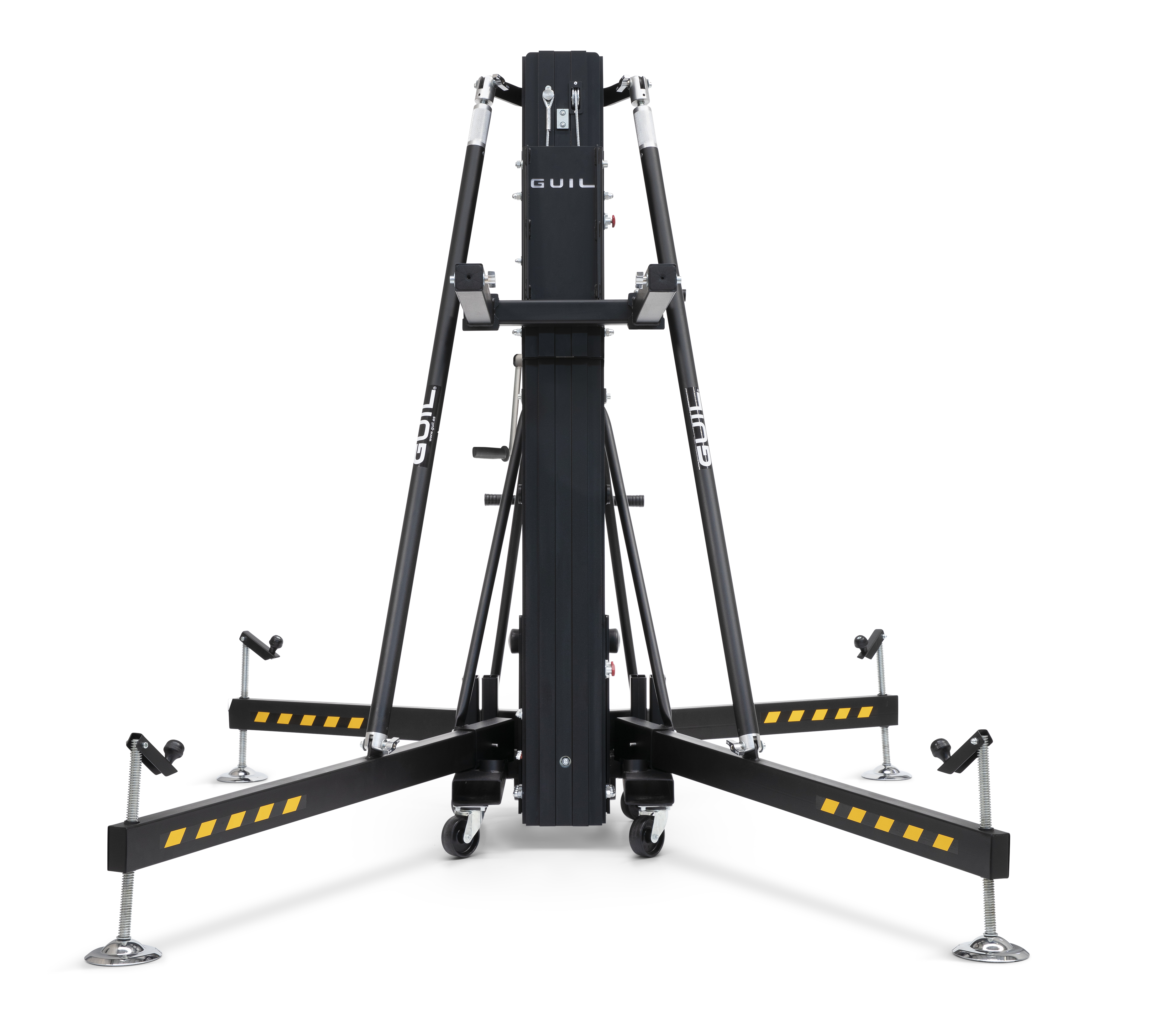

ULK 800 - 8 m / 300kg
ULK 800 - 8 m / 300kg
ULK 800 - 8 m / 300kg - 2
ULK 800 - 8 m / 300kg - 3

ULK 800 - 8 m / 300kg

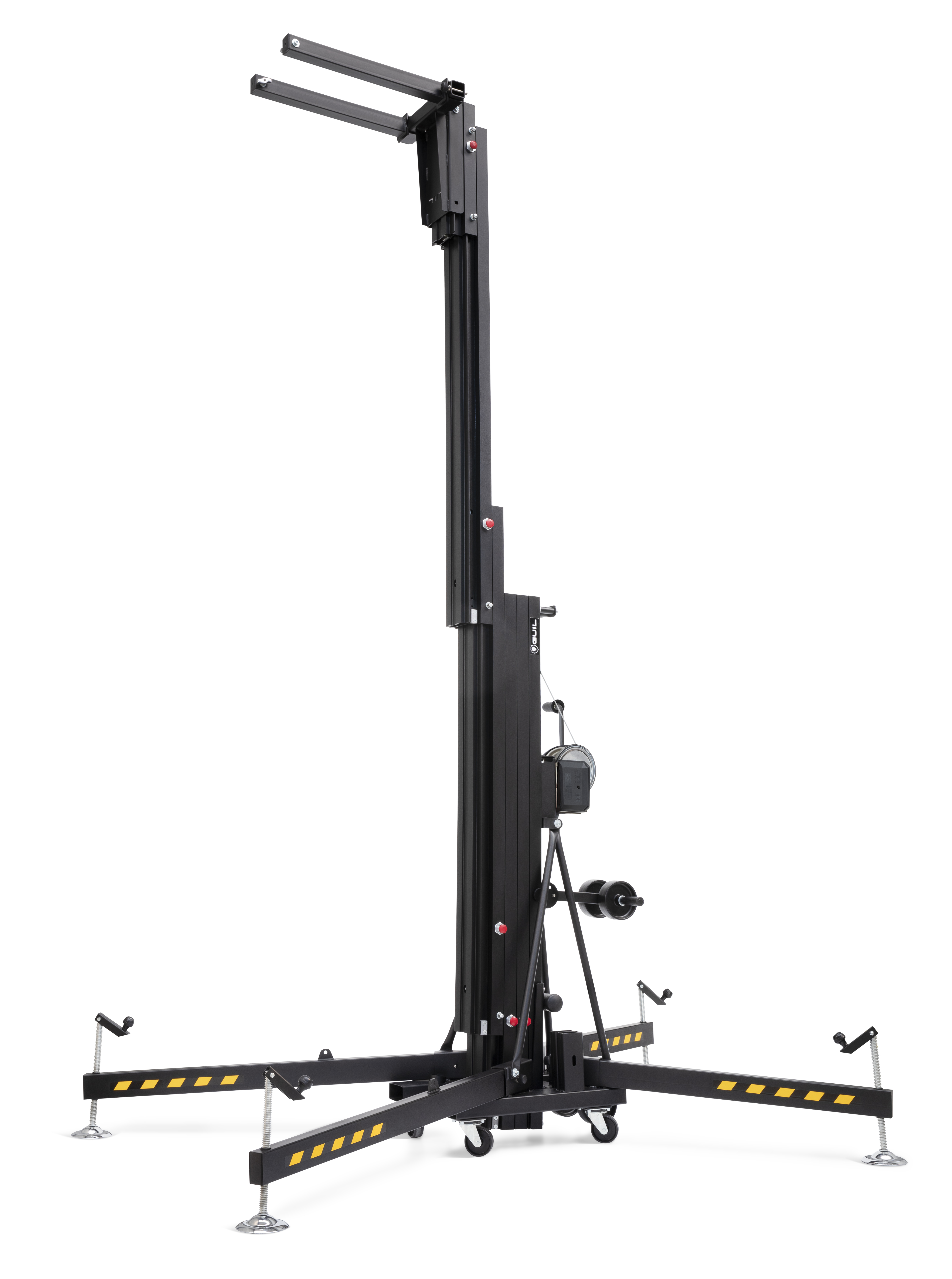

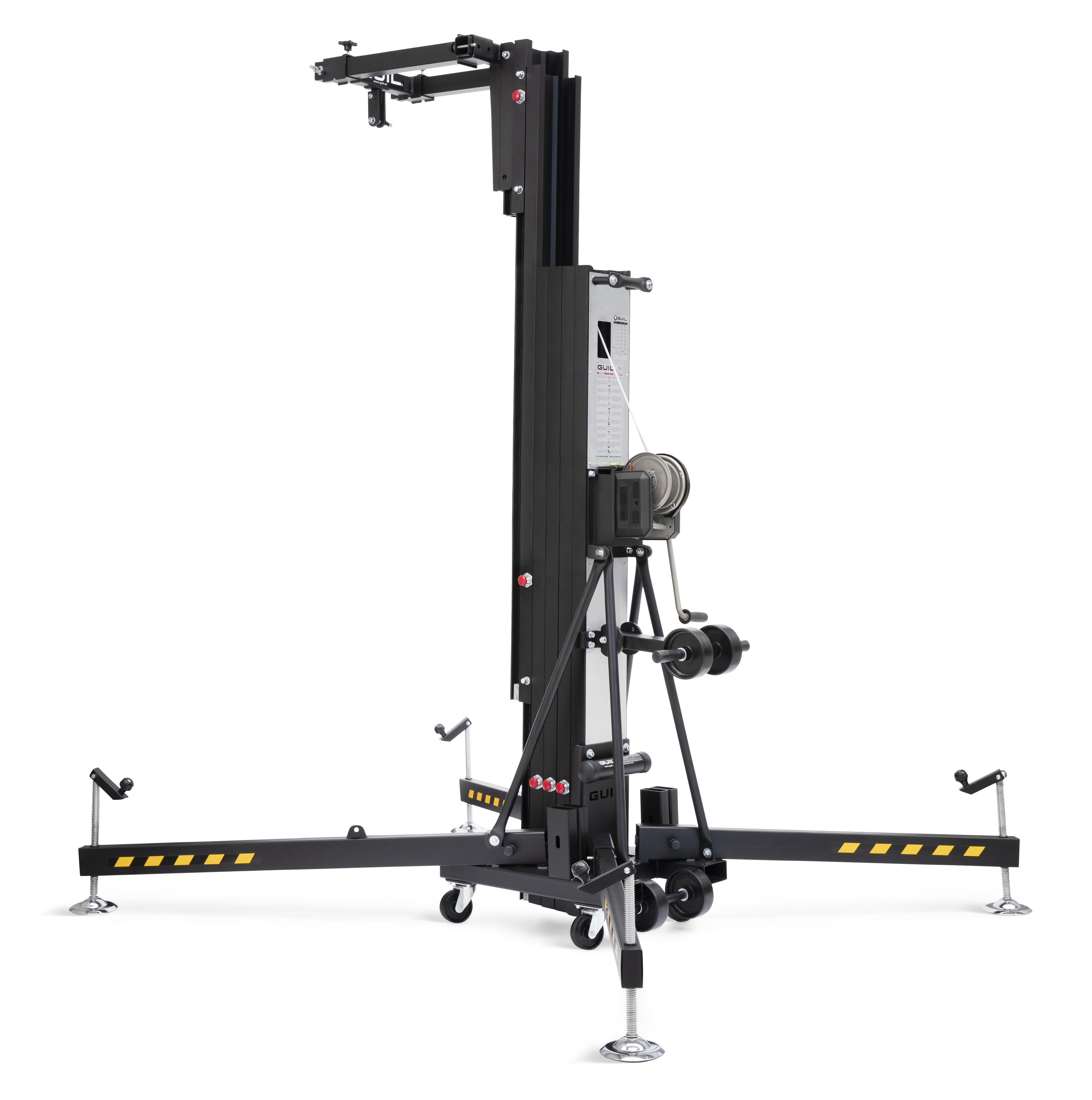

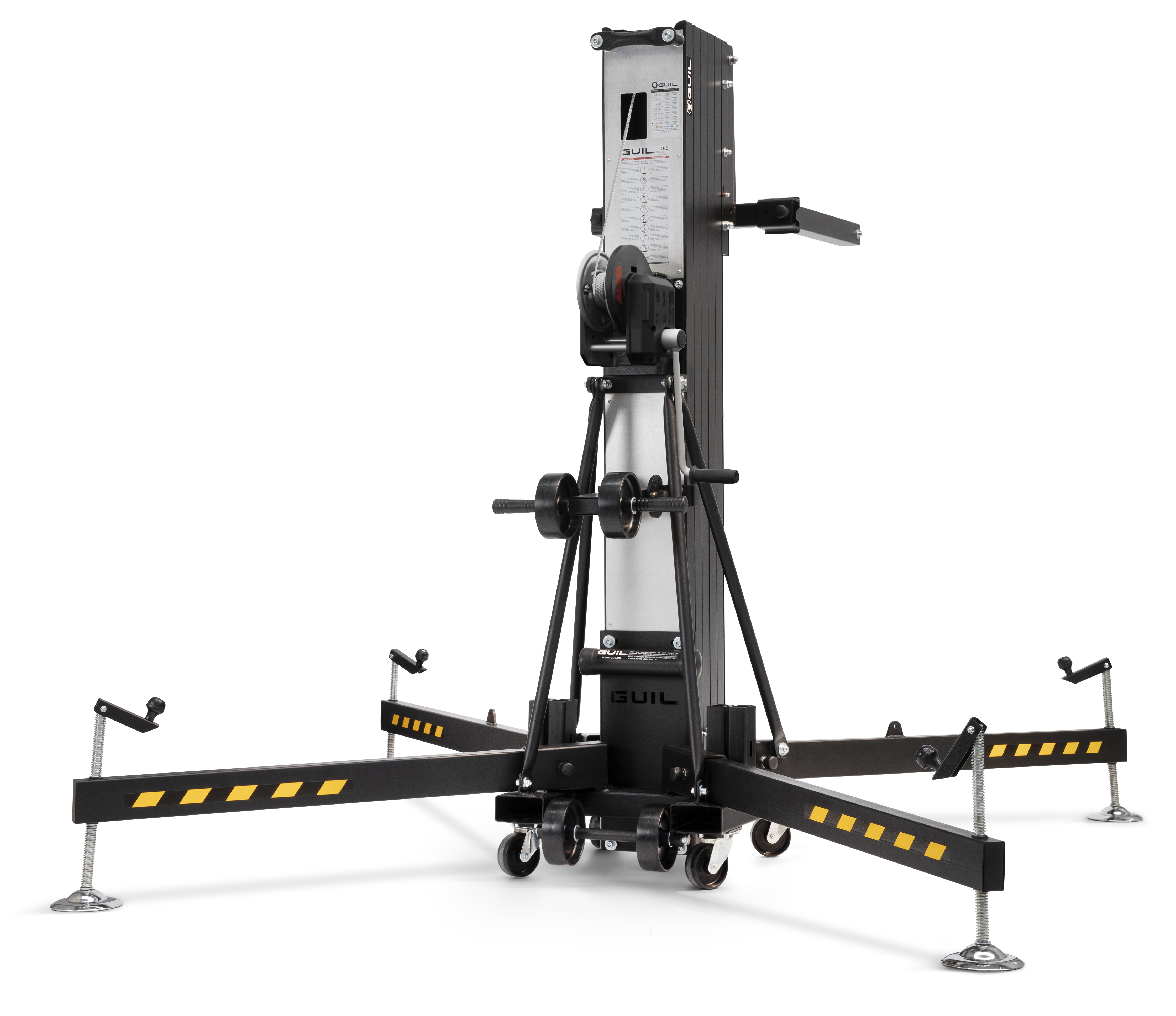

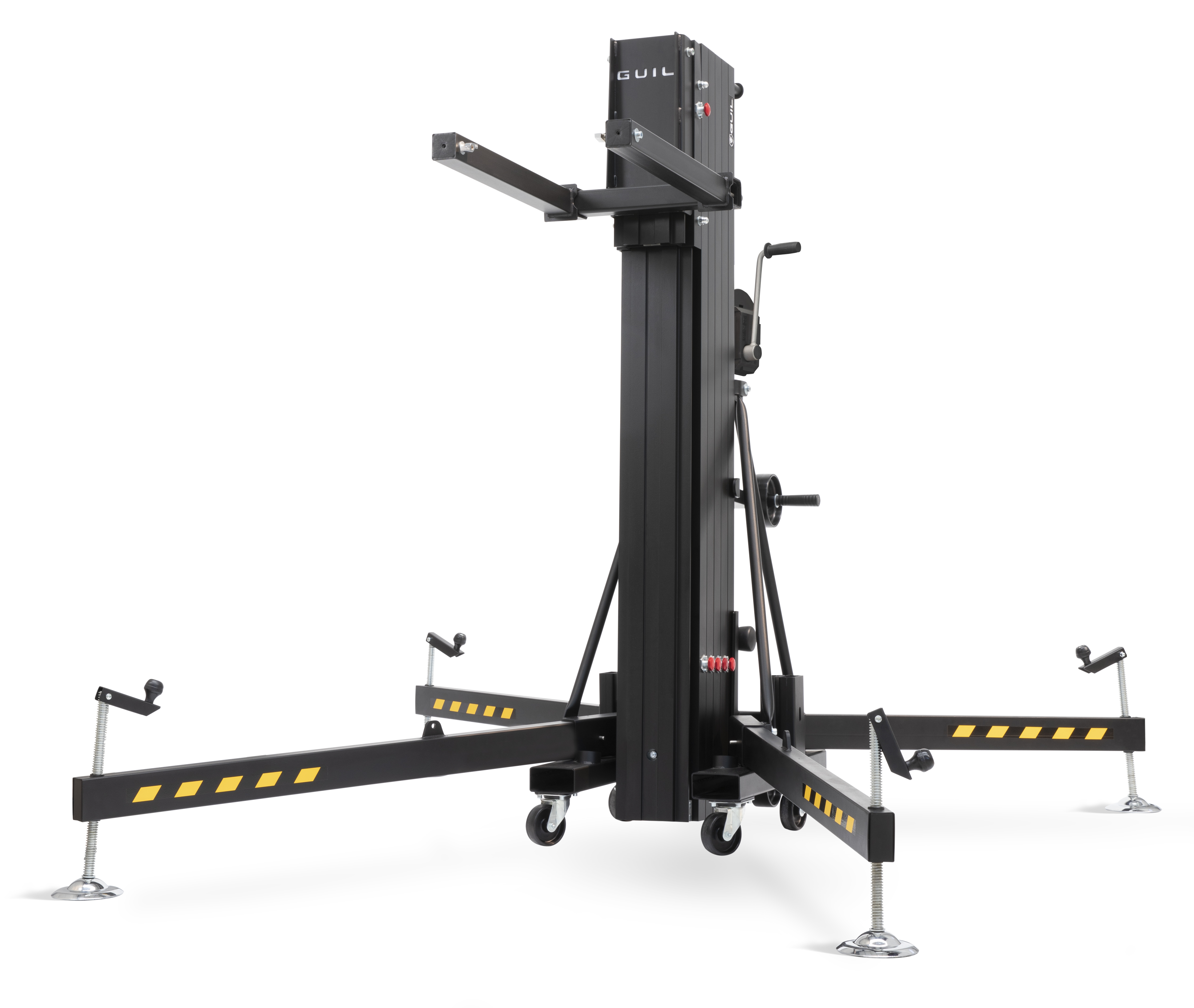

The ULK 800 is a powerful crane, developed to lift heavy loads up to 300 kg (661 lb) to a maximum height of 8 meters (26.25 ft). With its user-friendly and compact design combined with high resilience, the ULK 800 is a great addition for any type of event. This crane is particularly ideal for handling great heights and heavy loads, making it perfect for professional sound and light installations, both indoors and outdoors. With the ULK 800, you get a reliable and easy-to-use solution to handle your most demanding lifting needs.
Read more...

On order 1 week!

  • Phone number: 040-546511
  • E-Mail: contact@stagebrands.com
  • BrandGuil
  • ManufacturerGuil

Description

Article no.: ULK 800

Product information

ULK 800 - Lifting Tower for professional lifting

ULK Lifts meet current safety standards and guarantee maximum safety and durability. These cranes combine lightweight, robustness and maneuverability, making them ideal for lifting audio equipment.

With its easy handling and quick set-up, the ULK 800 is one of the most practical and functional lifts on the market.

Safety systems:

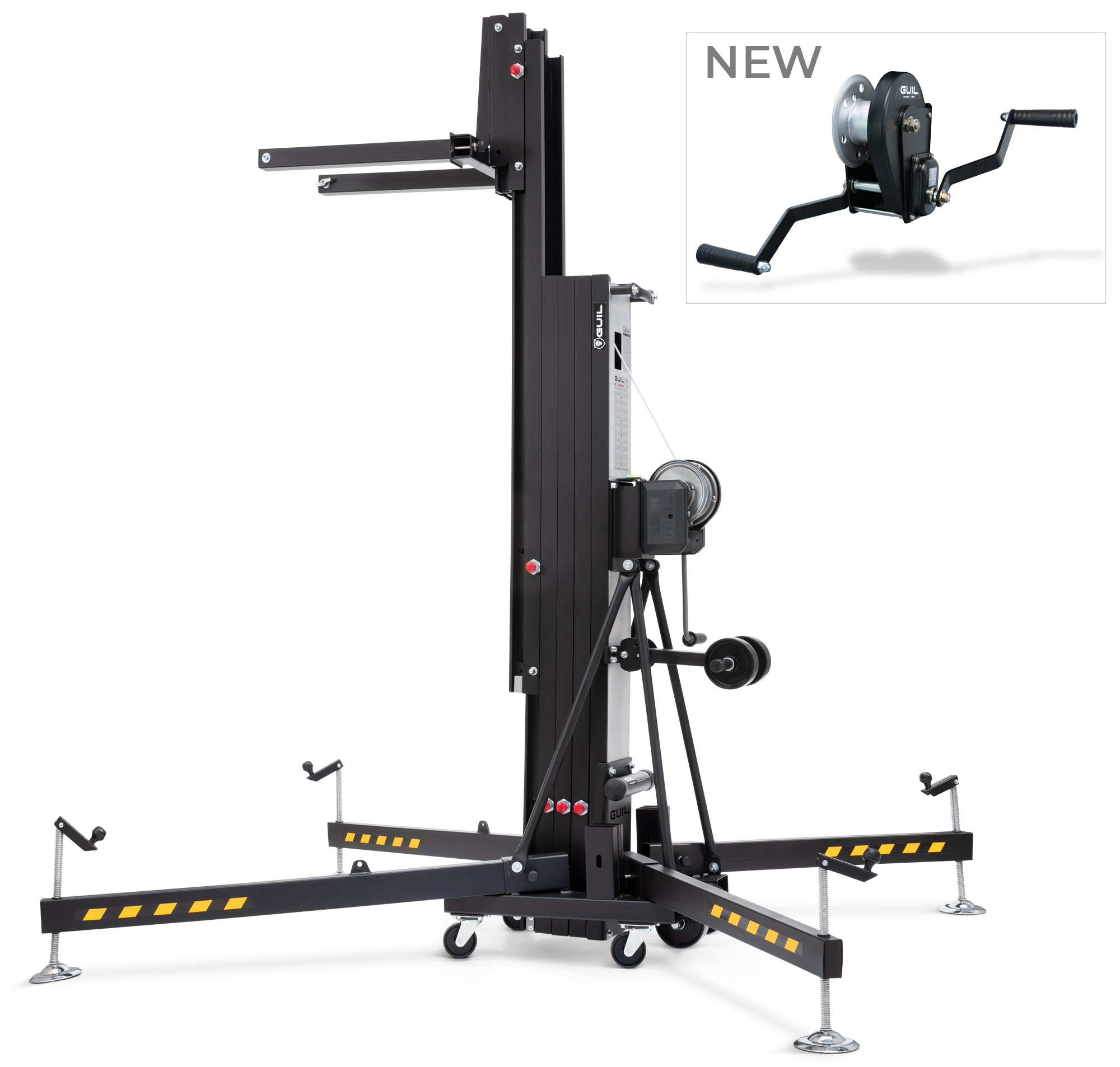

  • Brake Winch: Double handle with automatic braking system that holds the load in place when the handles are released.
  • ASB System: Safety knobs that allow blocking and unblocking of each mast section.
  • IPB System: Built-in pendulum braking system that automatically activates if the mast sections should suddenly fall, and can be easily unblocked with triggers on each profile.
  • MSU System: Mast Section Unblocking system that allows you to release the internal pendulum brake system without dismantling the tower.

Important: The lift should not be used as a crane to lift, support or transport people. For outdoor installations, the tower must be secured with harnesses, wires or ropes to prevent movement in windy conditions.

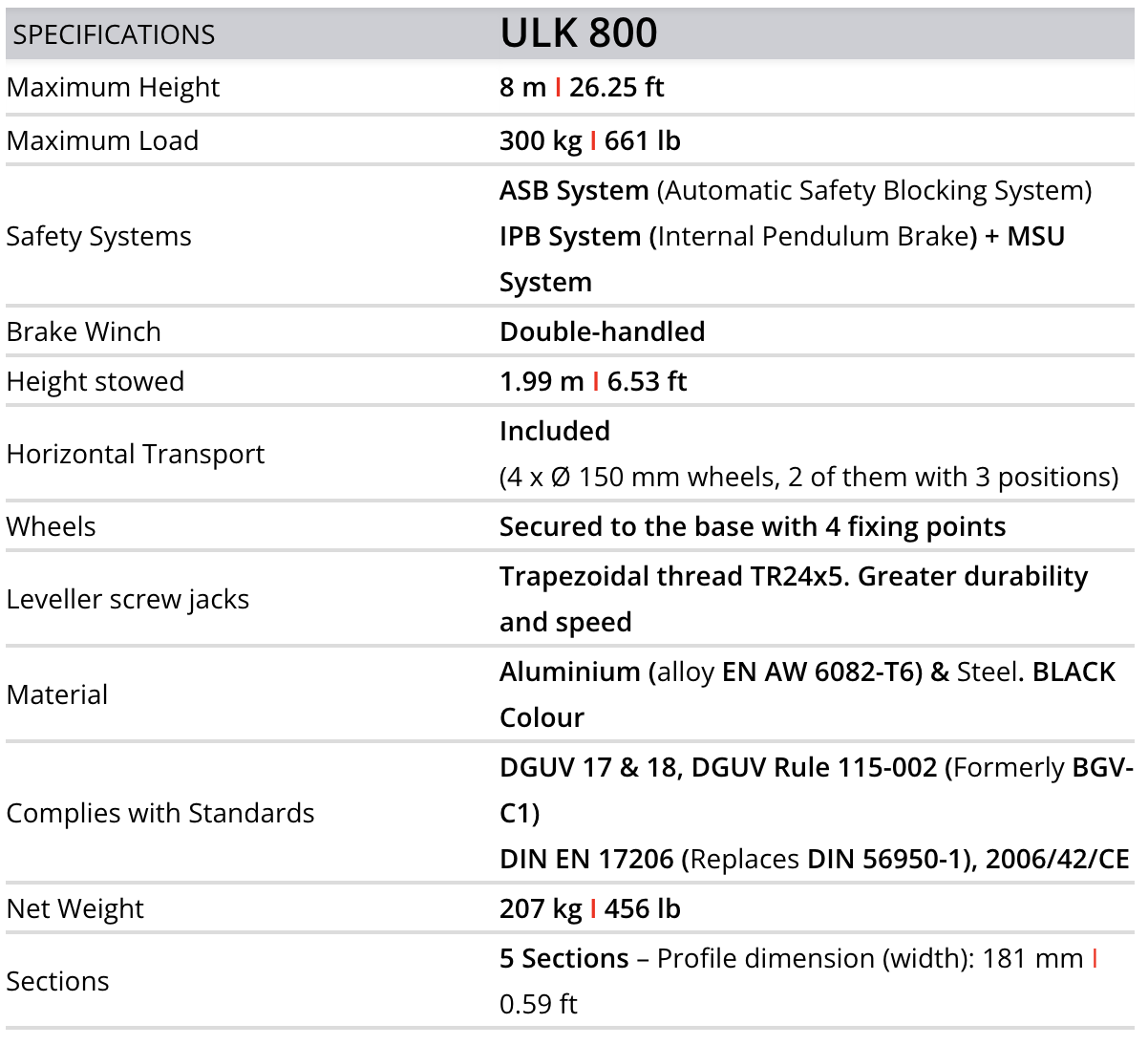

Specifications of the tower

  • Maximum Height: 8 m (26.25 ft)
  • Maximum Load: 300 kg (661 lb)
  • Safety Systems: ASB (Automatic Safety Blocking System), IPB (Internal Pendulum Braking System) + MSU System
  • Brake Winch: Double handle

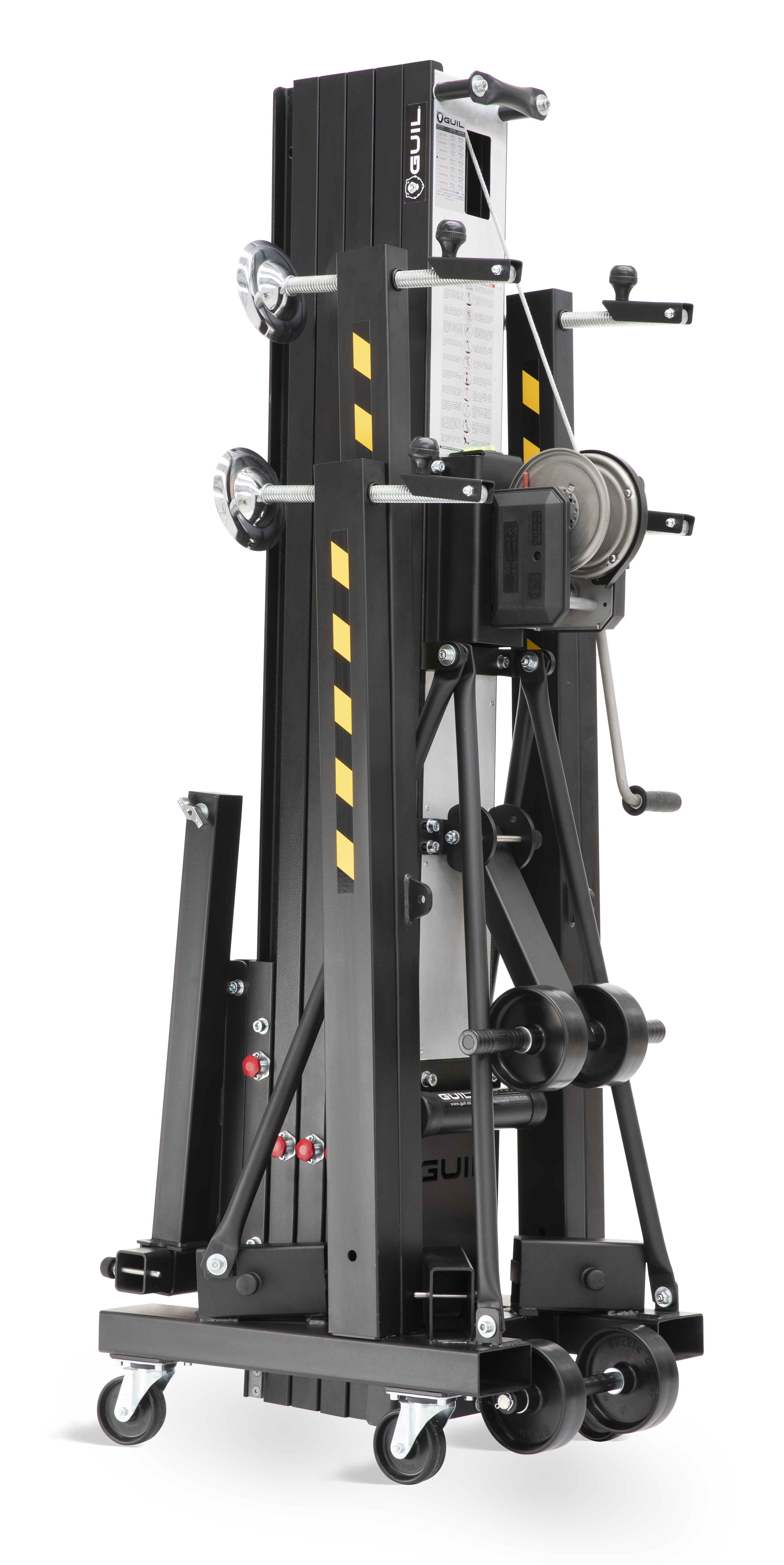

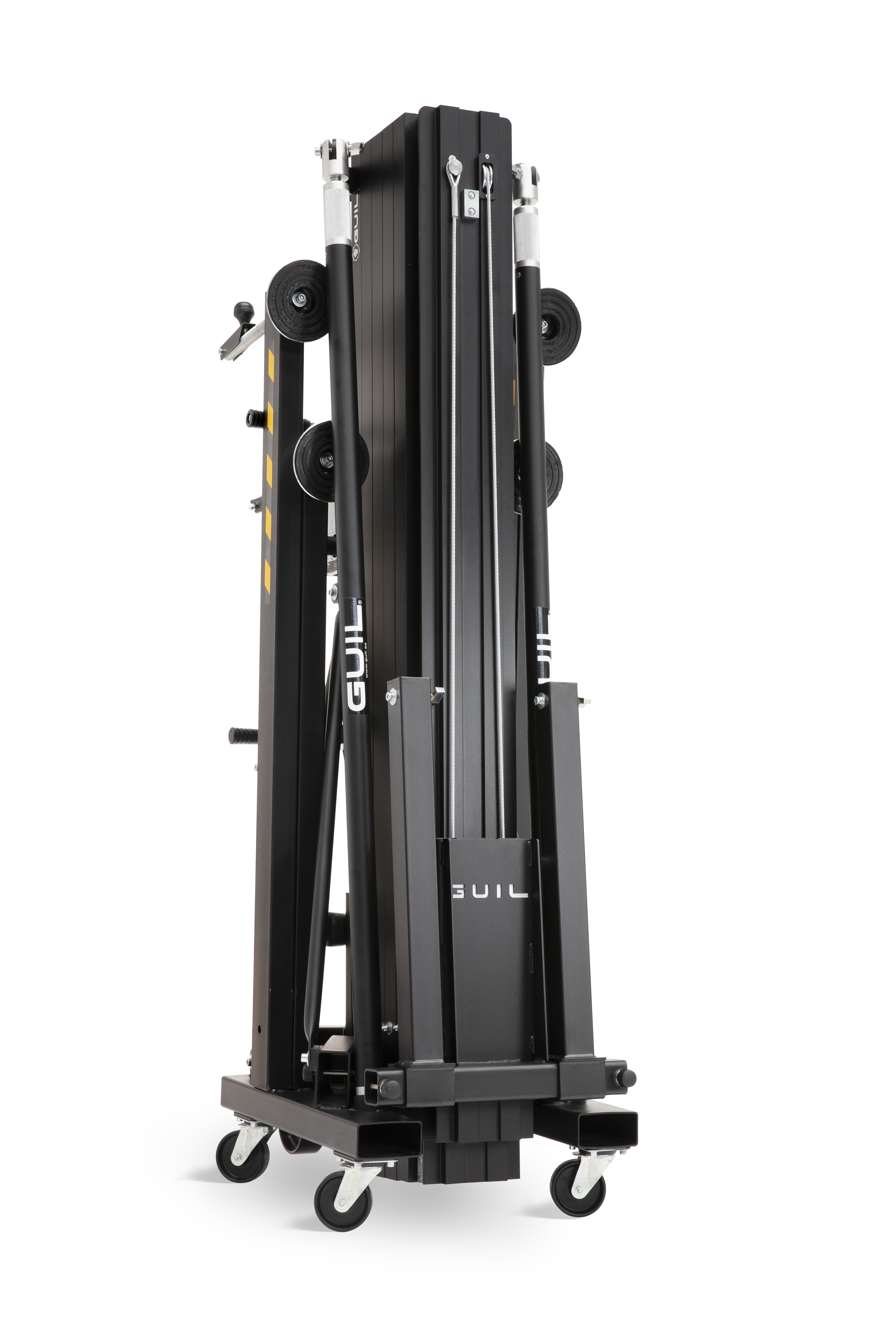

  • Stowed Height: 1.99 m (6.53 ft)
  • Horizontal Transport: Includes 4 wheels with Ø 150 mm, 2 of which with 3 positions
  • Wheels: Attached to the base with 4 fixing points
  • Adjustable Support Legs: Trapezoidal thread TR24x5
  • Material: Aluminum (EN AW 6082-T6) & Steel, black color
  • Complies with Standards: DGUV 17 & 18, DGUV Rule 115-002, DIN EN 17206, 2006/42/CE
  • Net weight: 207 kg (456 lb)
  • Sections: 5 sections - Profile dimensions (width): 181 mm (0.59 ft)
