ABZ-59/N

Name: ABZ-59/N
Brand: Guil
Availability: OutOfStock

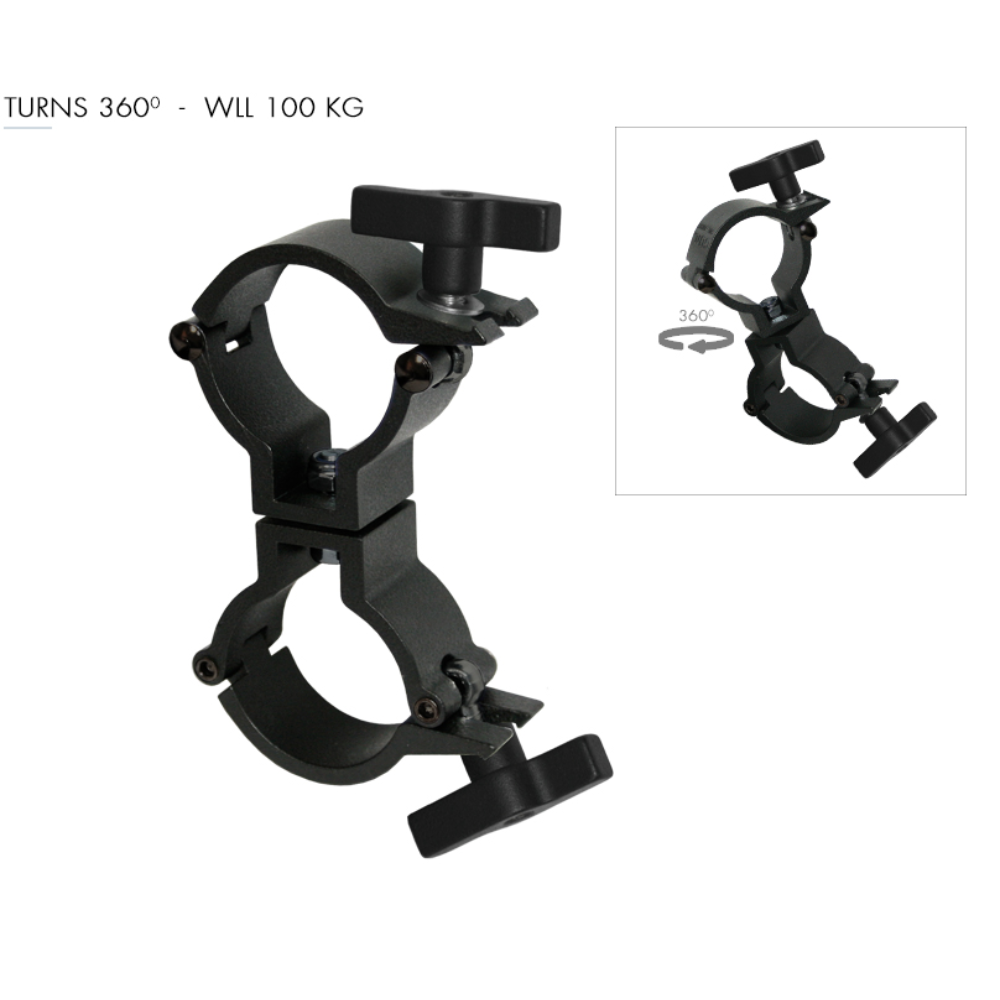

ABZ-59/N Swivel Coupler

Double Swivel Clamp Coupler - 360° Rotation - Black Finish

100 kg WLL

Application: Connecting two pipes/cables

Pipe diameter: Fits ropes/pipes Ø 48 to 51 mm

Maximum load (WLL): 100 kg

Flexibility: 360° swivel (parallel, perpendicular, etc.)

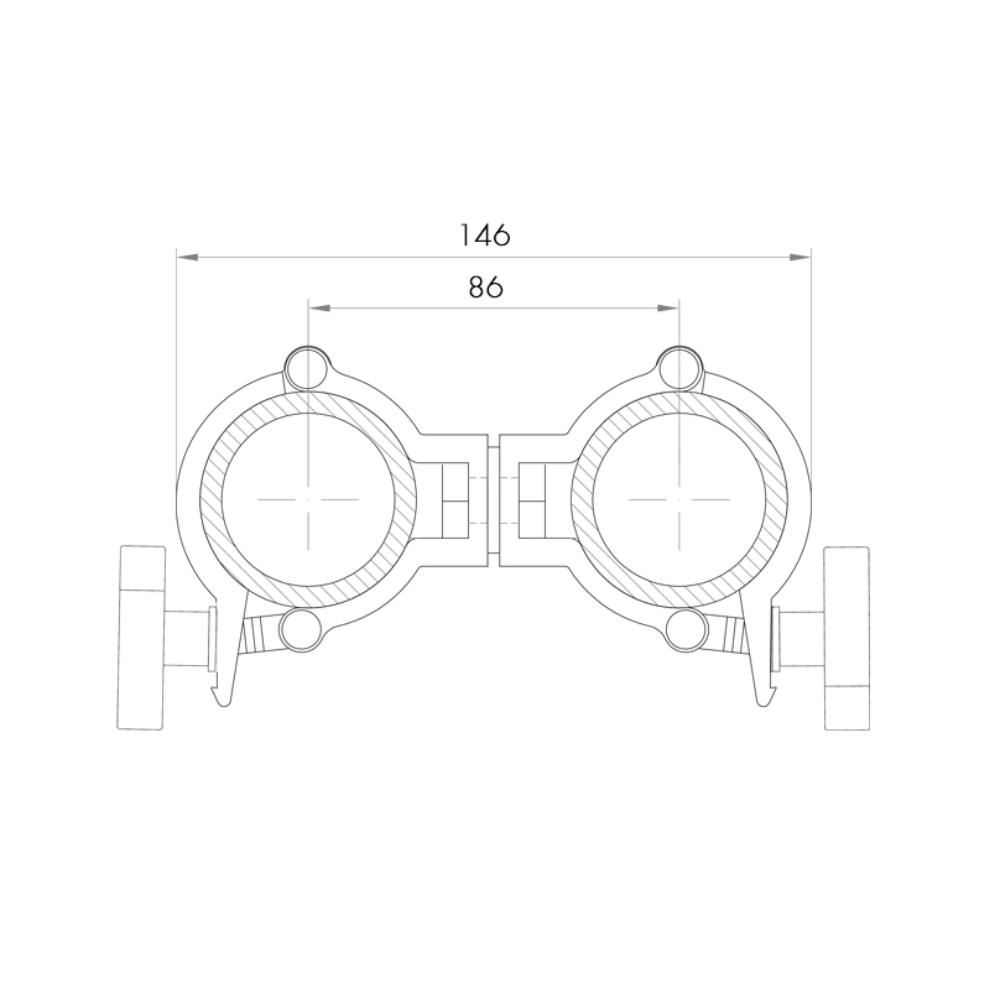

Pipe CC dimension: 86 mm (pipe center to pipe center)

Modularity: Can be split into two separate clamps

Material: Aluminum

Color: Black finish (Black Finish)

Net weight: Extremely lightweight (0.24 kg)

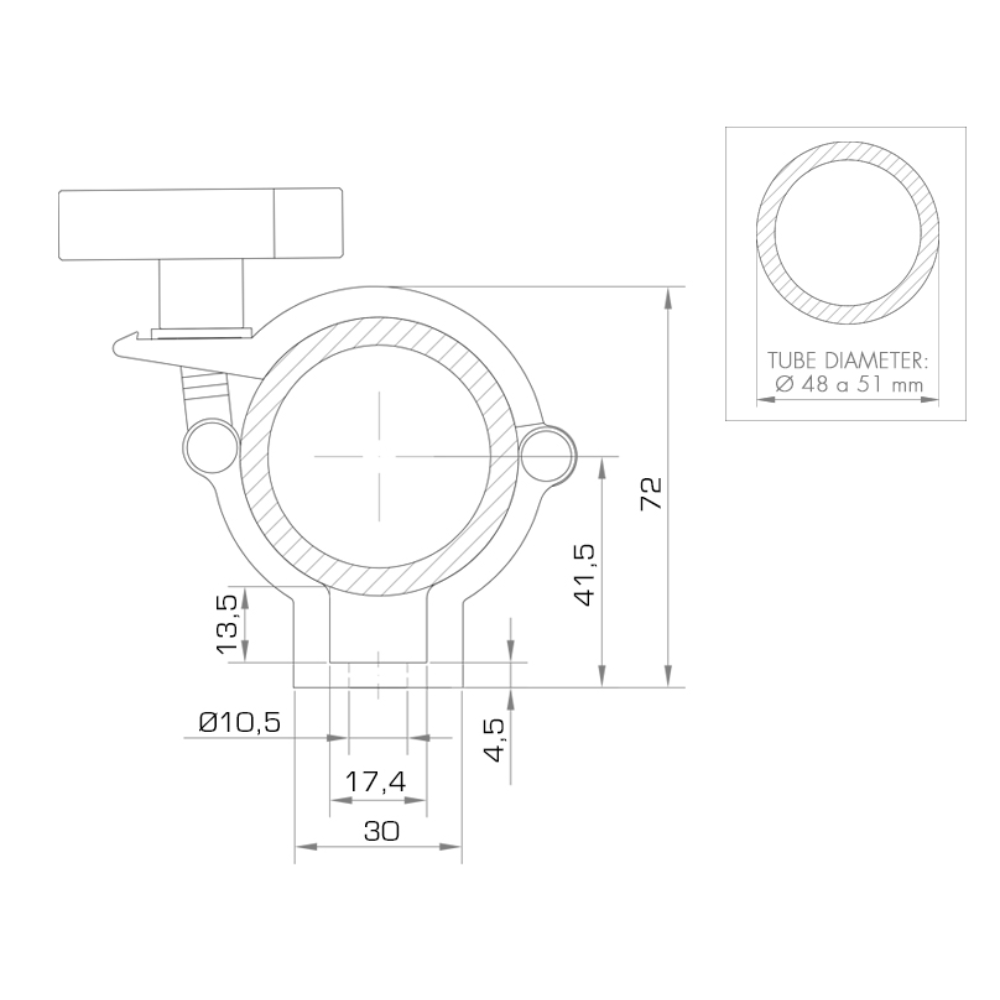

Dimensions & Details: Model: ABZ-59/N Pipe compatibility: 48-51 mm Clamp width: 30 mm

The ABZ-59/N is a highly versatile, black anodized aluminum, double swivel panty coupler. By simply loosening the central M8 screw, the clamps can also be separated and adapted with eye nut or bolt for free-standing installation.
