Coupler for Ø 45-52 mm tubes / 750 kg

Name: Coupler for Ø 45-52 mm tubes / 750 kg
Brand: Guil
Availability: OutOfStock

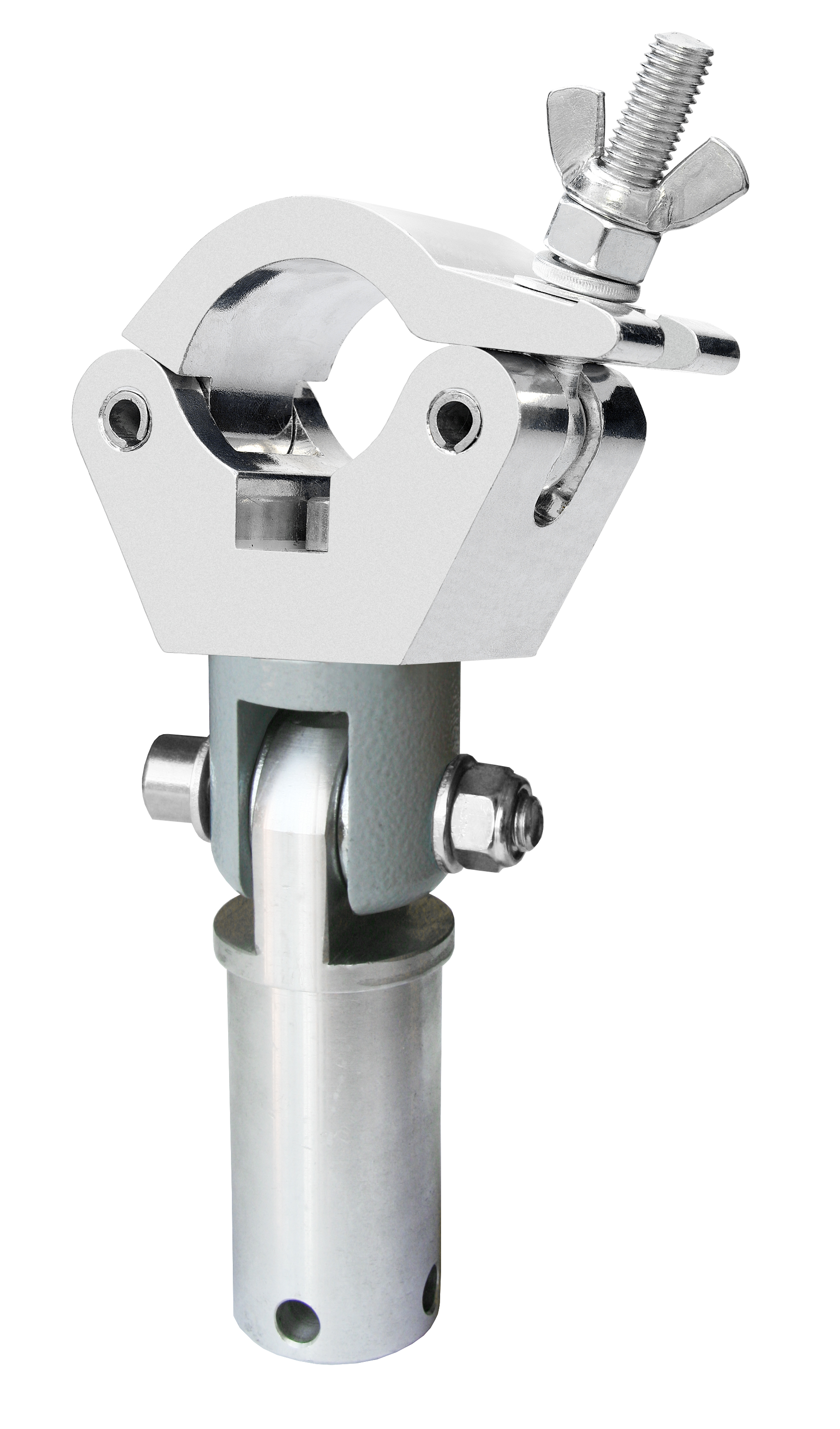

ABZ-31 stabiliser coupler is an aluminum connector with a 45 mm solid hinge that can rotate 360º. It provides 180º articulation between two tubes and is designed for use with tubes that have an external diameter of 45 to 52 mm.

Product Information

The coupler features a double locking system with a nut and wing nut, making it ideal for demanding setups such as events, theaters, and live shows where stringent safety requirements must be met. Thanks to its design, the coupler can rotate 360º. It is robust and versatile, used in the entertainment industry, theater, and construction.

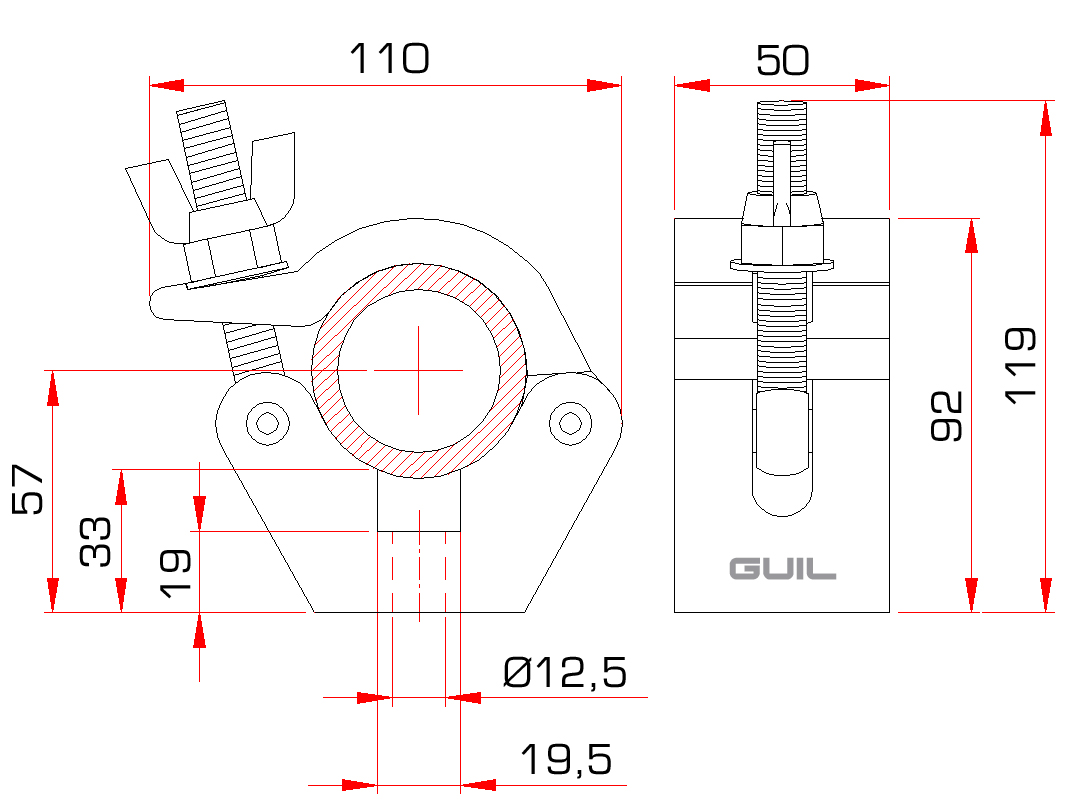

Specifications

Maximum load: 750 kg
Coupler for tube diameter: 45 to 52 mm
Width: 50 mm
Fixings: M12 x 50 with wing nut and washer
Shank plug adaptor: Ø 45 mm (with Ø 11 mm hole)
Color: Aluminum
Material: Aluminum
Net weight: 2.30 kg
