Coupler with conical adaptor for trusses / Ø 45-52 mm pipe / 300 kg

Name: Coupler with conical adaptor for trusses / Ø 45-52 mm pipe / 300 kg
Brand: Guil
Availability: OutOfStock

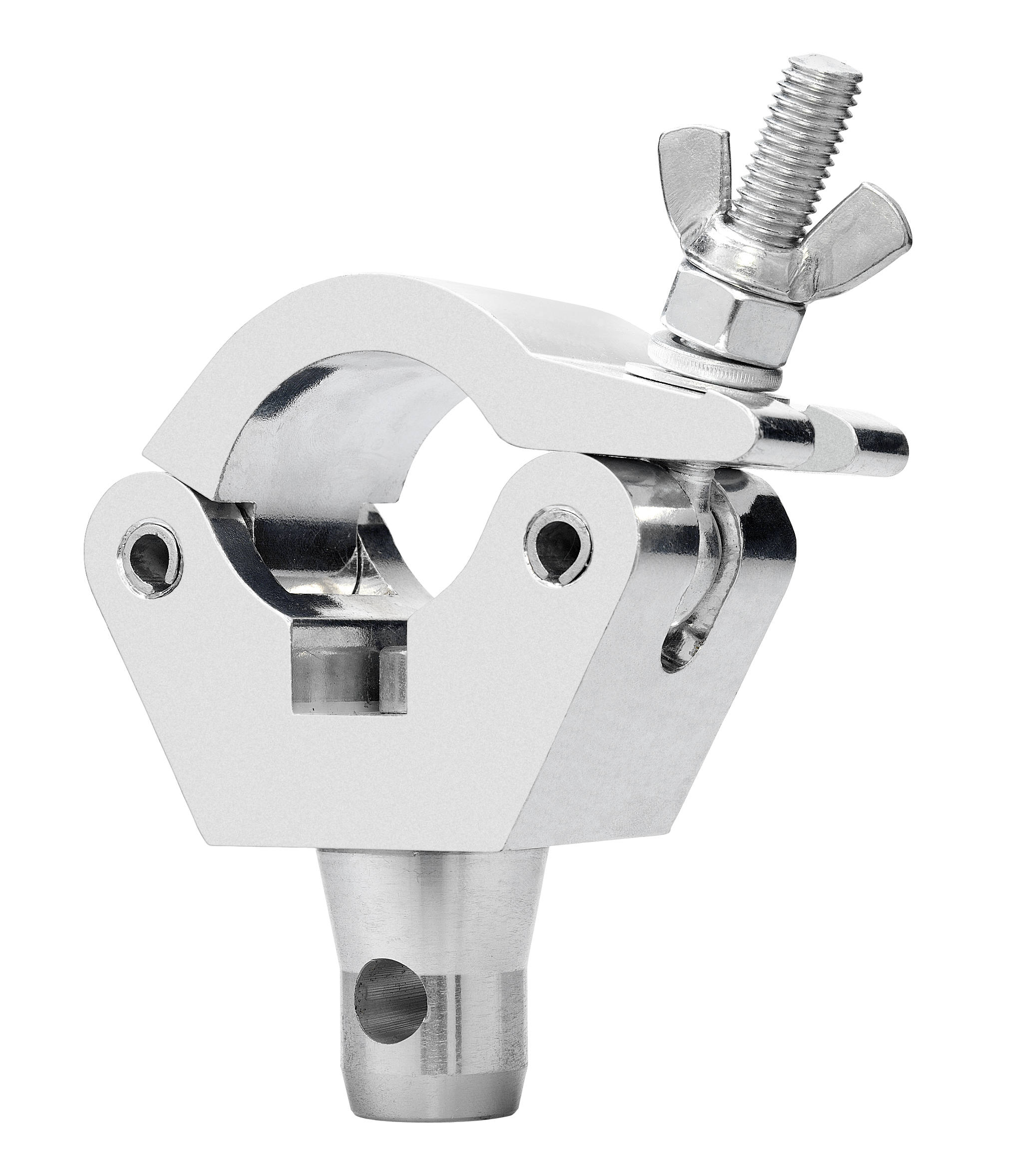

Aluminum clamp bracket with conical adapter (solid aluminum) to be attached to trusses. It is compatible with GUIL square truss (ref. TQN). The tapered adapter fits into the truss connection allowing the truss to be installed in multiple positions.

Product information

Designed to be used on trusses/pipes with an outer diameter from 45mm to 52mm. Double locking system with nut and wing nut which makes it the right connection for the most demanding setups such as in theatres, live shows, events etc. where the strictest safety requirements must be met.

This clutch has the same design as ref. ABZ-13 but thinner (30 mm), which makes it particularly suitable for installations where the space on the pipe where the coupling is to be mounted is limited.

By removing the tapered adapter and adding a wing nut and bolt, an eye nut, a second clamp (turning it into a swivel coupling) or some other fixture, it can be used for other functions.

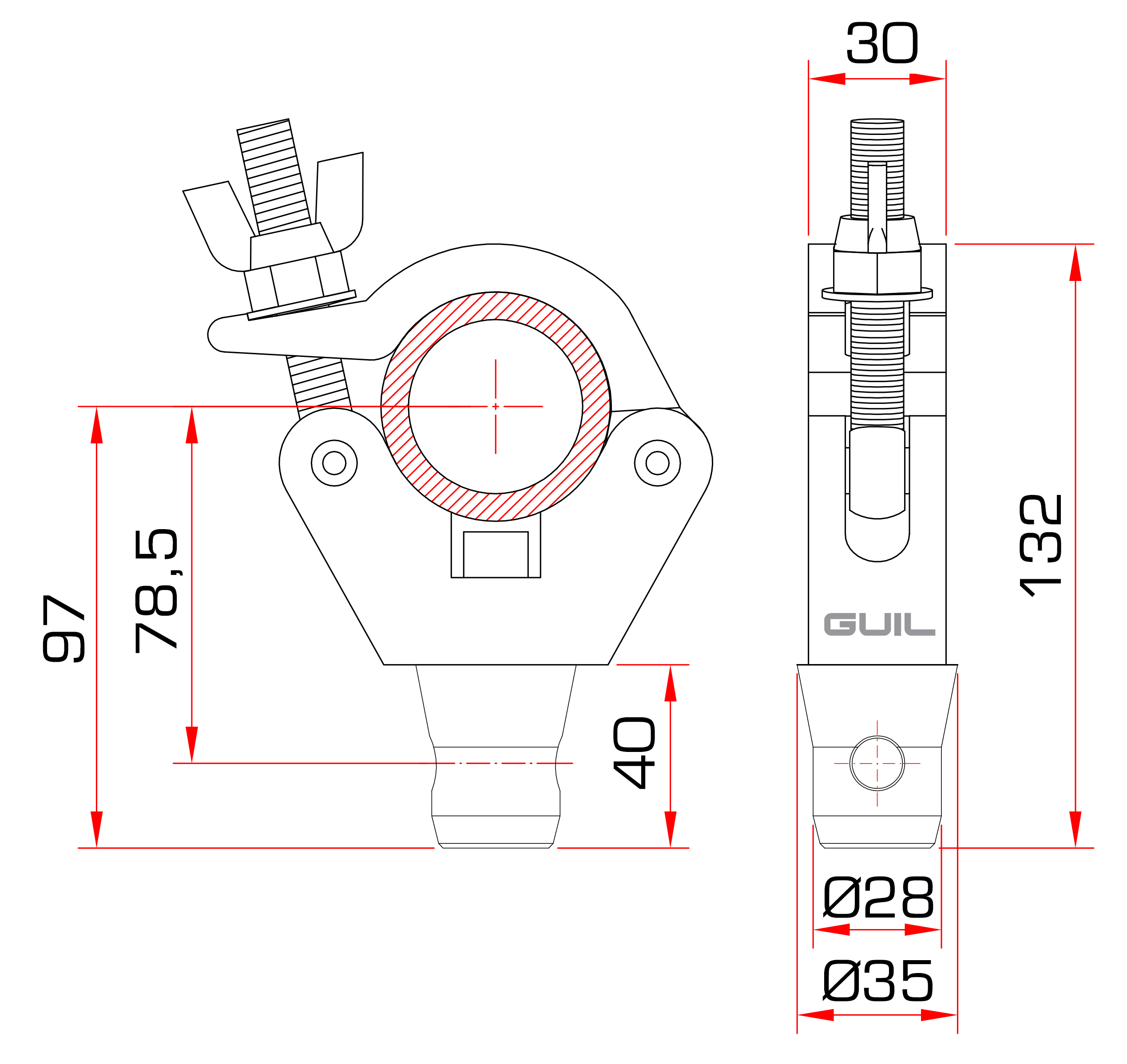

Specifications

Maximum load: 300 kg
For pipe diameters: 45 to 52 mm
Width: 30 mm
Fixing: Conical adapter for trusses Ref. TQN
Material: Aluminum
Colour: Aluminum
Net weight: 0.53 kg
