GUIL

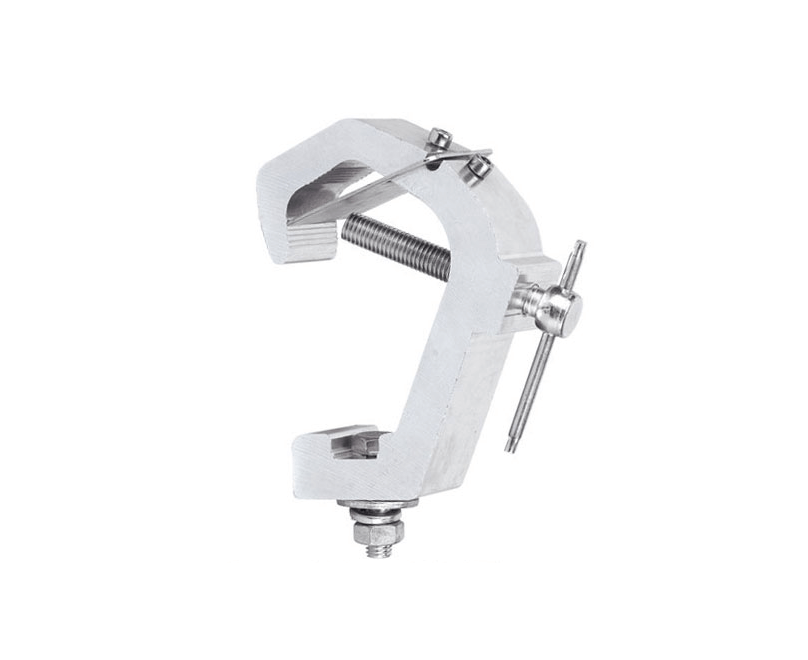

Coupler with protective plate for Ø 30-50 mm tubes / 250 kg
Aluminium hook clamp with protective mounting plate to avoid marking the truss/tube. To be used for vertical loads only. It comes with a bolt, washer, and nut to secure spotlights, electronic devices, etc.
- Phone number: 040-546511
- E-Mail: contact@stagebrands.com
- BrandGuil
- ManufacturerGuil
Description
Article no.: ABZ-14
Product Information
The clamp is easy to use and has an excellent design for securely attaching lights to trusses/tubes with an external diameter from 30 mm to 50 mm.
Our hook clamp ref. ABZ-14 has a high-quality finish, making it the most attractive option for installations where both elegance and strength are key factors.
Made from a 40 mm x 14 mm aluminium bar, it is very strong and robust, making it an indispensable clamp for touring events where it is frequently installed and removed, as well as for fixed installations.
Specifications
- Maximum Load: 250 kg

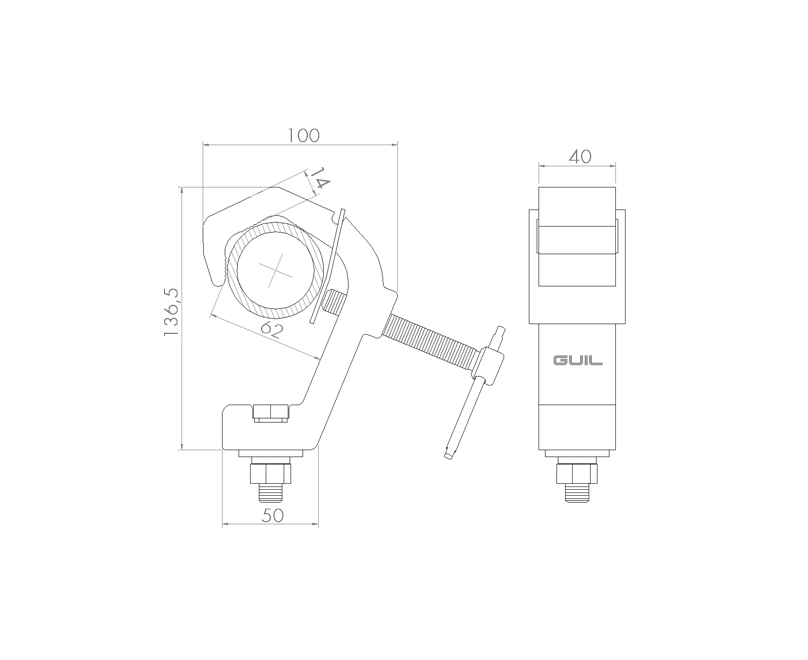

- Dimensions: 100 x 136.5 mm
- For Tube Diameters: 30 – 50 mm
- Flat Metal Bar: 40 x 14 mm
- Fixings: M10 x 35 mm
- Pressure T-bar Screw: M12 x 60 mm
- Color: Aluminium
- Material: Aluminium
- Net Weight: 0.59 kg
