Half coupler for Ø 45-52 mm tubes / 500 kg

Name: Half coupler for Ø 45-52 mm tubes / 500 kg
Brand: Guil
Availability: OutOfStock

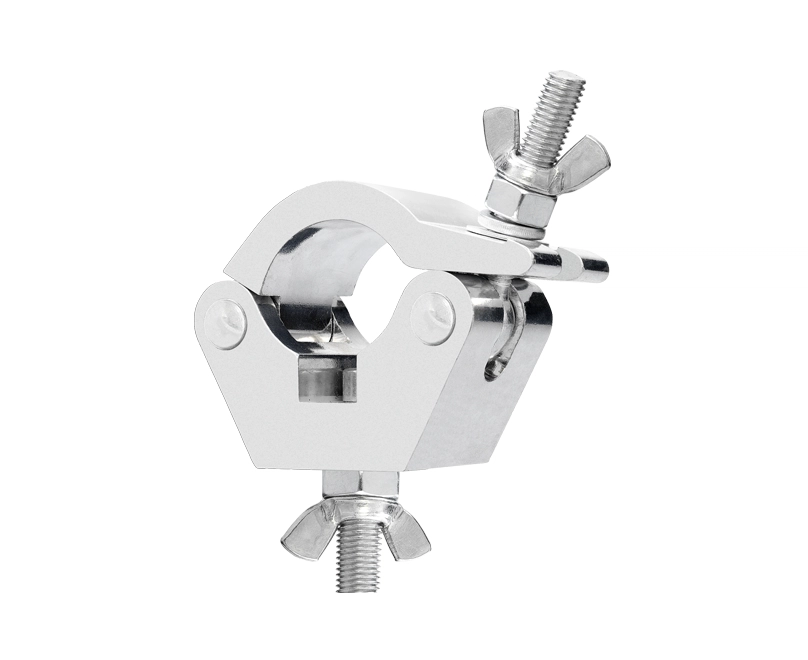

Aluminum half coupling for heavy loads (500 kg), equipped with bolt and wing screw to secure spotlights, electronic devices and more. Designed for use on truss and pipes with an outer diameter from 45 mm to 52 mm.

Product information

This coupling has a double locking system with nut and wing screw, making it ideal for the most demanding installations such as at events, theater performances and live shows, where the strictest safety requirements must be met.

Thanks to being thinner than ref. ABZ-03, this coupling is more suitable for larger installations where space for mounting the clamp is limited.

Our practical and versatile clamp coupling ref. ABZ-35 is used in many fields: entertainment industry, theater, construction and more. It combines strength and durability with high safety.

It can also be adapted for other functions by replacing the bolt and wing screw with a loop or an additional clamp (to convert it into a swivel coupling) or other attachments.

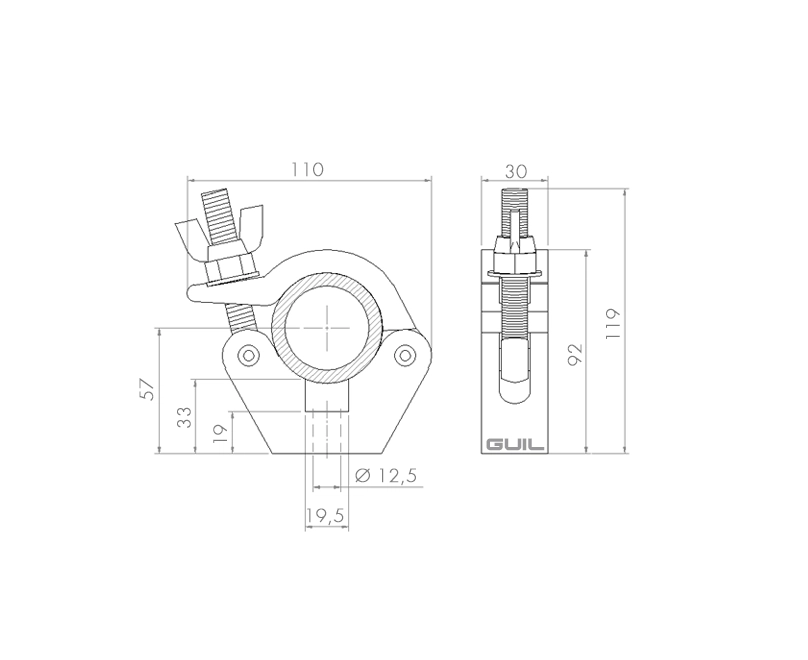

Specifications

Maximum load: 500 kg
For pipe diameters: 45 to 52 mm
Width: 30 mm
Material: Aluminum
Color: Aluminum
Net weight: 0,48 kg
