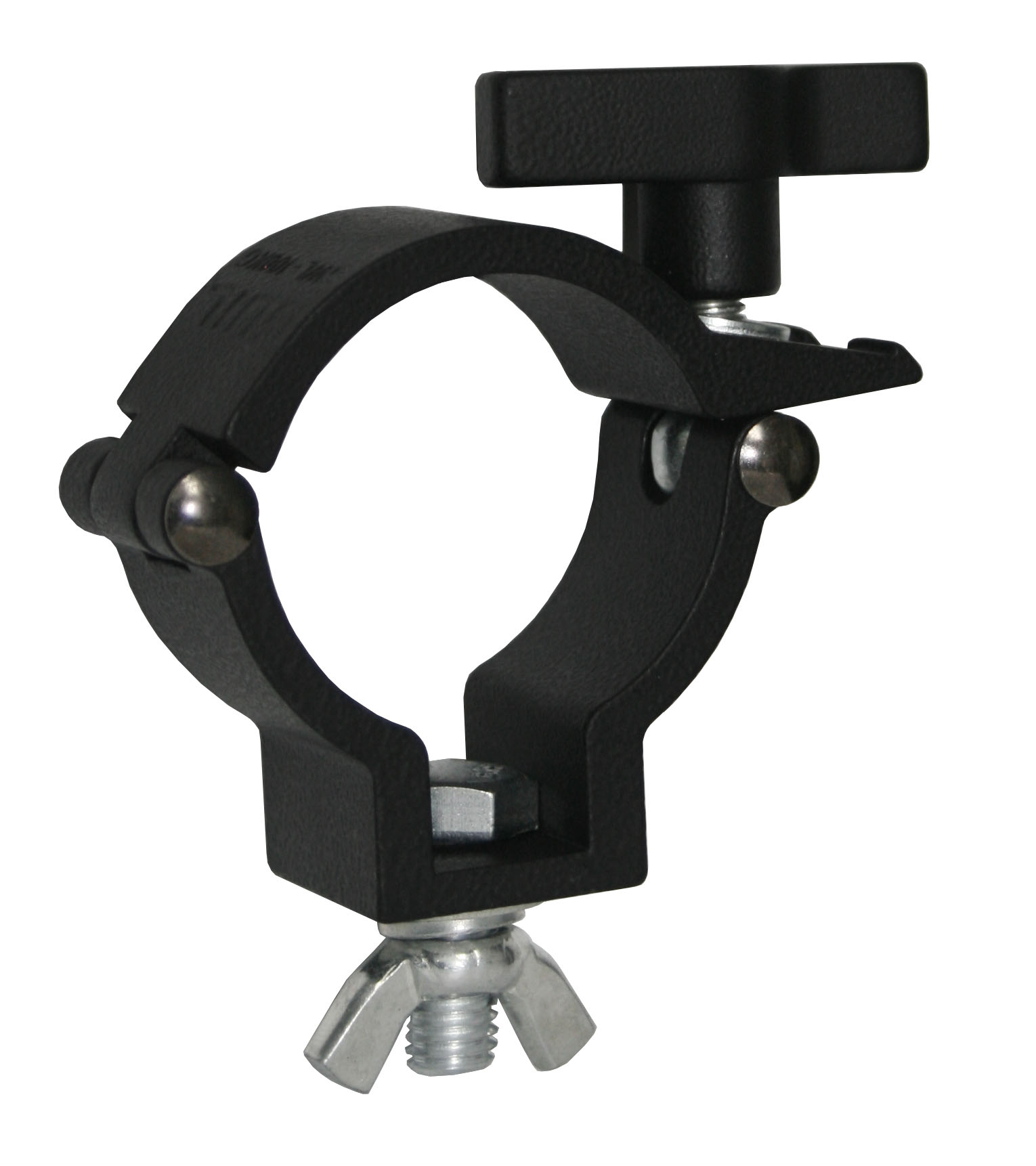

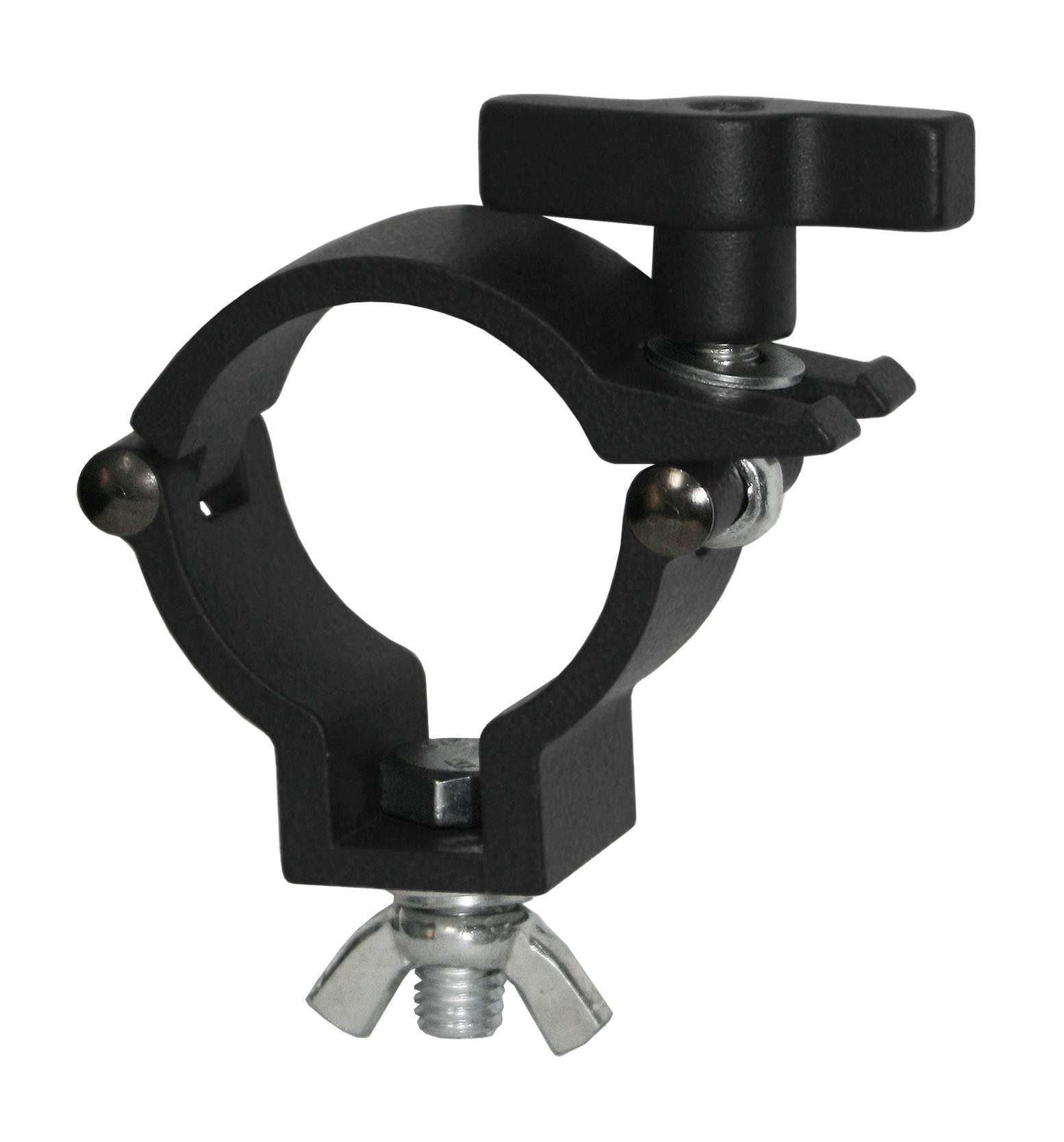

Half coupler for Ø 48-51 mm tubes / 100 kg

Name: Half coupler for Ø 48-51 mm tubes / 100 kg
Brand: Guil
Availability: OutOfStock

Lightweight aluminum coupling for loads up to 100 kg, equipped with an ergonomic screw knob, bolt and wing screw to secure spotlights, electronic devices and more. It is designed to be used on truss and pipes with an outer diameter from 48 mm to 51 mm.

Product information

The ergonomic screw knob makes installation quicker and easier, thanks to the larger knob that facilitates tightening.

This practical and versatile coupling is used in several fields, such as the entertainment industry, theater and construction. It combines strength and durability with a high level of safety, making it ideal for tasks that require a reliable lightweight coupling.

Our coupling ref. ABZ-53/N can also be adapted for other functions by replacing the bolt and wing screw with a loop or an additional clamp (to convert it into a swivel coupling).

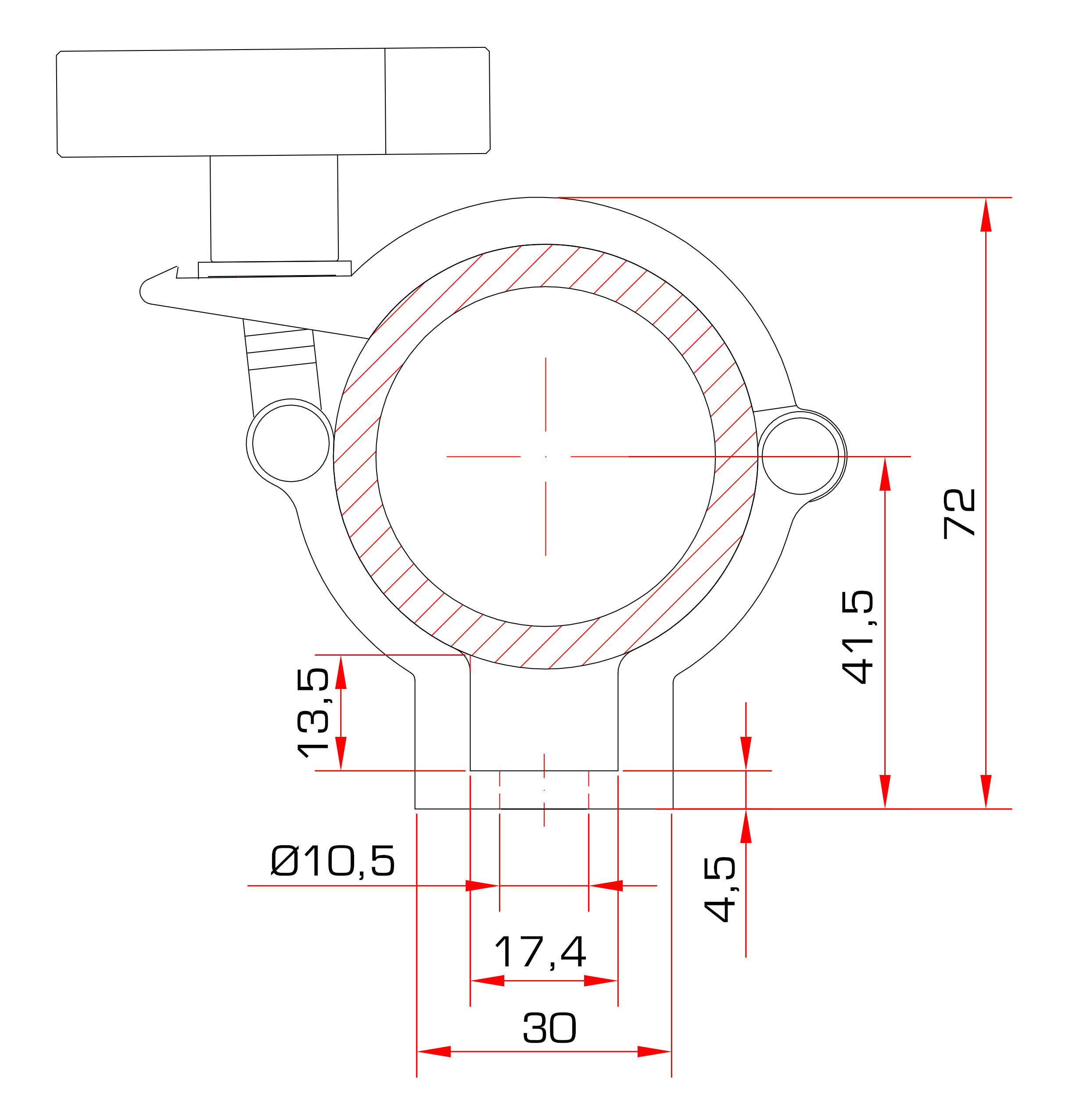

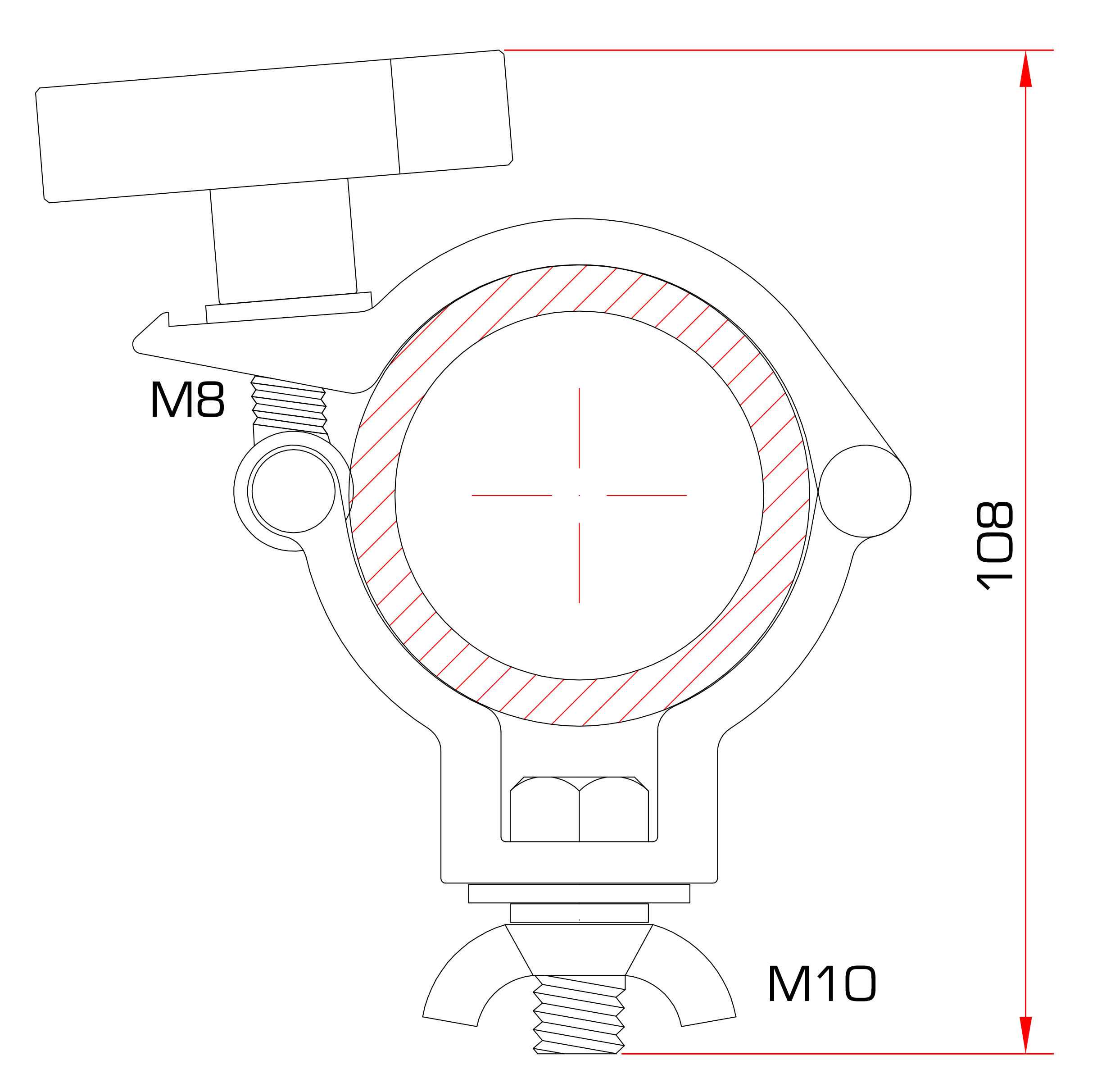

Specifications

Maximum load: 100 kg
For pipe diameter: 48 to 51 mm
Width: 30 mm
Fasteners: M10 x 30 mm with wing screw and washer
Material: Aluminum
Color: Black
Net weight: 0,17 kg
