GUIL

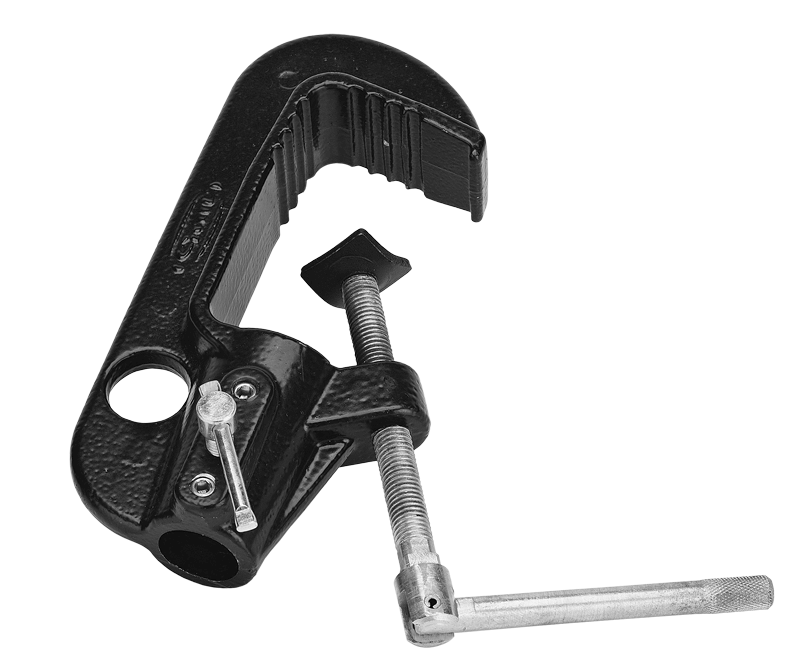

TV hook clamp for round and square tubes / 300 kg
Aluminium TV hook clamp with a receiver of Ø 29 mm, for spigots from 18 mm to 30 mm (pressure screw: M10 x 30). The ABZ-16 Pipe clamp is the perfect accessory for the TV, Film, and Theatre industries. It combines strength and durability with a high level of safety. Maximun load: 300 kg.
- Phone number: 040-546511
- E-Mail: contact@stagebrands.com
- BrandGuil
- ManufacturerGuil
Description
Article no.: ABZ-16
Product Information
The special design allows this sturdy clamp to be fitted onto both square tubes from 20×20 mm to 70×70 mm and round tubes from 18 mm to 80 mm. The bottom socket has three fixtures to secure the spigot. The hook has a handy hole to secure a safety sling. Made with injection moulded aluminium with a special black anti-scratch paint finish.

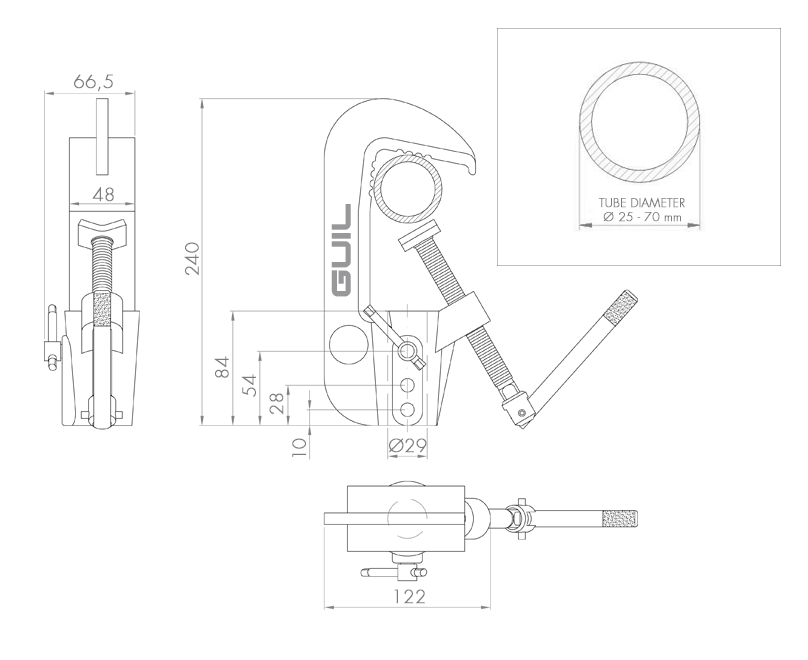

Specifications
- Maximum Load: 300 kg
- Dimensions: 48 x 240 mm
- For Square Tubes: 20×20 mm to 70×70 mm
- For Round Tubes: Ø 18 mm to Ø 80 mm
- Receiver: Ø 29 mm
- Screw Plug: M14 x 115
- Colour: Black
- Material: Aluminium
- Net Weight: 1.13 kg
