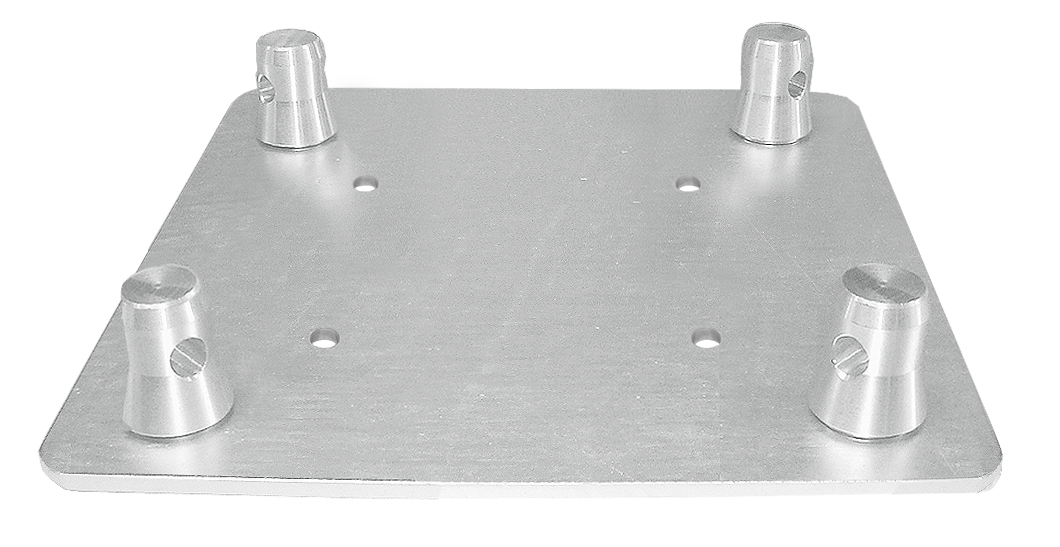

Aluminum base plate for square traverse / 29.2 x 29.2 cm

This base plate not only protects the floor where the truss is set up, but also the truss itself as it rests on it. The base plate can be fixed to the floor to set up trusses in a vertical position or on the wall and serves as a base for truss columns, totems or as a top base for luminaires.

The TQN290-D/G base plate is an ideal accessory for creating truss structures for trade fair stands, exhibitions and presentations.

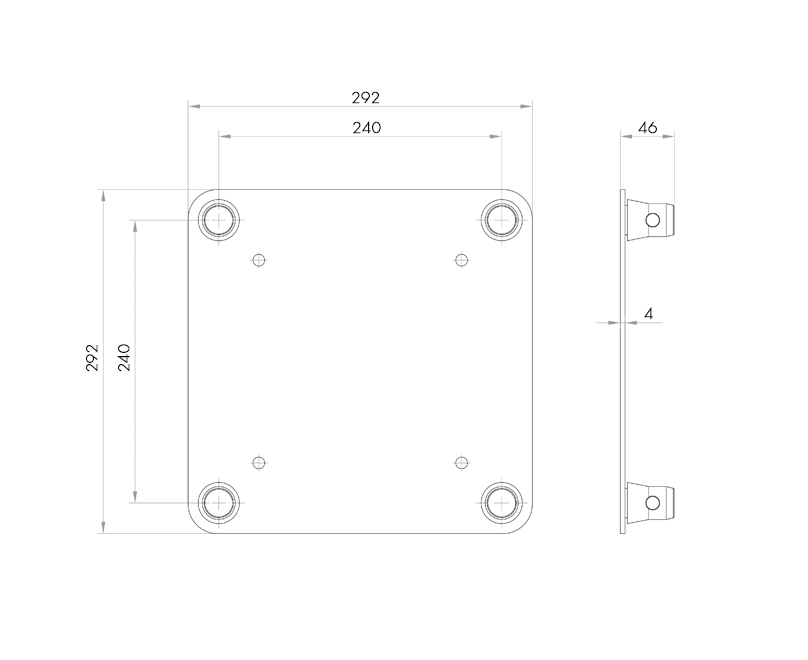

Dimensions: 292 x 292 x 4 mm

Connectors: UTR-06 (included)

For Truss: Square Truss ref. TQN290

Material: Aluminum

Net weight: 1,65 kg

The base plate can be mounted in the floor to stabilize trusses in vertical position or on wall. It serves as a base for columns, totems or as a top base for luminaires. For outdoor use, the structure should be secured with rope or wire to prevent movement in case of wind.
