Steel plate for square brace / 99 x 33 cm

Name: Steel plate for square brace / 99 x 33 cm
Brand: Guil
Availability: OutOfStock

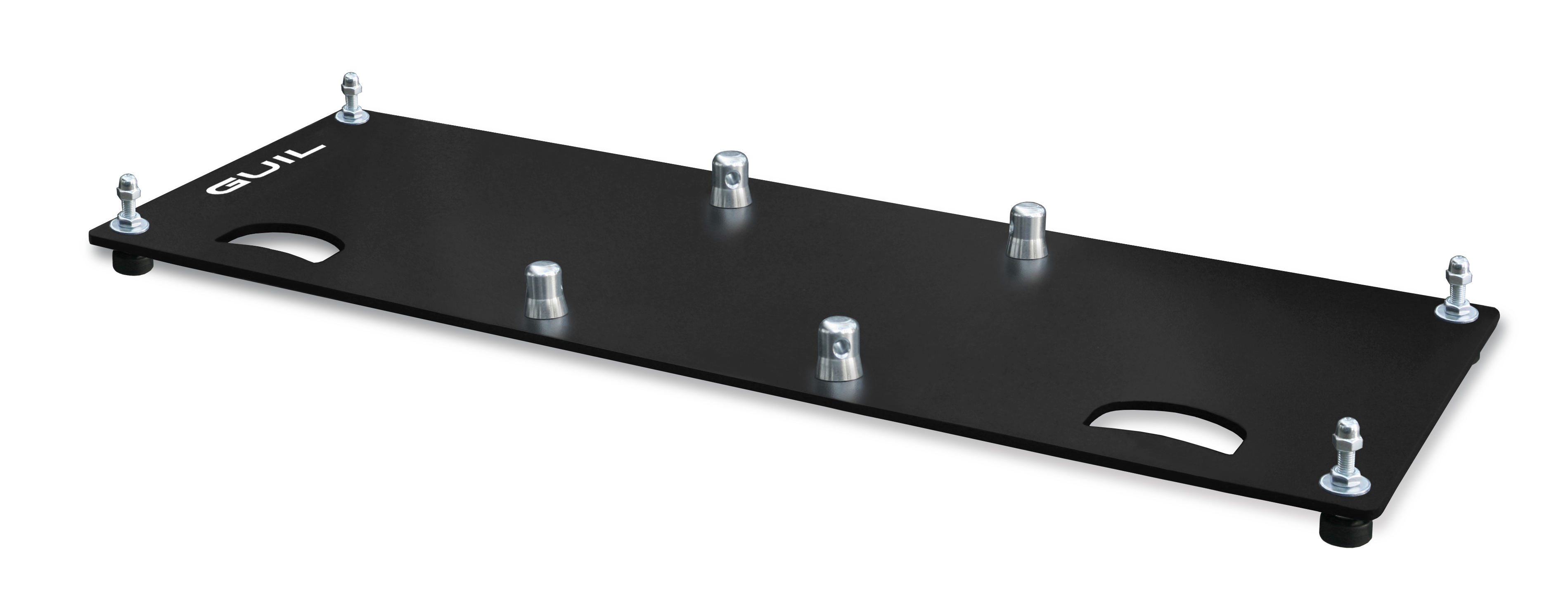

This 990 x 330 mm steel base plate with a thickness of 8 mm is designed for square truss model TQN290. Made of black painted steel, the plate offers both durability and an aesthetically pleasing appearance. It is equipped with a handle for easy transportation and rounded edges to prevent damage.

Product information

The base plate is supplied with four conical couplers ref. UTR-06, made of solid aluminum, ensuring a quick and reliable assembly. To optimize stability and adapt the height of the plate on uneven surfaces, the model TQN290-AF/N is equipped with four leveling vises with anti-slip devices, which can adjust up to 20 mm and prevent rocking.

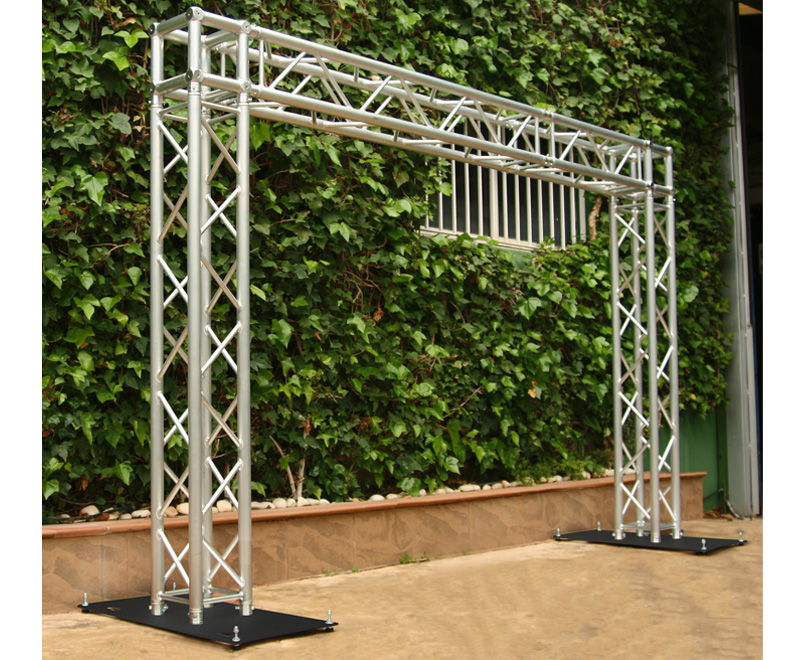

The plate protects both the truss and the surface where it is installed from scratches and friction, making it ideal for setting up photocalls, stands, exhibitions, presentations and advertising signs.

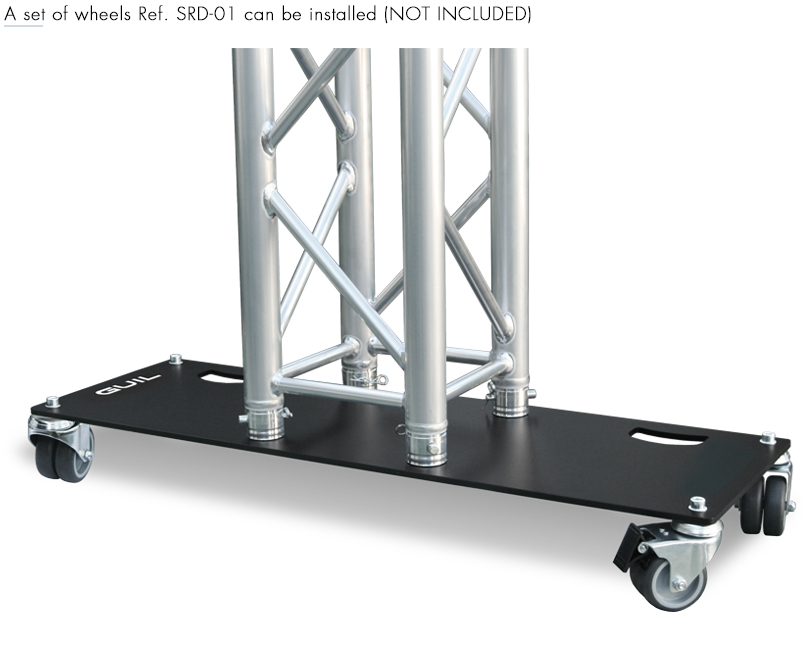

To easily move the structure without dismantling the truss, the levelers can be replaced with a wheel set ref. SRD-01 (not included), which consists of four Ø75 mm double flywheels, two of which have brakes. When used on uneven surfaces, the leveling base (ref. TQN290-AF/N) can provide additional flexibility.

Specifications of the base

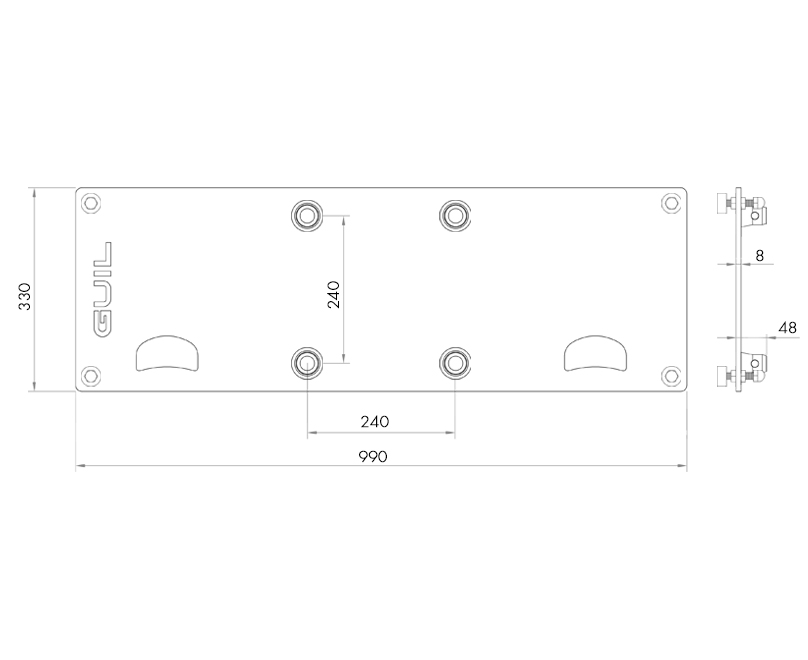

Dimensions: 990 x 330 x 8 mm

Couplings: UTR-06 (included)

For Truss: Square truss ref. TQN290

Color: Black

Material: Steel

Net weight: 21,25 kg

Use & Safety

Can be assembled with wheel set ref. SRD-01 (not included) to easily move the structure without dismantling. Leveling vices can be used on uneven surfaces. Protects both truss and floor from scratches and friction. For outdoor use, secure the structure with rope or wire to prevent movement in windy conditions.
