Steel base plate for square trusses / 45 x 45 cm

Name: Steel base plate for square trusses / 45 x 45 cm
Brand: Guil
Availability: OutOfStock

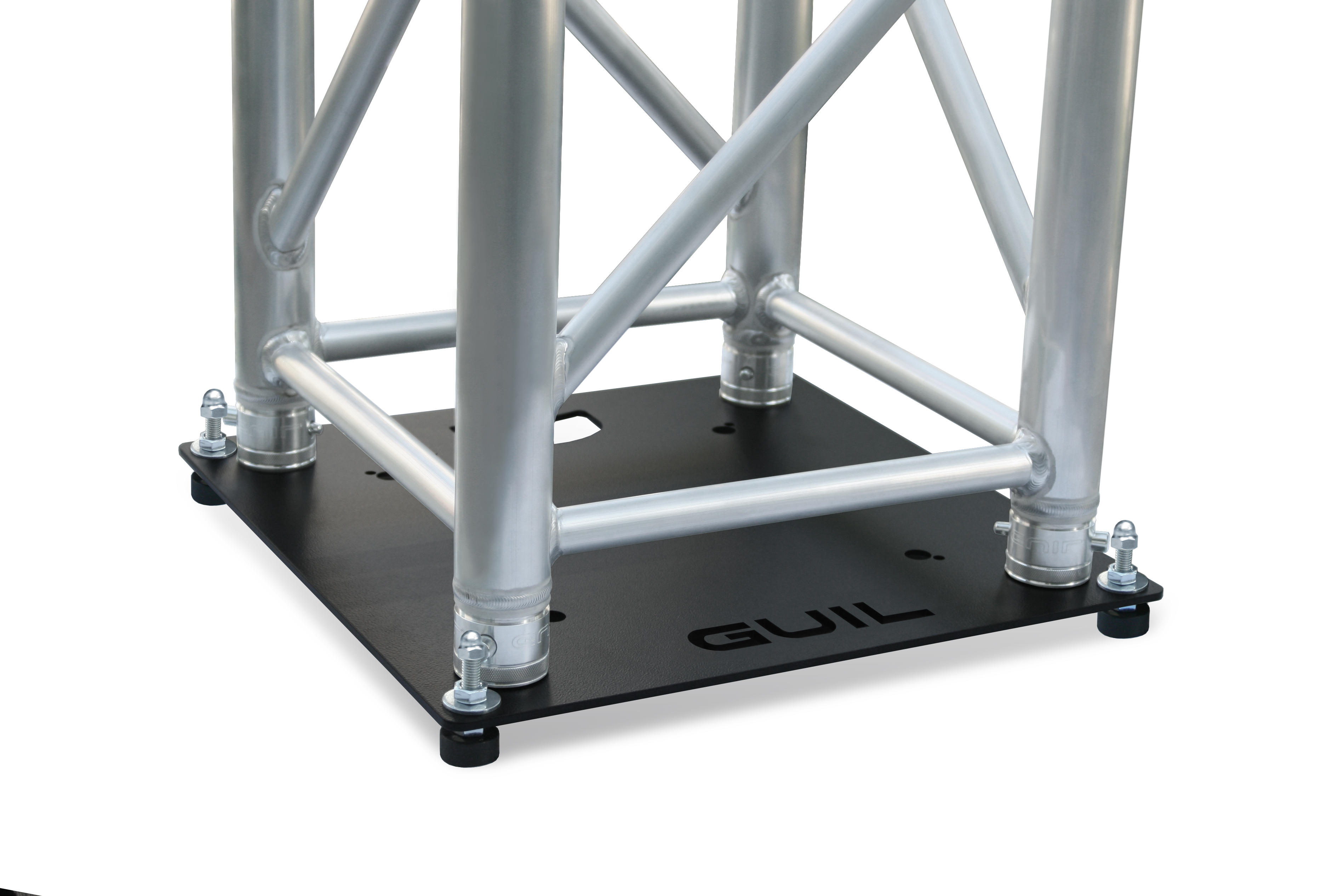

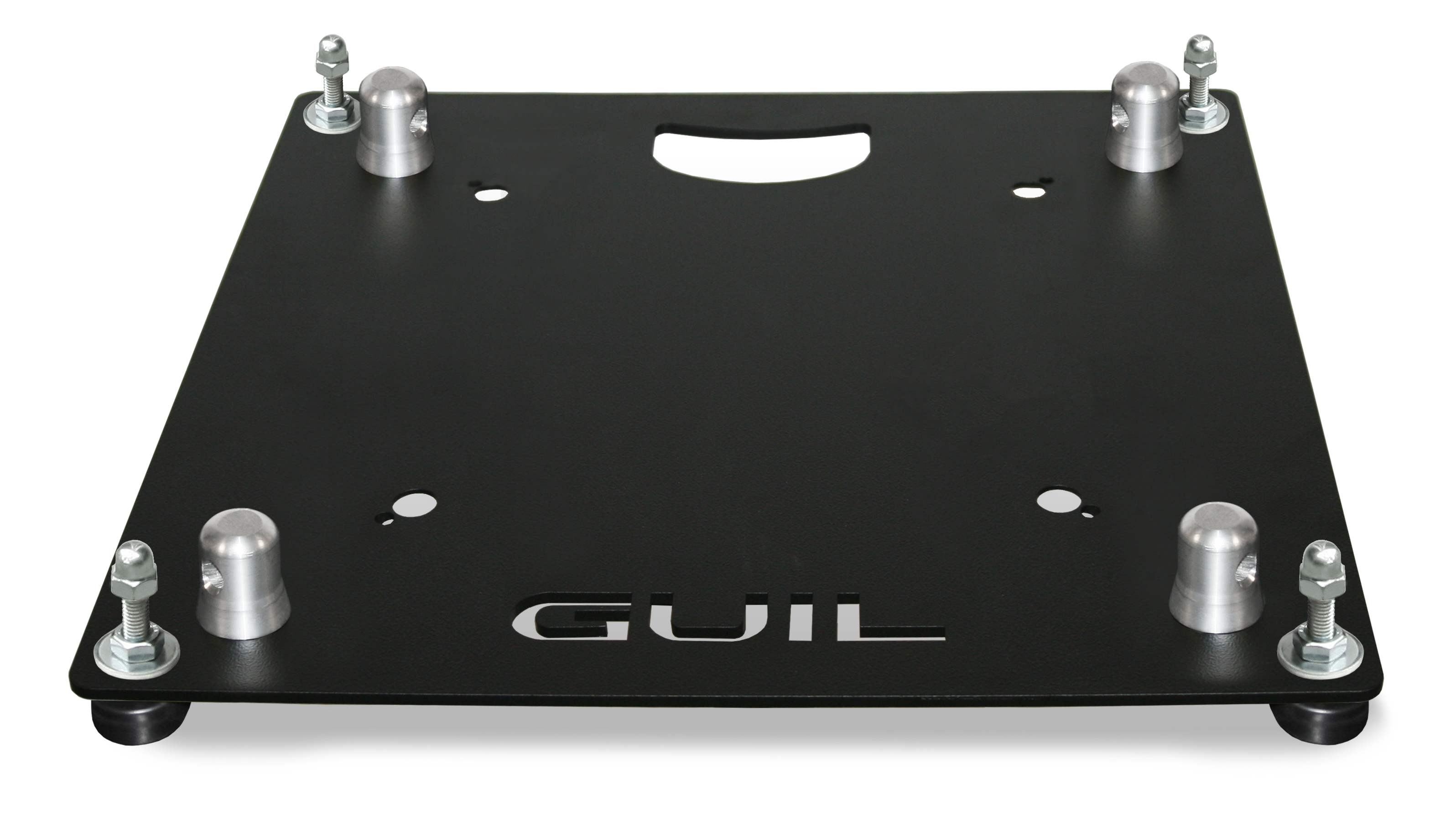

Our steel bottom plate TQN400XL-AC/N is a robust and versatile solution for square truss type TQN400XL (400 x 400 mm). It is made of black lacquered steel with a thickness of 5 mm, ensuring high durability and stability. For easy handling, the base plate is equipped with a practical handle and has rounded edges to prevent damage.

Product information

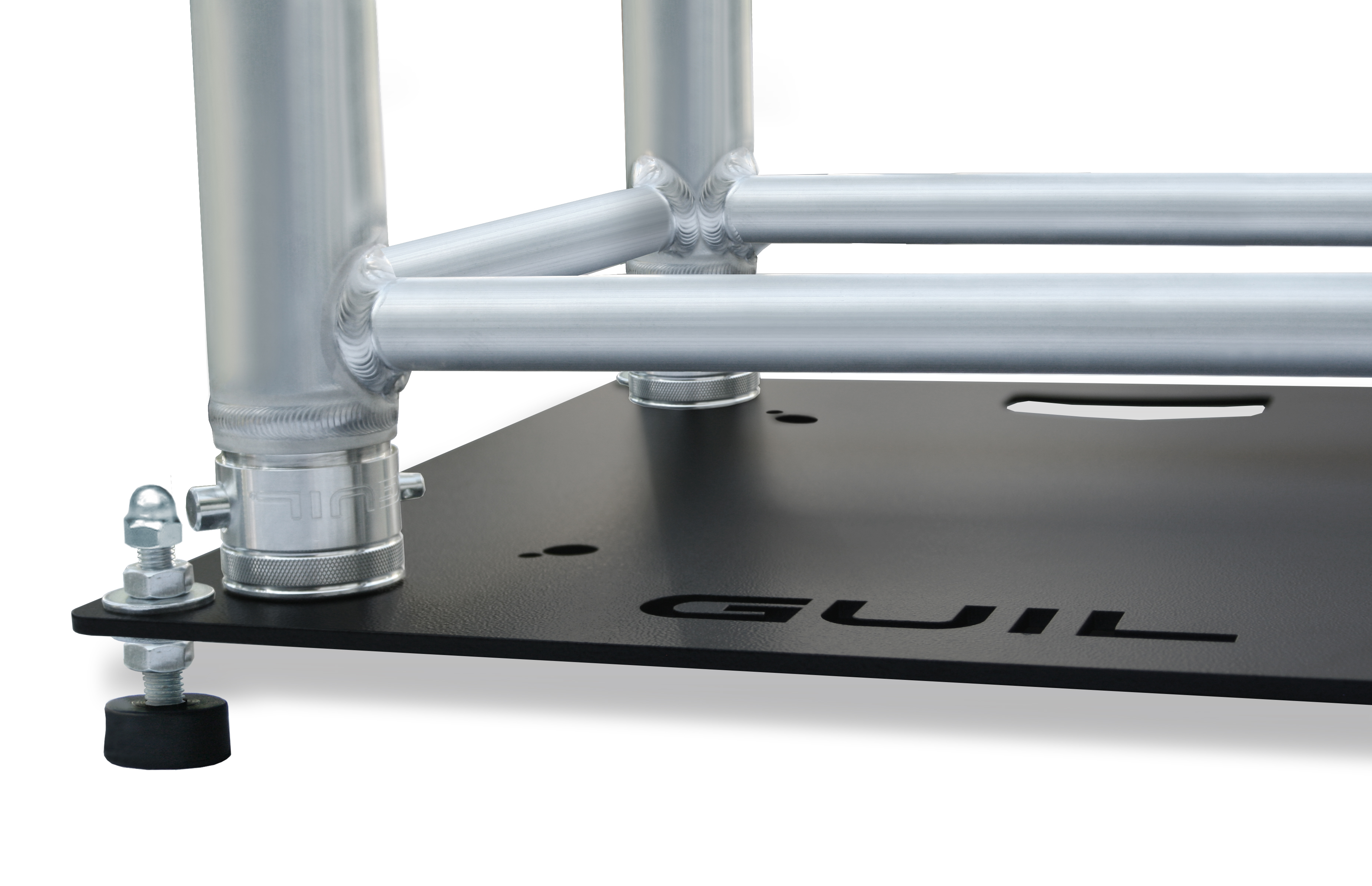

The base plate comes complete with four solid aluminum UTR-06 tapered connectors, providing a fast and reliable connection. To ensure stability on uneven surfaces, the base plate is fitted with four adjustable feet with non-slip rubber, which can correct unevenness of up to 20 mm.

The TQN400XL-AC/N is also designed to be fixed to the floor (screws not included) and can be easily fitted with castors (ref. SRD-01, sold separately) if the truss structure needs to be moved without dismantling. The wheel set includes four double-rotating wheels with a diameter of 75 mm, two of which have brakes.

This base plate protects both truss and substrate from scratches and friction, making it the perfect accessory for assembling trade fairs, exhibitions, presentations and advertising structures.

Specifications of the base plate

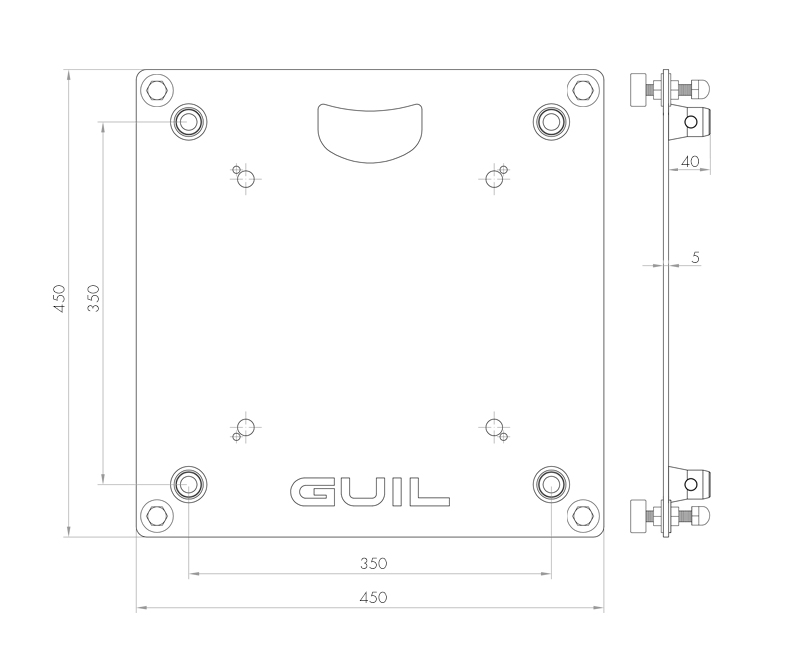

Dimensions: 450 x 450 x 5 mm

Connectors: UTR-06 (included)

For truss: Square truss, ref. TQN400XL

Material: Steel

Color: Black

Net weight: 8,40 kg

Use & Safety

Make sure that the base plate is stable and the adjustable feet are correctly adjusted before loading. The product is intended for professional use in the installation of truss systems, exhibitions and trade fair stands.
