GUIL

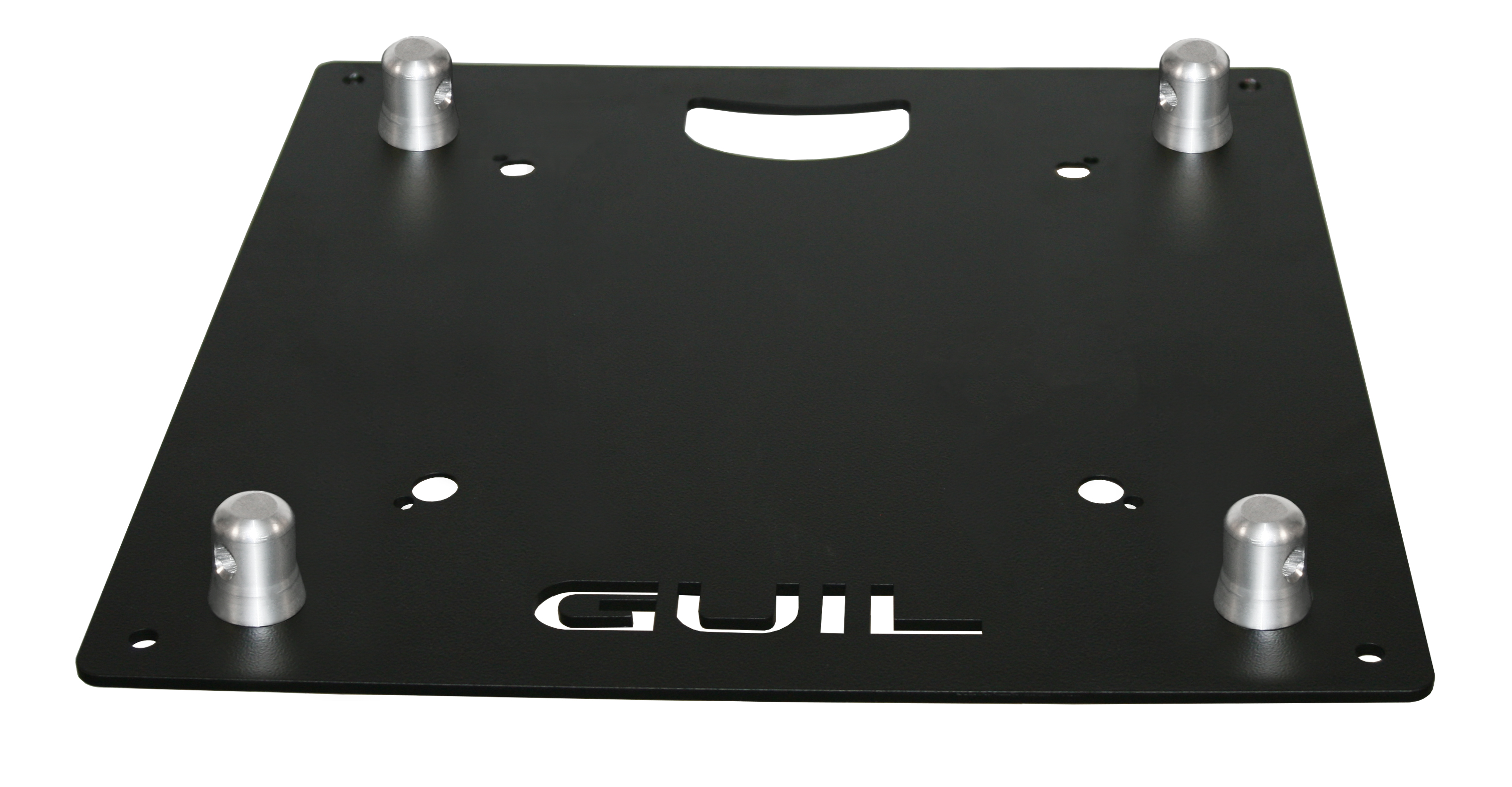

Steel base plate for square trusses / 45 x 45 cm
450 x 450 mm steel base plate with 5 mm thickness for square trusses ref. The base plate, made of black painted steel, is equipped with a handle for easy transportation and has rounded edges to avoid damage. It comes complete with four conical couplings ref. UTR-06, made of solid aluminum, for quick and secure connection.
- Phone number: 040-546511
- E-Mail: contact@stagebrands.com
- BrandGuil
- ManufacturerGuil
Description
Article no.: TQN400XL-AC
Product information
The TQN400XL-AC is machined to allow:
- Fixing the base to the floor (with screws - not included)
- Mounting of wheel set ref. SRD-01 (not included) if the structure needs to be moved without dismantling the trusses. This practical wheel set consists of four Ø75 mm double swivel castors, two of which have brakes.
- Installation of leveling vises if the base plate needs to be placed on uneven ground. The truss base with level regulators is Ref. TQN400-AC/N.
The TQN400-AC base plate provides high stability to the set and protects both the truss and the substrate from scratches and friction, making it the perfect accessory for setting up stands, totems, exhibitions, presentations and advertising signs.

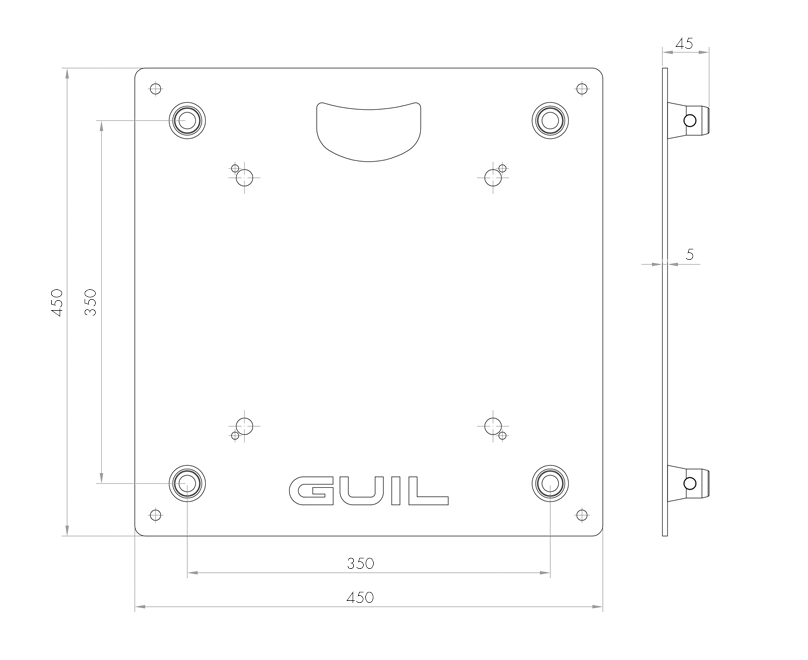

Specifications: Dimensions
Dimensions: 450 x 450 x 5 mm
Connectors: UTR-06 (included)
For truss: Square truss, ref. TQN400XL
Color: Black
Material: Steel
Net weight: 8 kg
Use & Safety
Ensure that the base plate is stable and that any adjustable feet or castors are correctly installed before loading. The product is intended for professional use in the installation of truss systems, exhibition stands and presentation structures.
