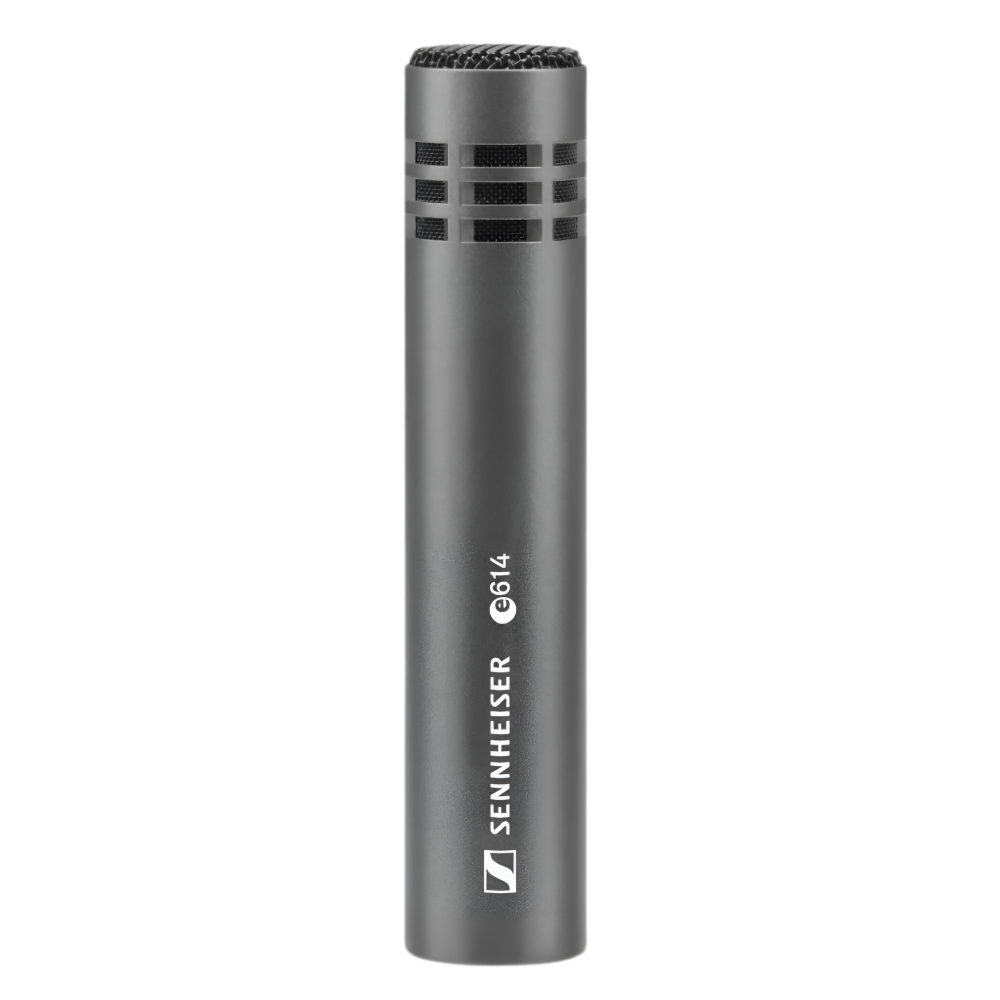

e 614

e 614

Extremely wide frequency range. Focused pick-up. Outstanding transient response.

As a condenser microphone, the e 614 impresses in demanding environments with a natural and rich sound. Its wide frequency response captures almost any instrument, and its exceptional dynamics bring out the finest nuances of the air - with space and depth.

Thanks to its precise directional characteristics, the e 614 effectively minimizes leakage from other instruments, both on stage and in the studio. With its high maximum SPL, it is especially designed for percussion and as an overhead microphone, but works equally well for strings and woodwinds.

Read more...

On order 1 week!

  • Phone number: 040-546511
  • E-Mail: contact@stagebrands.com
  • BrandSennheiser
  • ManufacturerSennheiser

Description

Article no.: 009895

Technical specifications

  • Dimensions: Ø 20 mm, length = 100 mm
  • Connector: XLR-3
  • Frequency range: 40 - 20 000 Hz
  • Conversion principle: Pre-polarized condenser microphone
  • Weight: 93 g
  • Directional characteristic: Supercardioid
  • Free field sensitivity, no load (1 kHz): 3 mV/Pa = -50 dB (0 dB = 1 V/Pa)
  • Nominal impedance: 50 Ω
  • Min. termination impedance: 1000 Ω
  • Supply voltage (phantom power): 12-52 V / 3 mA
  • Equivalent sound level: 24 dB(A)
  • Equivalent sound level according to CCIR 468-3: 35 dB
  • Maximum sound pressure (passive): 139 dB SPL

Features and functions

  • Condenser microphone with high directivity over the entire frequency range
  • Natural sound for flexible applications
  • Designed for high sound pressure levels
  • Robust construction - built to withstand harsh environments
