Sennheiser

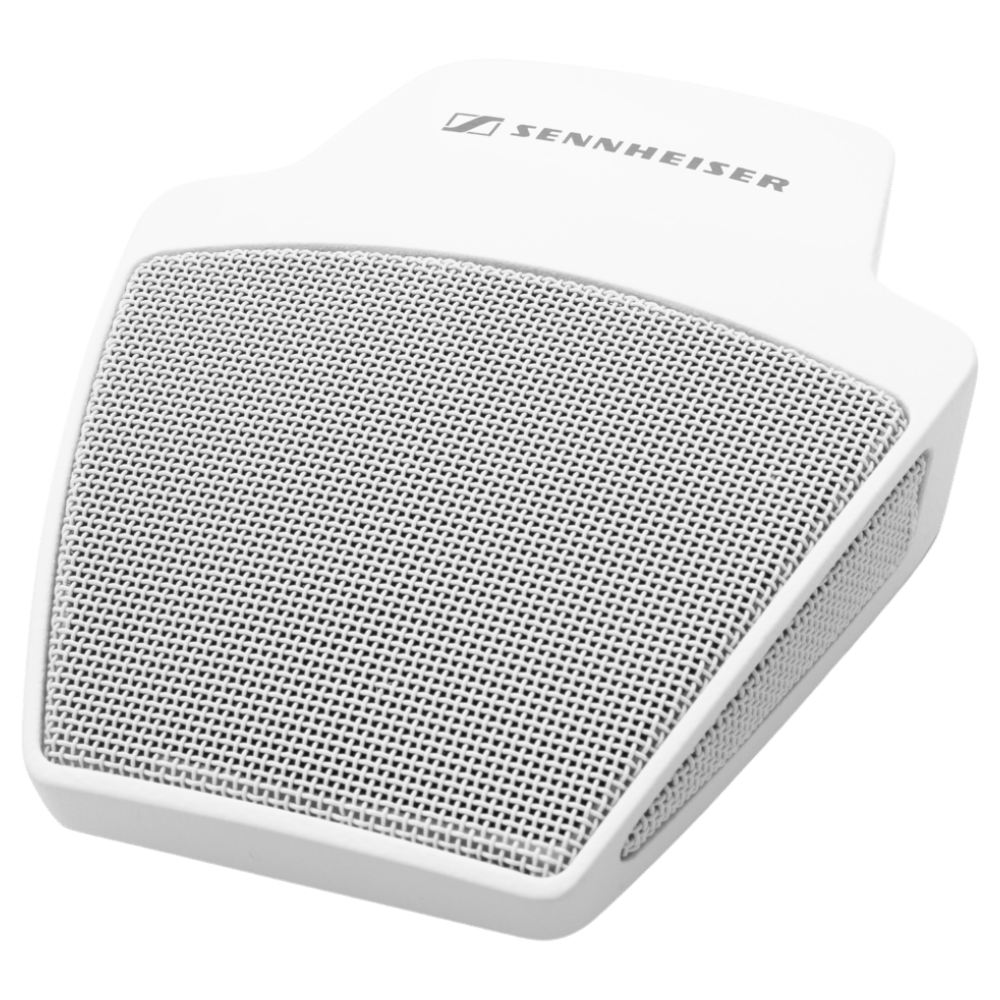

MEB 114 W
The sturdy on-table boundary layer microphone MEB 114 constitutes an improvement for any conferencing system. Thanks to its rugged housing and its high-quality microphone capsule the MEB 114 ensures the best speech intelligibility.
- Phone number: 040-546511
- E-Mail: contact@stagebrands.com
- BrandSennheiser
- ManufacturerSennheiser
Description
Article no.: 505613
Features and benefits
- Award winning design
- Optimized for speech
- Convenient usage
Technical Specifications
- Dimensions:
85 x 100 x 25 mm (W x D x H) - Connector:
Tiny XLR-3 (Pin assignment: 1 = gnd, 2 = +, 3 = -) - Frequency response:
40 Hz - 20 kHz - Max. sound pressure level:
140 dB - Transducer principle:
Pre-polarized condenser microphone - Weight:
291 g - Pick-up pattern:
Cardioid - Nominal impedance:
200 Ω - Phantom powering:
P 24 - P 48 - Operating temperature:
-10 °C - +50 °C - Equivalent noise level:
29 dB (A) - Equivalent noise level (CCIR 468-3):
39 dB (CCIR) - Current consumption:
1.5 mA - Acoustics:
Boundary layer microphone - Dynamic range:
111 dB (A) - Sensitivity:
10 mV/Pa
