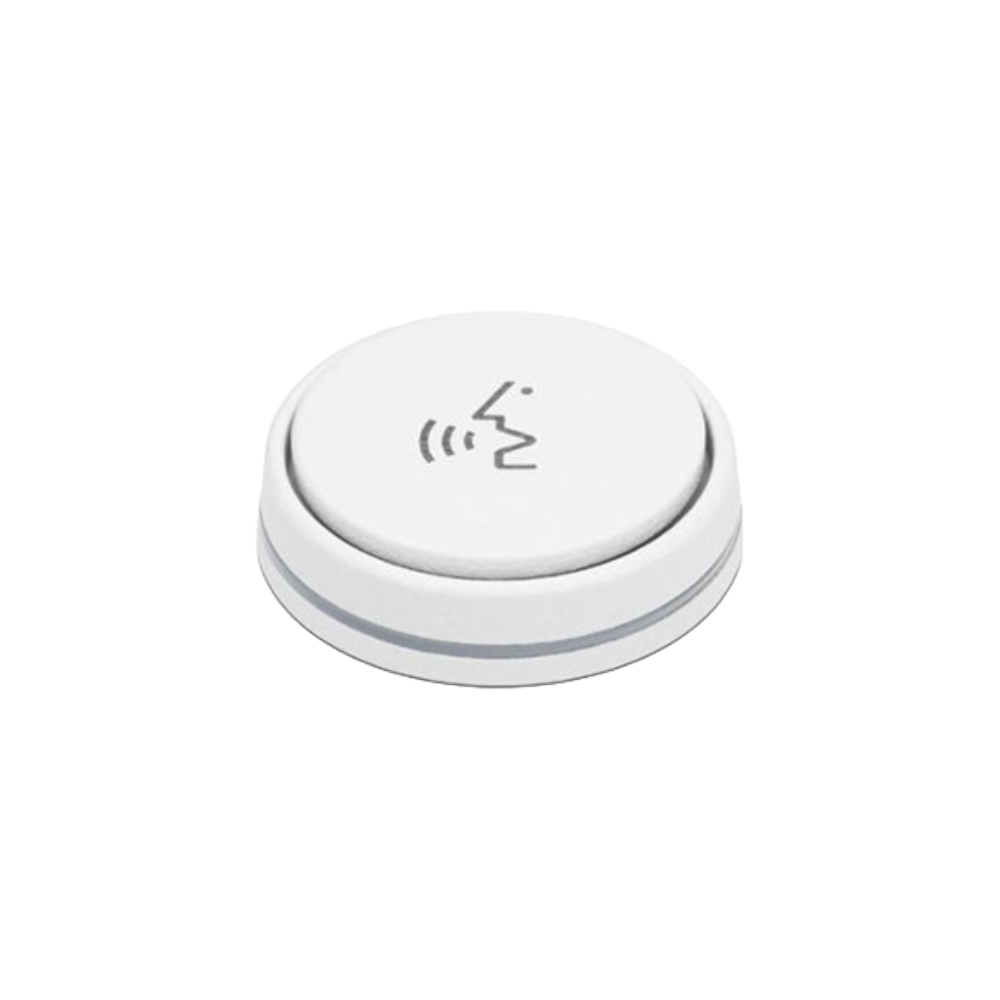

MAS 1 W

Elegant and low-key in its appearance, the sturdy MAS 1 microphone button makes mic control a breeze. Connected to the MAS 133 inline switch box it can control any XLR-attached microphone by means of programmable microphone activation modes (PTT, PTM, toggle ON/off, permanent on). For easy operation the MAS 1 comes with a bi-color status indicator.

Features

Rugged microphone button
Sturdy housing

Technical Specifications

Dimensions:
Height: 81 mm (8 mm above surface), Diameter: 28.5 mm
Connector:
XLR-5M out (Pin assignment: 1 = gnd, 2 = Switch, 3 = LED red -, 4 = LED green -, 5 = LEDs +12 V in)
Weight:
60 g
Phantom powering:
12 V (1.5 mA max.)
Operating temperature:
1 °C ... +50 °C
Current consumption:
LED ring: 3 mA
Color:
LED light ring: red / green
Thread:
M 20
