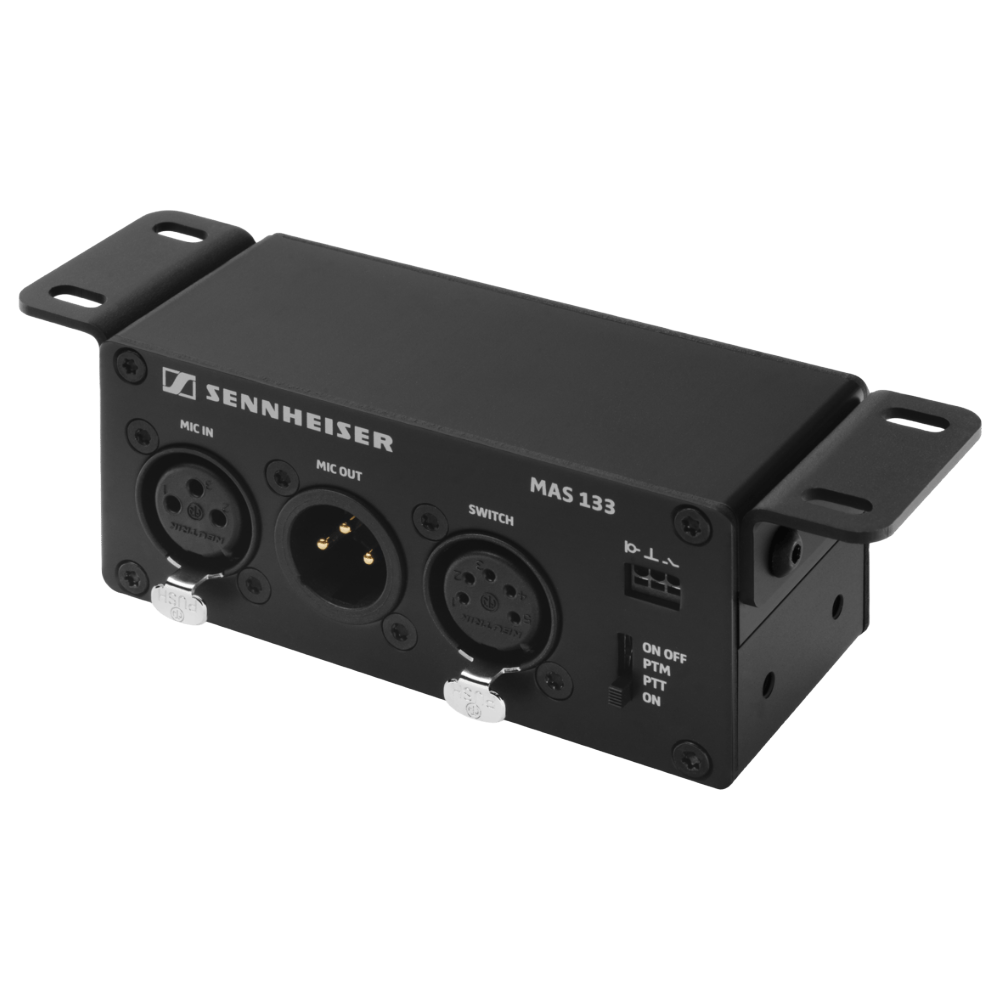

MAS 133

The MAS 133 is a versatile XLR inline switch box for integrated microphone solutions. Attached between the mic and mixing console, it powers the MAS 1 microphone button. It is able to control any XLR-attached microphone using switchable microphone activation modes (PTT, PTM, toggle ON/off, permanent on). Furthermore, the MAS 133 features a TTL logic, enabling the user to trigger e.g. camera or media control systems for various purposes.

Features

Switchable activation modes (PTT, PTM, ON/off, permanent on)
Easy microphone activation
TTL logic out for flexible use e.g. media control
Microphone modes:
Toggle on/off
Push to mute
Push to talk
Permanent on

Technical Specifications

Dimensions:
150 x 44 x 44 mm (WxDxH)
Connector:
XLR-3F
XLR-3M Pin assignment: 1 = gnd, 2 = +, 3 = -
XLR-5F Pin assignment: 1 = gnd, 2 = Switch, 3 = LED red -, 4 = LED green -, 5 = LEDs +12 V out
Weight:
212 g
Phantom powering:
P 48
Operating temperature:
-10 °C to +50 °C
Current consumption:
4.5 mA
Output voltage:
> 2.4 V / < 0.4 V
