MAT 133-S B

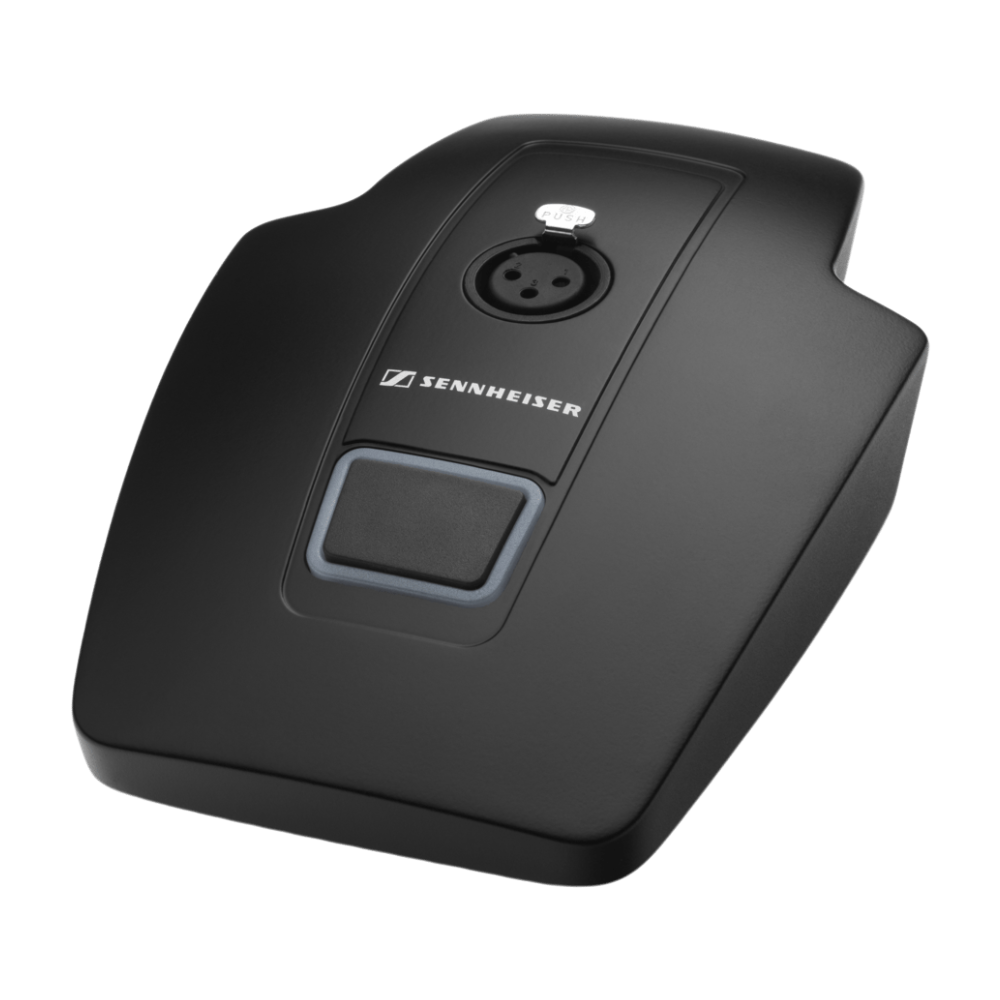

The rugged housing of the functionally and unobtrusively designed MAT 133-S provides a solid ground for XLR-3 gooseneck microphones. A convenient microphone button is featured with a bi color light ring for clear visual feedback. The TTL-logic output serves for various control purposes such as camera control. The MAT 133-S is as versatile as it is to operate. The table stand MAT 133 is compatible with MEG 14-40-L.

Features

Solid Microphone Stand
Timeless design
Bi-colored light ring for clear visual feedback
Logical function for easy control of e.g. cameras
Microphone modes:
- Toggle on/off
- Push to mute
- Push to talk
- Permanent on (external LED control)

Technical Specifications

Dimensions:
120 x 170 x 43 mm (BTH / WDH)
Connector:
XLR-3F
XLR-3M
Clip contact for logic, Pin assignment: trigger signal at the logic connector: Logic in (external LED control), GND, Logic out (switch signal)
Weight:
1210 g
Phantom powering:
P 24 - P 48
Operating temperature:
-10° - +50°C
Current consumption:
3.7 mA
Output voltage:
High level output voltage > 2.4 V
Low level output voltage < 0.4 V
