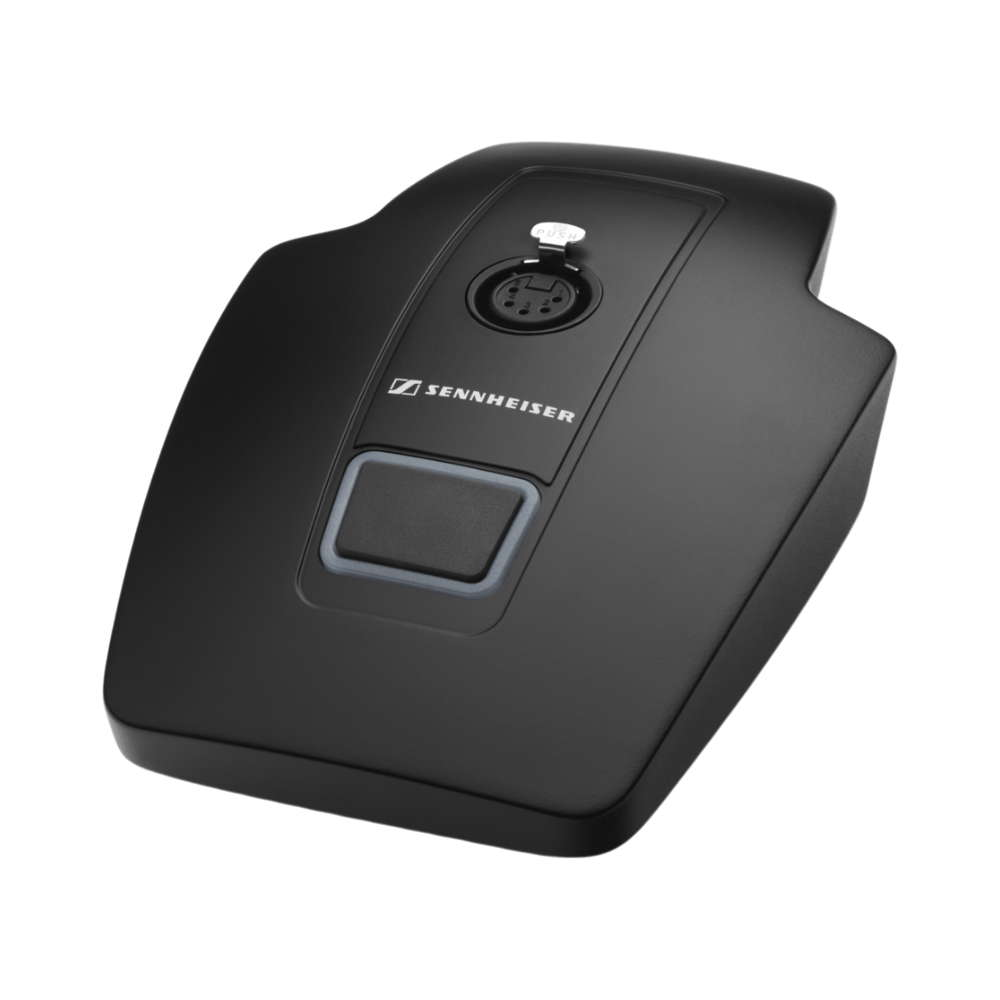

MAT 153-S B

Featuring a rugged housing, the functionally and unobtrusively designed MAT 153 provides a solid ground for gooseneck microphones with lighting ring. Connector: MIC IN: XLR-5F MIC OUT: XLR-3M 3x terminal

Features and benefits

Intuitive handling
Only phantom power required
Standard XLR-3 cabling
Powered with standard XLR-3 cable

Technical Specifications

Connector:
XLR-5F, Pin assignment: 1 = gnd, 2 = hot (+), 3 = cold (-), 4 = LED (-), 5 = LED (+)
XLR-3M, Pin assignment: 1 = gnd, 2 = +, 3 = -
Pin assignment: trigger signal at the logic connector: Logic in (external LED control), GND, Logic out (switch signal)
Weight:
approx. 1,206 g - 1,526 g
Current consumption:
3.7 mA
Output voltage:
High level output voltage > 2.4 V
Low level output voltage < 0.4 V
