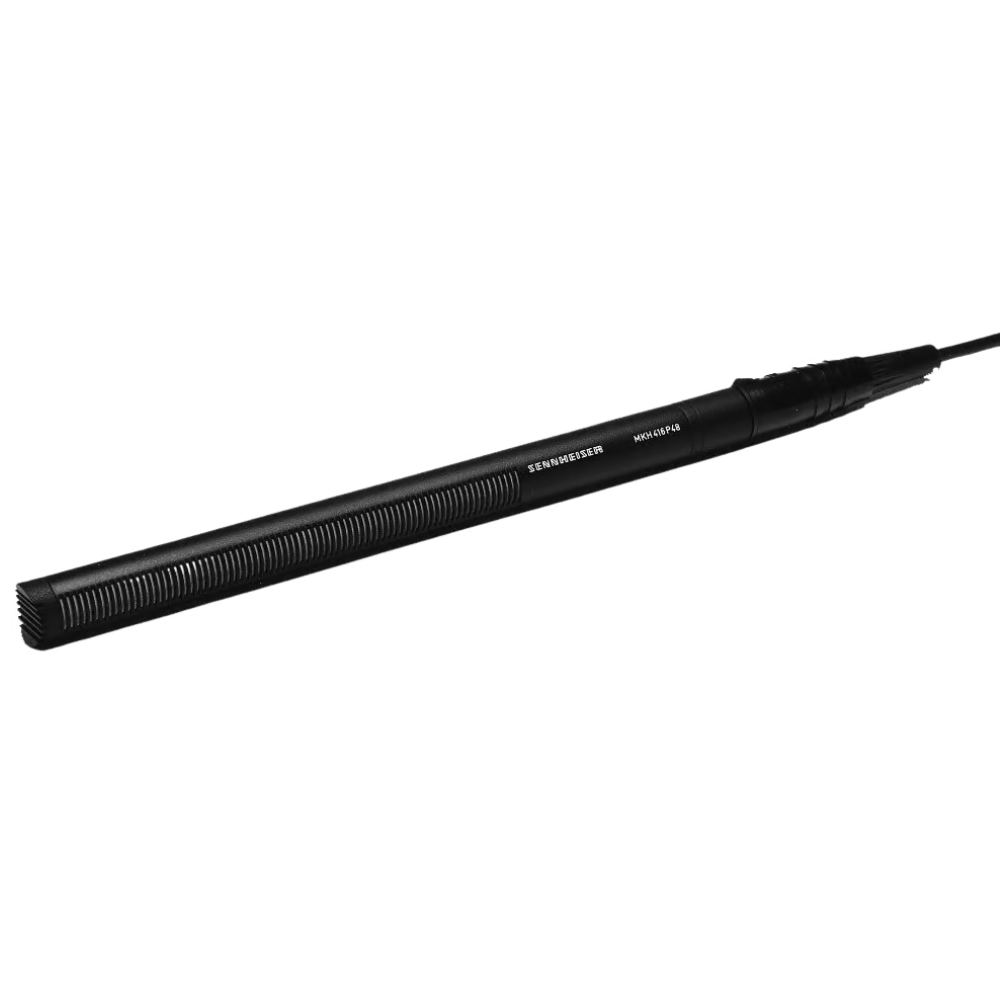

MKH 416-P48U3

The MKH 416 is a short shotgun microphone with interference tube. Its excellent directionality and compact design, high clarity of consonant reproduction and good anti-aliasing properties make the MKH 416 a first-class all-round microphone for film, radio and television - especially suitable for outdoor recordings.

Contents:

MKH 416 shotgun microphone

Technical specifications

Dimensions: Ø 19 x 250 mm
Frequency range (microphone): 40 - 20 000 Hz
Transducer principle (microphone): RF condenser microphone
Pick-up pattern: Super-cardioid / lobar
Sensitivity (free field, no load at 1 kHz): 25 mV/Pa ±1 dB
Nominal impedance: 25 Ω
Minimum termination impedance: 800 Ω
Equivalent sound level: 13 dB
Equivalent sound level (CCIR 468-3 weighted): 24 dB
Maximum sound pressure level (passive): 130 dB
Power consumption: 2 mA
Voltage: 48 ±4 V (phantom power)

Features and functions

Excellent all-round microphone, especially for outdoor broadcasts
Increased directivity thanks to the interference tube principle
Very low self-noise level
High sensitivity
Transformerless and fully balanced output
Robust construction, suitable for adverse climatic conditions
Matt black metal housing
Weatherproof design
