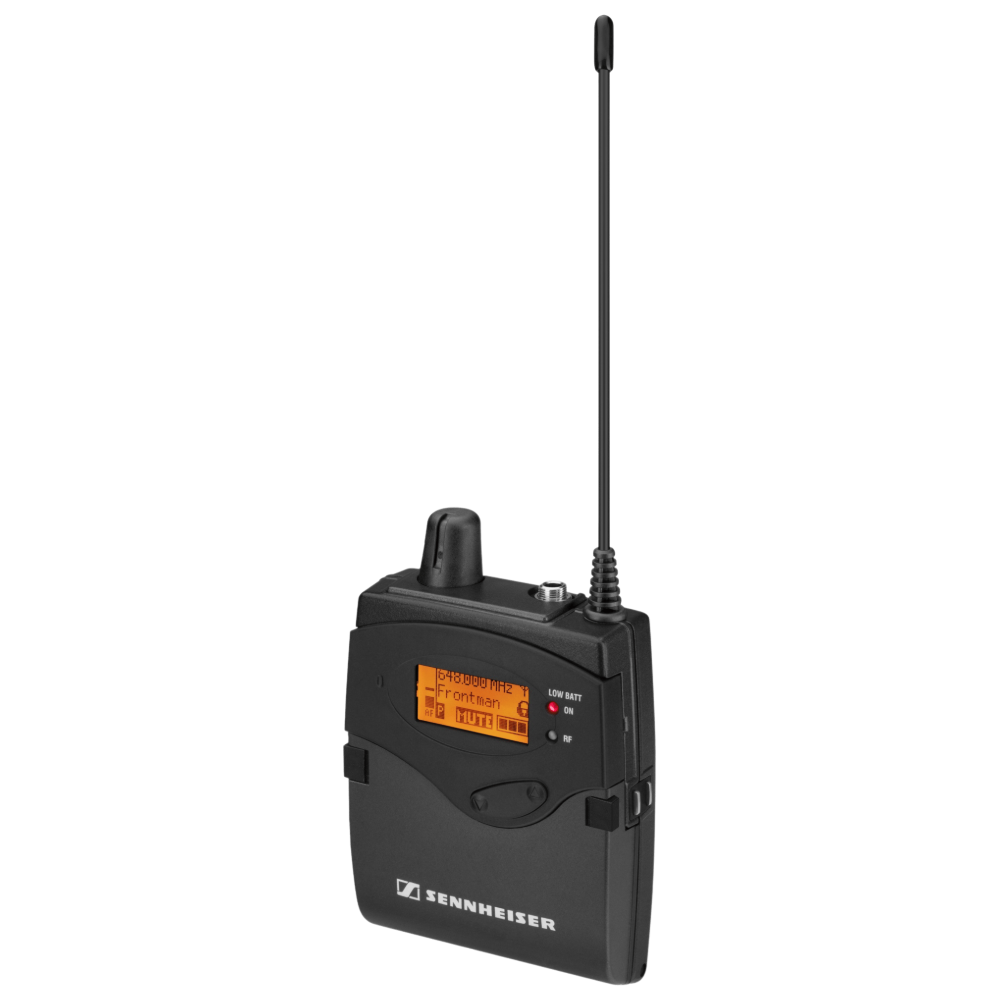

EK 2000 IEM-GW

This wireless monitoring set's receiver uses adaptive-diversity technology. The earphone cable serves as a second antenna, which considerably reduces the number of drop-outs. Combined with IE 4 ear-canal phones for precise sound reproduction, EK 2000 IEM conveys an authentic acoustic pattern of live sound and allows you to monitor your own performance perfectly.

Features and benefits

Adaptive Diversity technology for high reception quality and reliability
Authentic sound with IE 4 in-ear headphones
Robust all-metal chassis for professional use
Auto-Lock function prevents accidental setting changes
Up to 3000 frequencies within up to 75 MHz switch bandwidth
20 fixed frequency banks with up to 32 compatible presets
6 user-definable banks with up to 32 adjustable channels
Pilot tone squelch adjustable in 2 dB steps for interference-free reception
Frequency search that automatically finds available receive frequencies
Wireless synchronization of receiver settings from the transmitter
User-friendly menu with backlit graphic display
HDX compander for crystal clear sound
Improved audio frequency range
4-step battery status indicator
Powered by BA2015 rechargeable battery or AA batteries
Charging connectors for BA2015
Hi Boost, adjustable limiter, stereo/focus mode and selectable balance
Wide range of accessories for universal use

Technical Specifications

Dimensions:
82 x 64 x 24 mm
Presets:
Max. 32
Frequency range:
25 - 15,000 Hz
Headphone jack:
3.5 mm jack
Weight:
200 g
Signal-to-noise ratio:
> 90 dB(A)
RF frequency range:
516 - 865 MHz
Switch bandwidth:
Max. 75 MHz
Operating time:
4 - 6 h
Modulation:
FM, MPX stereo
Carrier frequencies:
Max. 3000
Squelch Threshold:
Off, 5 - 25 dBµV in 2 dB steps
Audio Output Power:
100 mW @ 32 Ω
Operating voltage:
2 × 1.5 V AA
