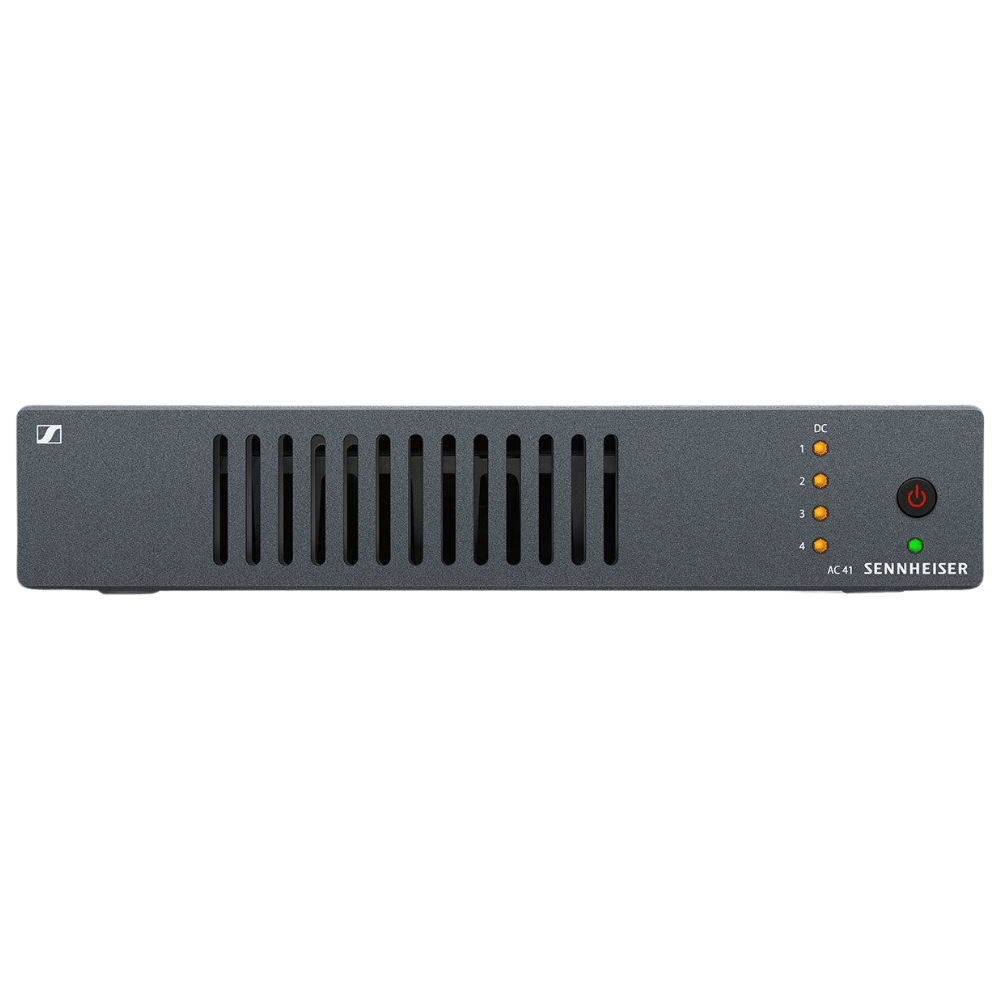

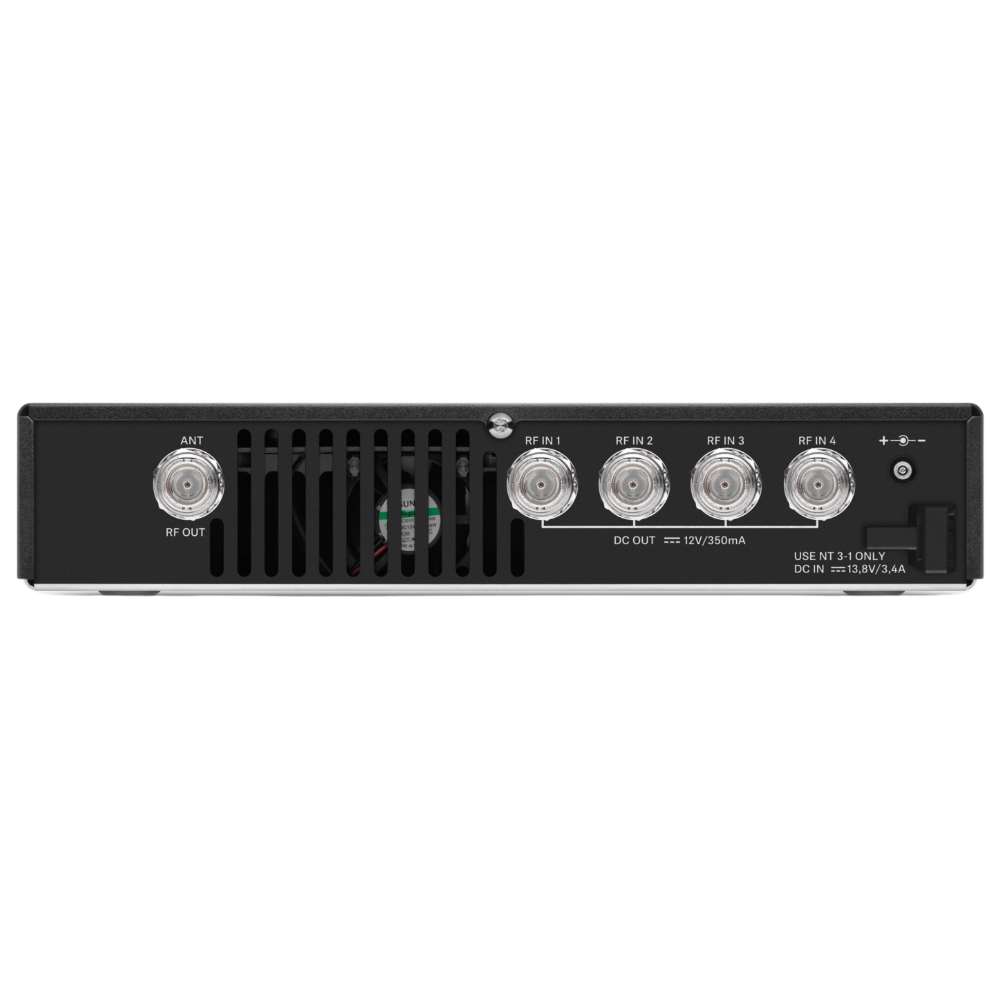

AC 41-EU
Active antenna combiner for evolution wireless G4 systems. The AC 41 operates up to four wireless stereo transmitters from the ew series using one shared antenna. Power is supplied to the SR IEM G4 transmitters over the BNC cables via NT 3-1 power supply (included with the AC 41), making separate power supplies for the transmitters obsolete.
- Phone number: 040-546511
- E-Mail: contact@stagebrands.com
- BrandSennheiser
- ManufacturerSennheiser
Description
Article no.: 508243
Features
- Up to 4 wireless stereo transmitters with one antenna
- Power supply via BNC cables for efficient feeding, no additional power supply needed for SR IEM G4
- Compatible with G4 and G3 systems
Technical Specifications
- Impedance:
50 Ω - Dimensions:
approx. 212 x 168 x 43 mm - Weight:
Approx. 1470 g - Power consumption:
Max. 3.4 A (with transmitters connected) - Storage temperature:
-20 °C to +70 °C - Operating temperature:
-10 °C to +55 °C - Power supply:
13.8 V DC (with table charger NT 3-1)
11.4 V DC (reverse polarity protected), 350 mA - RF input:
max. 30 mW per input - Transmission loss:
0 dB (±1 dB) - Operating humidity:
5 to 95%
