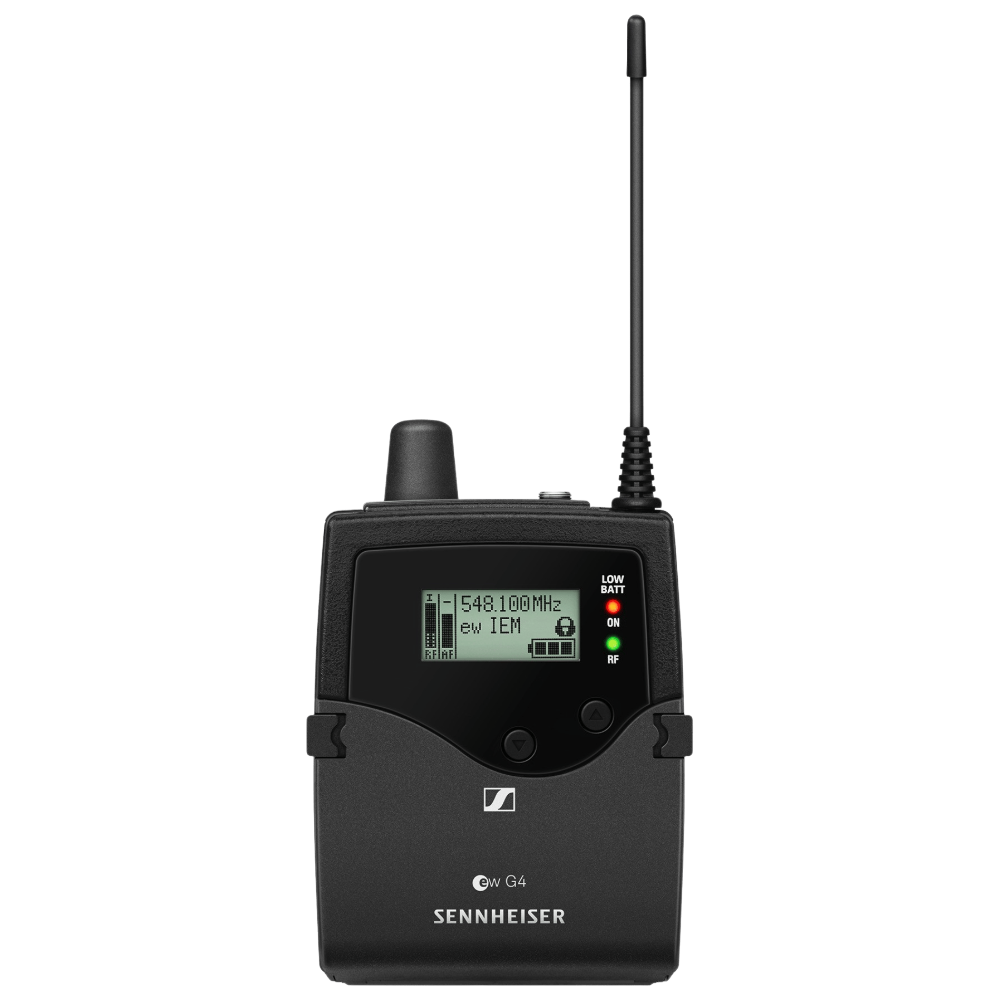

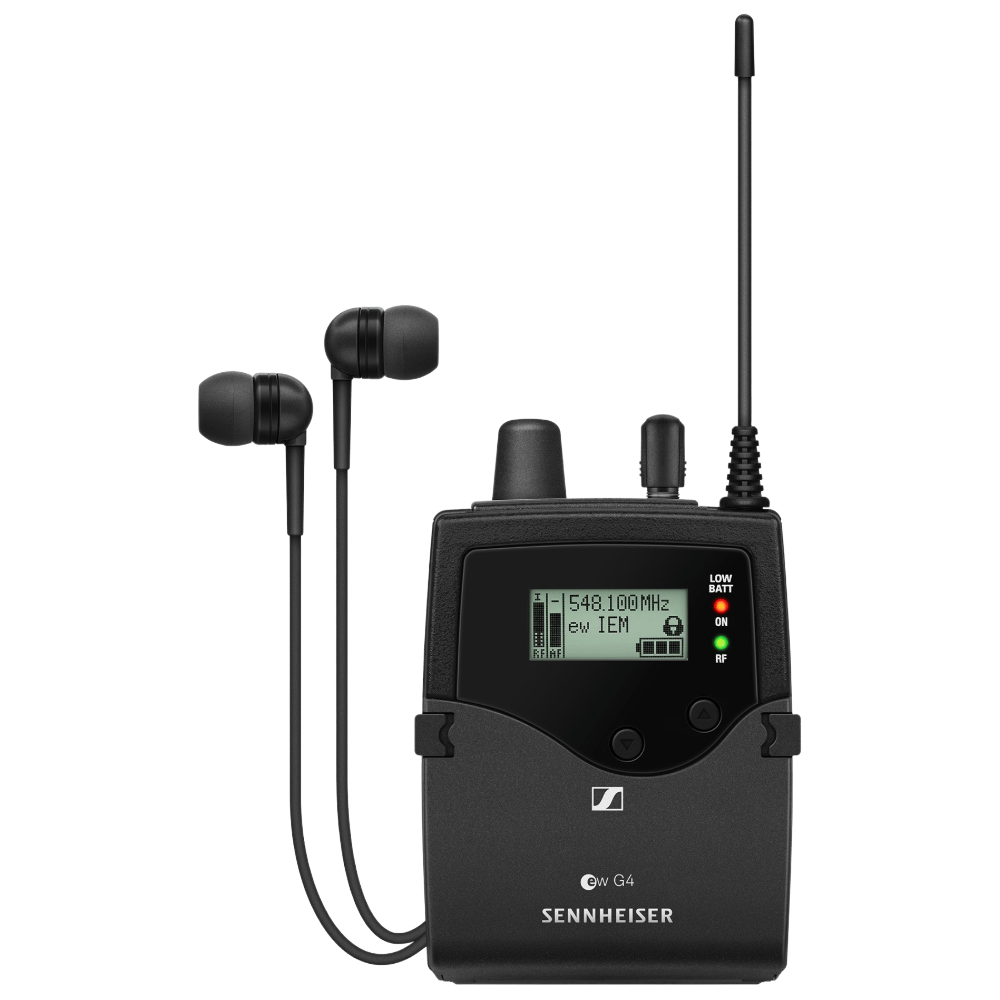

EK IEM G4-GB
Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage
Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.
- Phone number: 040-546511
- E-Mail: contact@stagebrands.com
- BrandSennheiser
- ManufacturerSennheiser
Description
Article no.: 509911
Features and benefits
- Robust bodypack receiver with clear sound reproduction across the entire frequency range for daily use on stage
- Easy and flexible wireless synchronization between transmitter and receiver via infrared technology
- Compatible with Sennheiser WSM software for flexible frequency planning
- Support for up to 16 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies in a stable UHF range
- Range up to 100 meters
- High RF output power up to 50 mW (depending on national regulations)
Technical Specifications
- Dimensions:
Approx 82 × 64 × 24 mm - Compander:
Sennheiser HDX - THD (total harmonic distortion):
≤ 0.9% - Weight (incl. batteries):
Approx. 125 g - Signal-to-noise ratio:
Approx. 90 dBA - Switching bandwidth:
Up to 42 MHz - Max deviation:
±48 kHz - Nominal deviation:
±24 kHz - Operating time:
About 4-6 hours (depending on volume level) - Modulation:
Wideband FM - Power supply:
2 × AA batteries (1.5 V) or BA 2015 battery pack - Power consumption:
At nominal voltage: approx. 140 mA
With transmitter off: ≤ 25 µA - Adjacent channel attenuation:
Typically ≥ 65 dB - Audio output power:
2 × 100 mW at 32 Ω - Intermodulation attenuation:
Typically ≥ 70 dB - Limiter:
-18 dB to -6 dB, adjustable in 6 dB steps, can be turned off - Supply voltage:
3 V battery / 2.4 V rechargeable battery - Receiving frequencies:
Max 1680 frequencies, adjustable in 25 kHz steps
20 frequency banks with up to 16 preset channels without intermodulation
6 frequency banks with up to 16 programmable channels - RF sensitivity:
< 4 µV, typically 1.6 µV for 52 dBA rms S/N - Squelch:
5-25 dBµV, adjustable in 2 dB steps - Bass Boost:
+8 dB at 8 kHz - Temperature range:
-10 °C to +55 °C - Receiver principle:
Adaptive diversity - Blocking attenuation:
≥ 80 dB
