BRANDSSennheiserWireless microphonesEvolution Wireless DigitalEW-D Rack Sets EW-D 835-S SET
Sennheiser
EW-D 835-S SET

EW-D 835-S SET

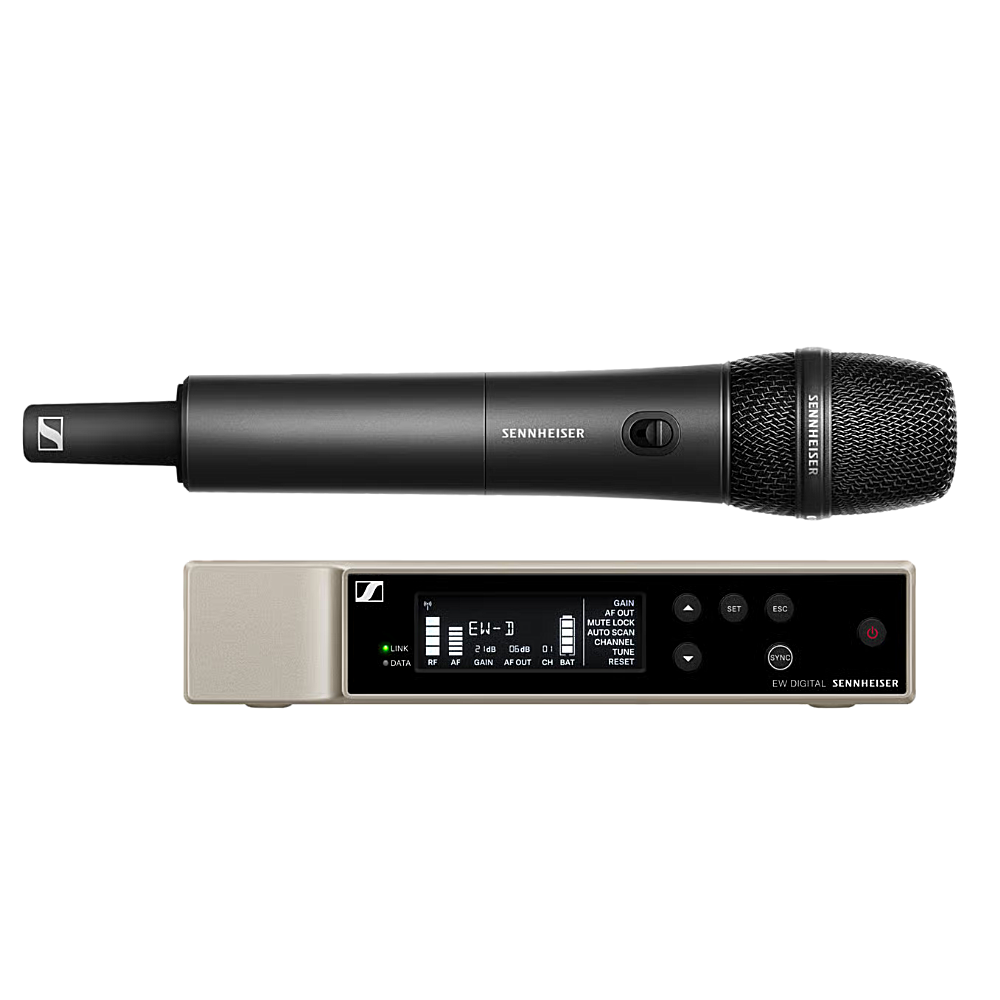

Sennheiser EW-D 835-S Set

Digital Wireless Handheld
Specifications
Capsule: e 835 (Dynamic)
Pattern: Cardioid
Dynamic range: 134 dB
Latency: 1.9 ms
Characteristics
  • Integrated mute switch on the transmitter
  • Full control via Smart Assist App
  • Equidistant grid eliminates intermodulation
  • Up to 12h runtime with Li-Ion
Professional vocal set: Combines legendary e 835 sound with modern digital UHF technology. Easy setup with auto-scan and Bluetooth pairing.
Read more...

In stock: 2

  • Phone number: 040-546511
  • E-Mail: contact@stagebrands.com
  • BrandSennheiser
  • ManufacturerSennheiser

Description

Article no.: EW-D 835-S SET

Technical specifications

  • Dimensions: 212 x 44 x 189 mm, 405 x 350 x 73 mm
  • Dimensions (incl. microphone module): 50 x 268 mm
  • Dimensions (without microphone module): 40 x 200 mm
  • Sound pressure level (SPL): 154 dB
  • Transducer principle: Dynamic
  • Weight: approx. 304 g (with MMD 835), approx. 195 g (without module), 3.1 kg (system), approx. 1000 g (without antennas/power)
  • Pick-up pattern: Cardioid
  • Sensitivity: 2.1 mV/Pa
  • THD: ≤ -60 dB at 1 kHz @ -3 dBfs
  • Operating temperature: -10 °C to +55 °C
  • Power supply: 2x AA batteries or BA 70
  • Power consumption: ≤ 300 mA
  • Input voltage: 11-13 V / 2.0-4.35 V
  • Audio output level: Max 18 dBu
  • Transmit power: BLE/audio link max 10-12 mW ERP
  • Humidity (operating): 5-95% (non-condensing)
  • Audio frequency range: 20 Hz - 20 kHz

Features

  • Digital UHF transmission for extended range, reliability and scalability
  • Smart Assist app via Bluetooth Low Energy for easy configuration
  • Automatic frequency search for fast, stable connectivity
  • 134 dB dynamic range - no manual sensitivity adjustment needed
  • Intermodulation-free design enables channel placement at 600 kHz intervals
  • 56 MHz bandwidth and up to 90 channels
  • 2,240 selectable frequencies for precise tuning
  • Optional lithium-ion battery provides up to 12 hours of operation
  • 2x AA batteries (included) provide up to 8 hours of operation

EW-D frequencies

  • Q1-6: 470.2 - 526 MHz (EU, USA, Canada, Middle East, Japan)
  • R1-6: 520 - 576 MHz (EU, USA, Canada, Australia, Middle East, Japan)
  • R4-9: 552 - 607,8 MHz (EU, USA, Canada, Australia, Middle East, Japan)
  • S1-7: 606.2 - 662 MHz (UK, Australia, Korea, Japan)
  • S4-7: 630 - 662 MHz (EU)
  • Visit SIFA for country-specific frequency support.
