EW-D CI1 SET

Name: EW-D CI1 SET
Brand: Sennheiser
Availability: OutOfStock

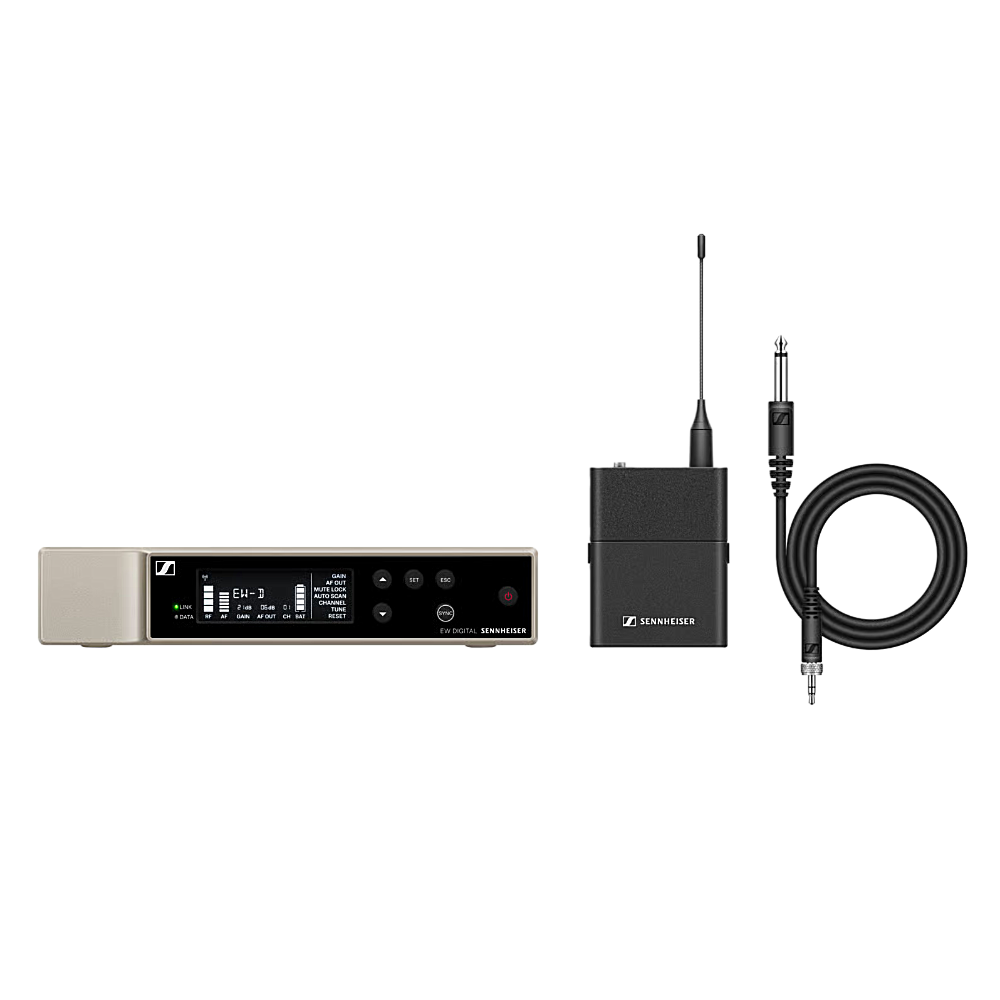

Sennheiser EW-D CI1 Set

Digital Wireless Instrument

Technical Specs

Latency: 1.9 ms (Ultra-low)

Dynamic range: 134 dB

Cable: CI1 (6.3mm Tele)

Transmitter: SK Bodypack (Metal)

Benefits on stage

Smart Assist App for Bluetooth control
No loss of tone or dynamics
Equidistant grid for interference-free operation
Auto-scan finds best frequency instantly

Perfect for guitar & bass: the CI1 set delivers the natural feel of a cable but with total wireless freedom. Digital UHF transmission ensures your tone remains intact.

Technical specifications

Dimensions: 212 x 44 x 189 mm
Dimensions (without antenna): 63 x 80 x 20 mm
THD (Total Harmonic Distortion): ≤ -60 dB at 1 kHz @ -3 dBfs
Weight: approx. 1000 g (without antennas and power supply), approx. 120 g
Power supply: 2 × AA batteries (1.5 V) or BA 70 rechargeable battery pack
Power consumption: ≤ 300 mA
Input voltage range: 2.0 - 4.35 V / 11 - 13 V ⎓
Audio output level: max 18 dBu
Transmit power: BLE: max 10 mW EIRP, audio link: 10 mW, (Y1-3): 12 mW ERP
Operating temperature: -10 °C to +55 °C
Relative humidity (operation): 5-95% (non-condensing)
Audio frequency range: 20 Hz - 20 kHz (-3 dB) at 3 dBfs

Features

Digital transmission in the UHF spectrum improves range, reliability and scalability
Smart Assist app connects via Bluetooth Low Energy for easy and remote configuration
Automatic frequency search creates reliable connections quickly and efficiently
134 dB dynamic range eliminates the need for sensitivity adjustments and preserves every detail
No intermodulation - enables channel placement at 600 kHz intervals
56 MHz tuning bandwidth with up to 90 channels
2,240 selectable frequencies allow precise fine tuning
Lithium-ion battery pack (sold separately) provides up to 12 hours of runtime
2 × AA batteries (included) provide up to 8 hours of runtime

EW-D frequencies

Q1-6: 470.2 - 526 MHz (EU, USA, Canada, Middle East, Japan)
R1-6: 520 - 576 MHz (EU, USA, Canada, Australia, Middle East, Japan)
R4-9: 552 - 607,8 MHz (EU, USA, Canada, Australia, Middle East, Japan)
S1-7: 606.2 - 662 MHz (UK, Australia, Korea, Japan)
S4-7: 630 - 662 MHz (EU)
Visit SIFA for country-specific frequencies.
