EW-D ME3 SET

Name: EW-D ME3 SET
Brand: Sennheiser
Availability: OutOfStock

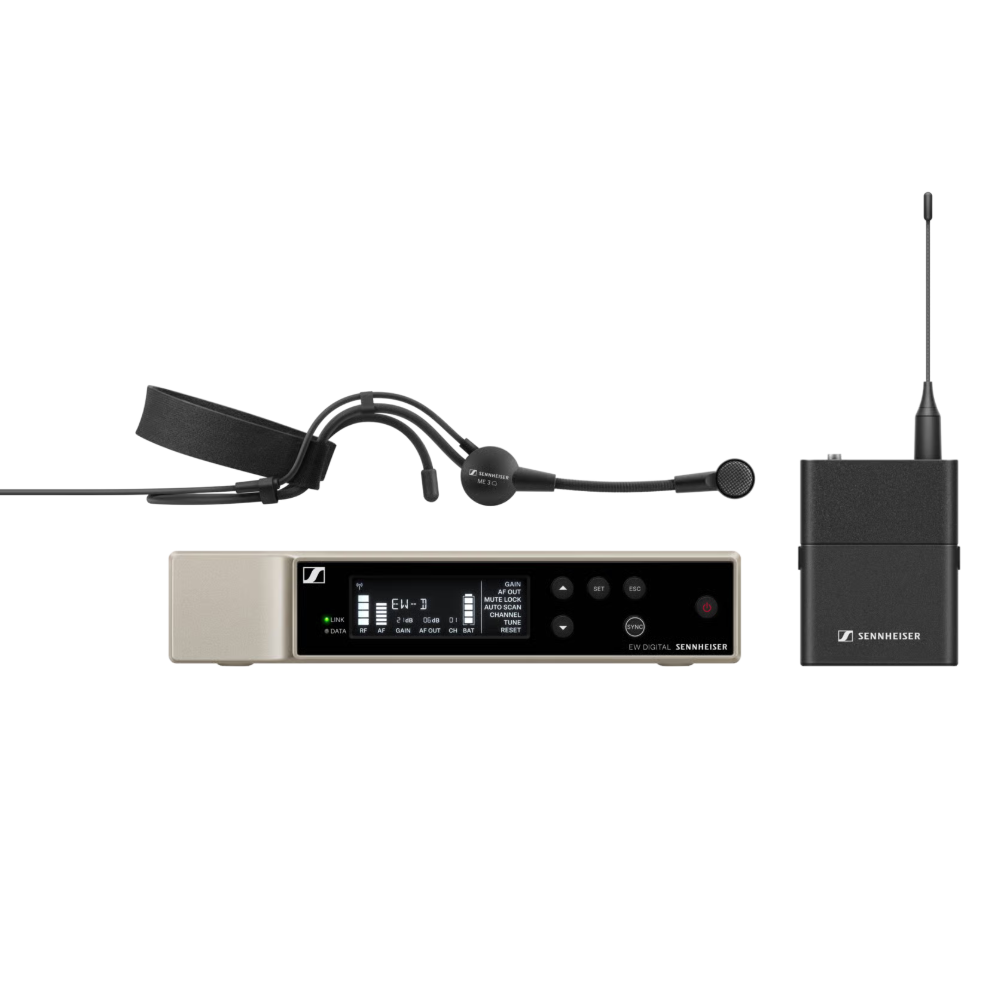

Sennheiser EW-D ME 3 Set

Digital Wireless Headset

Microphone & Transmitter

Model: ME 3 (Headset)

Max SPL: 150 dB SPL

Pattern: Cardioid

Connection: 3.5mm Tele (Lockable)

System benefits

Smart Assist App for remote control
Equidistant Grid for up to 90 channels
Robust metal bodypack transmitter
Extremely low latency (1.9 ms)

High speech intelligibility: The ME 3 headset is designed to deliver clear sound even in noisy environments. Perfect for presentations, singing and instructors.

Technical specifications

Dimensions: 212 × 44 × 189 mm, 63 × 80 × 20 mm (without antenna)
Connection: 3.5 mm jack
Frequency range: 50 Hz - 18 000 Hz
Audio frequency range: 20 Hz - 20 kHz (-3 dB at 3 dBfs)
Maximum sound pressure level (SPL): 150 dB
Cable length: approximately 1.60 m
Directionality: Cardioid
Sensitivity (1 kHz): 1.6 mV/Pa
Transducer principle: Pre-polarized condenser microphone
THD (total harmonic distortion): ≤ -60 dB at 1 kHz @ -3 dBfs
Power supply: 2 × AA batteries (1.5 V alkaline) or BA 70 battery pack
Power consumption: ≤ 300 mA
Input voltage: 2.0 - 4.35 V / 11 - 13 V ⎓
Audio output level: max 18 dBu
Transmit power: BLE: max 10 mW EIRP, audio link: 10 mW, ERP (Y1-3): 12 mW ERP
Operating temperature: -10 °C to +55 °C (14 °F - 131 °F)
Relative humidity (operating): 5 - 95% (non-condensing)
Weight: approx. 1000 g (without antennas/power supply), approx. 120 g

Features and functions

Digital transmission in the UHF band improves range, reliability and scalability
Smart Assist App via Bluetooth Low Energy for easy configuration and remote control
Automatic frequency search for fast and stable connection
134 dB dynamic range eliminates the need for sensitivity adjustment
No intermodulation - allows channels to be placed 600 kHz apart
56 MHz tuning bandwidth allows up to 90 simultaneous channels
2,240 selectable frequencies for fine tuning
Lithium-ion battery (sold separately) provides up to 12 hours of operation
Up to 8 hours of operation with 2 AA batteries

EW-D frequencies

Q1-6: 470.2 - 526 MHz (EU, USA, Canada, Middle East, Japan)
R1-6: 520 - 576 MHz (EU, USA, Canada, Australia, Middle East, Japan)
R4-9: 552 - 607,8 MHz (EU, USA, Canada, Australia, Middle East, Japan)
S1-7: 606.2 - 662 MHz (UK, Australia, Korea, Japan)
S4-7: 630 - 662 MHz (EU)
Visit SIFA for frequencies supported in specific countries.
