Sennheiser
XSW 2-835

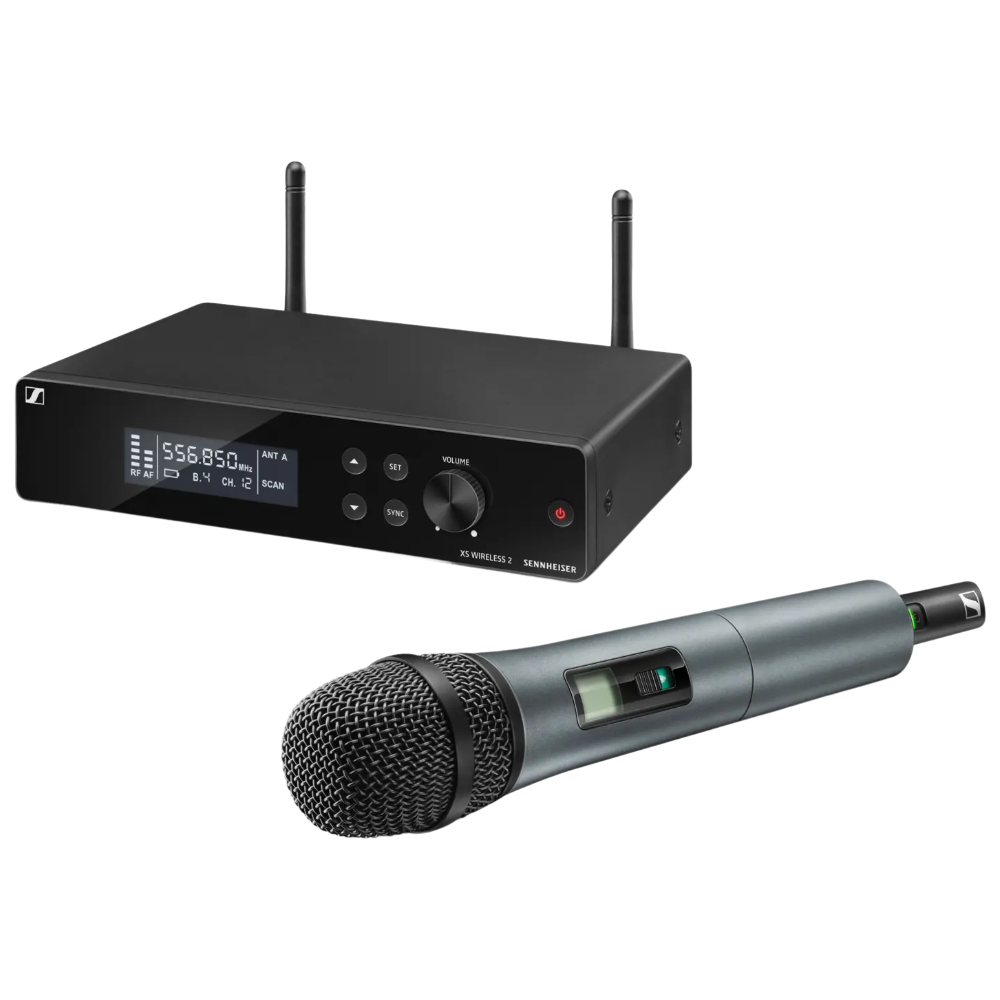

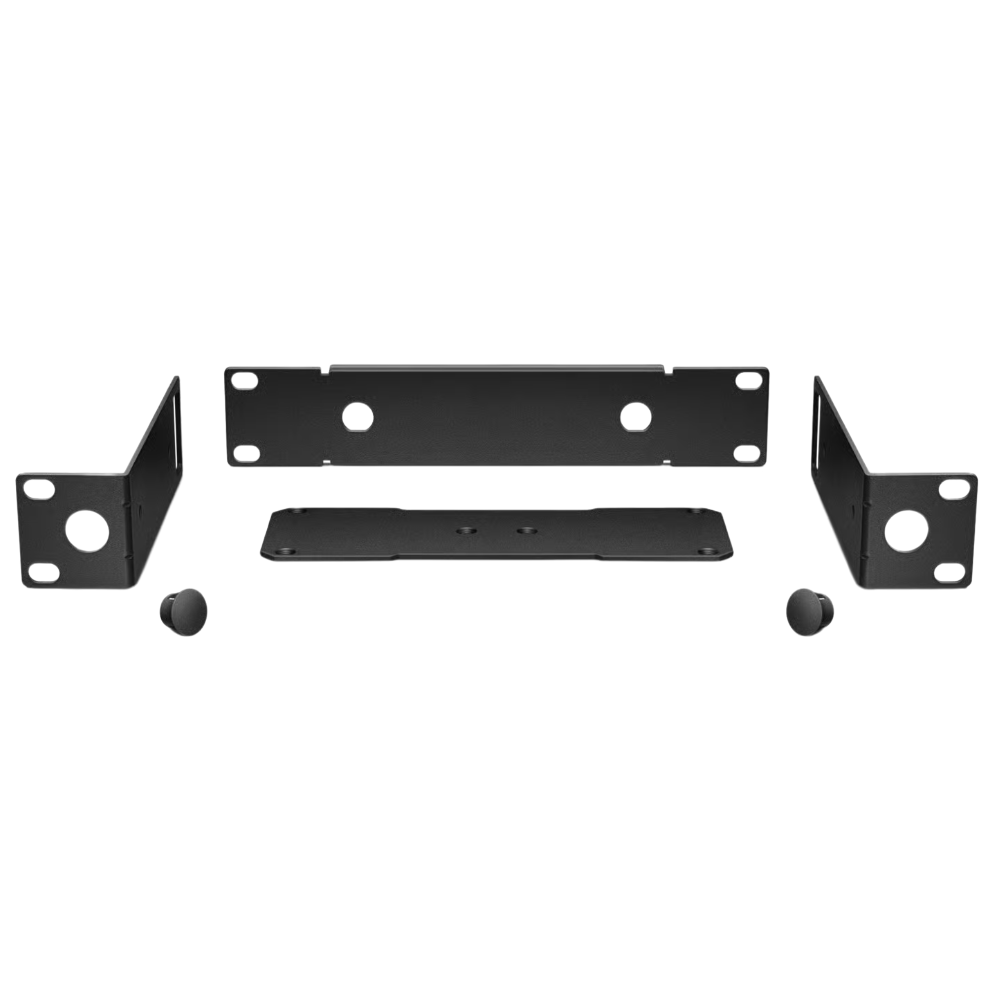

Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e835 (superior dynamic, cardioid) to perform under pressure. True Diversity receiver in a metal housing and rackmount kit included.
- Phone number: 040-546511
- E-Mail: contact@stagebrands.com
- BrandSennheiser
- ManufacturerSennheiser
Description
Article no.: XSW 2-835
Specifications
- Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Up to 12 compatible channels
Technical data
- Dimensions:
approx. 200 × 42 × 127 mm
Microphone: approx. 260 × 50 mm - Microphone:
Dynamic - Frequency response:
50-16,000 Hz (-3 dB) - THD (Total Harmonic Distortion):
≤ 0.9% - Weight:
approx. 680 g
approx. 245 g - Pick-up pattern:
Cardioid - Signal-to-noise ratio:
≥ 103 dBA - RF output power:
10 mW - Switching bandwidth:
Up to 24 MHz - Operating time:
approx. 10 hrs - Modulation:
Wideband FM - Power supply:
Receiver: 12 V DC nominal / 300 mA
Transmitter: 2 × AA batteries (1.5 V) - Output voltage:
1/4" (6.3 mm) jack socket (unbalanced): +6 dBu
XLR socket (balanced): +12 dBu - Housing:
Metal, microphone: robust ABS - Frequency banks:
8 frequency banks, each with up to 12 factory-preset channels - Frequency range:
A: 548-572 MHz
GB: 606-630 MHz
B: 614-638 MHz
C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz - Sensitivity:
< 3 μV at 52 dB(A) rms S/N - Squelch:
Switchable from 3 dBμV to 28 dBμV (via Pilot Tone) - Synchronization:
2.4 GHz Low Power OQPSK (only active during synchronization) - Line:
20 dB, switchable - Input sensitivity:
1.5 mV / Pa - AF frequency response:
50-16,000 Hz (-3 dB)
80-14,000 Hz - Adjustment range (transmitter):
0 to -30 dB, adjustable in 10 dB steps - Audio adjustment range:
40 dB, adjustable in 5-dB steps - Temperature range:
Operation: 0 °C to +40 °C
Storage: -20 °C to +70 °C - Receiver principle:
Double superheterodyne - Diversity principle:
True Diversity
