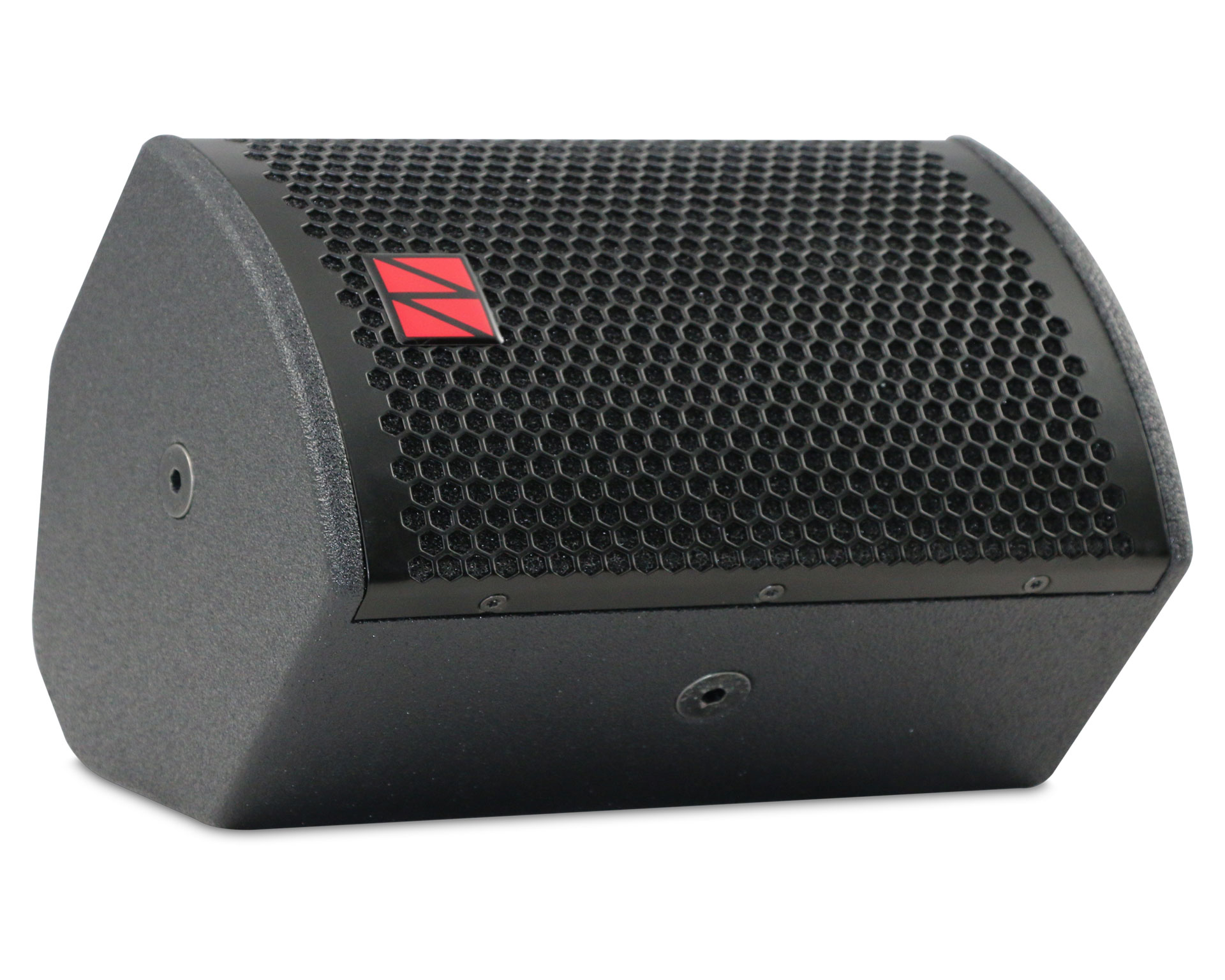

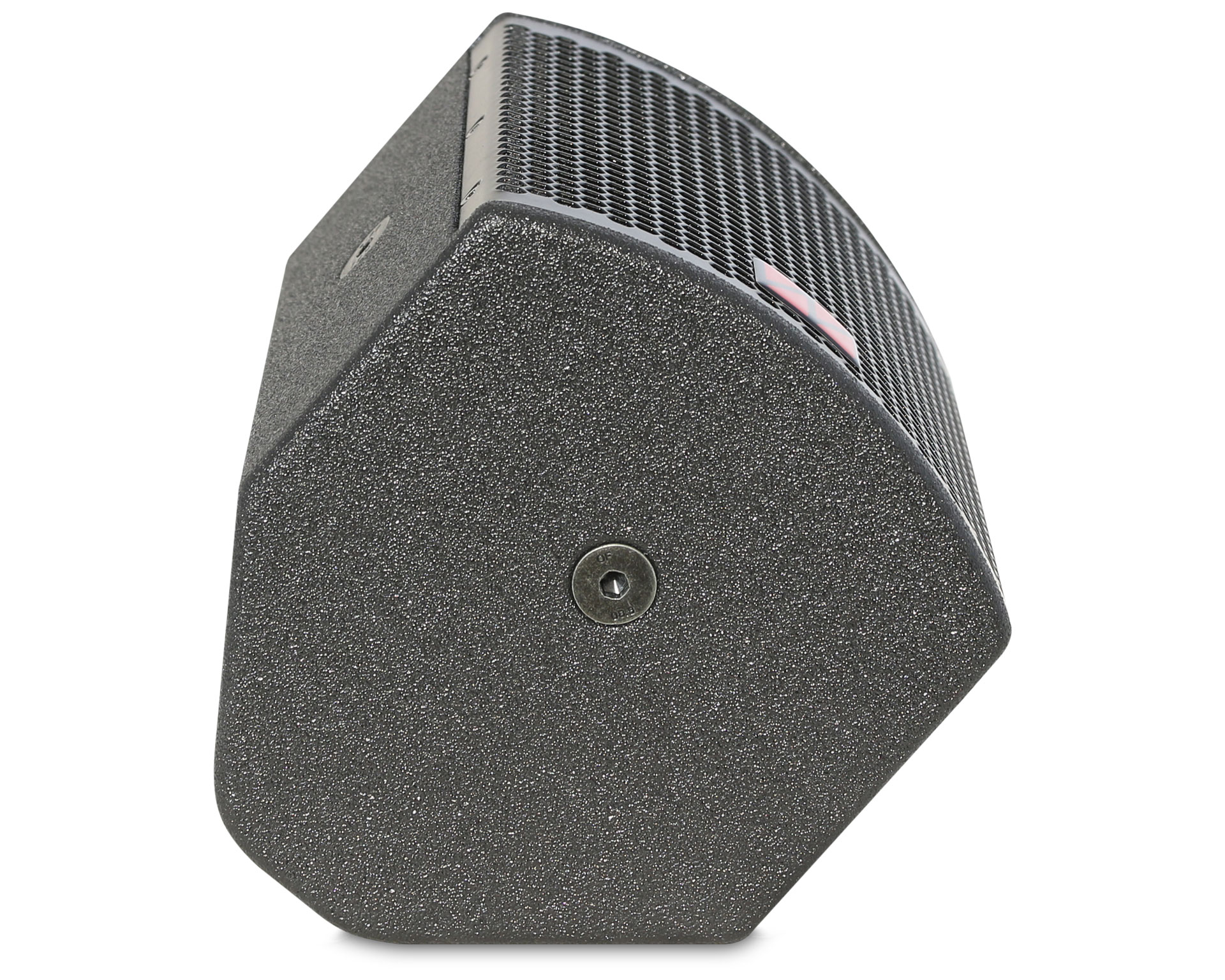

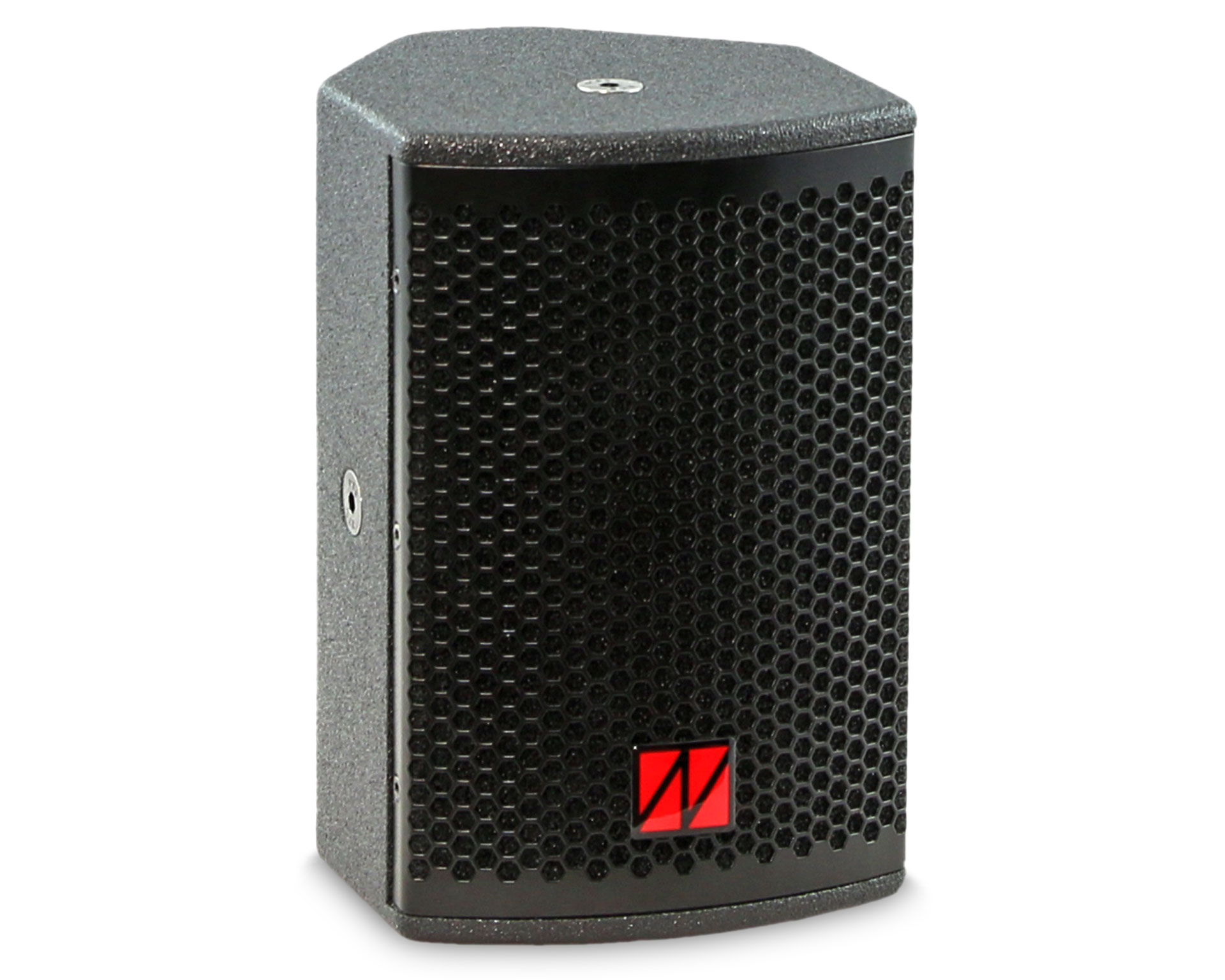

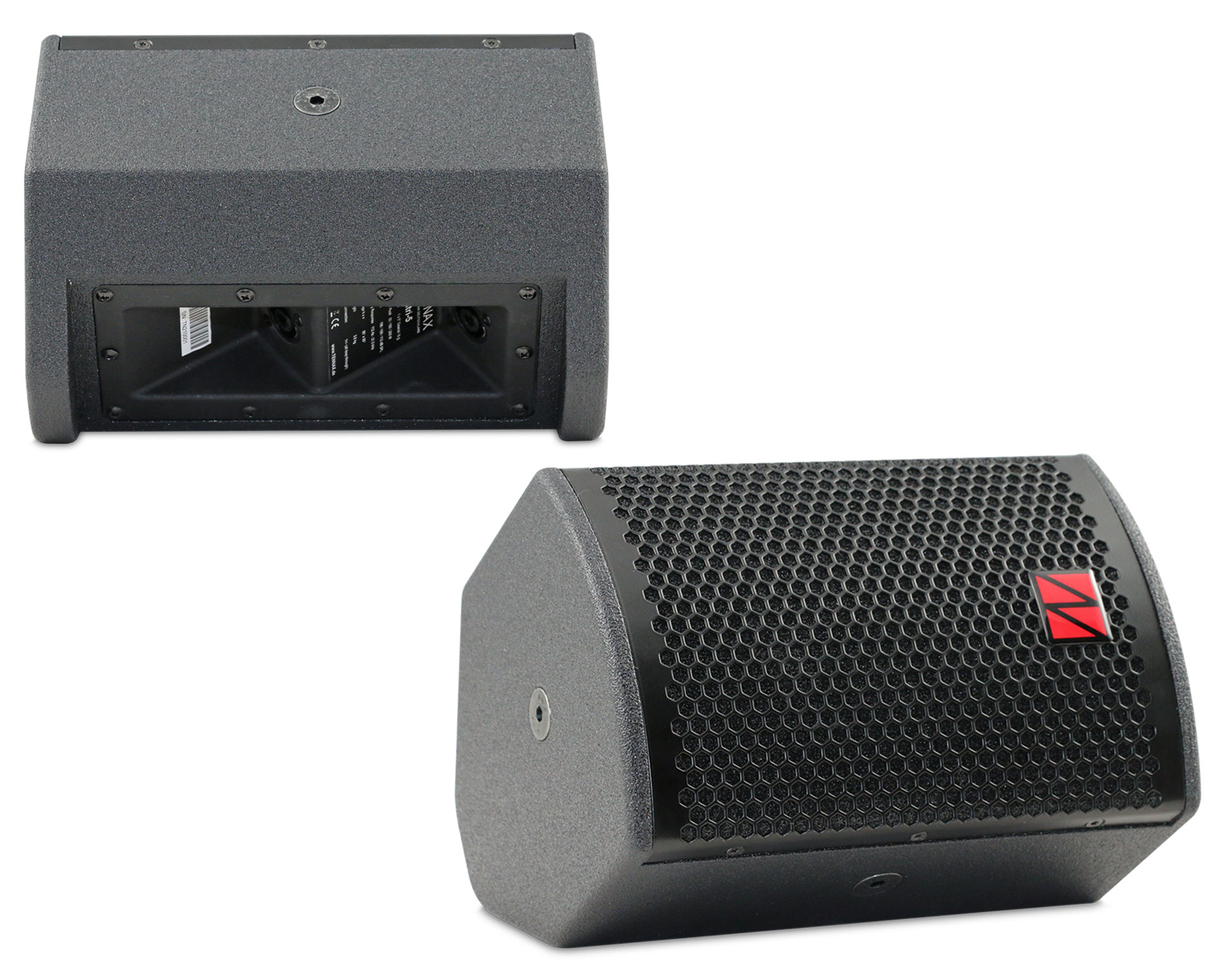

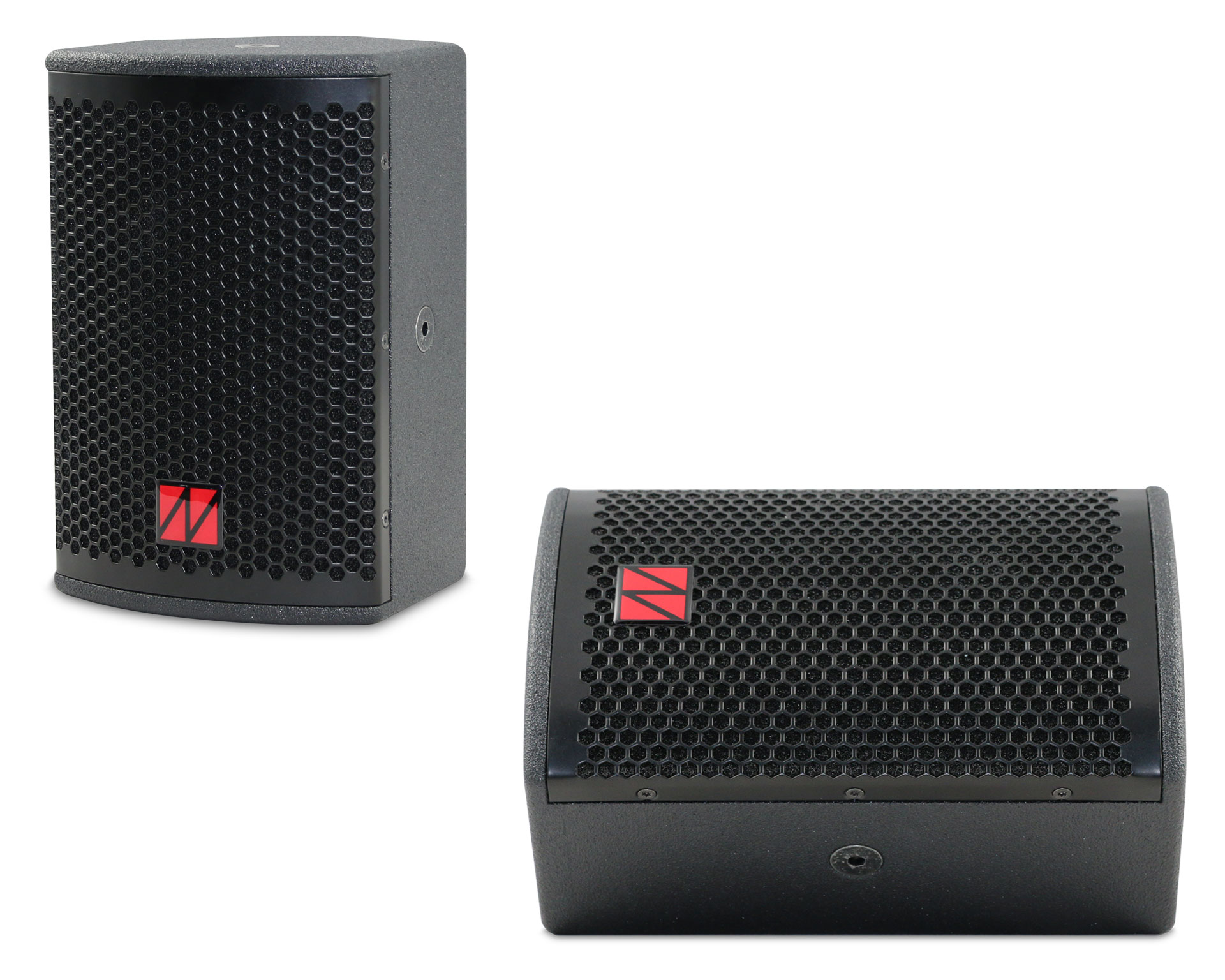

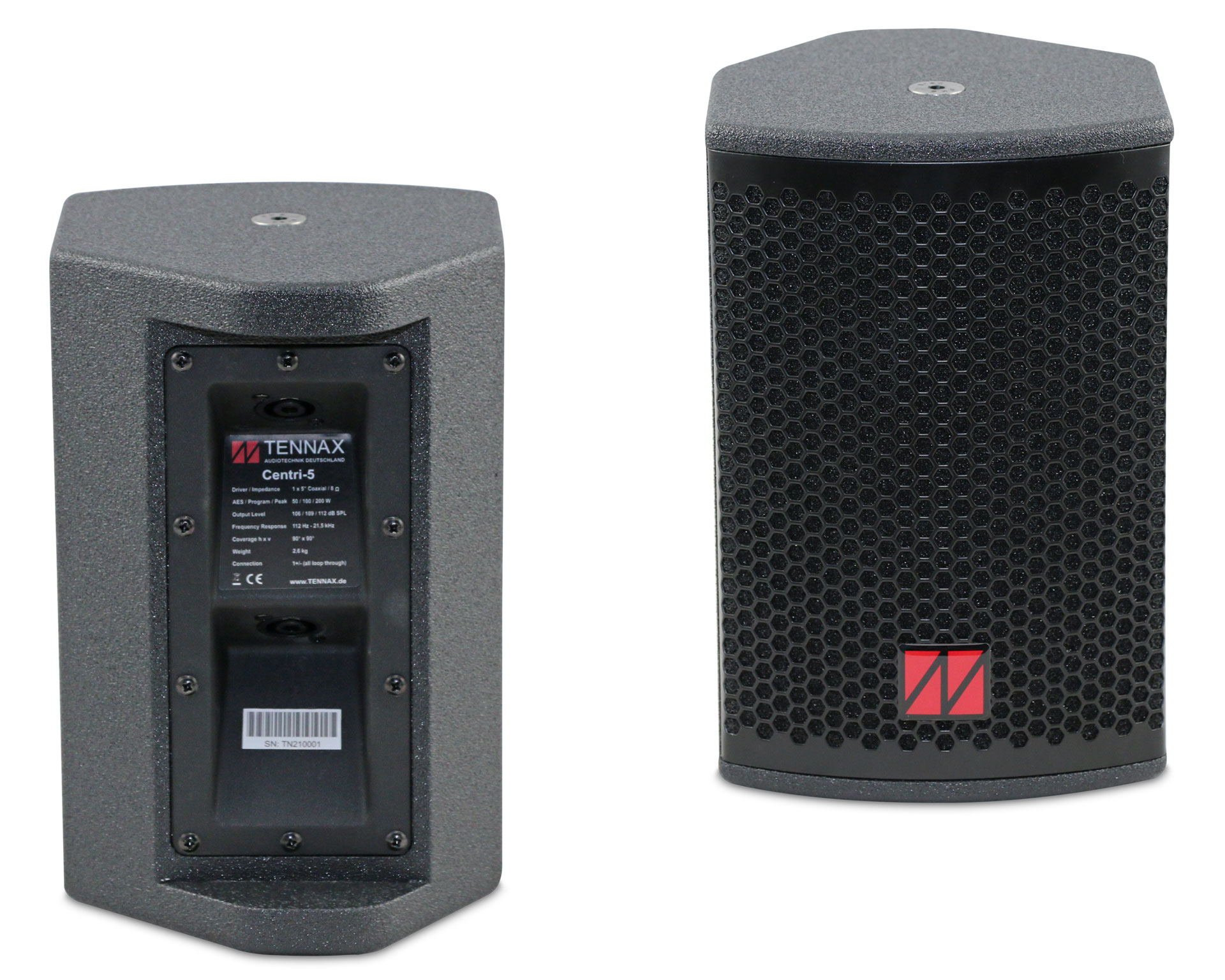

Centri-5/Centri-5pro

With two monitor angles of 50° and 35°, Centri-5 is a universal and extremely discreet sound reinforcement tool for mobile applications and installations. The elegant and discreet housing design fits into any environment. Operation is possible via any amplifier, even without DSP.

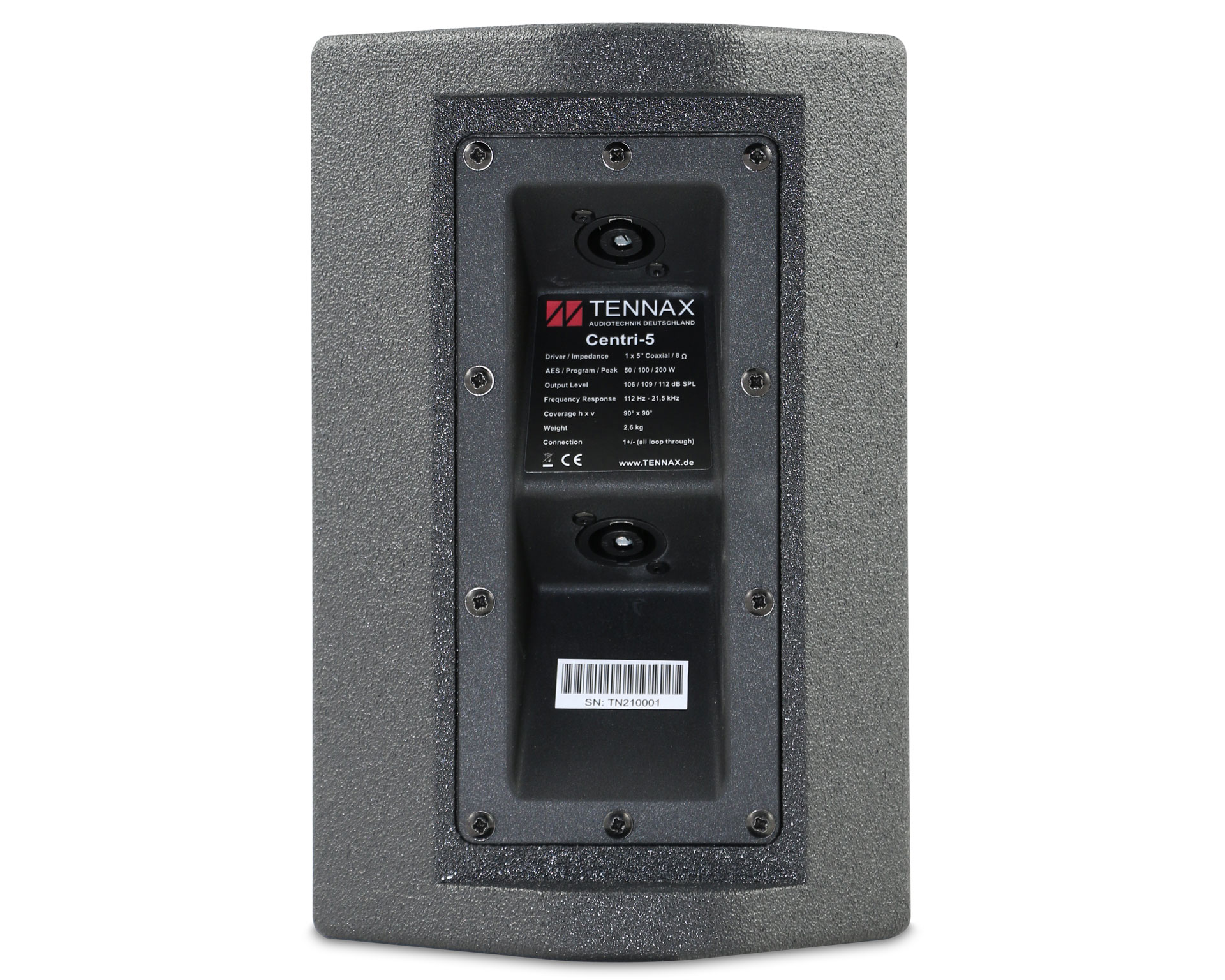

The angled speakON connector panel can be replaced by a connector plate with Phoenix connector or waterproof PG cable gland.

For flight or tripod operation and installations, various threaded mounts, swivel mounts and wall mounts are available.

Centri-5

• Element: 1 x 5" coaxial chassis
• Frequency range: 112 Hz - 21.5 kHz (-10 dB) / 150 Hz - 21 kHz (+/- 3 dB)
• Dispersion range: 90° x 90°
• Monitor angles: 50° and 35°
• Impedance: 8 Ω
• Power capacity: 50 W / 100 W / 200 W (AES / program / peak)
• Sensitivity: 89 dB SPL (1 W/1 m)
• Sound pressure: 106 dB SPL / 109 dB SPL / 112 dB SPL (AES / program / peak)
• Connection: 2 x Neutrik NL4 IN/OUT 1+/- (4-pin through)
• Finish: Polyurea coating in RAL 9005
• Dimensions/Weight: 230 (H) × 160 (W) × 177.7 (D) mm / 2.6 kg

Centri-5pro

• Element: 1 x 5" coaxial chassis
• Frequency range: 115 Hz - 22.5 kHz (-10 dB) / 155 Hz - 19 kHz (+/- 3 dB)
• Dispersion range: 100° x 100°
• Monitor angles: 50° and 35°
• Impedance: 8 Ω
• Power capacity: 150 W / 300 W / 600 W (AES / program / peak)
• Sensitivity: 90 dB SPL (1 W/1 m)
• Sound pressure: 112 dB SPL / 115 dB SPL / 118 dB SPL (AES / program / peak)
• Connection: 2 x Neutrik NL4 IN/OUT 1+/- (4-pin through)
• Finish: Polyurea coating in RAL 9005
• Dimensions/Weight: 230 (H) × 160 (W) × 177.7 (D) mm / 3.5 kg
