Ikarray-6

Voice-Acoustic Ikarray-6 - Compact 2-way line array with high-resolution sound

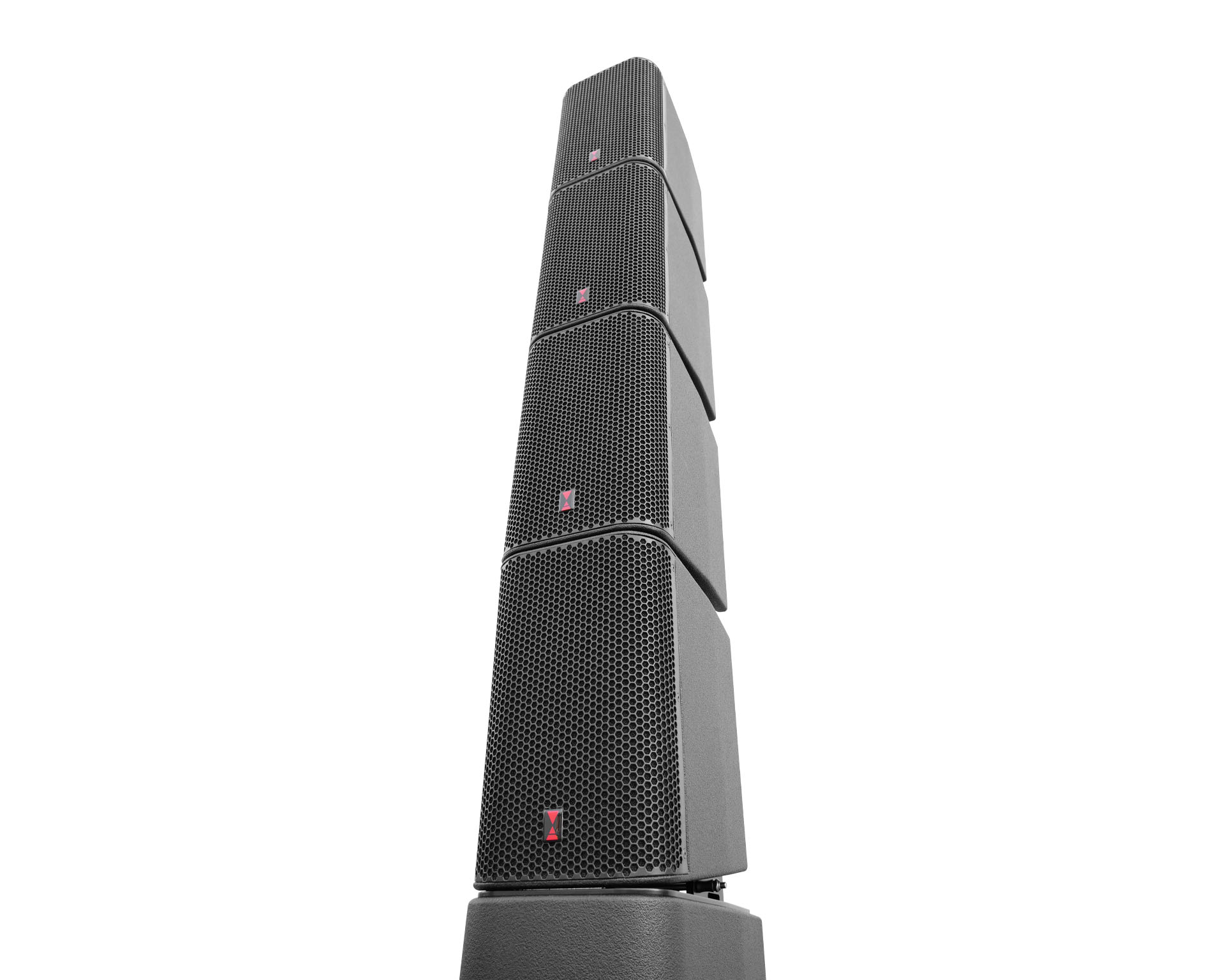

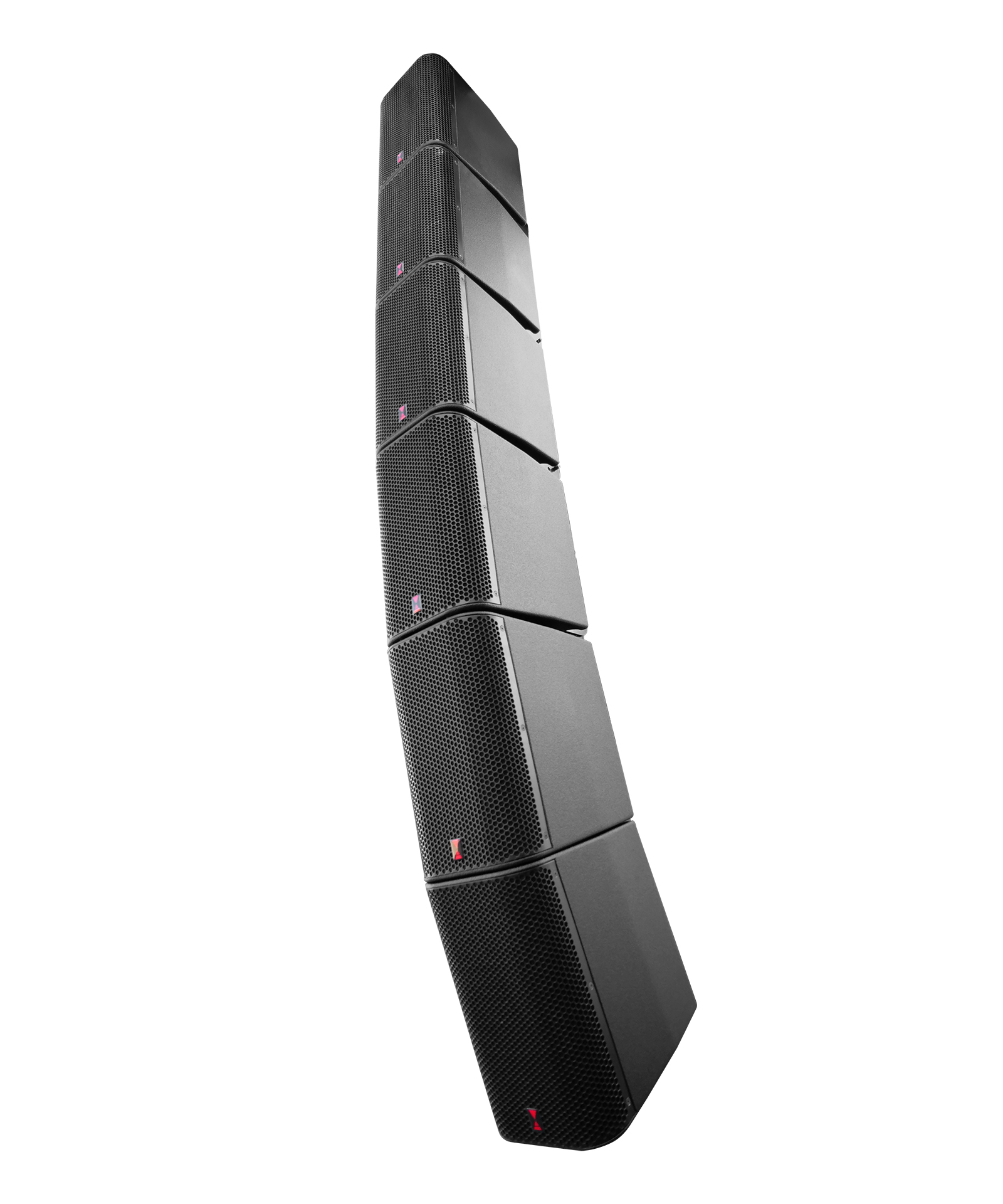

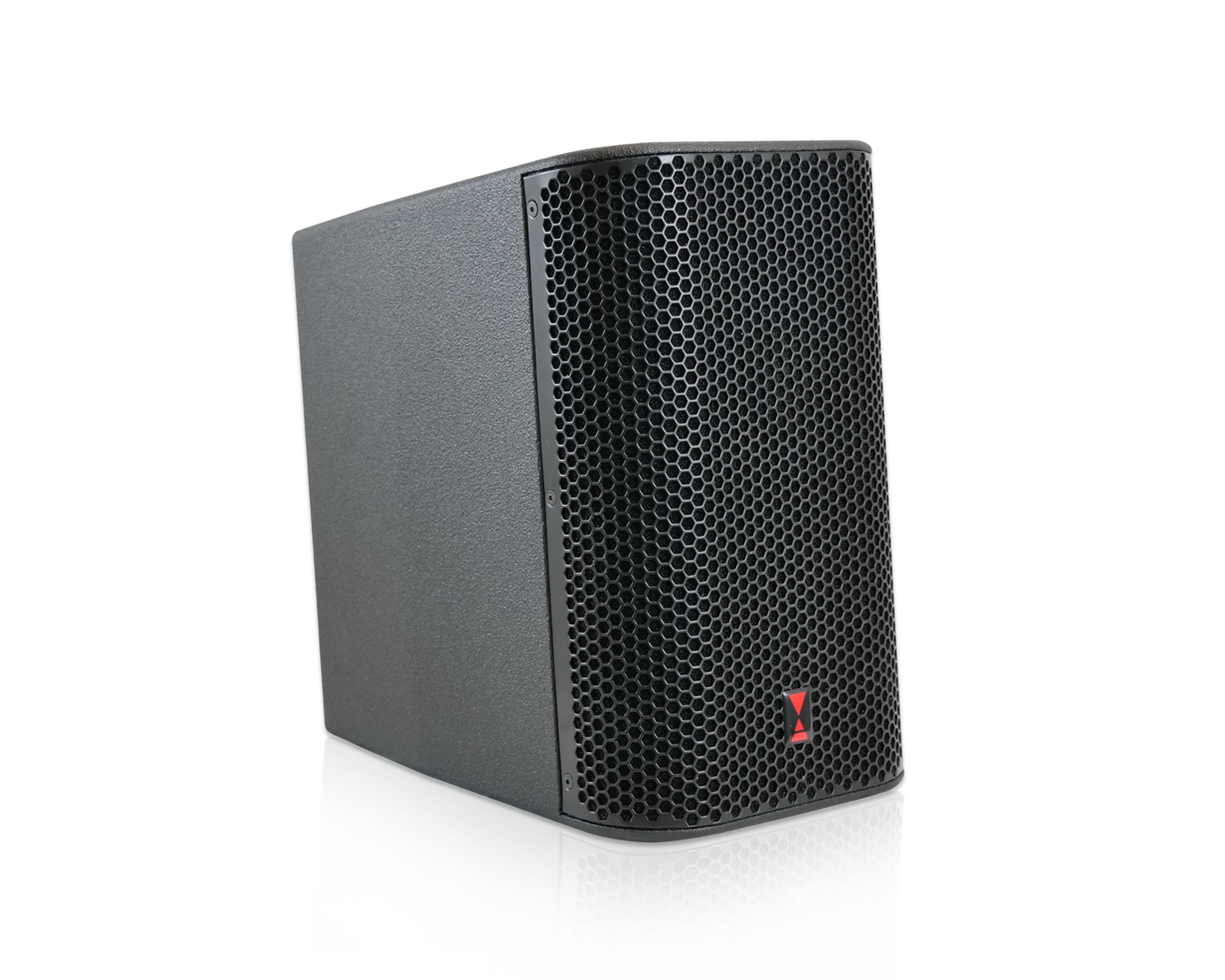

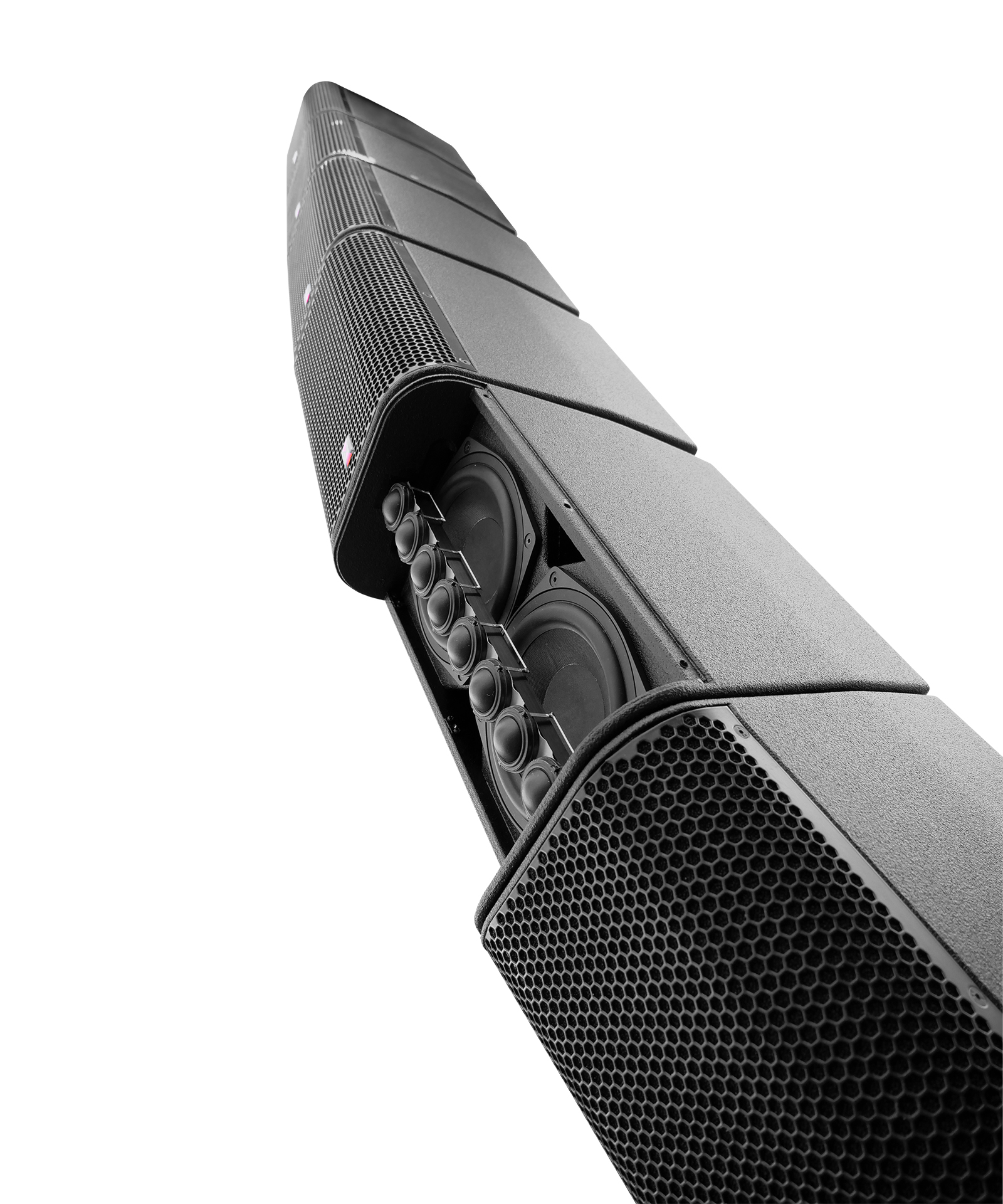

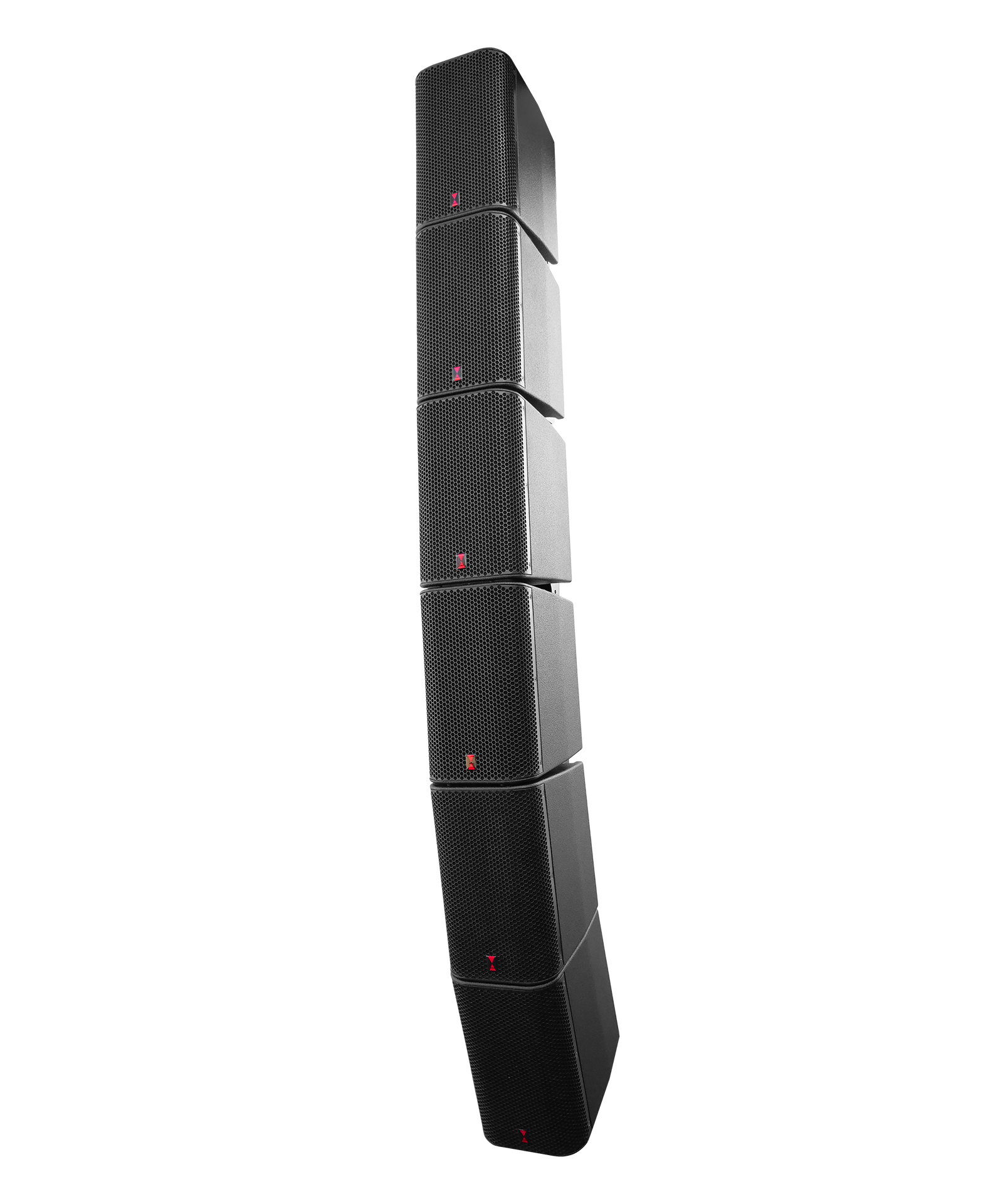

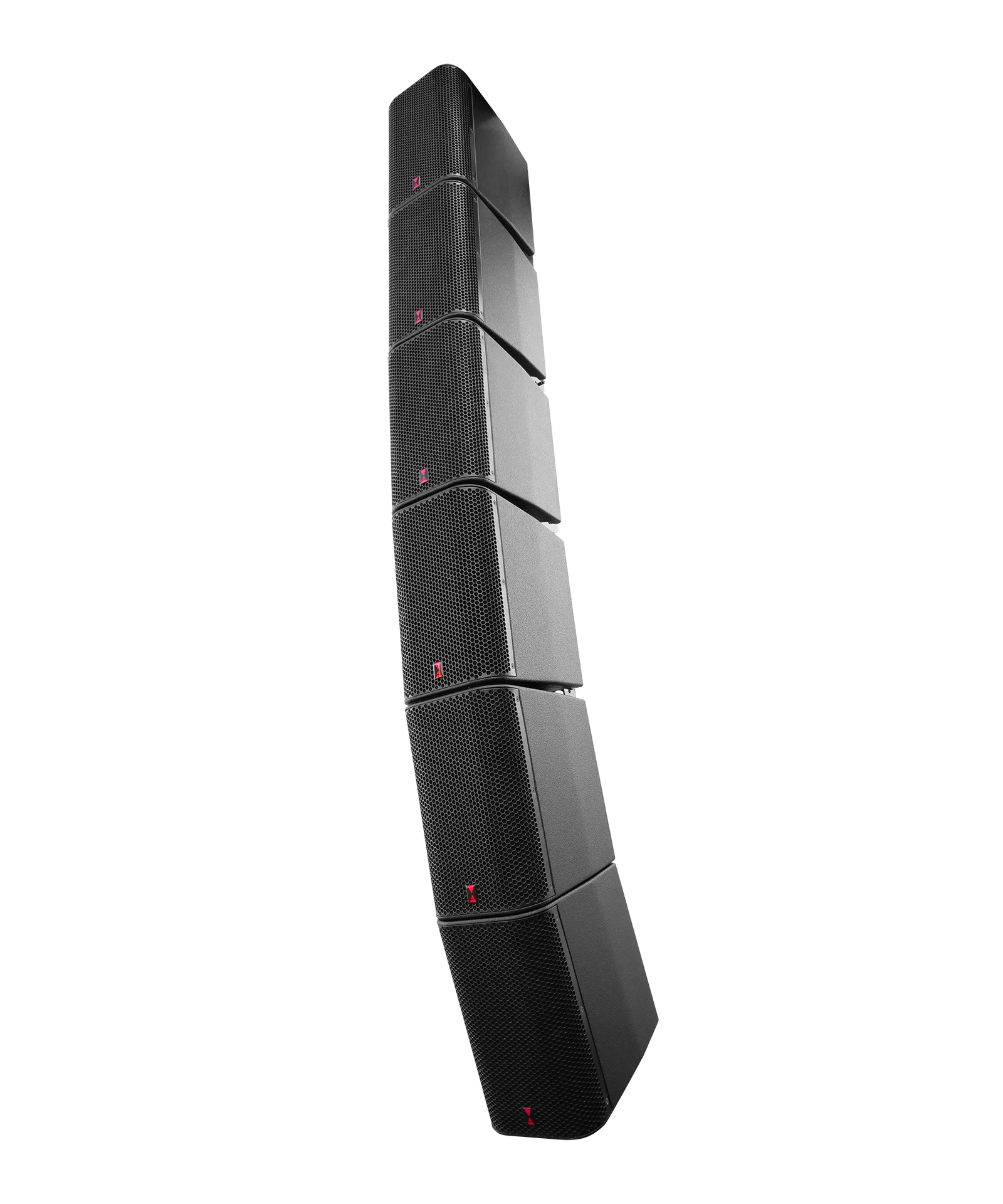

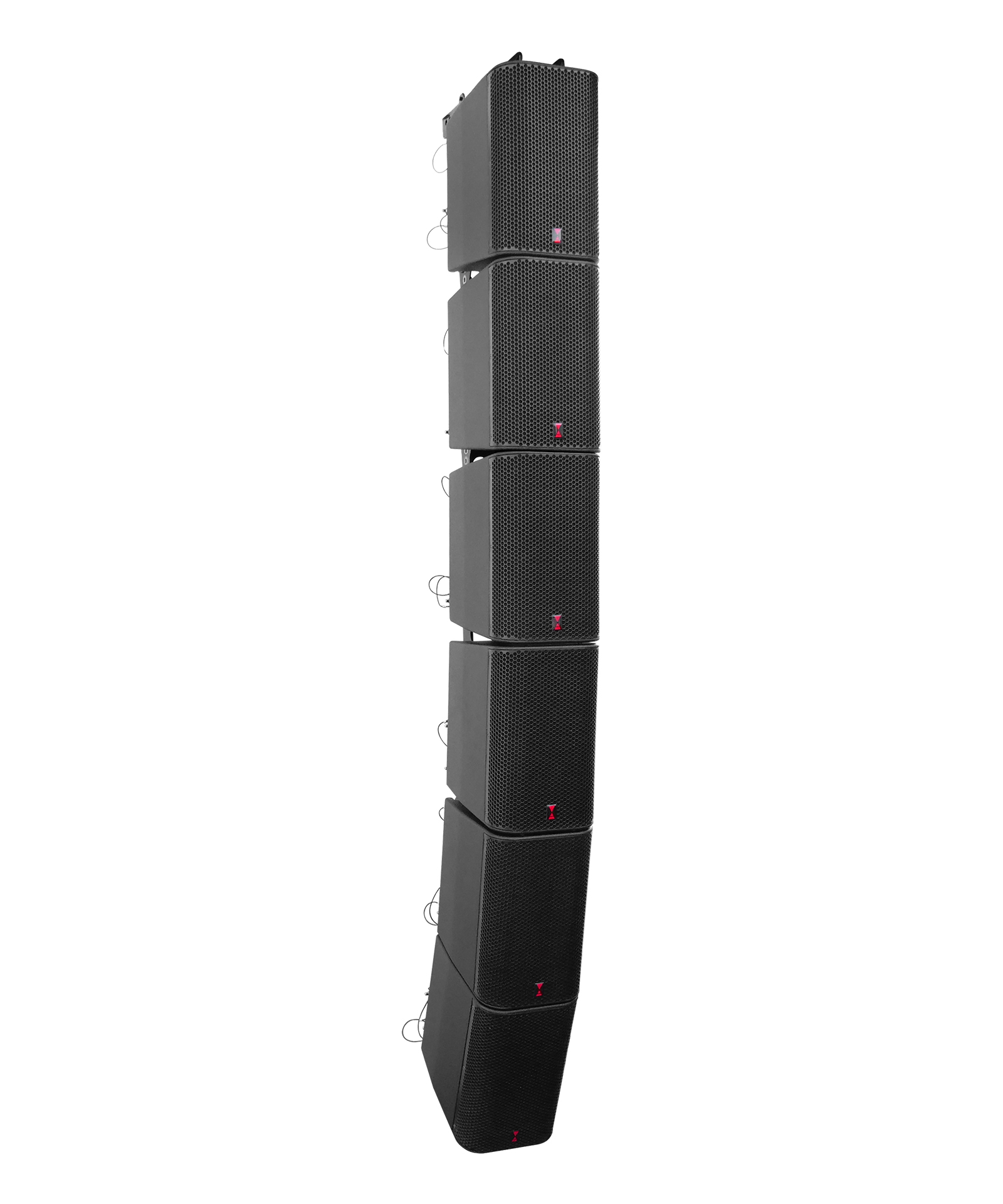

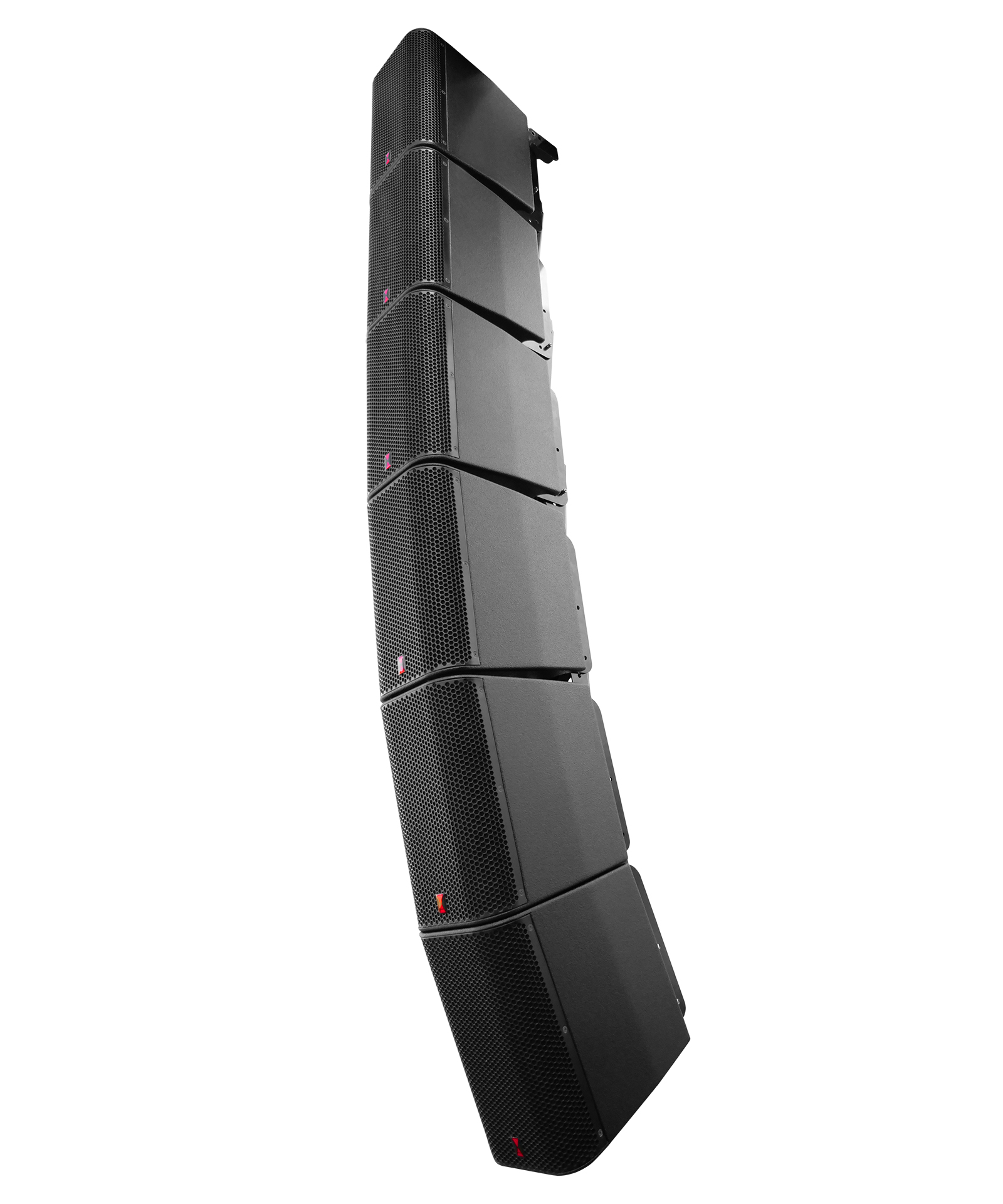

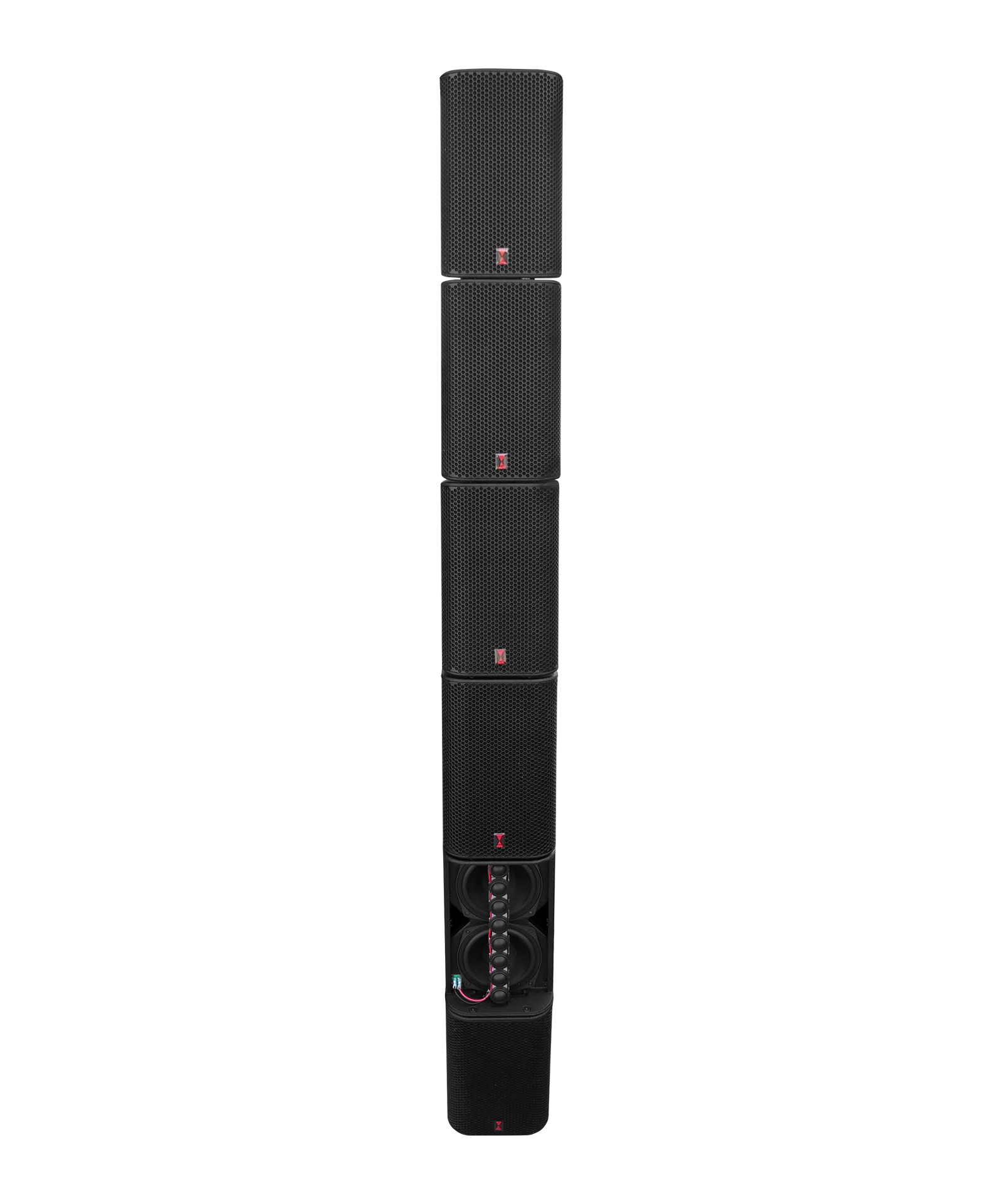

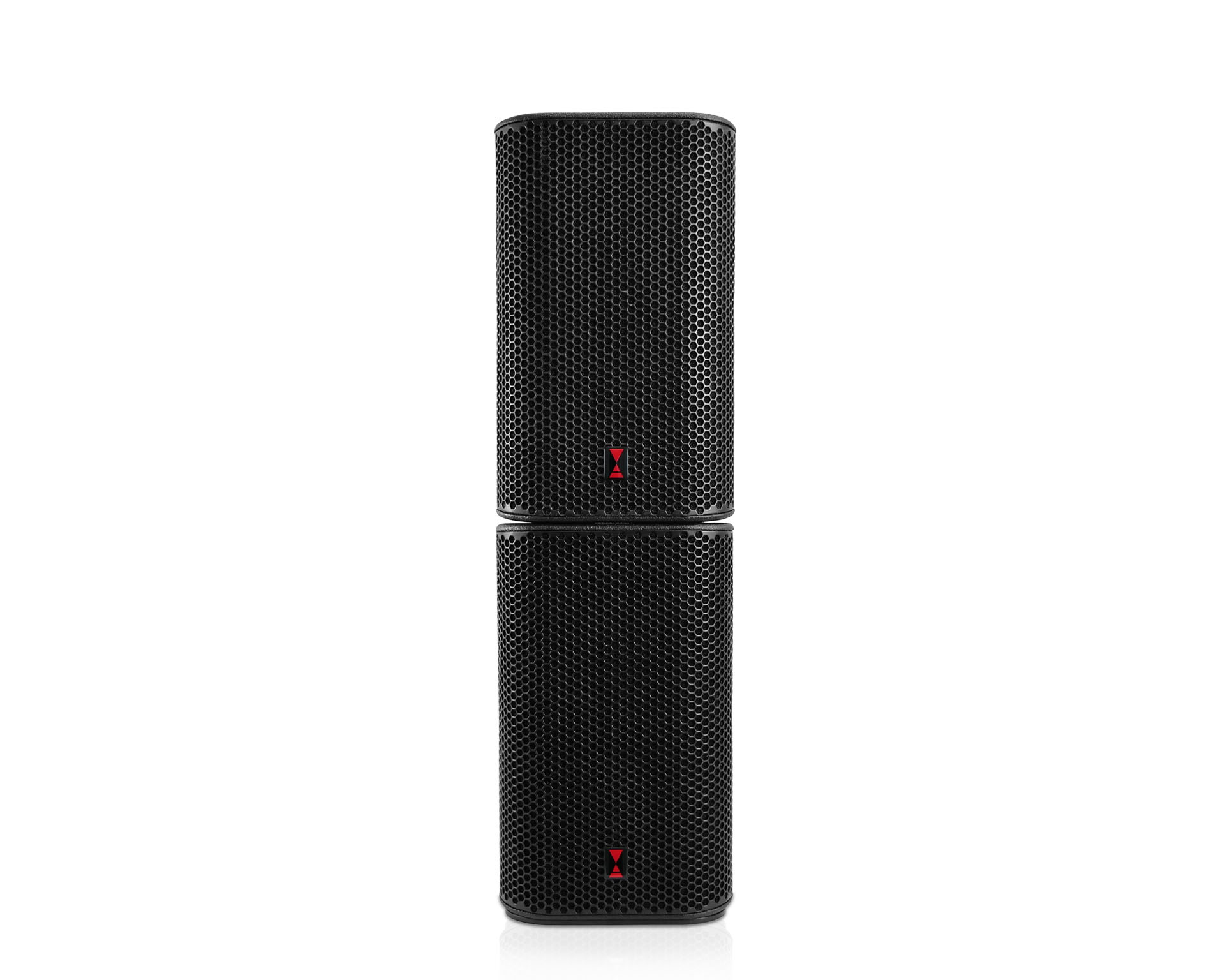

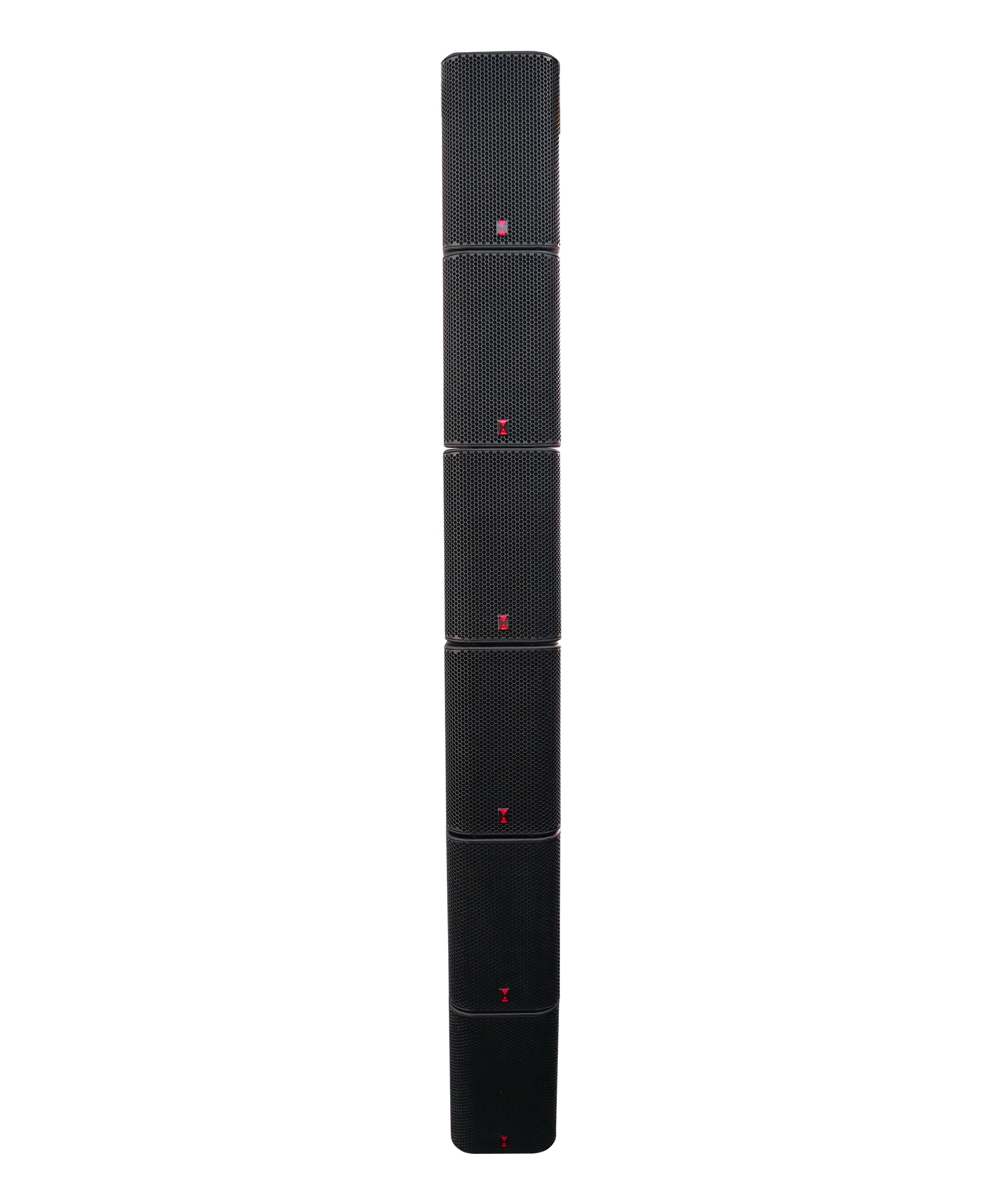

The Ikarray-6 is a passive, 2-way compact line array system with 2 x 6.5" neodymium speakers and a central line of 8 x 1" dome tweeters, providing 100° horizontal dispersion.

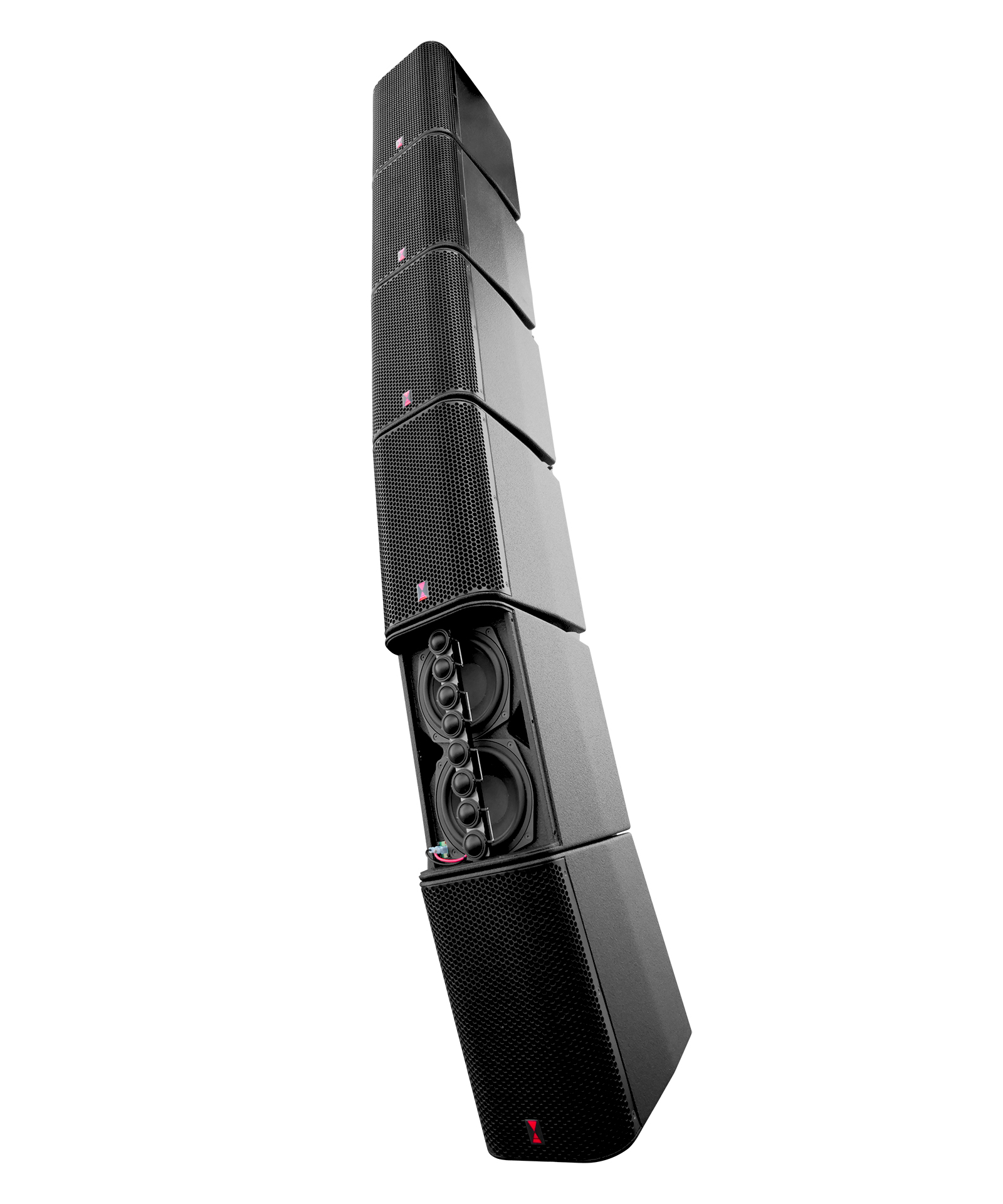

The tweeter line has a slightly curved wavefront for optimal coupling between elements in the array. The tweeters are mounted on a heat sink that is cooled by the airflow from the long-throw woofers, increasing power handling capacity and reducing compression.

The system is designed to deliver powerful and detailed sound in a slim and elegant column shape. The sound quality is equivalent to a high-end studio monitor but with concert-level sound pressure.

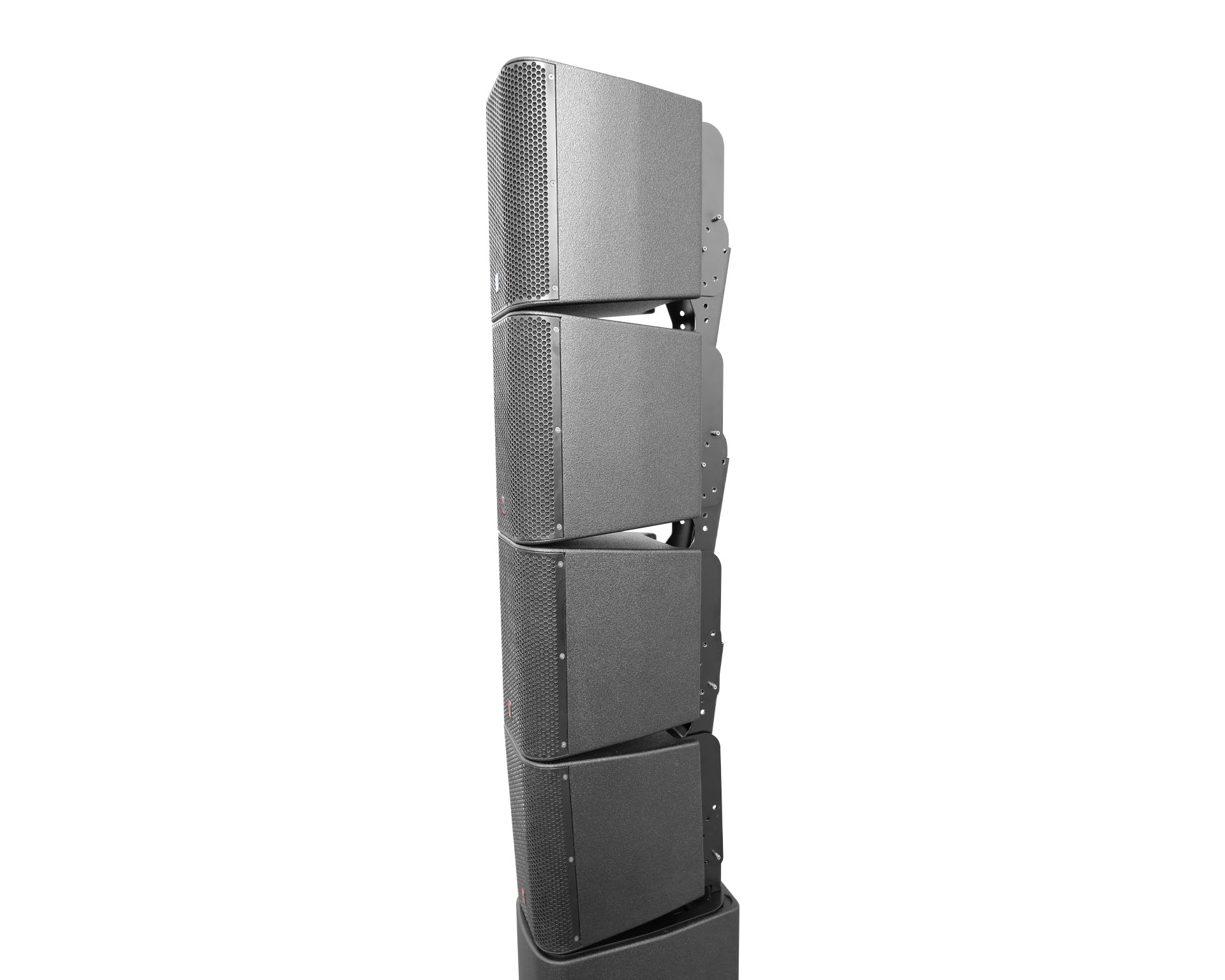

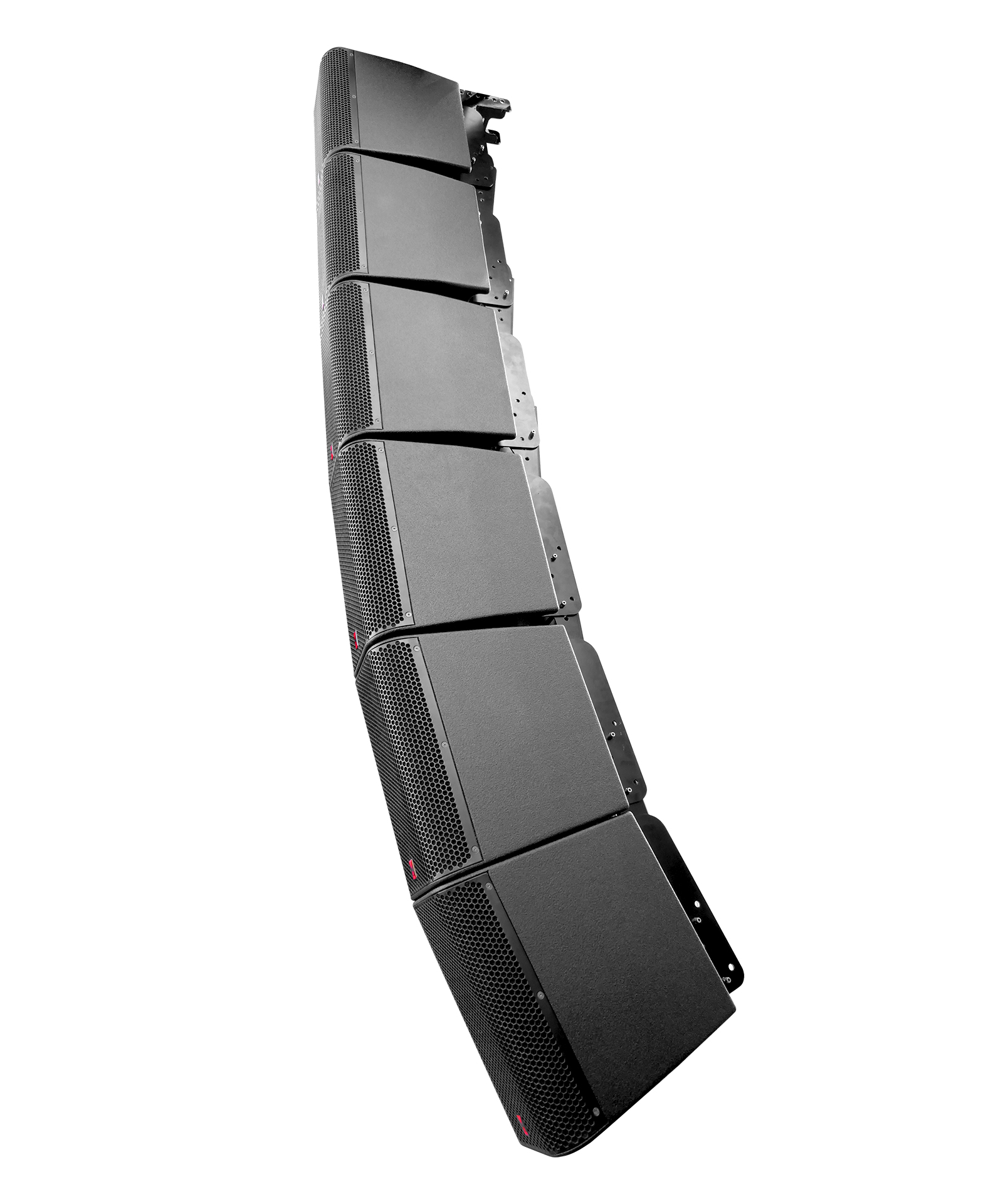

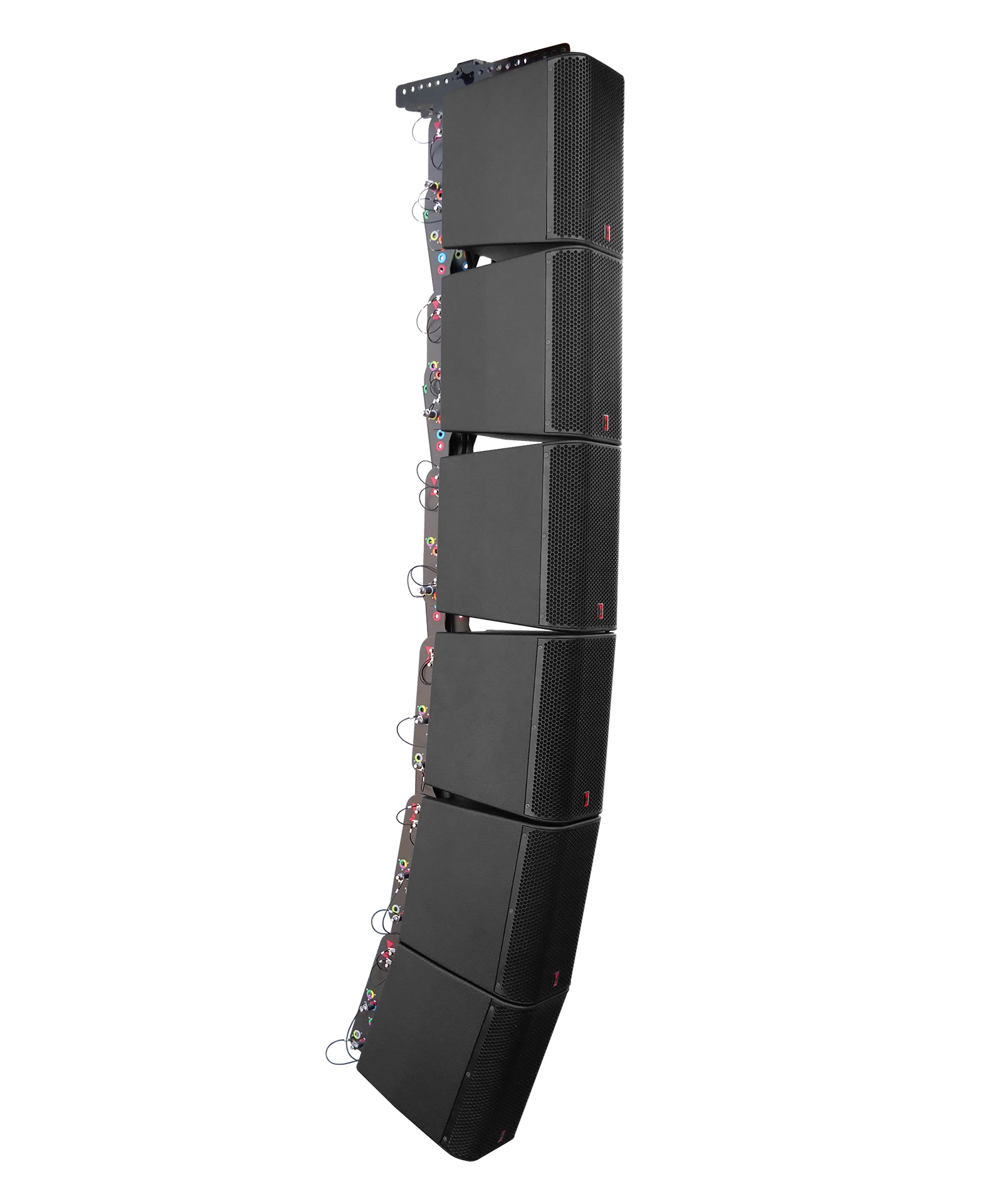

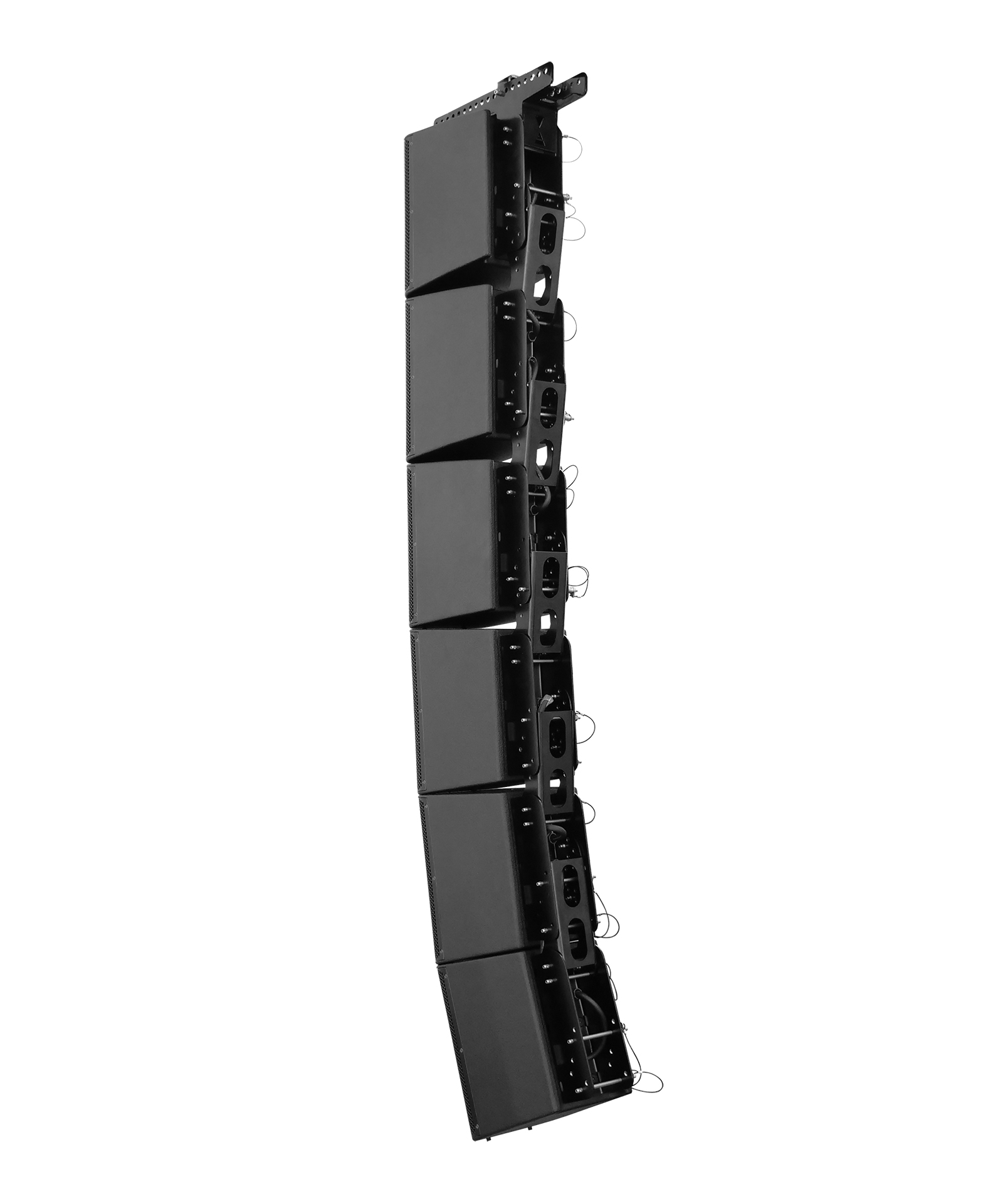

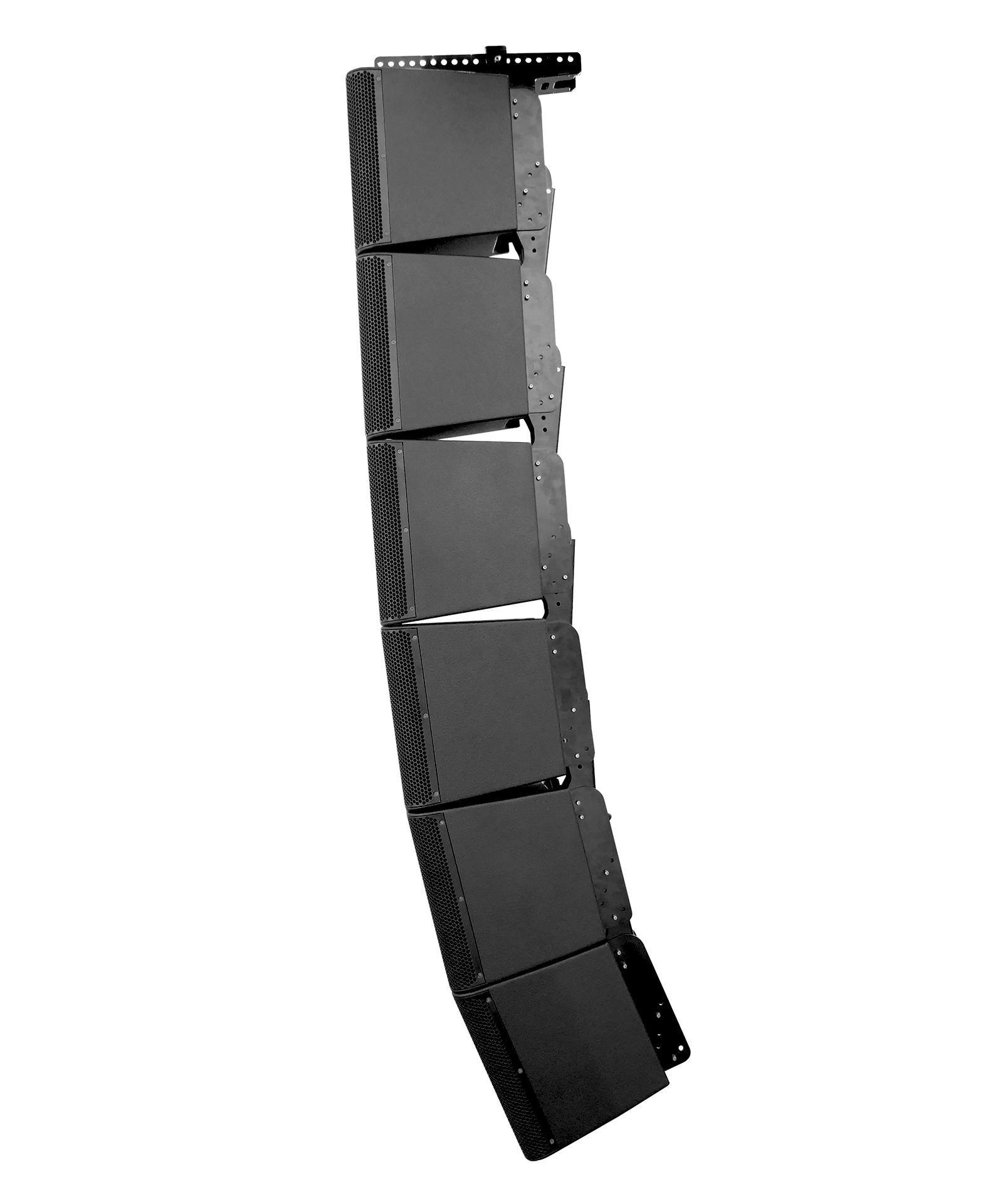

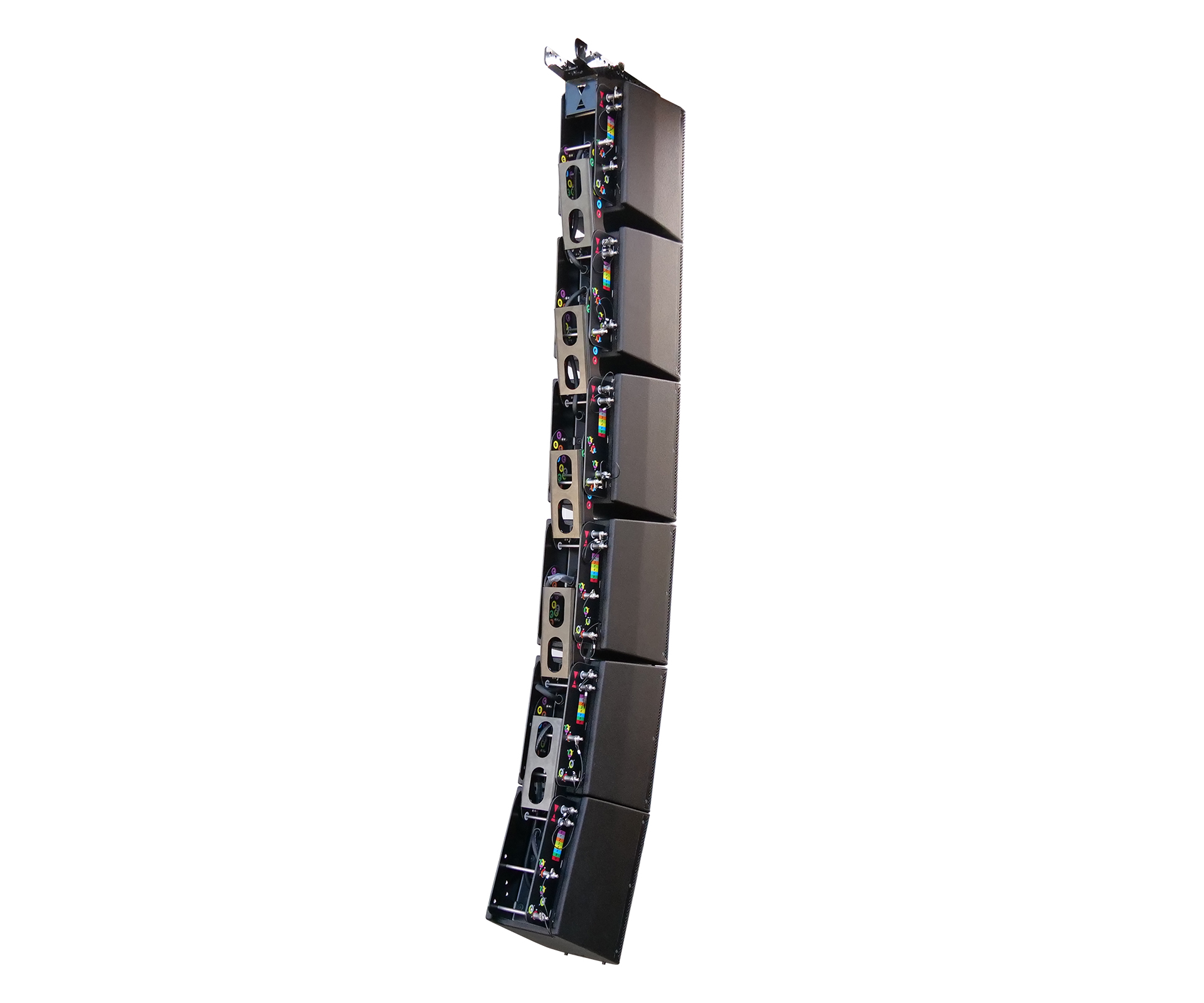

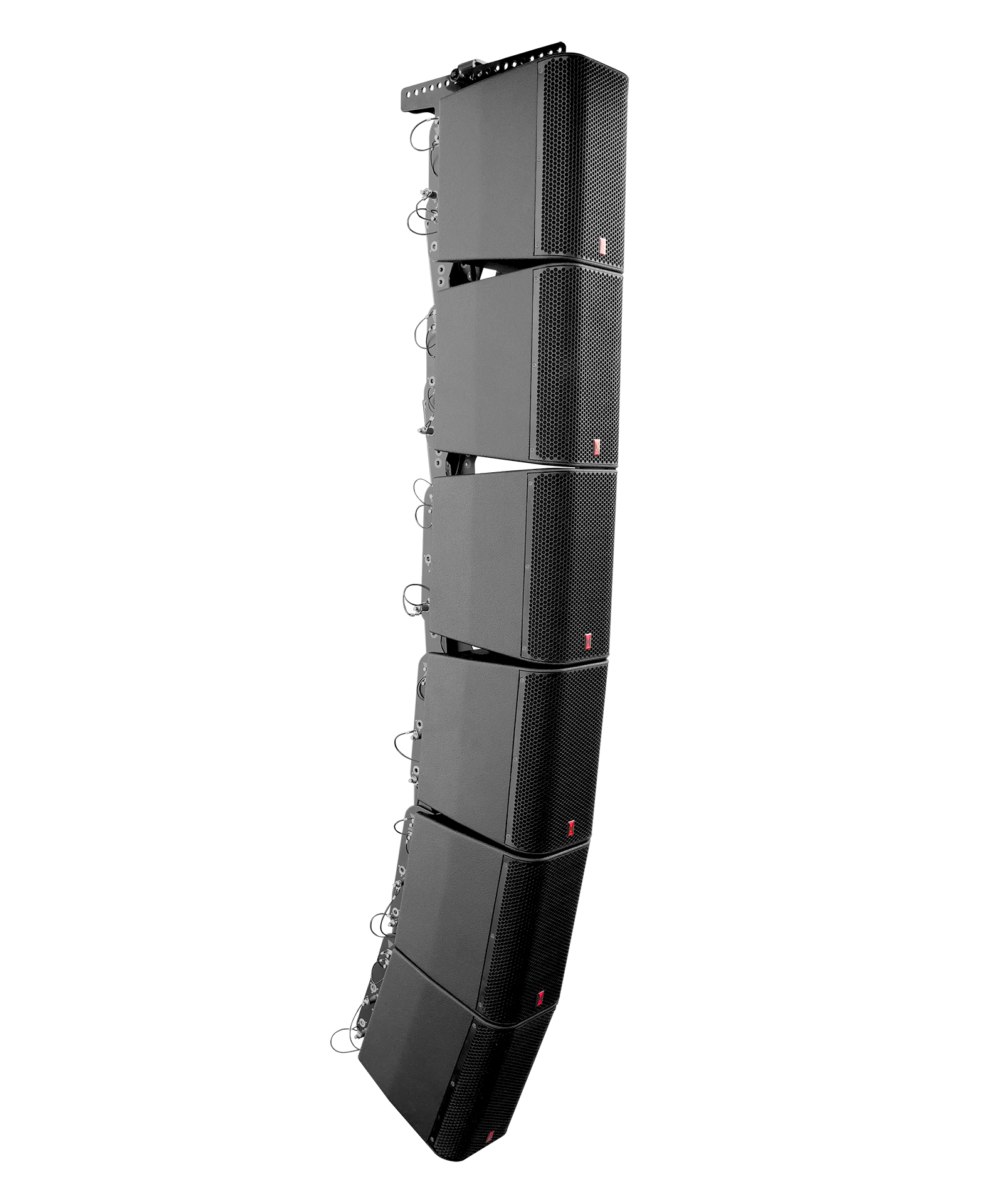

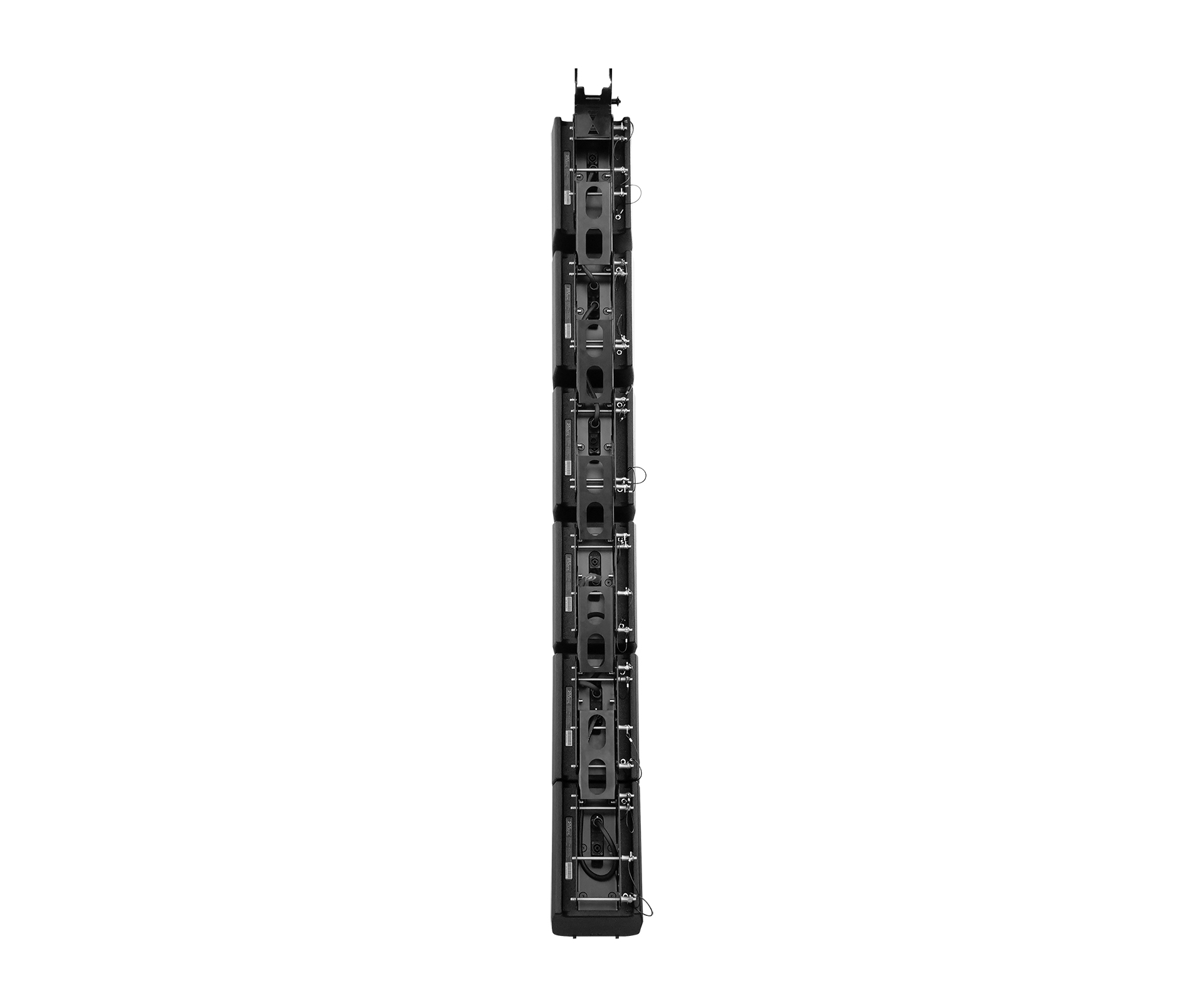

The innovative and patented steel rigging system is hidden at the back and allows precise angle adjustment between 0-10° in 1° increments, with no visible rigging equipment at the front or sides.

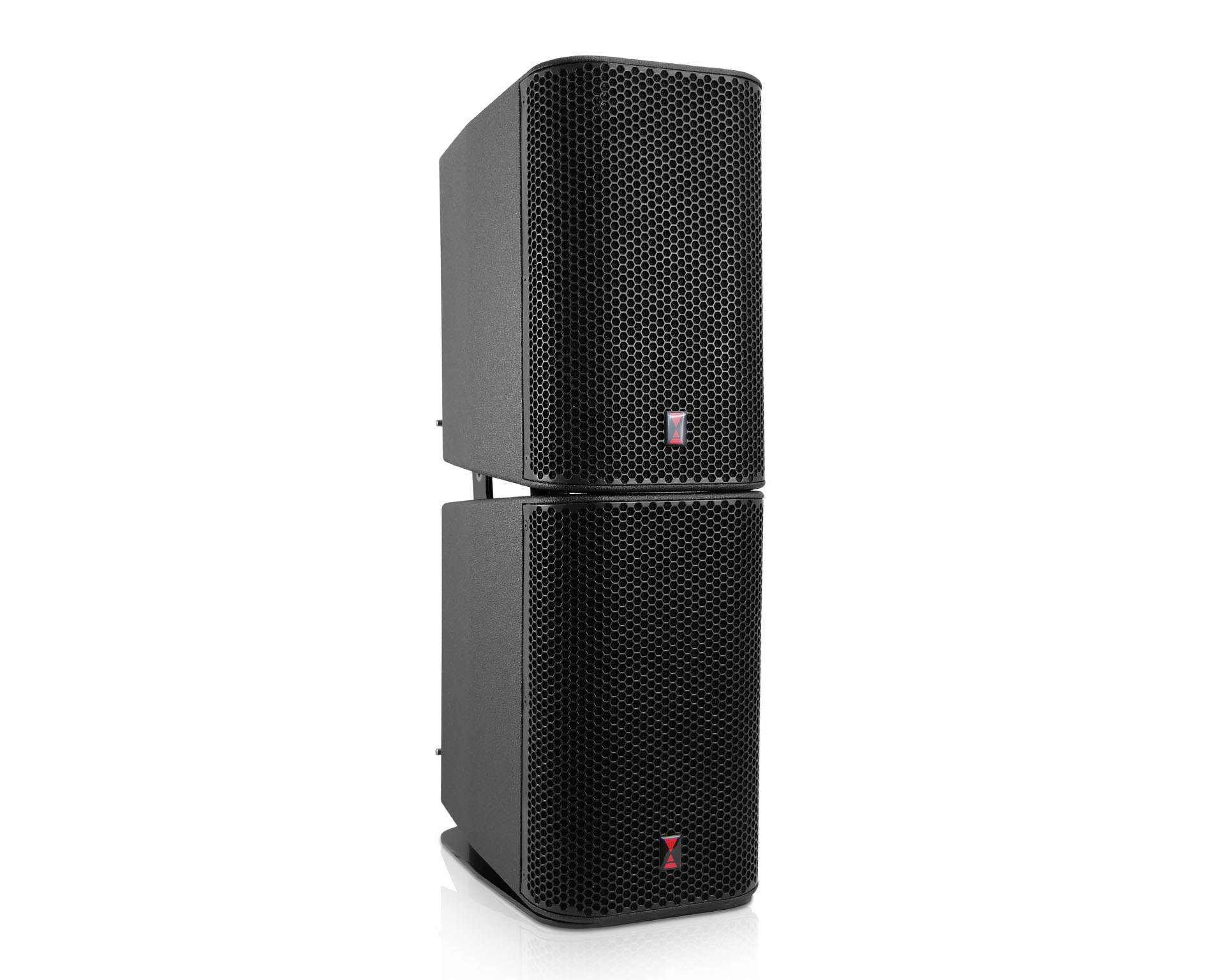

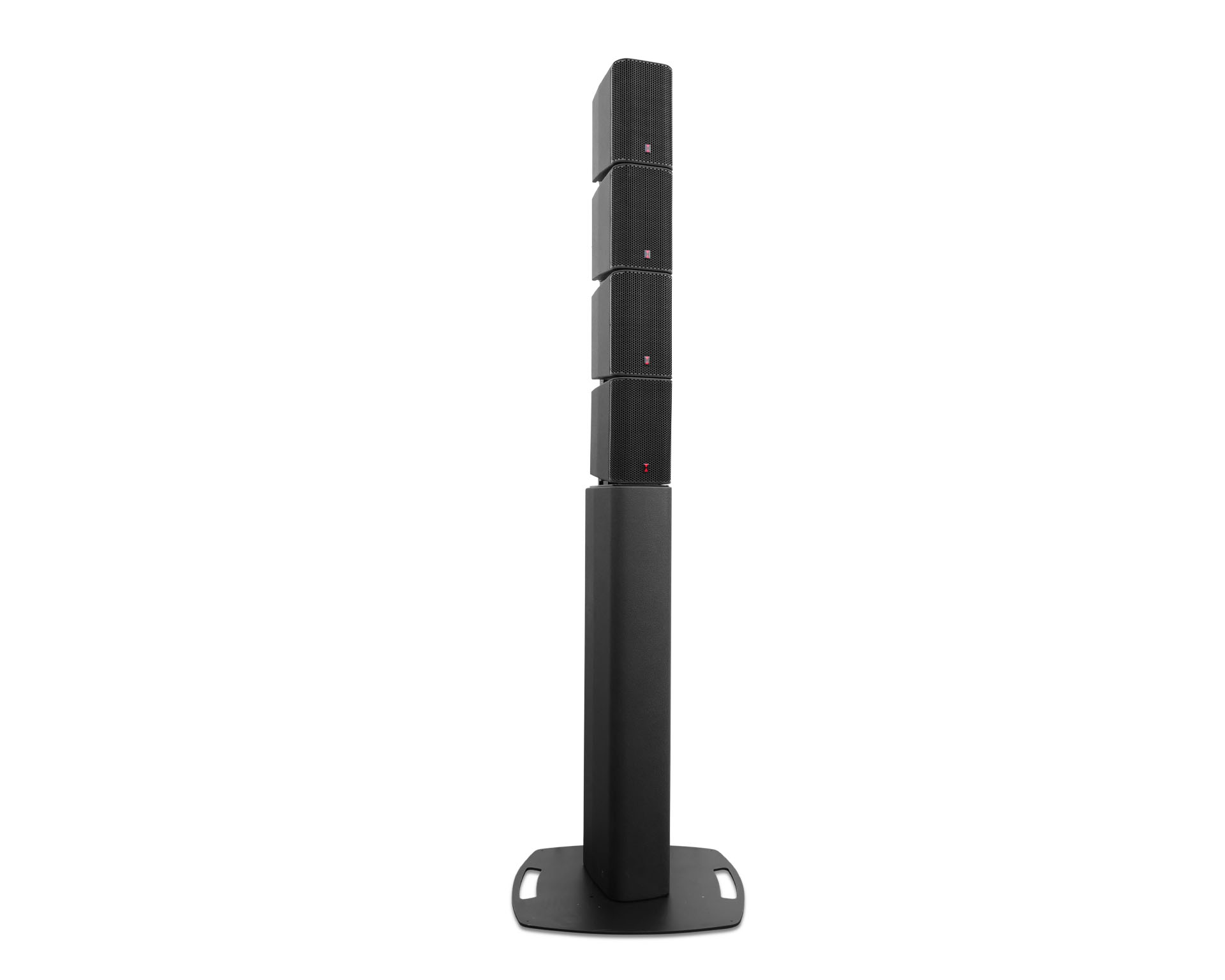

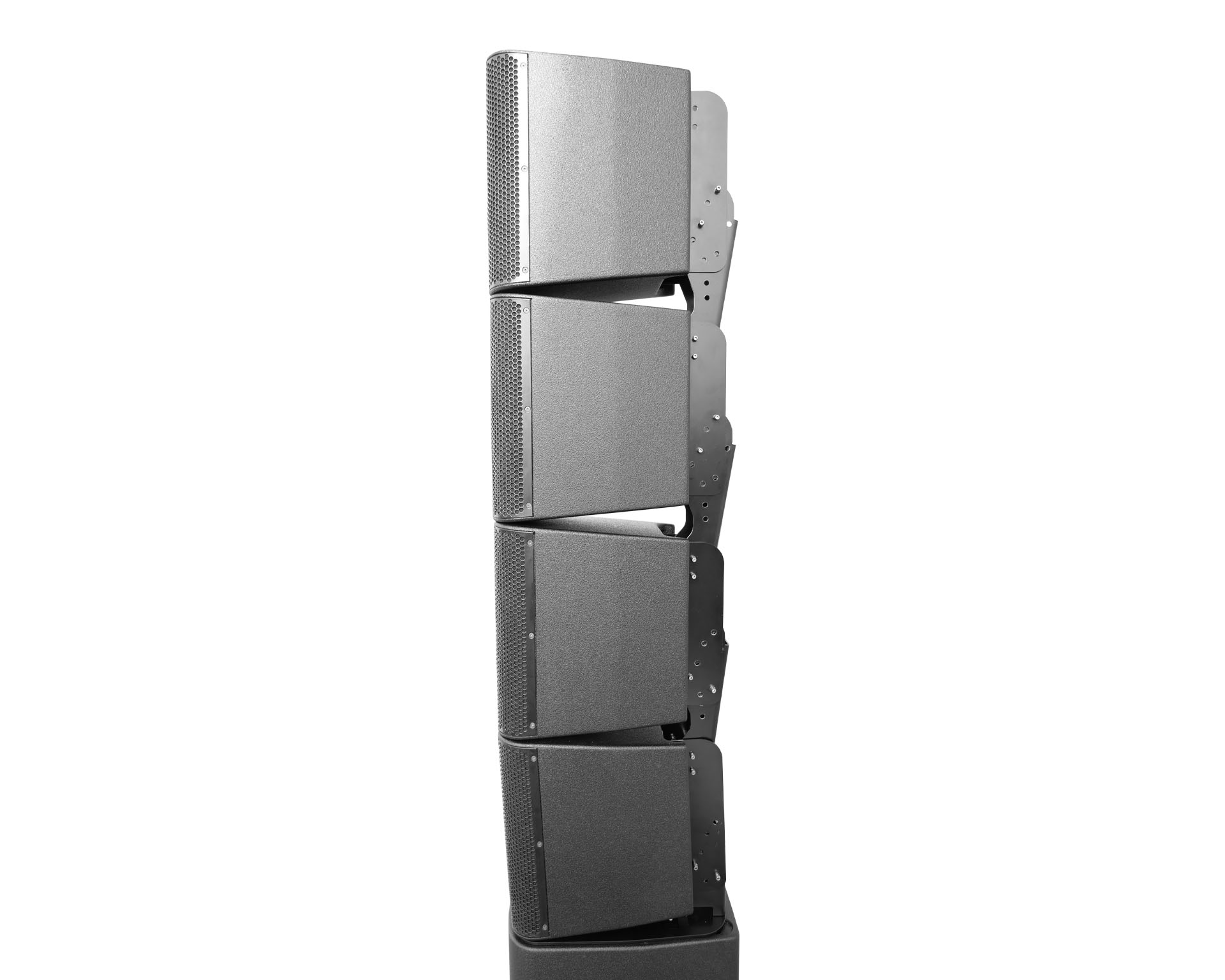

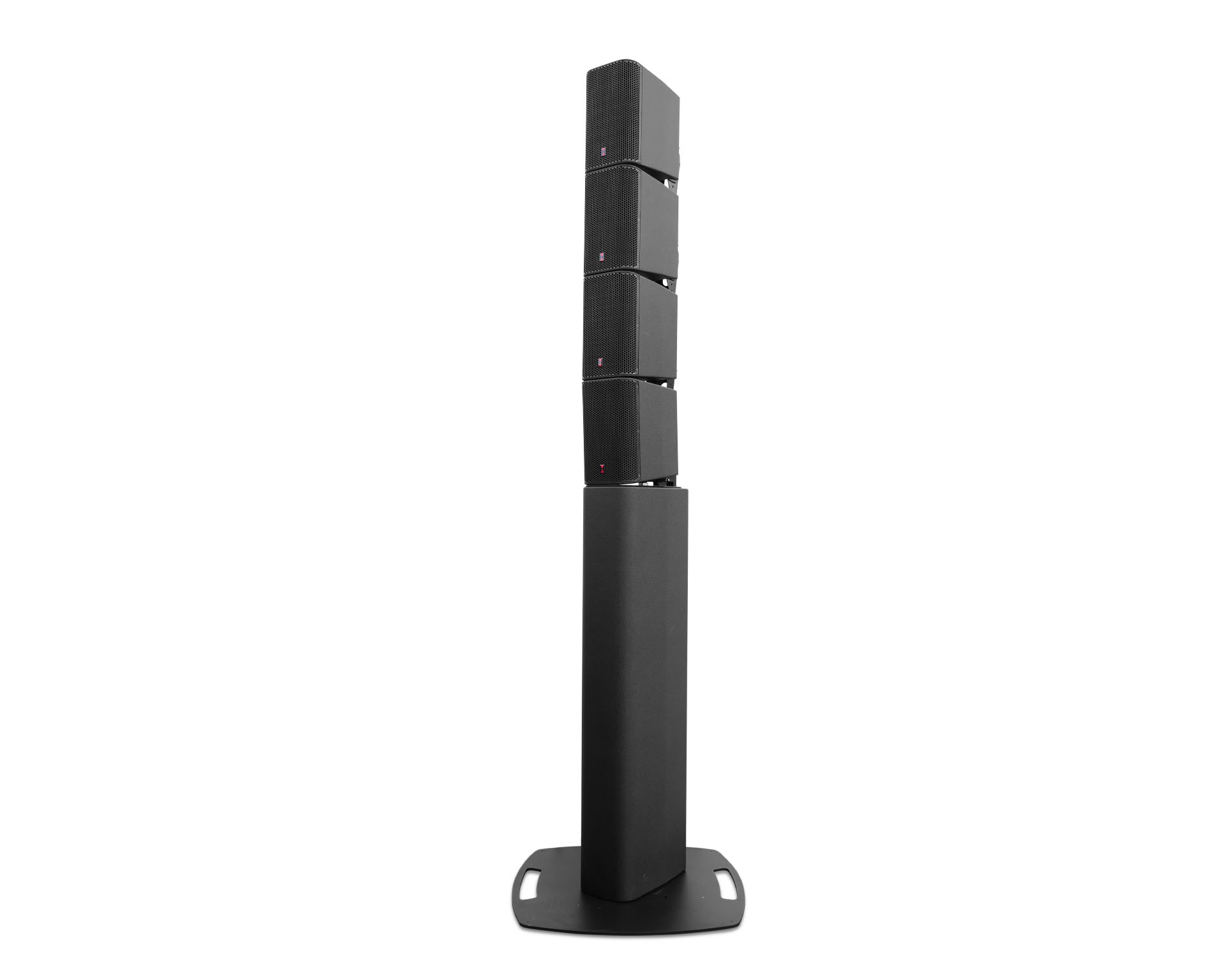

With the optional VENIA-6 X-Tension Kit, the speaker can be placed on design stands in the same finish for aesthetically pleasing installations where suspension is not possible. Can also be mounted on subwoofer with M20 thread.

Thanks to its light weight (only 8.9 kg), it can be easily handled by one person and used on stands or spacers. A wide range of accessories and scalability make the Ikarray-6 a versatile tool for professional sound reinforcement.

• 2 x 6.5" Neodymium woofer with 1.8" voice coil
• 8 x 1" Neodymium dome tweeters with 1" voice coil
• Dispersion: 100° horizontal, 10° vertical
• 16 Ω impedance
• Polyurea surface coating in RAL 9005
• Light and compact - only 8.9 kg

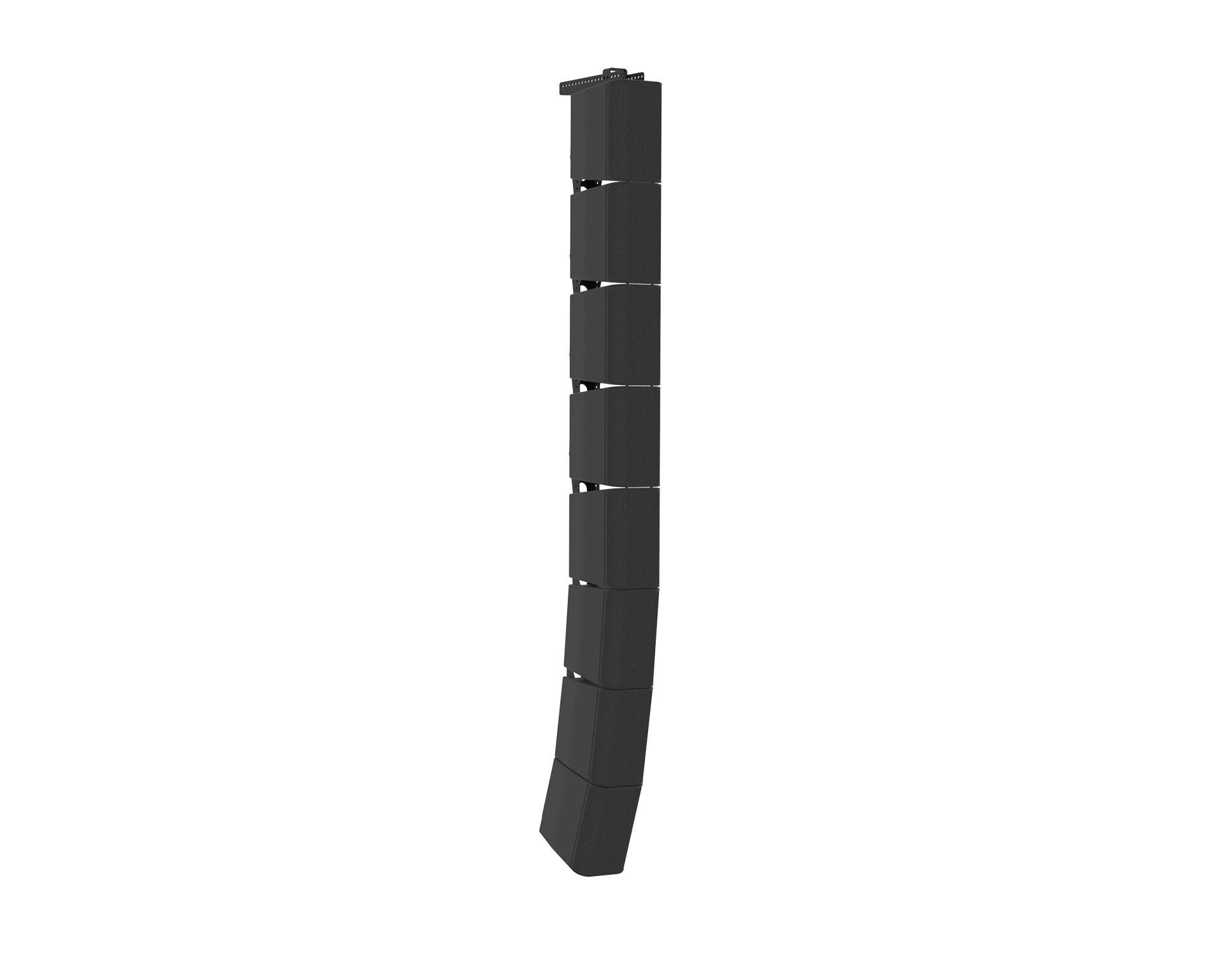

• Can be used standing, on a tripod, or flown
• Innovative rigging system hidden on the back

• Frequency range:
  57 Hz - 22.5 kHz (-10 dB)
  110 Hz - 17 kHz (±3 dB)
• Power capability (AES / Program / Peak):
  LF: 400 W / 800 W / 1600 W
• Sensitivity (1 W/1 m):
  97 dB SPL
• Sound pressure (AES / Program / Peak):
  121 dB / 124 dB / 127 dB SPL
• Connections:
  2 x Neutrik NL4 IN/OUT (1+/1-)
• Dimensions / Weight:
  347 (h) x 210 (w) x 530 (d) mm
  Weight: 8,9 kg
• Mounting:
  Rigid with 0-10° tilt in 1° increments
  Tripod and spacer tube mounting possible
