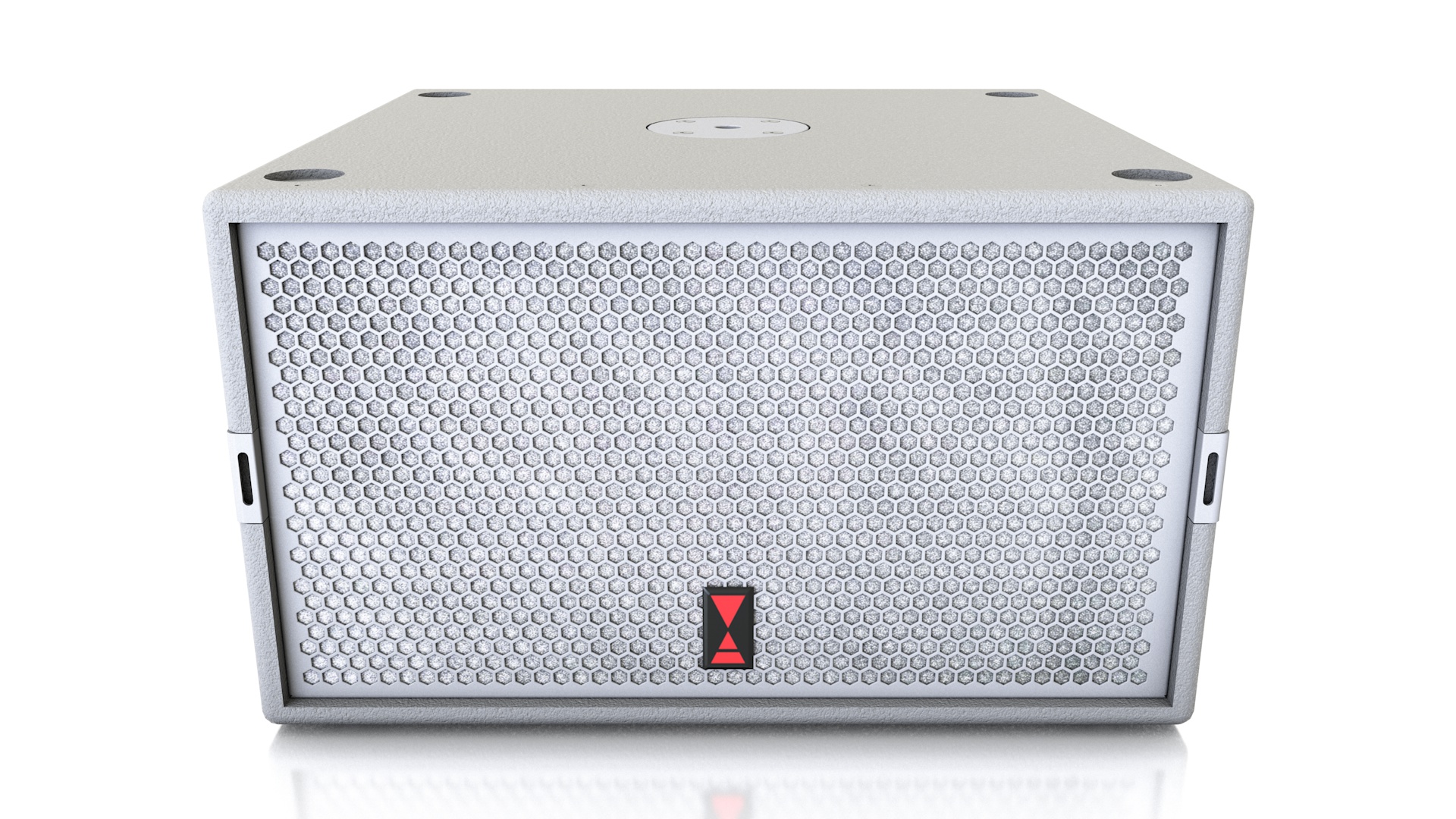

Paveosub-112sp DDA - The world's thinnest 12" active subwoofer with exceptional power

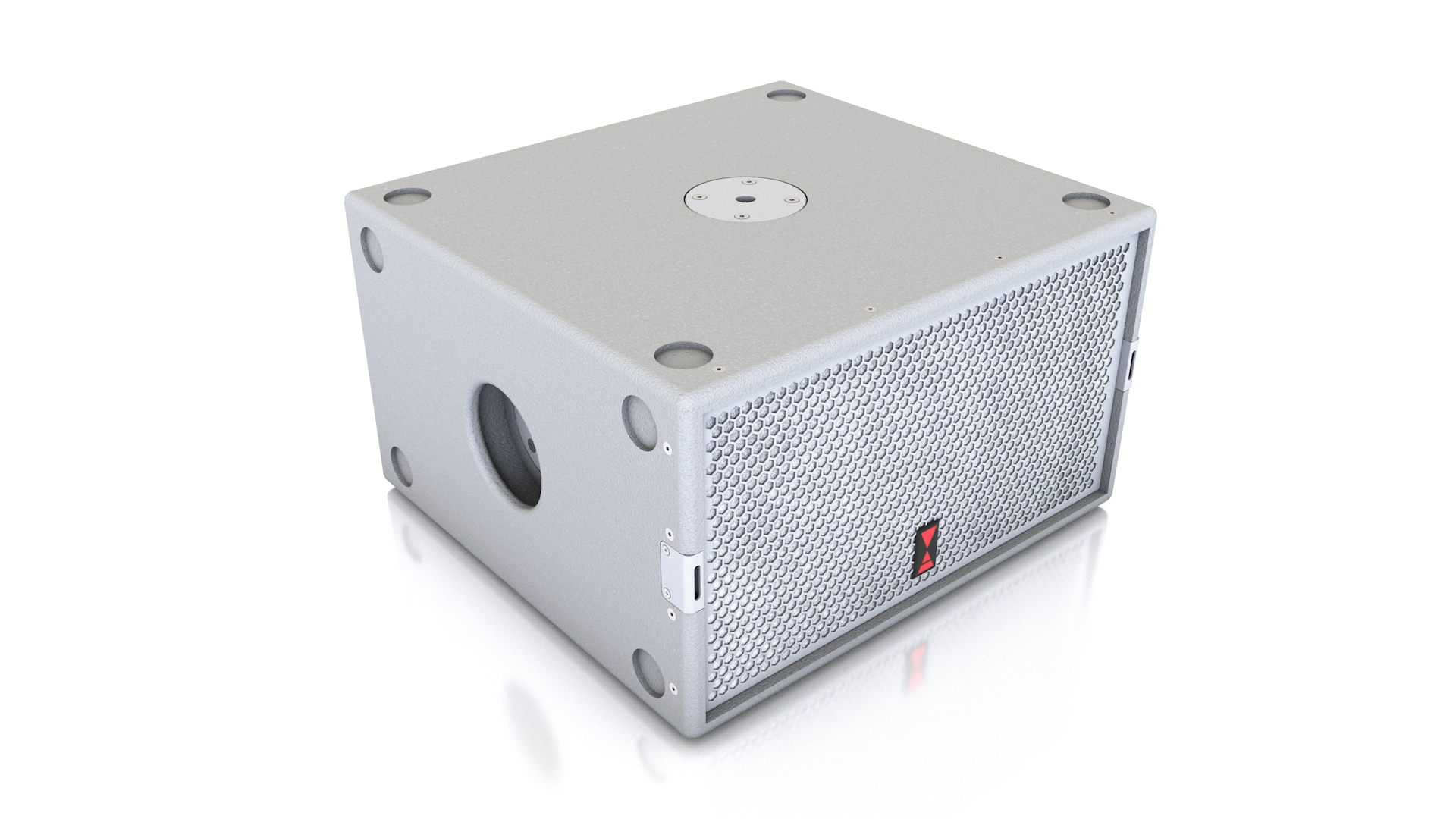

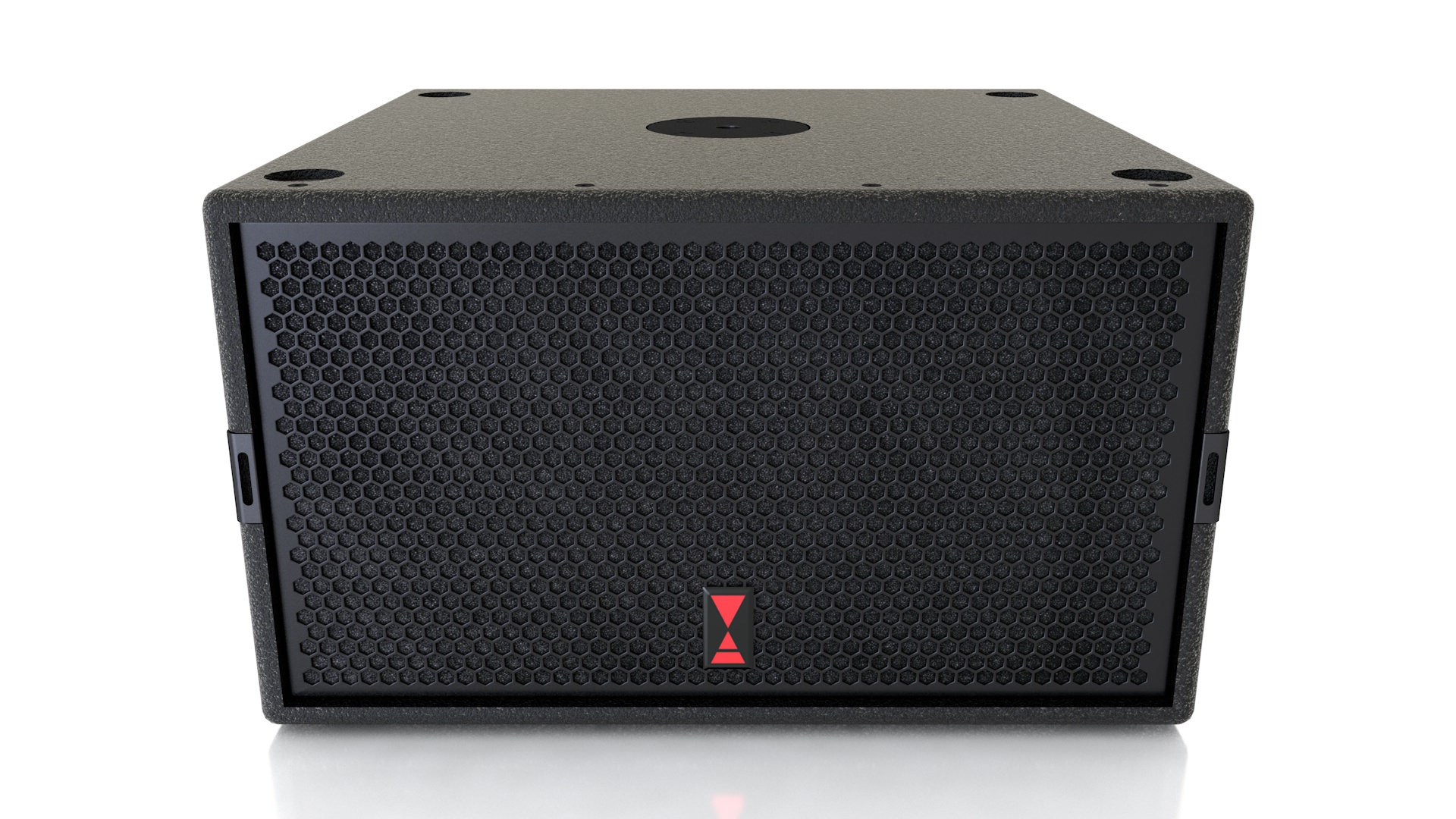

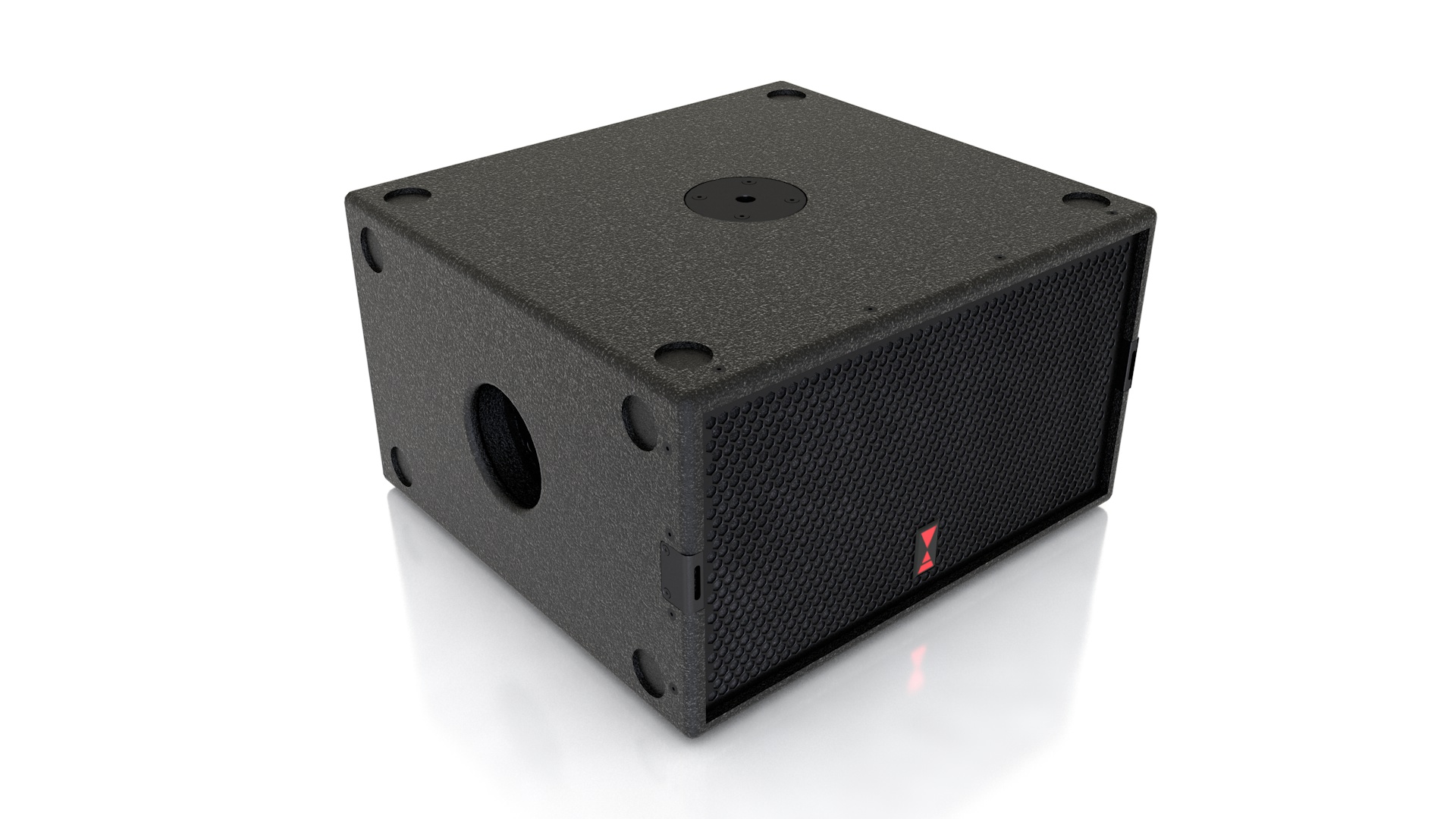

The Paveosub-112sp DDA is a compact, self-powered bass reflex subwoofer with a height of only 30 cm - the flattest 12" subwoofer in the world. Perfect for mobile solutions and fixed installations where powerful sound is required in tight spaces.
With an integrated 3-channel 4 kW amplifier module (1 x 2400 W + 2 x 800 W at 4 Ω), it is optimized to drive both itself and satellite speakers, such as up to four tops or an additional subwoofer.

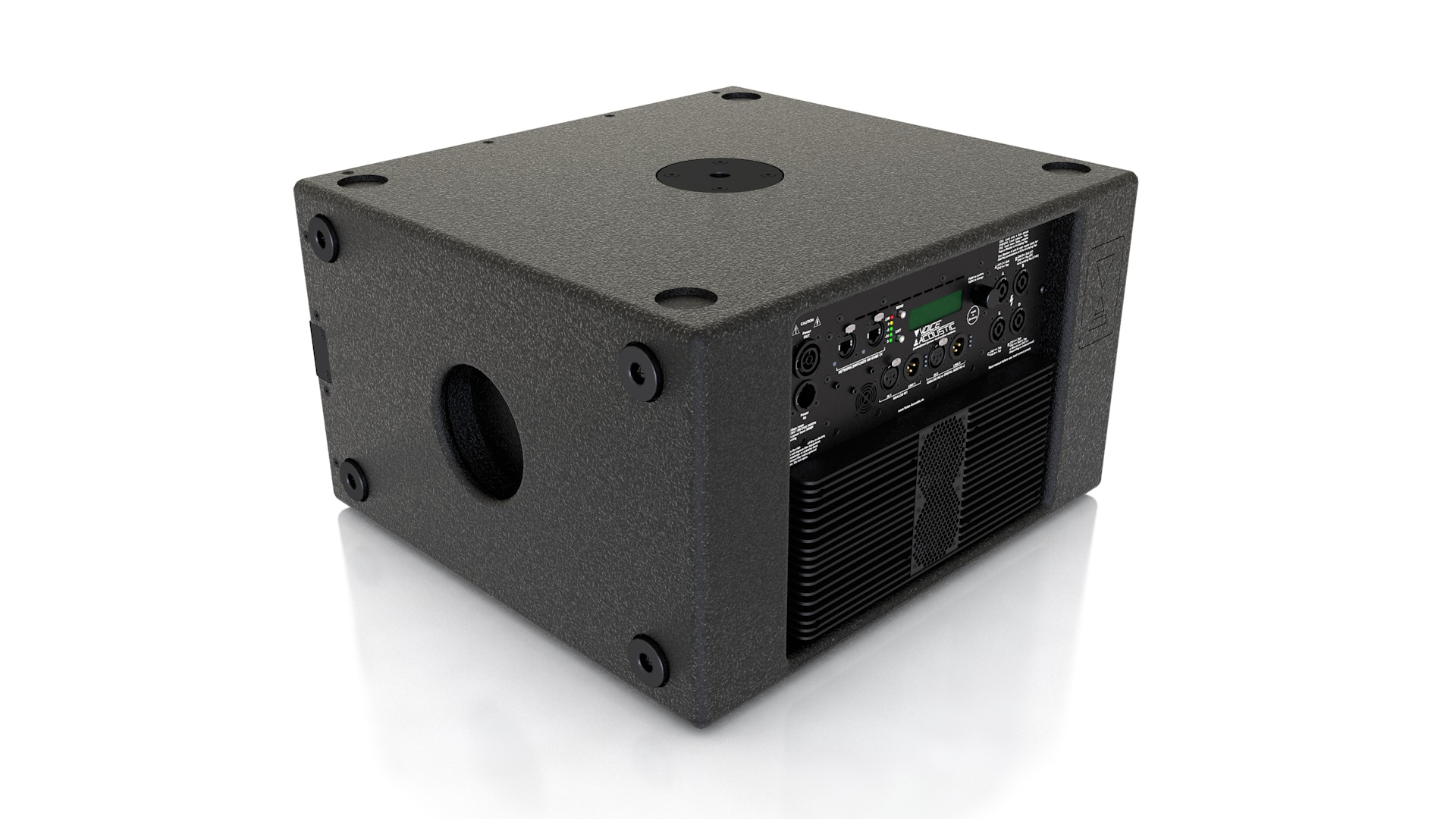

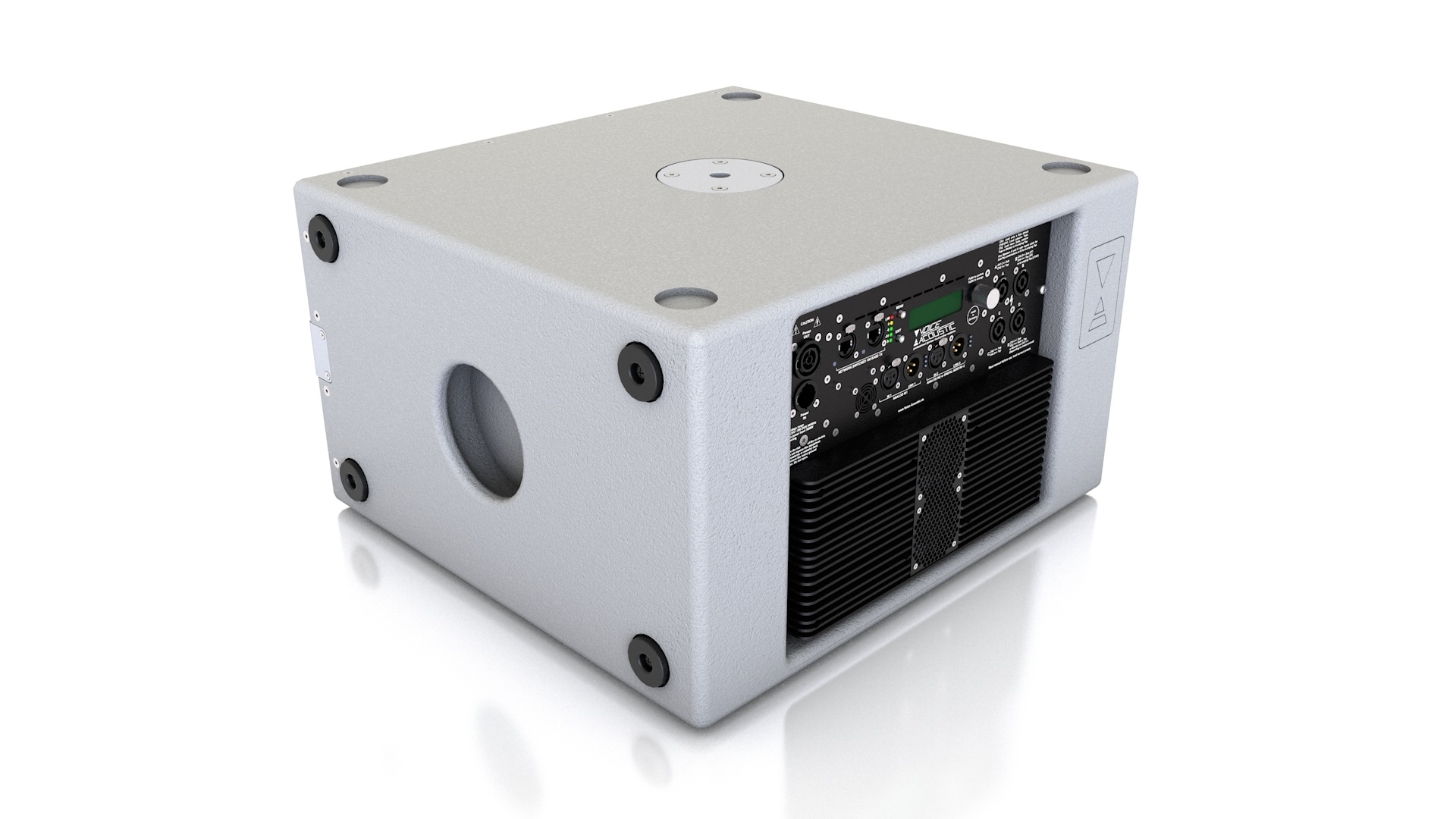

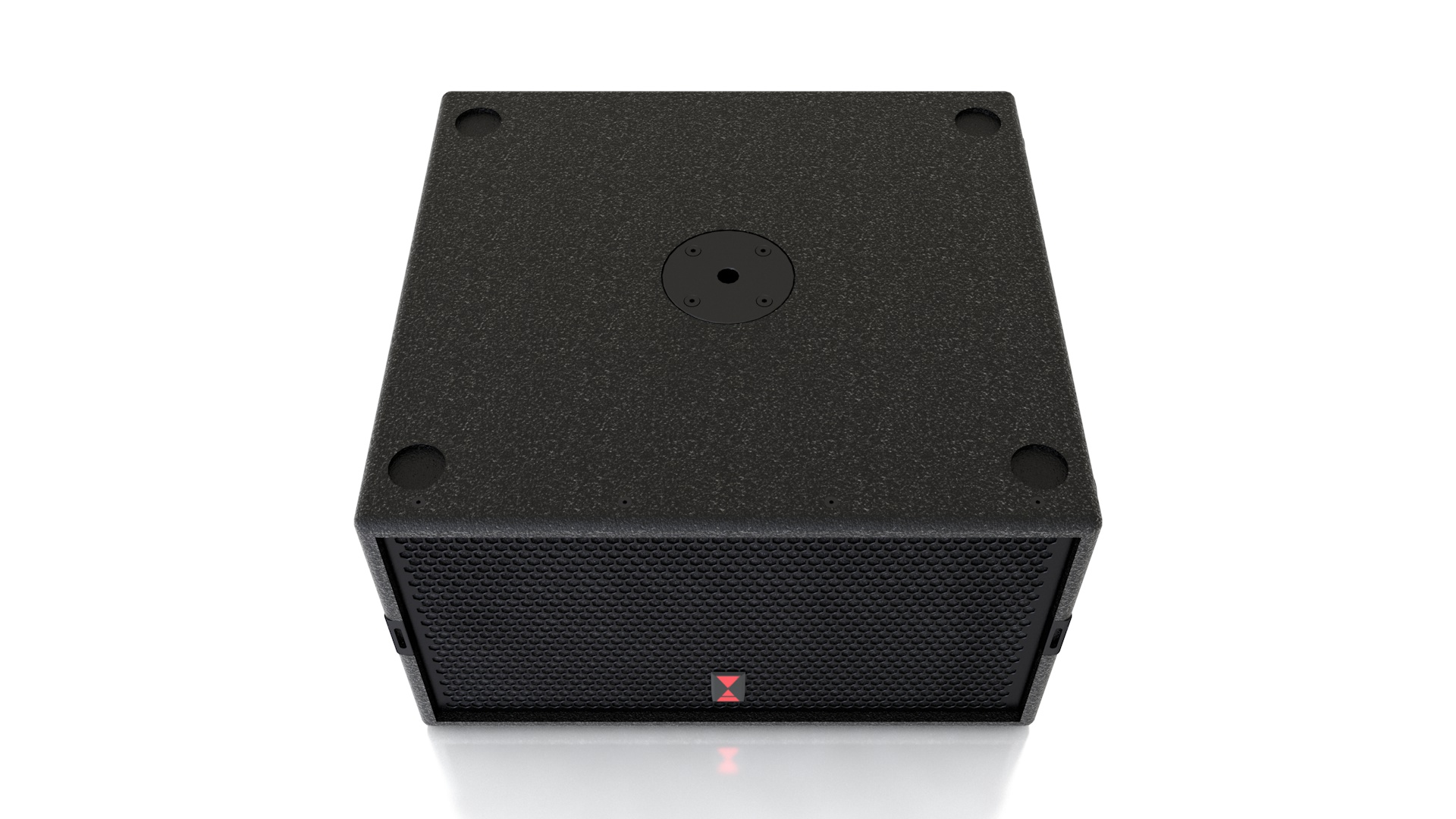

The subwoofer has both horizontal and vertical stacking capability with rubber feet and M20 threads for flexible and stable set-up. The robust design with dual bass reflex ports and internal amplification ensures high performance without resonances even at maximum sound pressure.
The 12" neodymium driver with 4" voice coil and a BL value of 26 delivers fast transient response and low current compression - perfect for accurate reproduction even at high volumes.

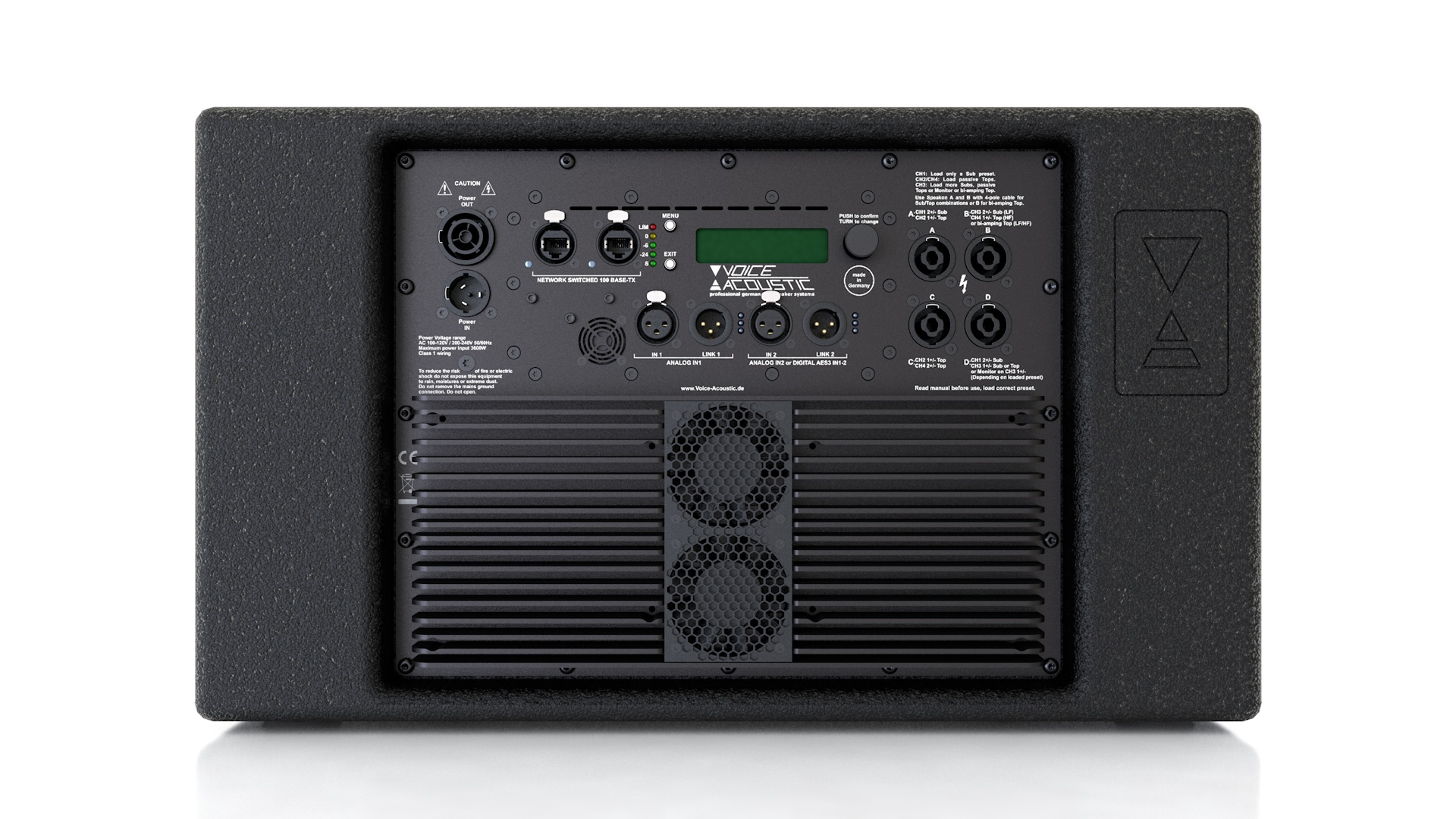

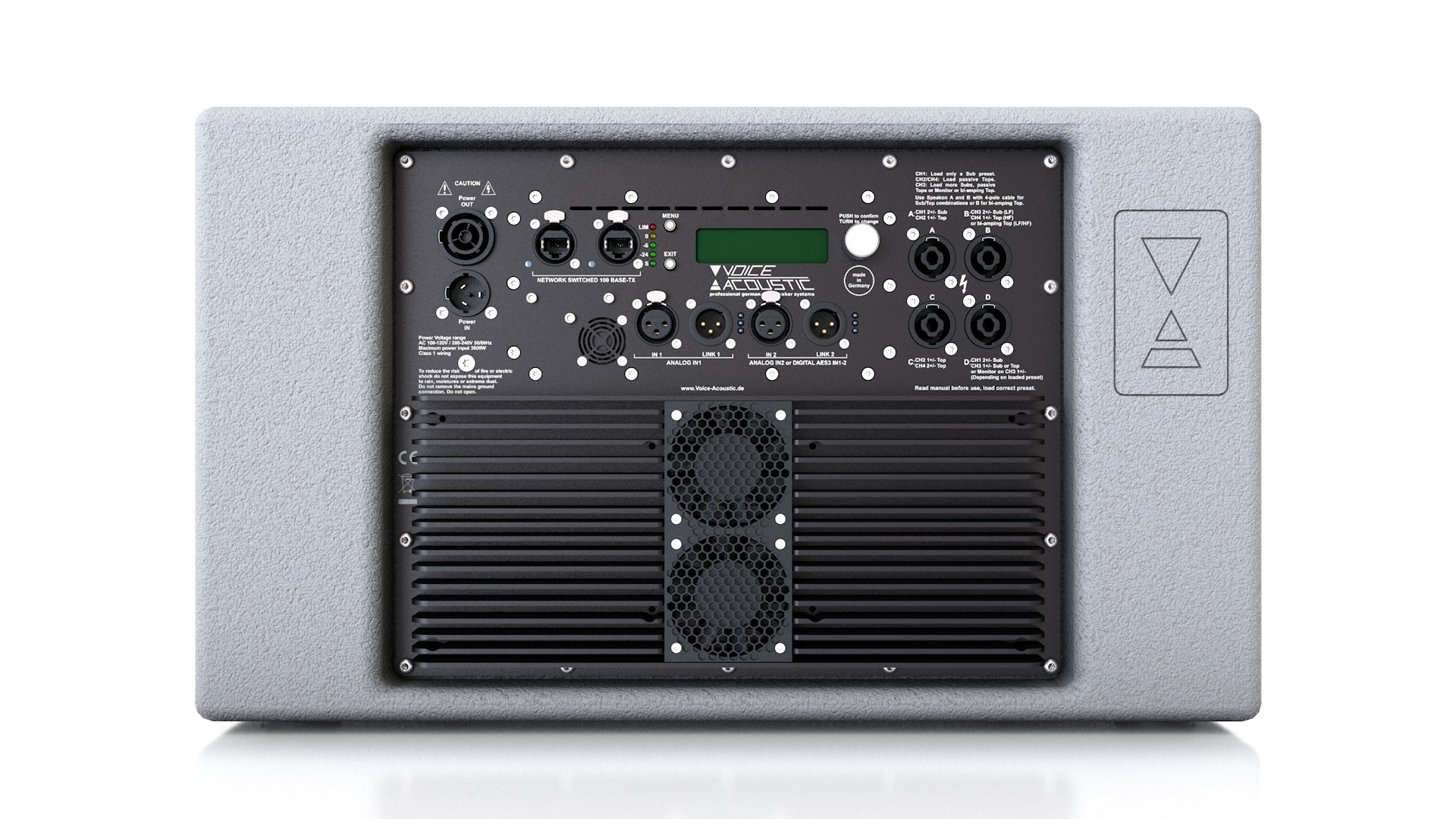

For ease of use, there is control via display and knobs, as well as software control via Dante. It is dust and moisture resistant thanks to convection cooling and weatherproof electronics, making it optimal for harsh environments.
Specifications include
- 12" neodymium subwoofer with 4" voice coil
- Integrated 3-channel amplifier module (4 kW total)
- Bi-amping function and 120 internal DSP presets
- Dante network control and manual control via display
- Extremely low profile: only 30 cm high
- Stackable horizontally and vertically with rubber feet

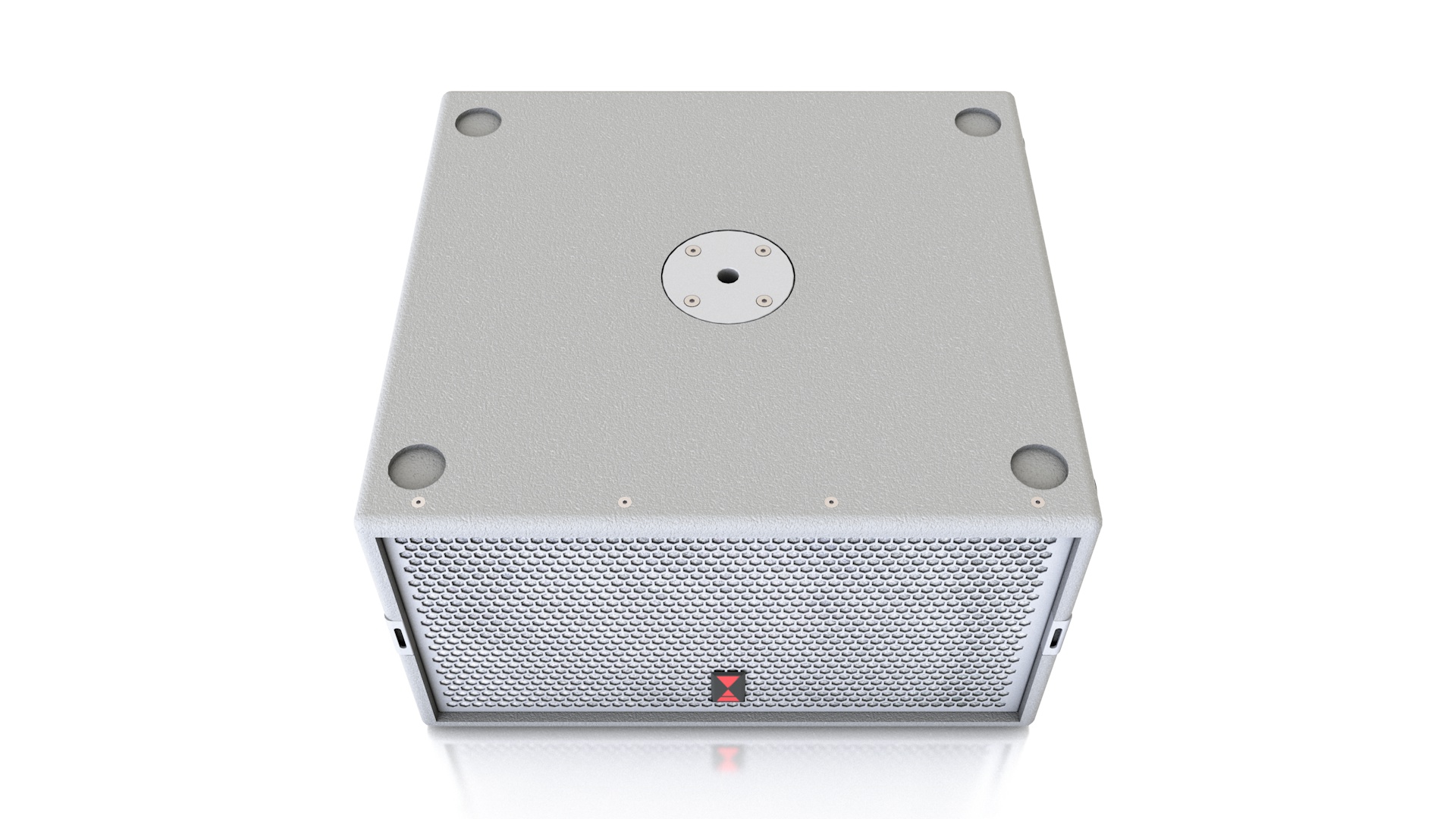

- Two M20 flange nuts for flexible mounting
- Convection cooling - no fans, maintenance free
- Protected electronics with weatherproof cover
- Incl. 6 m Schuko/powerCON TRUE1-TOP cable
Technical Data
- Drivers:
1 x 12" Neodymium long-throw woofer with 4" voice coil - Frequency Response:
35 Hz (-10 dB)
41 Hz (-3 dB) - Impedance:
8 Ω active separated - Power capability (AES / Program / Peak):
1000 W / 2000 W / 4000 W - Sensitivity (1 W/1 m):
96 dB SPL (half-room) - Sound pressure (AES / Program / Peak):
126 dB SPL / 129 dB SPL / 132 dB SPL - Connections:
2 x Neutrik NL4 Speakon IN/OUT (2+/-) - Finish:
Polyurea coating in RAL 9005
Special colors possible with Warnex texture paint - Dimensions / Weight:
300 (h) x 520 (w) x 485 (d) mm
Weight: 28,8 kg
