Description
Product information

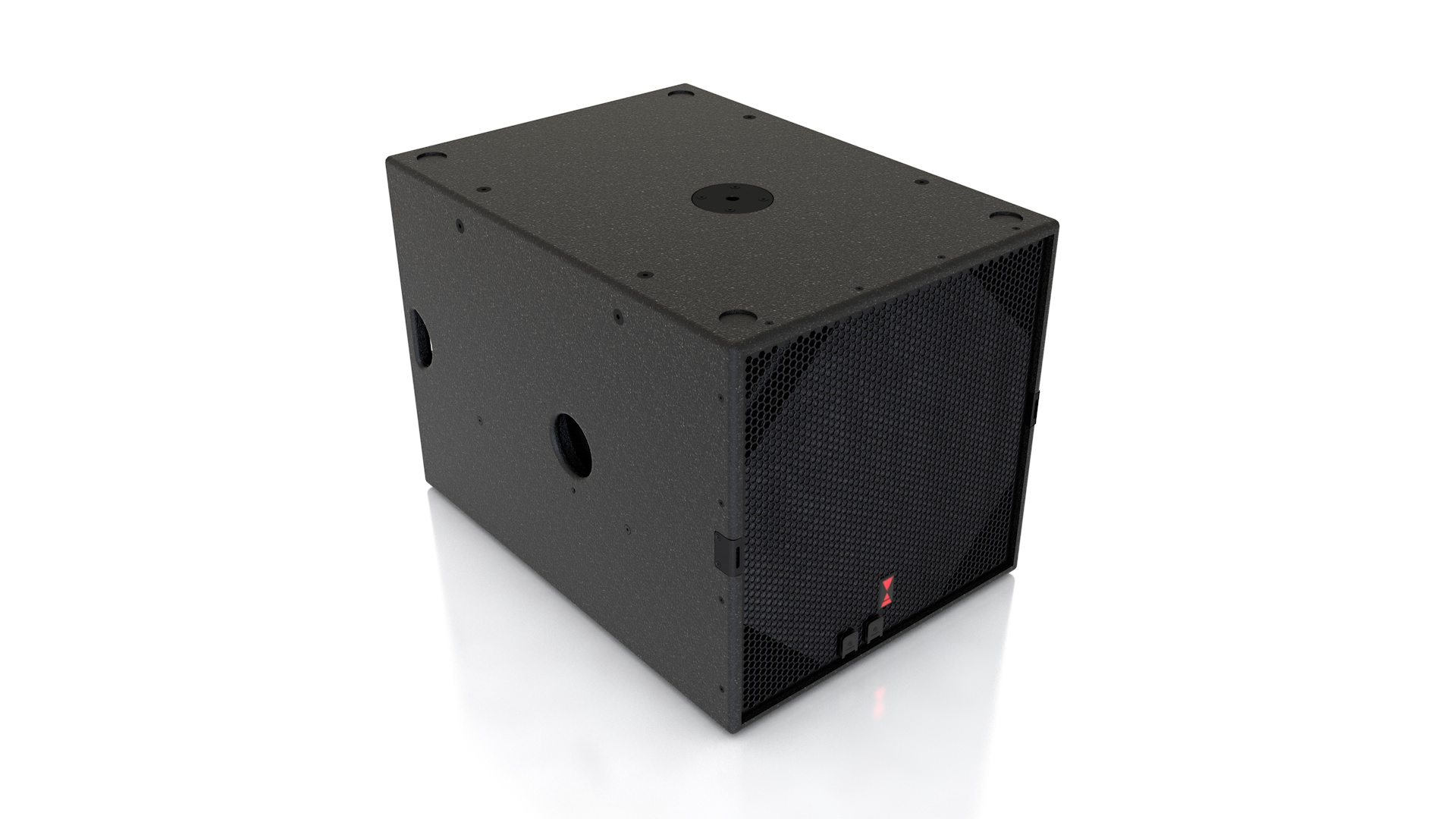

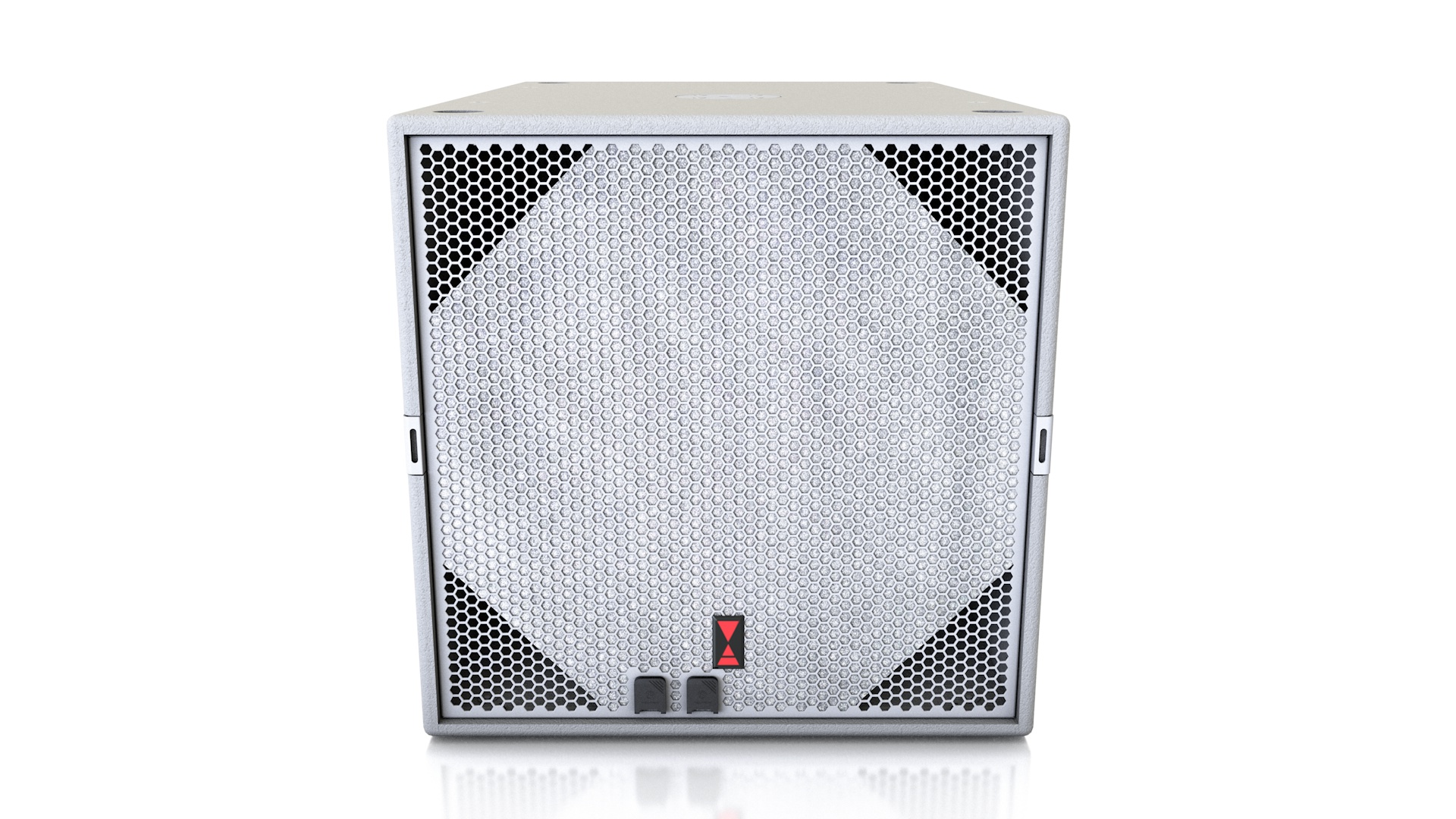

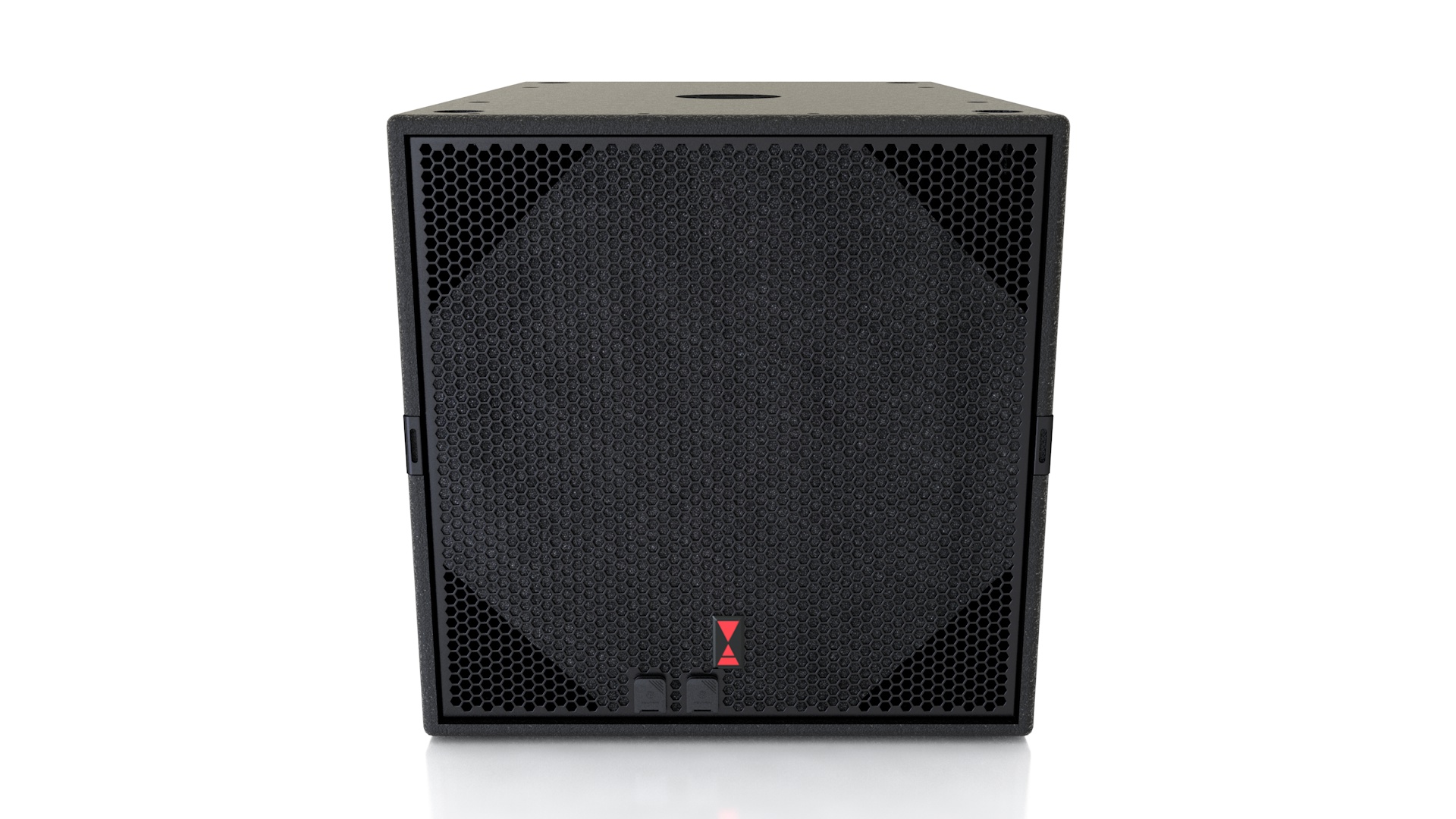

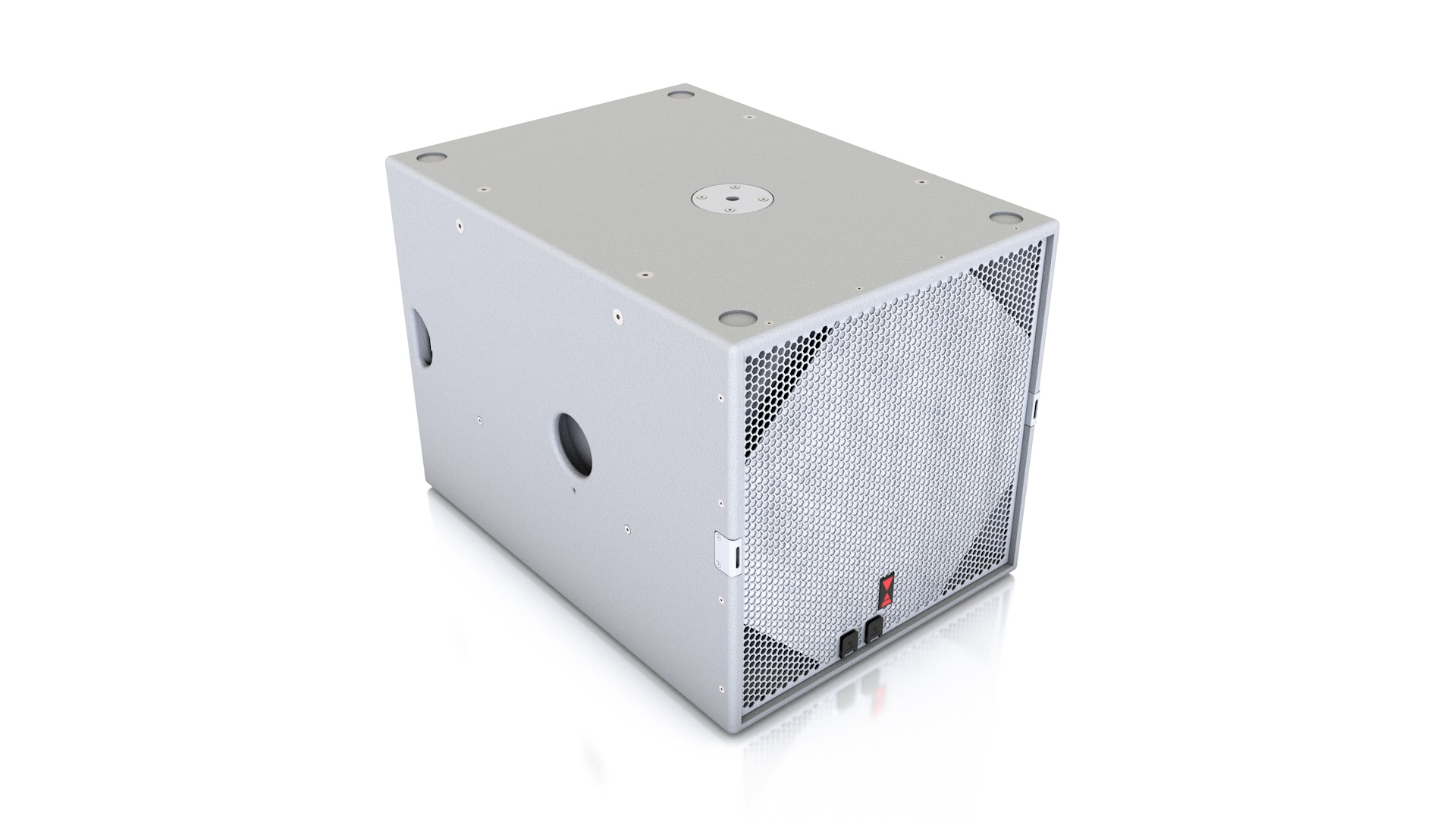

Paveosub-118sp DDA - Powerful, compact and versatile 18" self-amplified subwoofer

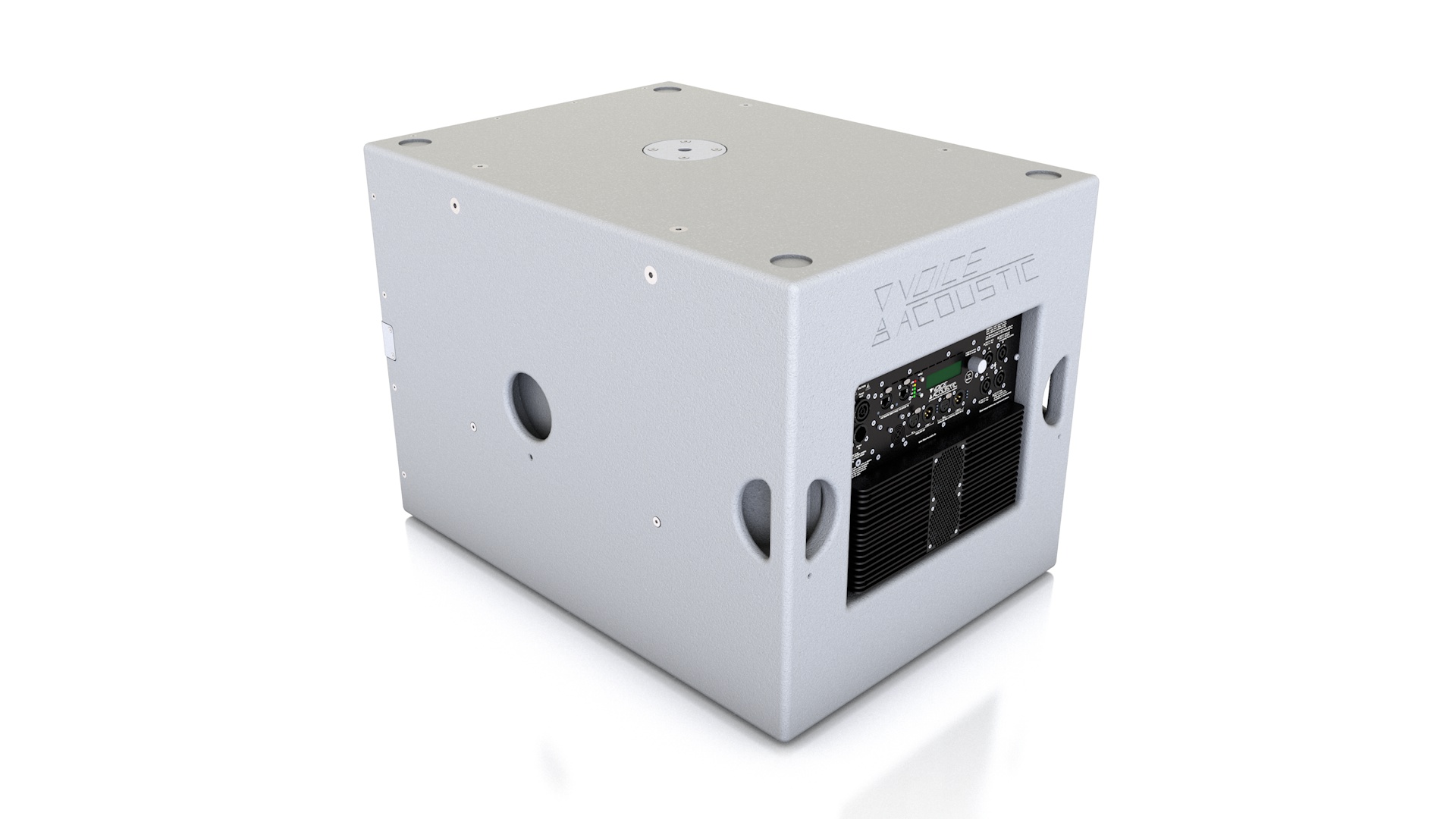

The Paveosub-118sp DDA is a lightweight, heavily vented bass reflex subwoofer for mobile use and fixed installations. DDA stands for a new generation DSP and input card that handles DANTE, AES/EBU, AES67 and analog signals - with the ability to forward signals.
It is equipped with a powerful 3-channel 4 kW amplifier module (1 x 2400 W + 2 x 800 W at 4 Ω), making it ideal as a base unit in satellite systems. The 18" neodymium chassis with 4" voice coil delivers a high-resolution, low and clean bass sound with impressive attack and decay.
The Paveosub-118sp DDA is a plug & play system with 120 internal factory settings for different configurations (e.g. stack, cardioid, end-fire or satellite system). The cooling system is fully convection-based and waterproof, making the unit suitable even for humid environments.

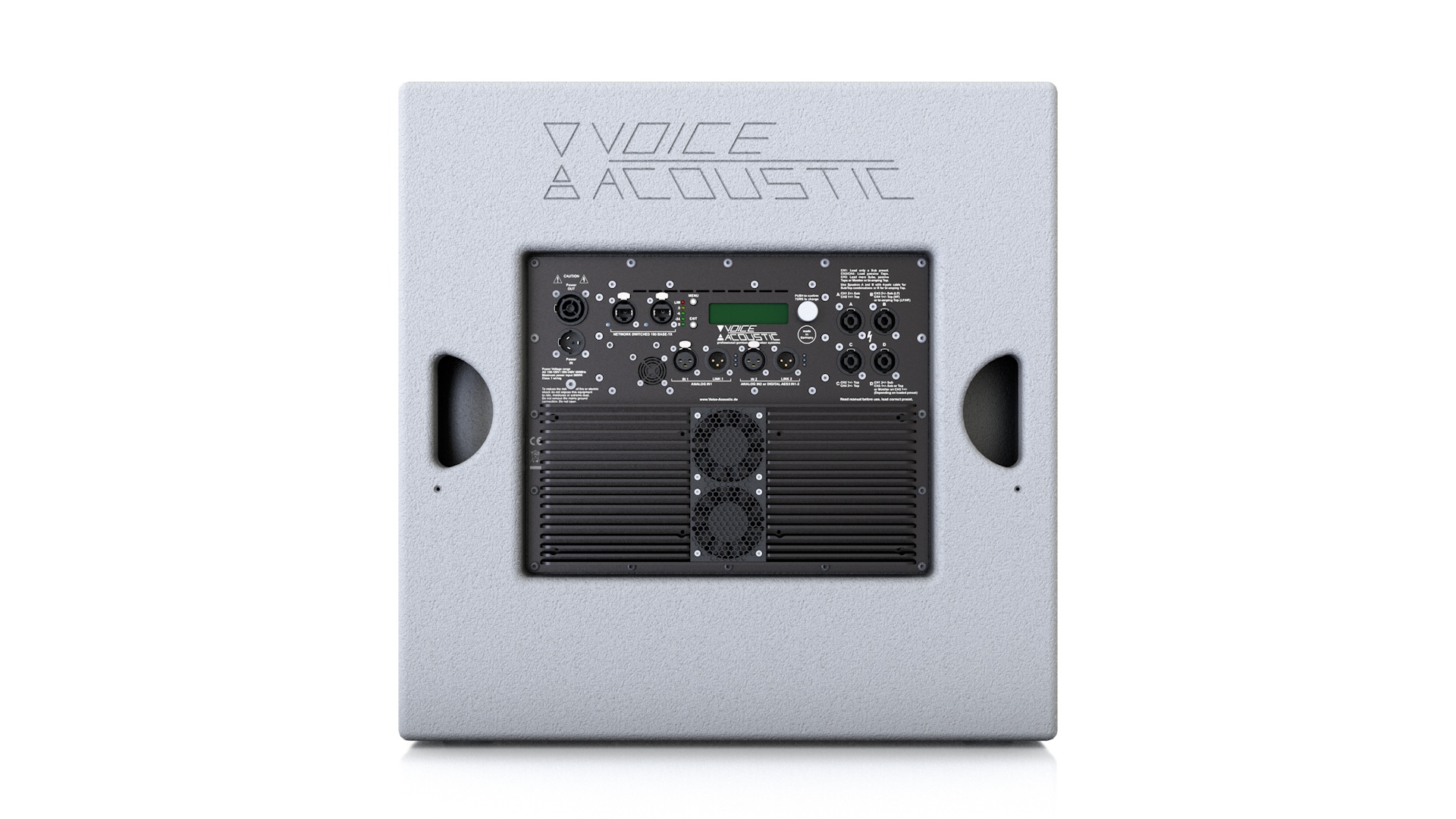

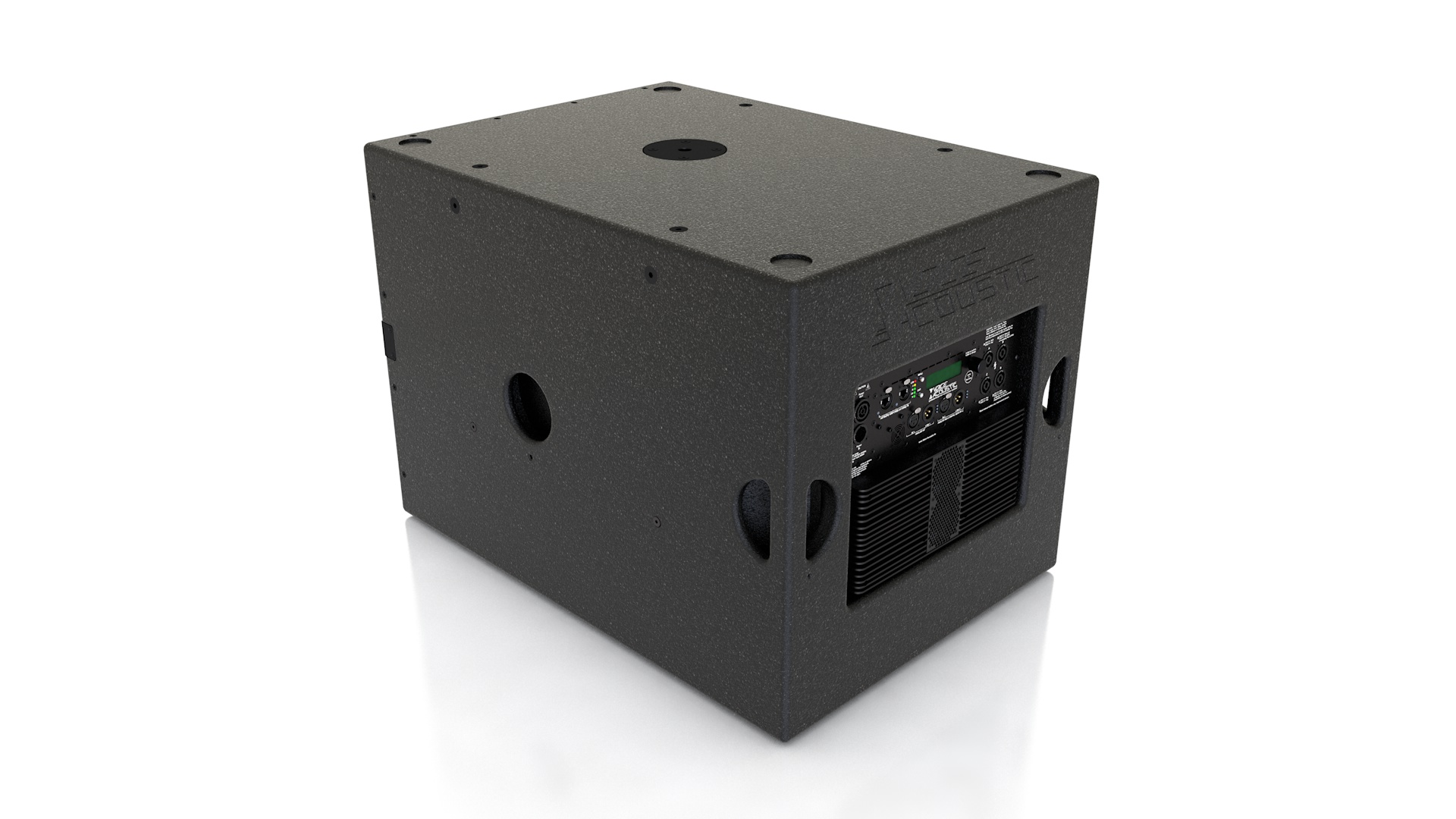

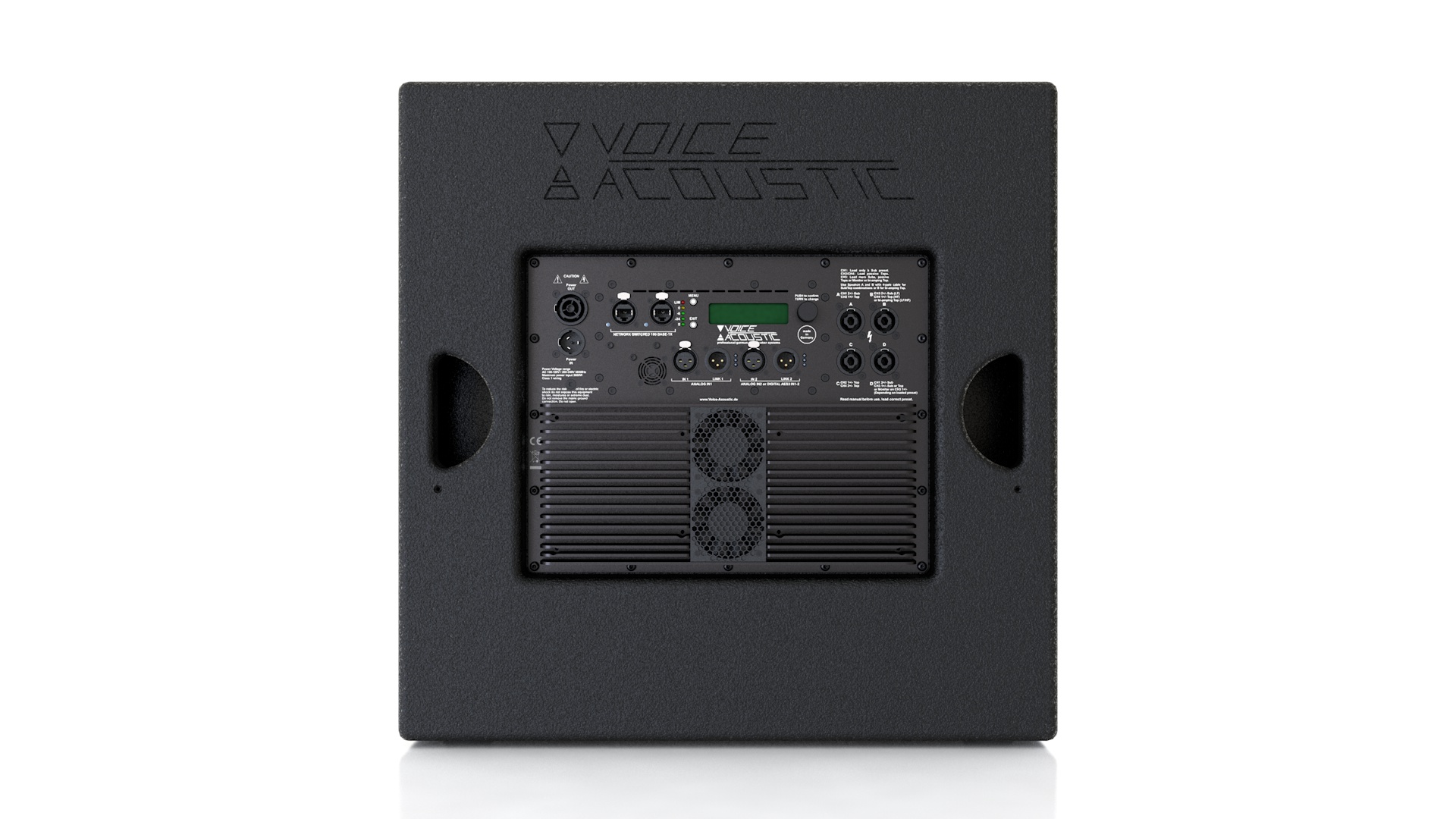

For connection and control, a display, push button, knob and Dante software are used. The cooling system and connectors are protected with a weatherproof cover, and the chassis is covered with durable polyurea coating.
Specifications
- 18" Neodymium long-throw bass with 4" voice coil
- Bass reflex design with four corner ports for efficient heat dissipation and minimal wind noise
- Internal 3-channel amplifier: 1 x 1580 W at 8 Ω (sub), 2 x 800 W at 4 Ω (satellites)
- Support for Dante, AES/EBU, AES67 and analog signal
- Plug & play with 120 internal DSP presets for different configurations
- Weatherproof connectors and cooling system - ideal for permanent installations
- Stackable with rubber feet and fuse points

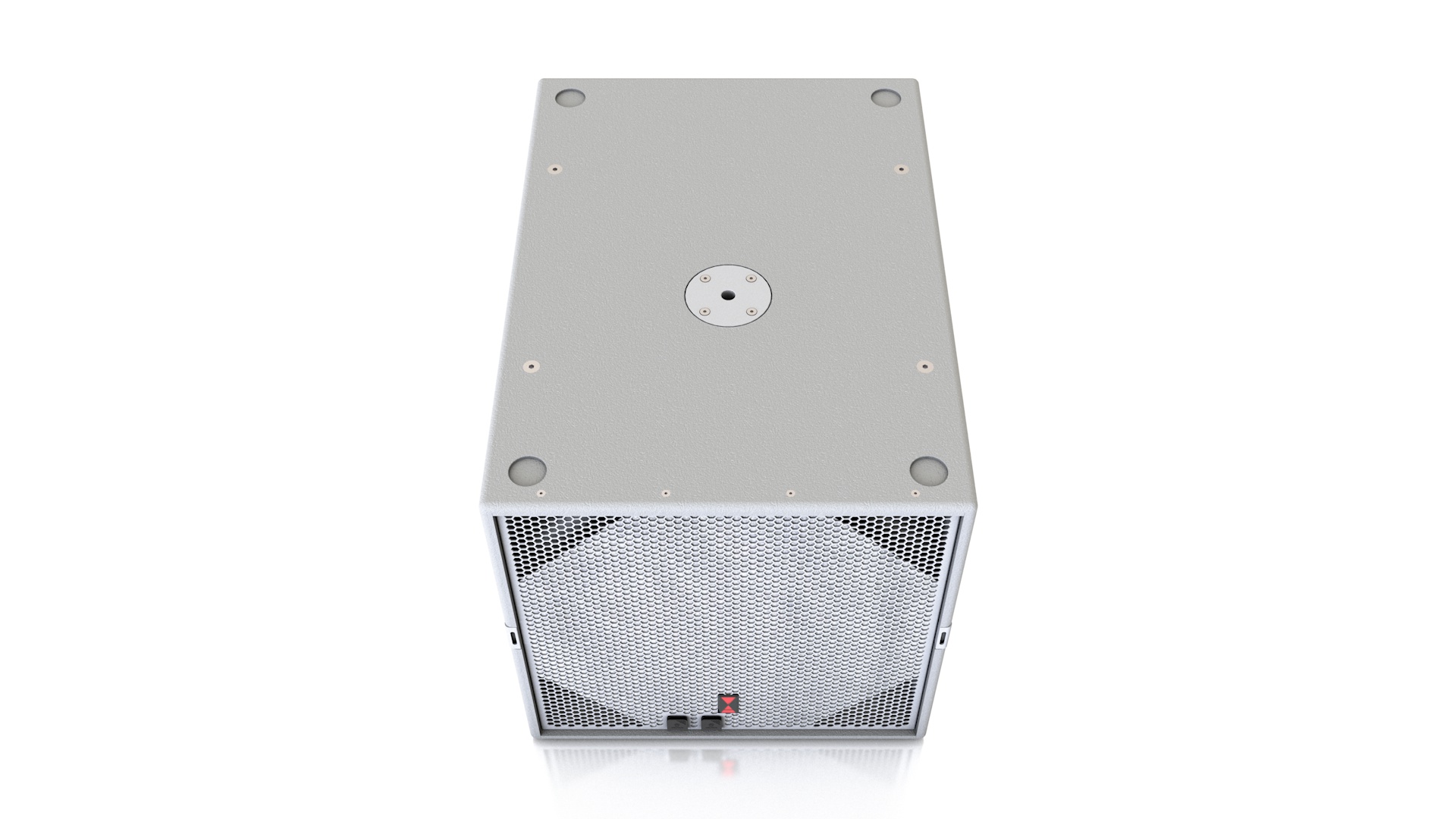

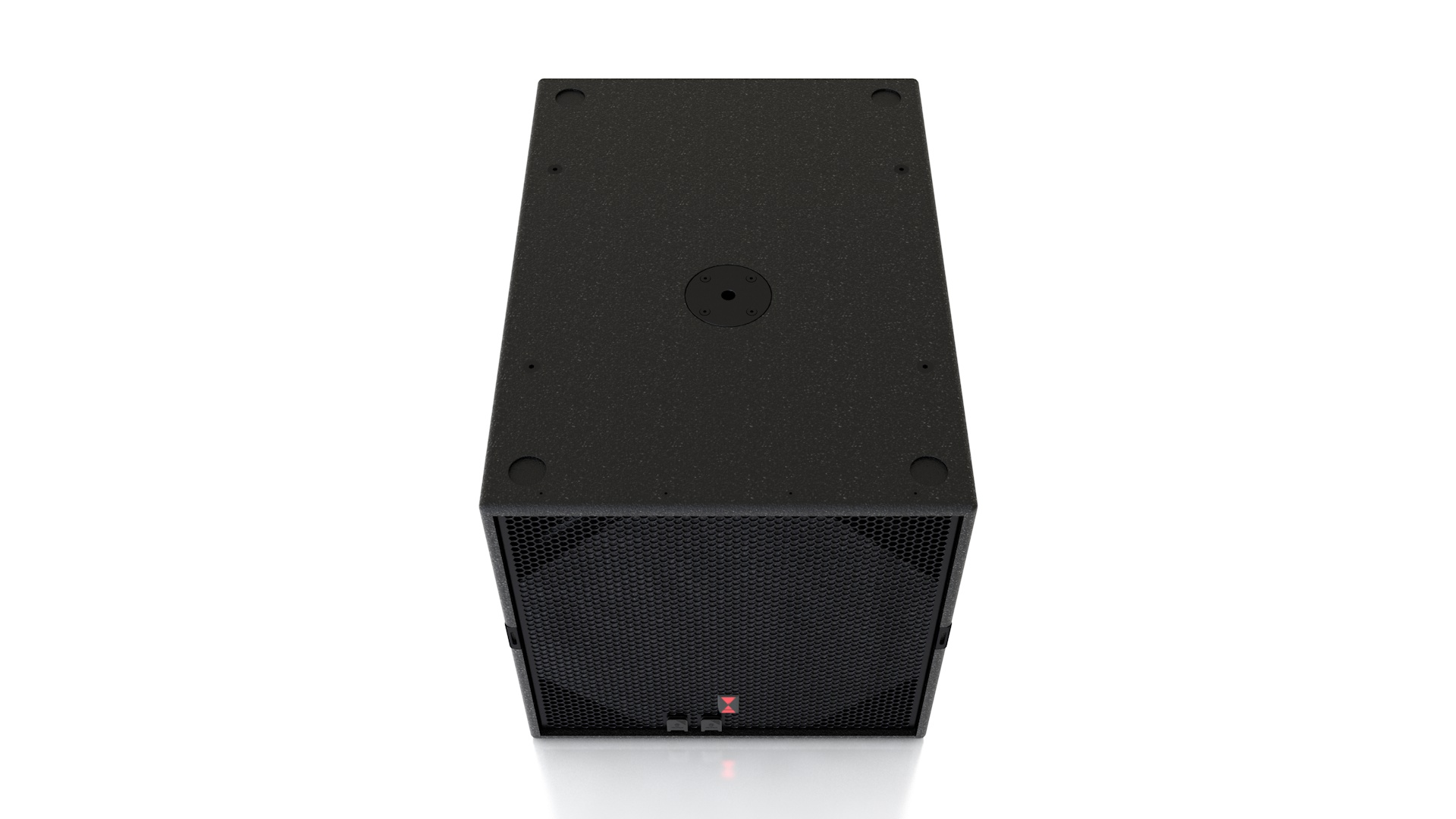

- Integrated M20 pole plate for satellite speakers
Technical data
- Drivers:
1 x 18" Neodymium long-throw bass with 4" voice coil - Frequency response:
33 Hz (-10 dB)
39 Hz (-3 dB) - Impedance:
8 Ω (active operation) - Power capability (AES / Program / Peak):
1,200 W / 2,400 W / 4,800 W - Sensitivity (1 W/1 m):
100 dB SPL (half-room) - Sound pressure (AES / Program / Peak):
131 / 134 / 137 dB SPL - Connections:
2 x Neutrik NL4 Speakon IN/OUT (2+/-) - Finish:
Polyurea coating in RAL 9005
Special colors available with Warnex texture paint - Dimensions / Weight:
540 (h) x 540 (w) x 740 (d) mm
Weight: 45,8 kg
