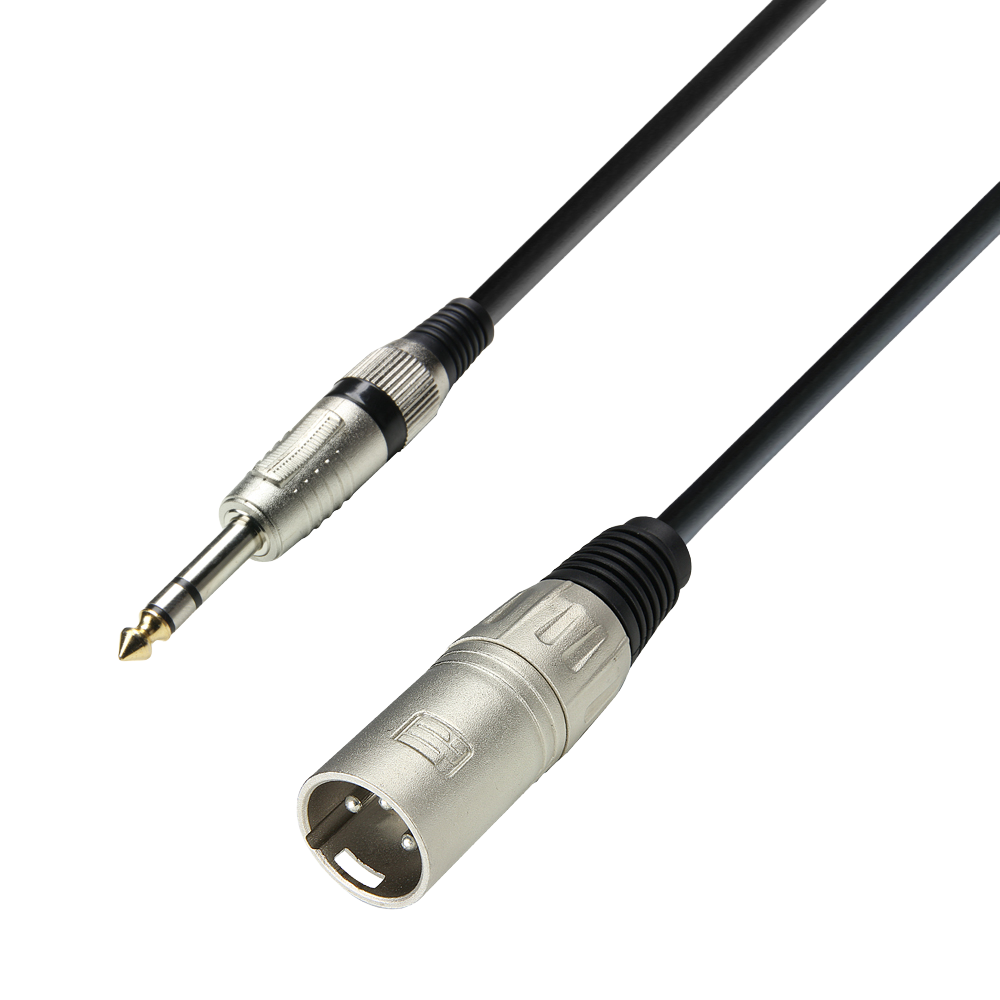

3 STAR BMV

Name: 3 STAR BMV
Brand: Adam Hall
Availability: OutOfStock

Product benefits

✓ Professional balanced signal cable from our 3 STAR SERIES

✓ High quality Adam Hall® connectors (XLR to 6.3 mm TRS tele)

✓ 0.22 mm² inner conductor for uncolored and precise signal transmission

✓ Highly flexible soft PVC jacket - easy to roll and lies neatly on the floor

✓ Robust construction suitable for both studio and intensive stage use

Specifications

General
- Cable length: 1 m - 10 m
- Cable sheath: PVC (Polyvinyl chloride)
- Cable diameter: 6 mm
- Color: Black
Connectors
- Connector 1: XLR 3-pin male - Adam Hall K4CXM3
- Connector 2: 6.3 mm Tele (TRS) male
- Finish: Nickel plated with gold plated tip (Golden tip) on the telecom connector
Conductors & Shielding
- Material: OFC (Oxygen Free Copper)
- Conductor area: 2 x 0.31 mm²
- Capacitance/m: 72 pF
- Signal transmission: Balanced
Environment/Ambient
- Operating temperature: -20 - 70 °C

Description of the cable

3 STAR BMV - Balanced signal cable for studio and live use

3 STAR BMV is a high-quality balanced signal cable and serves as the natural counterpart to the BFV microphone cable. It is equipped with a 6.3mm TRS telecom connector on one end and a 3-pin XLR male on the other, making it ideal for connecting balanced outputs on mixing consoles or sound cards to inputs on power amps and active monitor systems.

With a balanced conductor layout and a substantial conductor area of 2 x 0.31 mm² of oxygen-free copper (OFC), the cable ensures interference-free transmission even over longer distances. The low capacitance of 72 pF/m preserves the high frequencies and provides a clear and defined sound image.

The cable uses robust original Adam Hall connectors, where the telecom connector has a gold-plated tip for optimal conductivity and protection against oxidation. Whether you're building a permanent studio installation or need reliable cables for touring, the 3 STAR BMV delivers professional performance in all situations.
