CABLESDMX, AES/EBU Cables3-pole DMX, AES/EBU Cables5 STAR DMF

5 STAR DMF

Product benefits

✓ Professional DMX and AES/EBU cable from our 5 STAR SERIES - made in the EU

✓ Original Neutrik® connectors (NC3FXX-BAG & NC3MXX-BAG) with silver plated surfaces for maximum lifetime and signal quality

✓ 0.34 mm² (AWG22) conductor area with 110 Ω impedance - fully optimized for DMX and digital audio standards

✓ UV-resistant soft PVC sheath for maximum flexibility and braided copper shield against magnetic interference

✓ Supplied with Velcro and two transparent shrink tubes for easy labeling

Specifications

General
- Cable length: 1 m - 20 m
- Cable sheath: PVC (Polyvinyl chloride)
- Cable diameter: 6.4 mm
- Color: Black
Connectors
- Connector 1: XLR 3-pin female (Neutrik NC3FXX-BAG) | Silver plated
- Connector 2: XLR 3-pin male (Neutrik NC3MXX-BAG) | Silver plated
Conductors & Shielding
- Material: OFC (Oxygen Free Copper)
- Conductor area: 2 x 0,34 mm²
- Capacitance/m: 63 pF
- Conductor impedance/km: 53 Ohm/km
- Wave impedance: 110 Ohm (DMX & AES/EBU)
- Shielding: Spiral wound copper shield
Environment/Ambient
- Ambient temperature: -20 - 70 °C

Description of the device

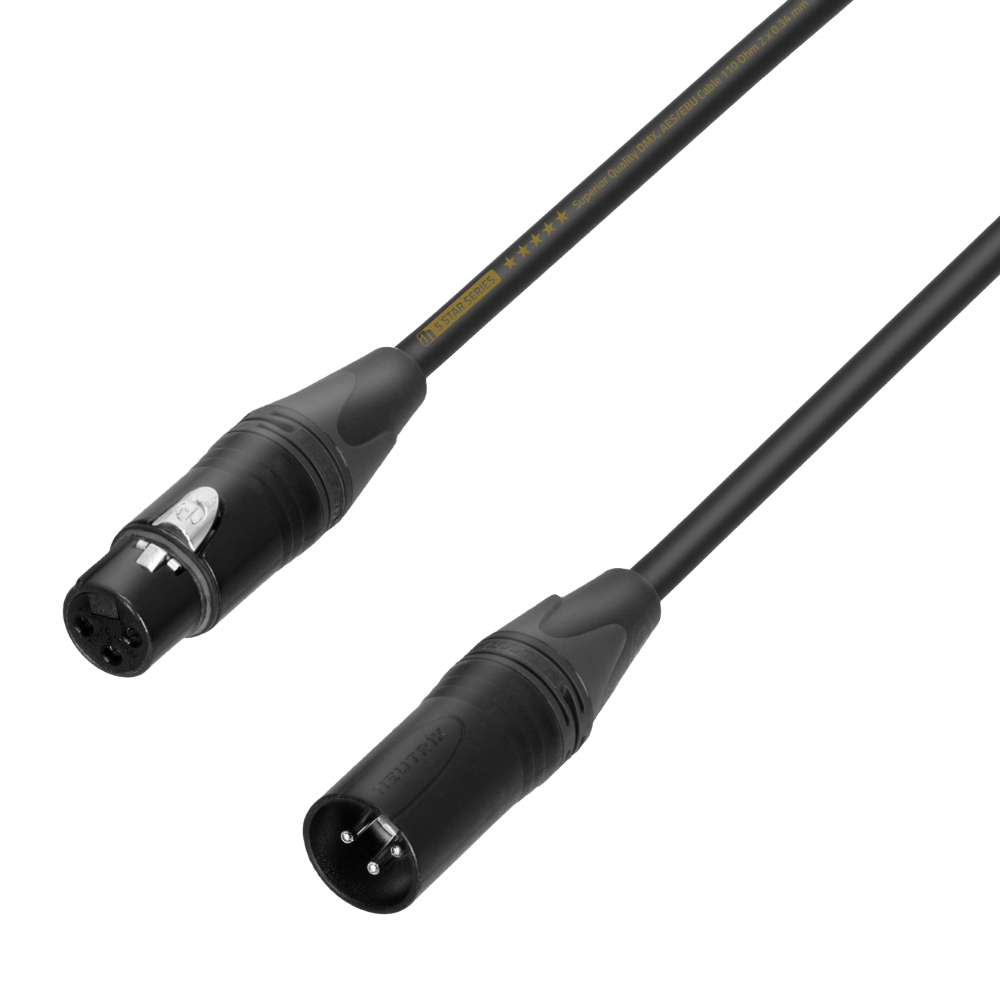

5 STAR DMF

The 3-pin version of our top-tier DMX cables offers exceptional performance and reliability for demanding applications. This high quality DMX and AES/EBU cable is specifically designed to ensure first class signal transmission, making it ideal for professional use.

Assembled with original Neutrik® connectors with silver plated surfaces, a bulk cable fully manufactured in the EU, a large conductor area of 0.34 mm² and efficient copper shielding - this cable truly lives up to its 5 STAR SERIES seal.

The cable comes complete with a Velcro strap for easy handling and two loose, transparent shrink tubes for easy labeling.
