CABLESDMX, AES/EBU Cables5-pole DMX, AES/EBU Cables4 STAR DGH

4 STAR DGH

Highlights:

Professional DMX / AES-EBU cable from our 4 STAR SERIES
Equipped with high-quality REAN connectors (a Neutrik Group brand)
5-pin XLR with two connected signal conductors
Robust and flexible cable with larger inner conductor cross-section
Shielding of copper braid

Specifications

General information
- Cable length: 0.5 m - 20 m
- Cable sheath: PVC (polyvinyl chloride)
- Cable diameter: 6.5 mm
- Cable color: Black
Connectors
- Connector type connector 1: XLR 5-pin female
- Model name connector 1: Rean RC5F
- Contact material connector 1: Nickel plated
- Contact type connector 2: XLR 5-pin male
- Model name connector 2: Rean RC5M
- Contact material connector 2: Nickel plated
Line
- Conductor material: OFC (oxygen free copper)
- Conductor area: 2 x 0.34 mm²
- Capacitance per meter: 65 pF
- Conductor impedance per km: 53 Ohm
- Shielding: Braided copper shielding
Environmental conditions
- Ambient temperature: -20 - 70 °C
Dimensions and weight
- Weight: 172 g

Description of the device

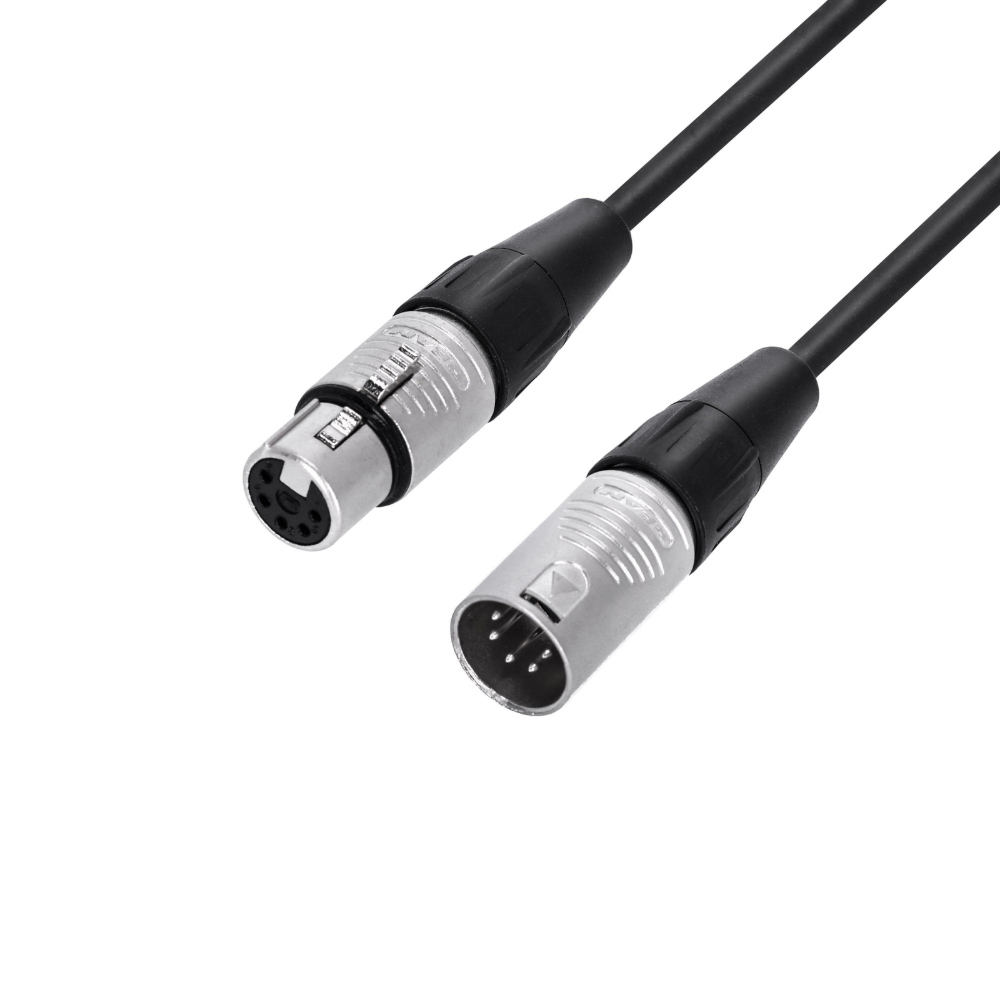

4 STAR DGH

This high-quality DMX / AES-EBU cable has original REAN® connectors (a Neutrik Group brand) and a larger inner conductor cross-section of 0.34 mm². The robust cable is equipped with braided copper shielding and a durable soft PVC jacket, making it a reliable and professional solution for stage and touring applications.
