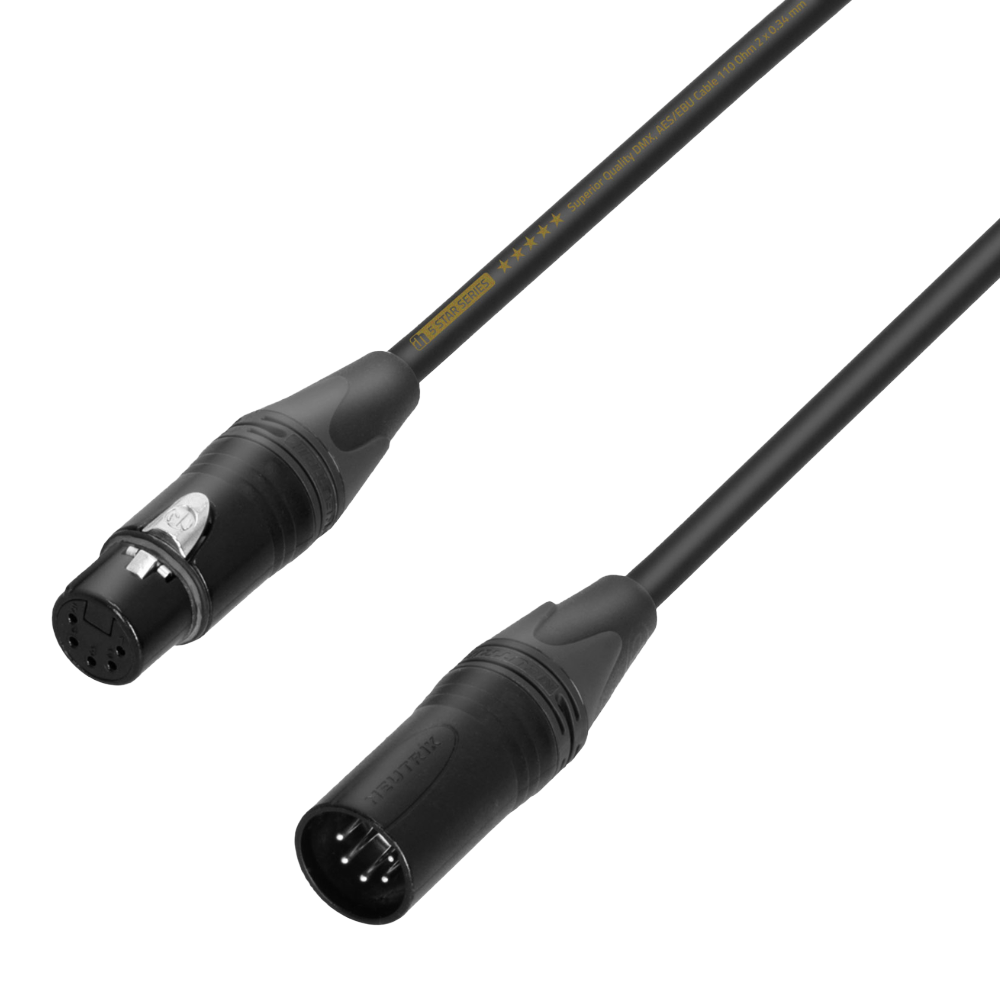

5 STAR DGH
Product benefits
- ✓ Professional DMX & AES/EBU cable from our 5 STAR SERIES (Made in EU)
- ✓ Original Neutrik® connectors(NC5FXX-BAG & NC5MXX-BAG) with silver plated contacts
- ✓ 0.34 mm² (AWG22) conductor area and 110 Ω resistance - fully compliant with DMX standard
- ✓ Extremely flexible and UV-resistant sheath in soft PVC compound with braided copper shield
- ✓ Supplied with cable ties and two loose transparent shrink tubes for easy labeling
- Phone number: 040-546511
- E-Mail: contact@stagebrands.com
- BrandAdam Hall
- ManufacturerAdam Hall
Description
Article no.: 5 STAR DGH
Specifications
- General
- Cable length: 1 m - 20 m
- Cable sheath: PVC (Polyvinyl chloride)
- Cable diameter: 6.4 mm
- Color: Black
- Connectors
- Connector 1: XLR 5-pin female (Neutrik NC5FXX-BAG) | Silver plated
- Connector 2: XLR 5-pin male (Neutrik NC5MXX-BAG) | Silver plated
- Conductors & Transmission
- Material: OFC (Oxygen Free Copper)
- Conductor area: 2 x 0,34 mm²
- Capacitance/m: 63 pF
- Conductor impedance/km: 53 Ohm/km
- Resistance (Impedance): 110 Ω
- Environment/Ambient
- Operating temperature: -20 - 70 °C
Description of the device
5 STAR DGH
The 5-pin version of our top-level DMX cable, offering exceptional performance and reliability for demanding applications. This superior quality DMX and AES/EBU cable is specifically designed to ensure first class signal transmission, making it ideal for professional use.
Assembled with original Neutrik® 5-pin connectors with silver plated contact surfaces, a bulk cable fully manufactured within the EU, a large conductor area of 0.34 mm² and a braided copper shield - this cable truly lives up to its 5 STAR SERIES badge.
The cable comes complete with a Velcro strap for cable management and two loose, transparent shrink tubes for easy labeling.
