3 STAR DHM 0020

• General
  • Cable length: 0.2 m (20 cm)
  • Cable sheath: PVC (Polyvinyl chloride)
  • Cable diameter: 5.9 mm
  • Color: Black
• Connectors
  • Connector 1: XLR 5-pin female (Adam Hall 4 STAR C XF5) | Nickel plated
  • Connector 2: XLR 3-pin male (Adam Hall 4 STAR C XM3) | Nickel plated
  • Material: Die-cast zinc with plastic strain relief
• Conductor
  • Material: OFC (Oxygen Free Copper)
  • Conductor area: 2 x 0,22 mm²
• Environment/Ambient
  • Operating temperature: -20 - 70 °C

Description of the product

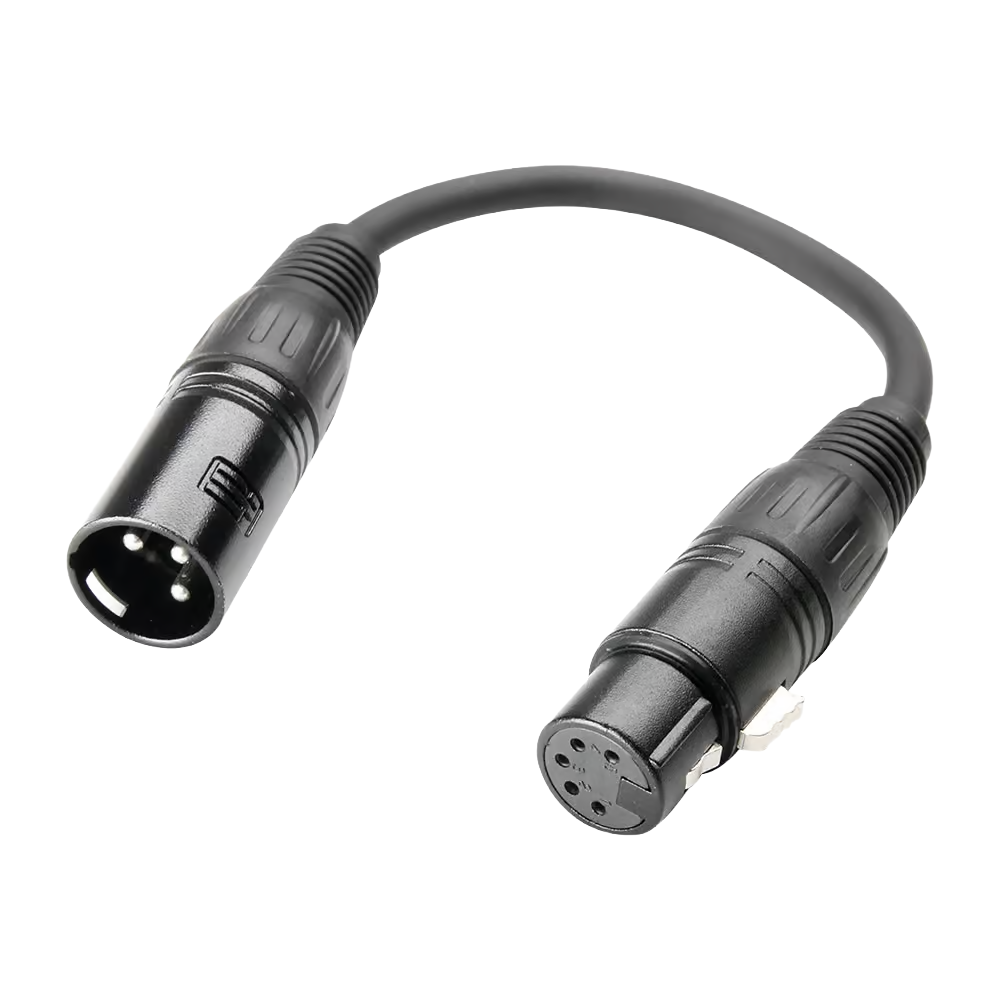

4 STAR DGM 0020 - DMX adapter (5-pin female to 3-pin male)

This high-quality adapter cable from Adam Hall's 4 STAR SERIES is an indispensable component of every lighting technician's equipment. It is specifically designed to solve compatibility issues between different DMX generations by converting a 5-pin signal to a 3-pin connection.

Thanks to the use of oxygen-free copper (OFC), signal integrity is maintained throughout the adapter, which is critical to avoid flicker or delays in the DMX chain. The connectors are made of robust die-cast zinc to withstand the rigors of the stage and frequent rigging.

With its compact 20 cm length and flexible PVC jacket, the adapter takes up minimal space and keeps your connections organized. It is a reliable solution for integrating simple 3-pin equipment into professional 5-pin networks.
