4 STAR CATBOX 3-PIN

Name: 4 STAR CATBOX 3-PIN
Brand: Adam Hall
Availability: OutOfStock

Product benefits

✓ Transmits audio and DMX signals via a shielded Cat adapter box

✓ Seamless transportation of four balanced signals via only one network (LAN) cable

✓ Robust braided protective sock around each pair of conductors protects against external influences

✓ Wired according to the AES72 5E standard

✓ Fully compatible between versions - channel numbering is identical on all our devices

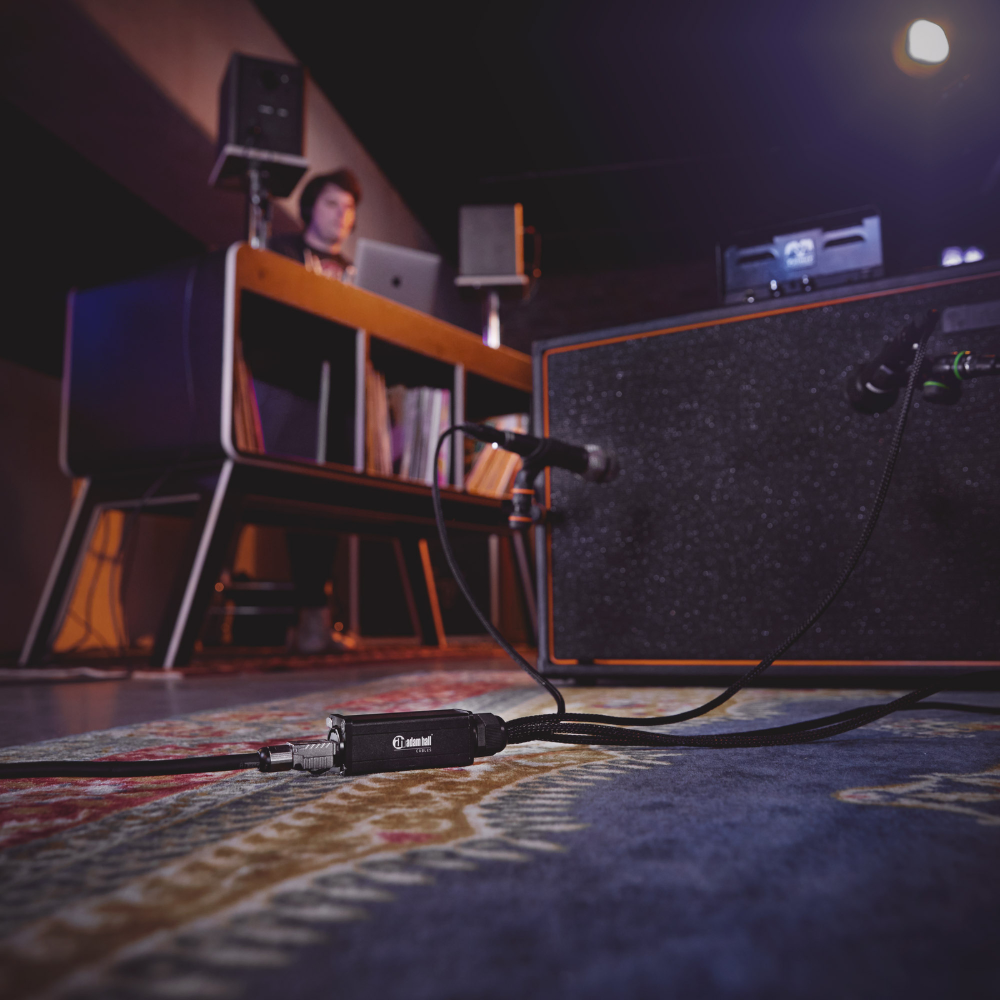

✓ Ideal for use both on stage and in the studio

Specifications

General
- Cable length: 0.3 m
- Cable sheath: PVC with braided protective sleeve
- Color: Black
Connectors

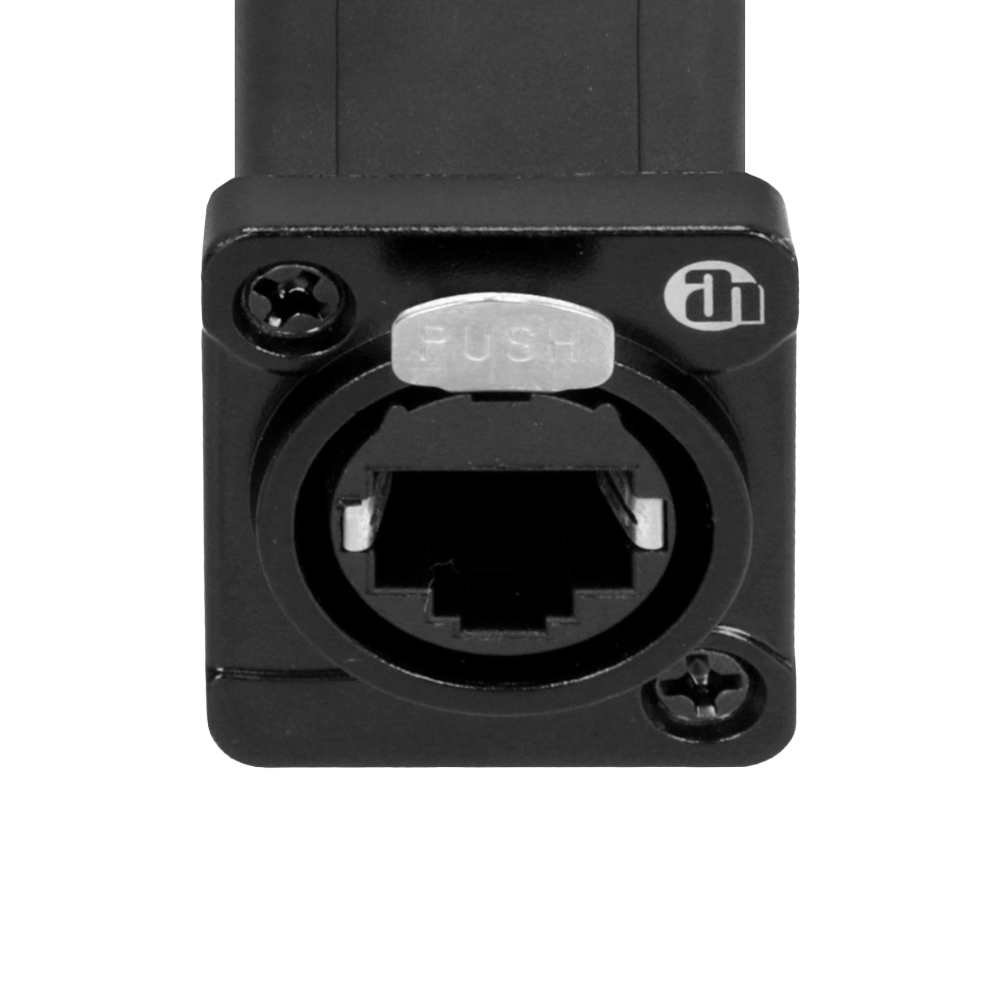

- Connector 1: RJ45 chassis connector (compatible with etherCON®)
- Connector 2: XLR 3-pin (Adam Hall K4CXF3BLK)
- Contact material: Silver plated surfaces
Conductor & Standard
- Category standard: Cat.6a
- Material: OFC (Oxygen Free Copper)
- Wiring diagram: AES72 Type 5E

Description: 4 STAR CATBOX

4 STAR CATBOX

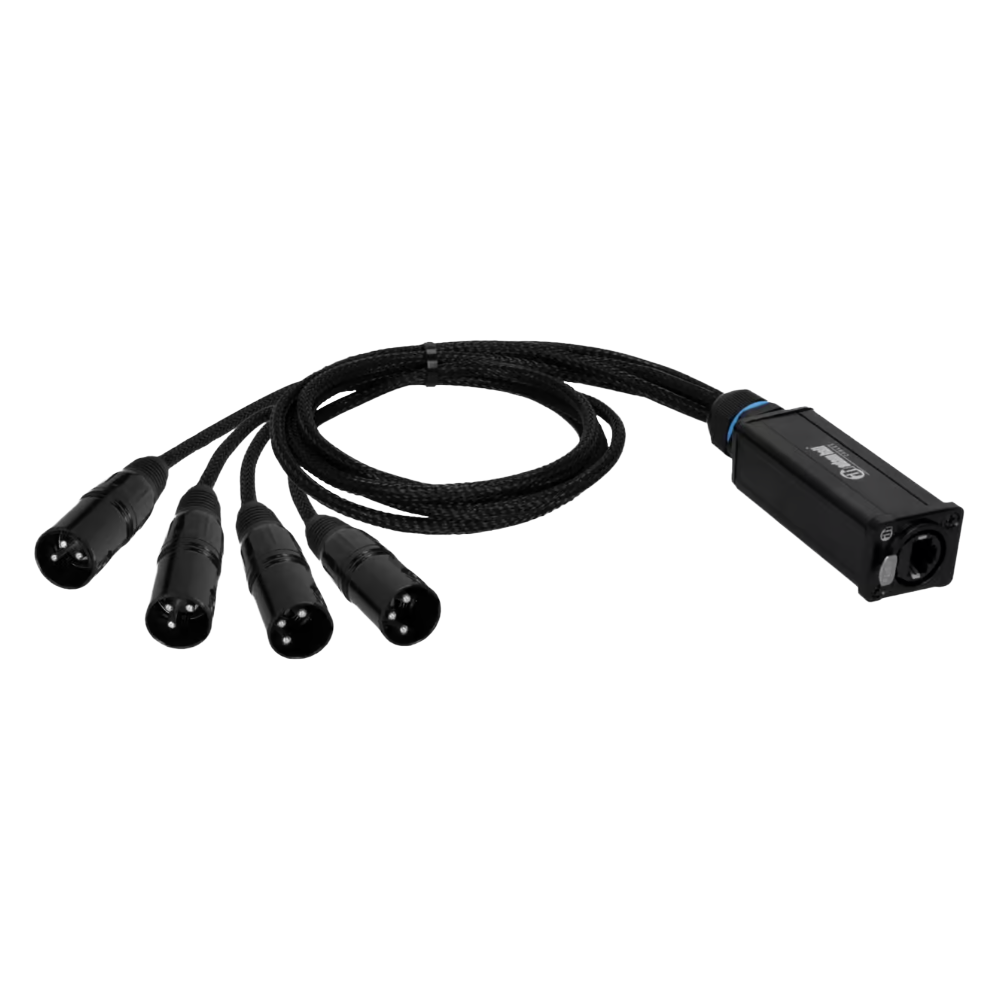

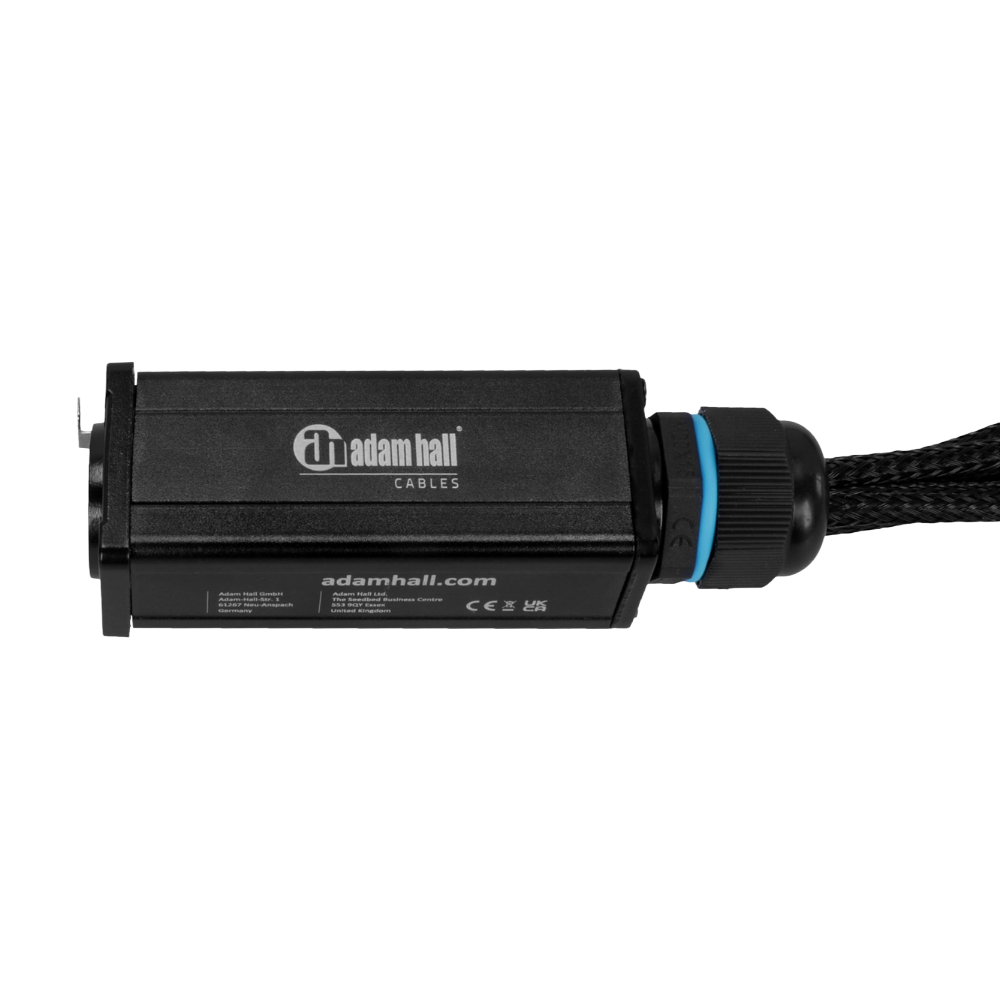

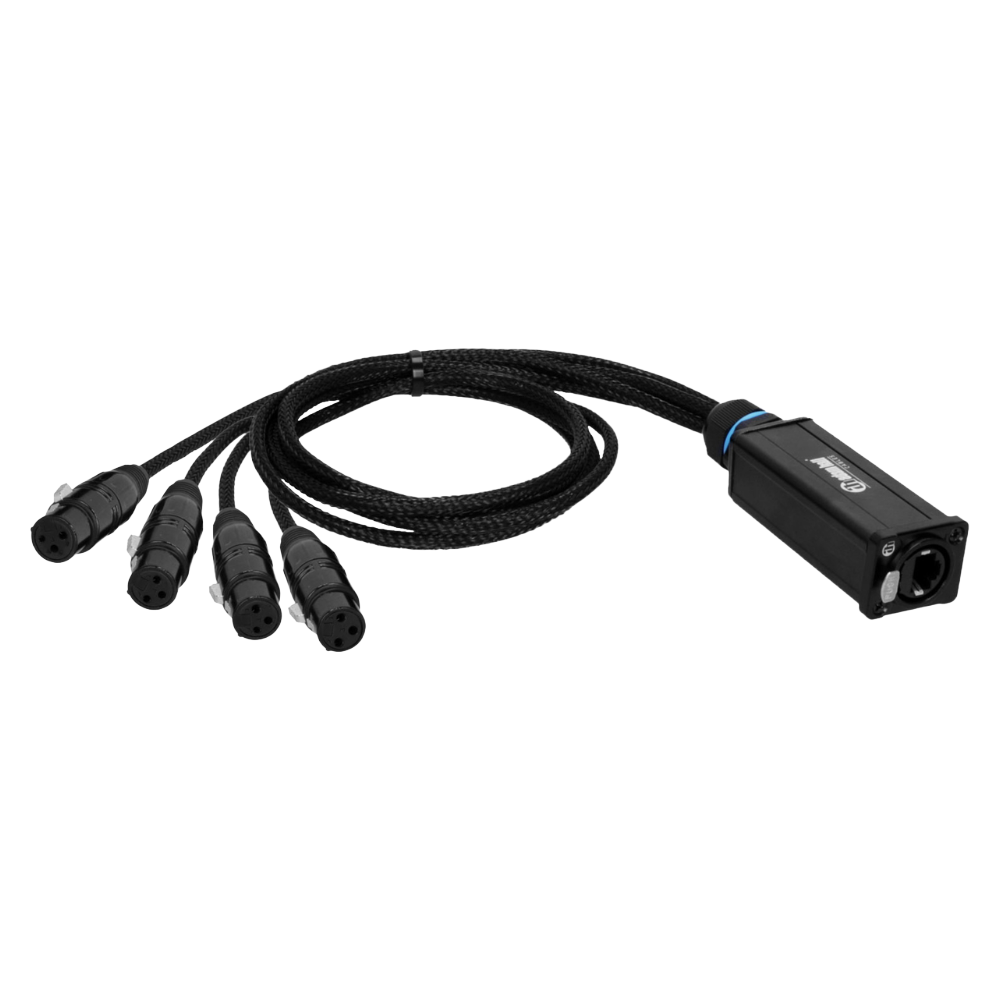

With our 4 STAR SERIES professional XLR-via-Cat adapters, you can now utilize the four wire pairs and shield in a single shielded network cable instead of using a bulky 4-channel multicore. This saves space and is extremely practical in both fixed installations and mobile rigs.

The device can be used with a standard RJ45 cable or a network cable equipped with lockable etherCON® connectors. Being wired to AES72 scheme 5E, it is fully compatible with all other Adam Hall CATBOX products, as well as many other brands on the market that follow the same industry standard.

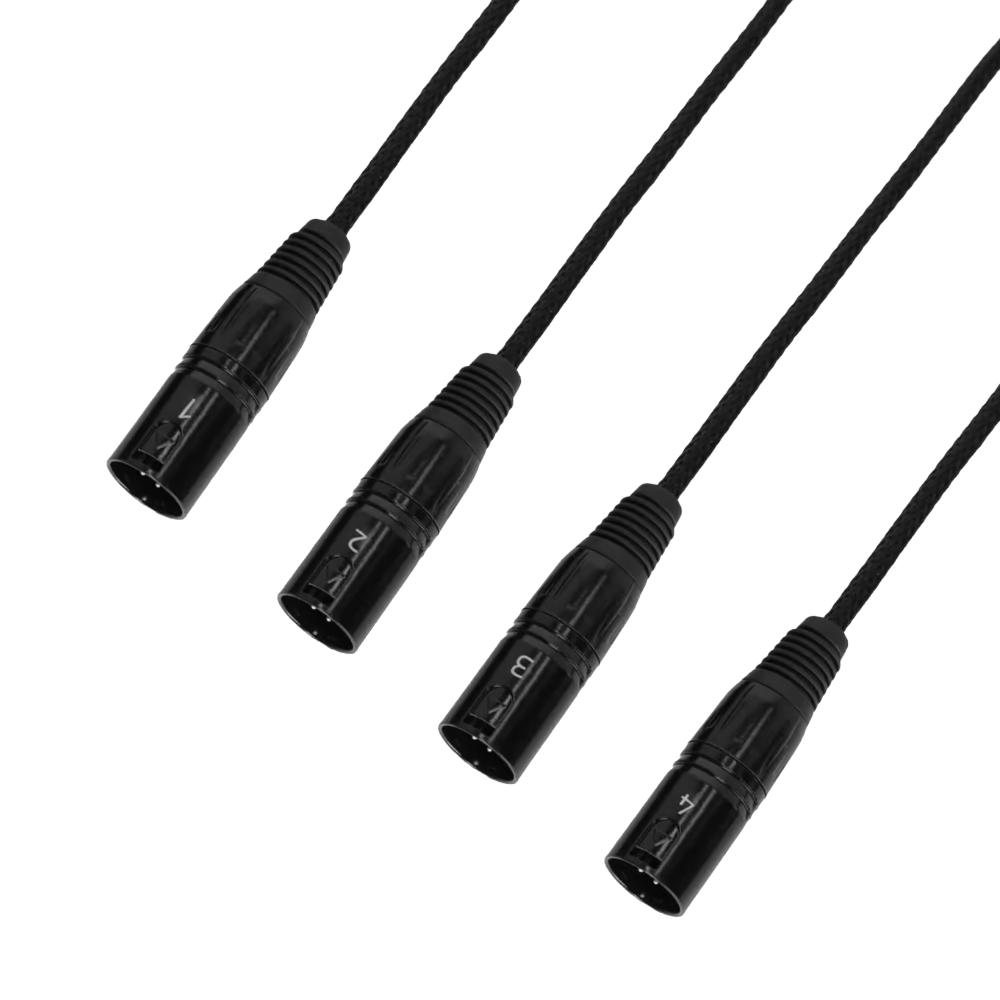

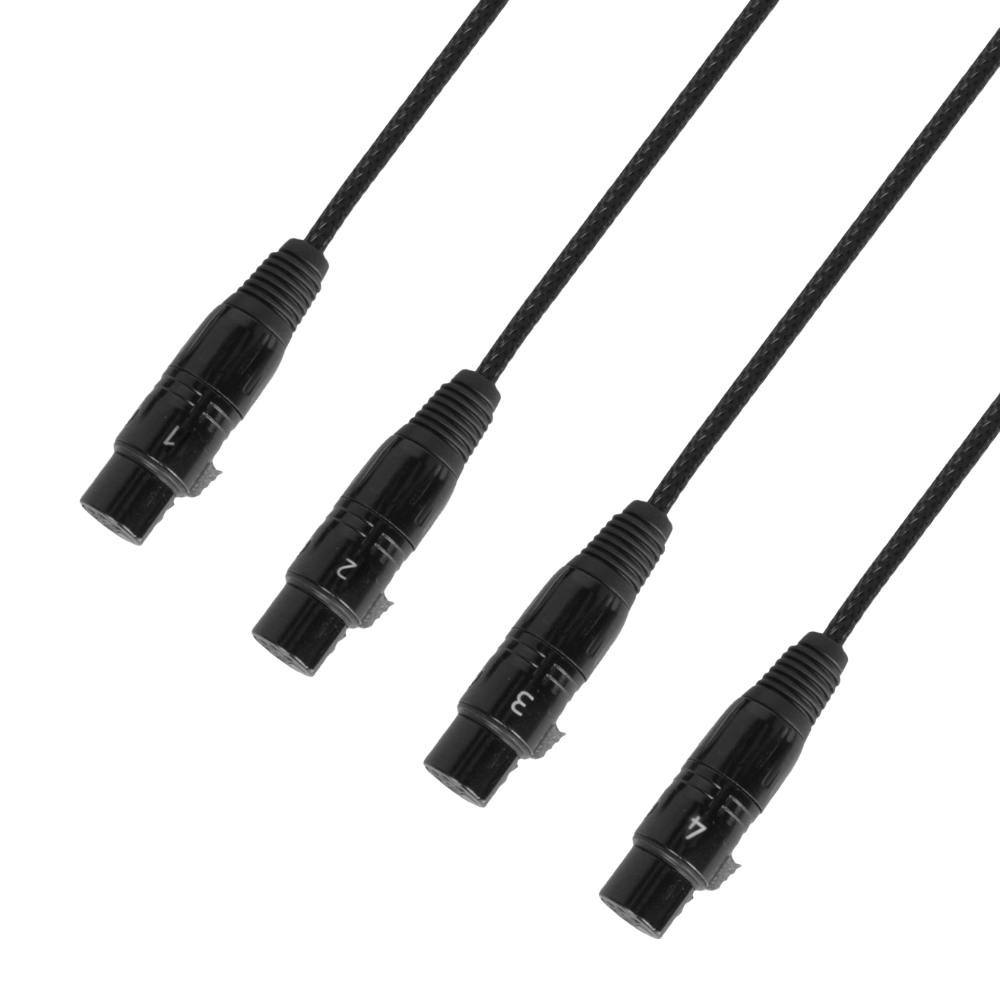

The connectors are completely black and clearly numbered, so you never have to worry about which channel is which. CATBOX products are also available in several other configurations to suit your specific needs.
