5 STAR DHM 0020

• General
  • Cable length: 0.2 m
  • Cable sheath: PVC (Polyvinyl chloride)
  • Cable diameter: 6.2 mm
  • Color: Black
• Connectors
  • Connector 1: XLR 5-pin female (Neutrik NC5FXX-BAG) | Silver plated
  • Connector 2: XLR 3-pin male (Neutrik NC3MXX-BAG) | Silver plated
• Conductors & Shielding
  • Material: OFC (Oxygen Free Copper)
  • Conductor area: 2 x 0,34 mm² (AWG22)
  • Capacitance/m: 63 pF
  • Conductor impedance/km: 53 Ohm
  • Wave impedance: 110 Ohm (DMX & AES/EBU)
  • Shielding: Braided copper shield
• Environment/Ambient
  • Operating temperature: -25 - 70 °C

Description of the device

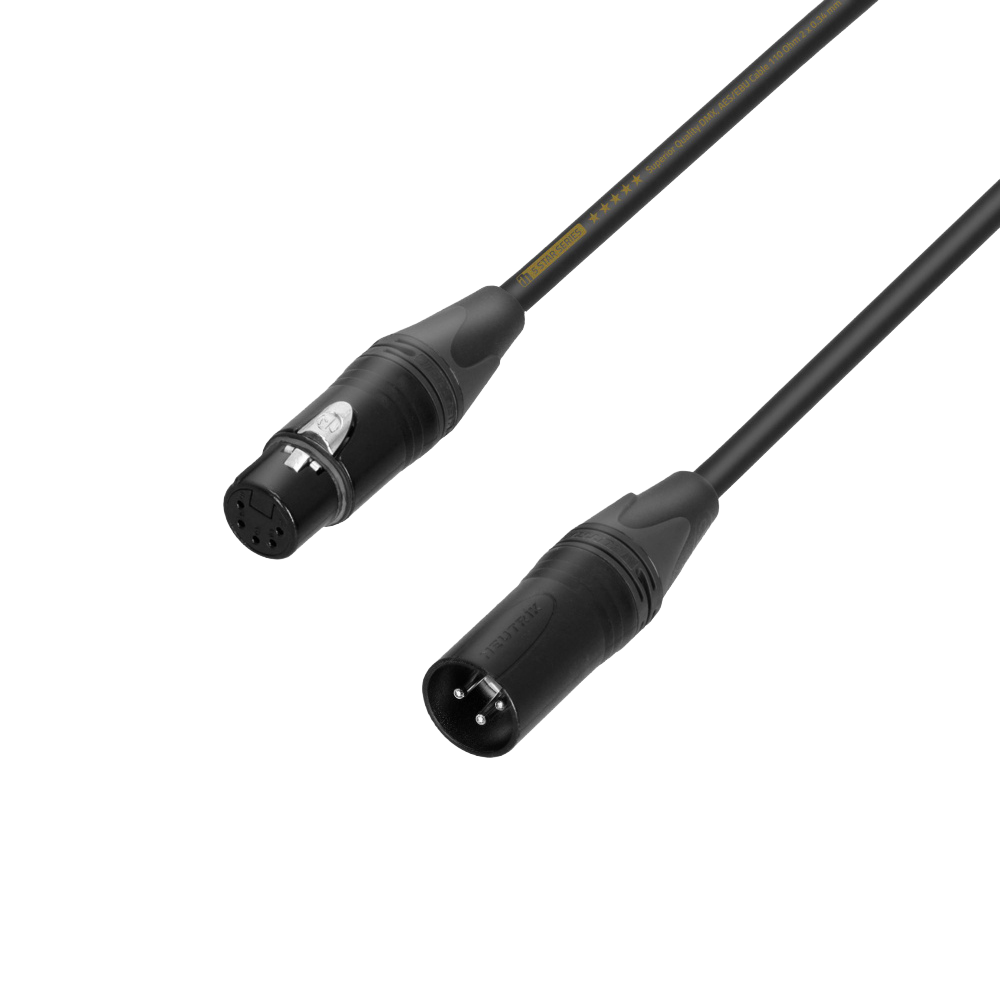

5 STAR DHM 0020

Adam Hall 5 STAR SERIES XLR adapter cable from 5-pin female to 3-pin male delivers premium quality and exceptional reliability for professional lighting and audio applications. The cable is fully compatible with DMX and AES/EBU standards, ensuring optimal performance even in demanding environments.

Equipped with original Neutrik® connectors with silver-plated surfaces, this cable guarantees superior signal transmission and durability, even with frequent use. The 0.34 mm² oxygen-free copper (OFC) inner conductor provides outstanding stability, while the braided copper shield effectively protects against electromagnetic interference (EMI).

The UV-resistant sheath, made of a special soft PVC compound, combines extreme flexibility with outstanding abrasion resistance. This premium cable is designed by the Adam Hall Cables® team in Germany and manufactured in the EU to meet the highest quality requirements.
