AoC Loom XLRf

• General
  • Product type: Audio over Cat adapter
  • Inputs: 1 x RJ45 (Balanced)
  • Outputs: 4 x XLR female (Balanced)
  • Material: Aluminum, Steel
  • Cable length (Splits): 0,5 m
  • Dimensions (WxDxH): 80 x 45 x 45 mm
  • Weight: 0,39 kg
• Audio performance
  • Frequency range: 0 Hz - 20 kHz
  • Max input level: +32 dBu (< 1% THD)
  • THD: < 0.0005% (1 kHz, +4 dBu)
  • Compatibility: Analog signals, AES3, DMX, MIDI, Phantom power (48V)

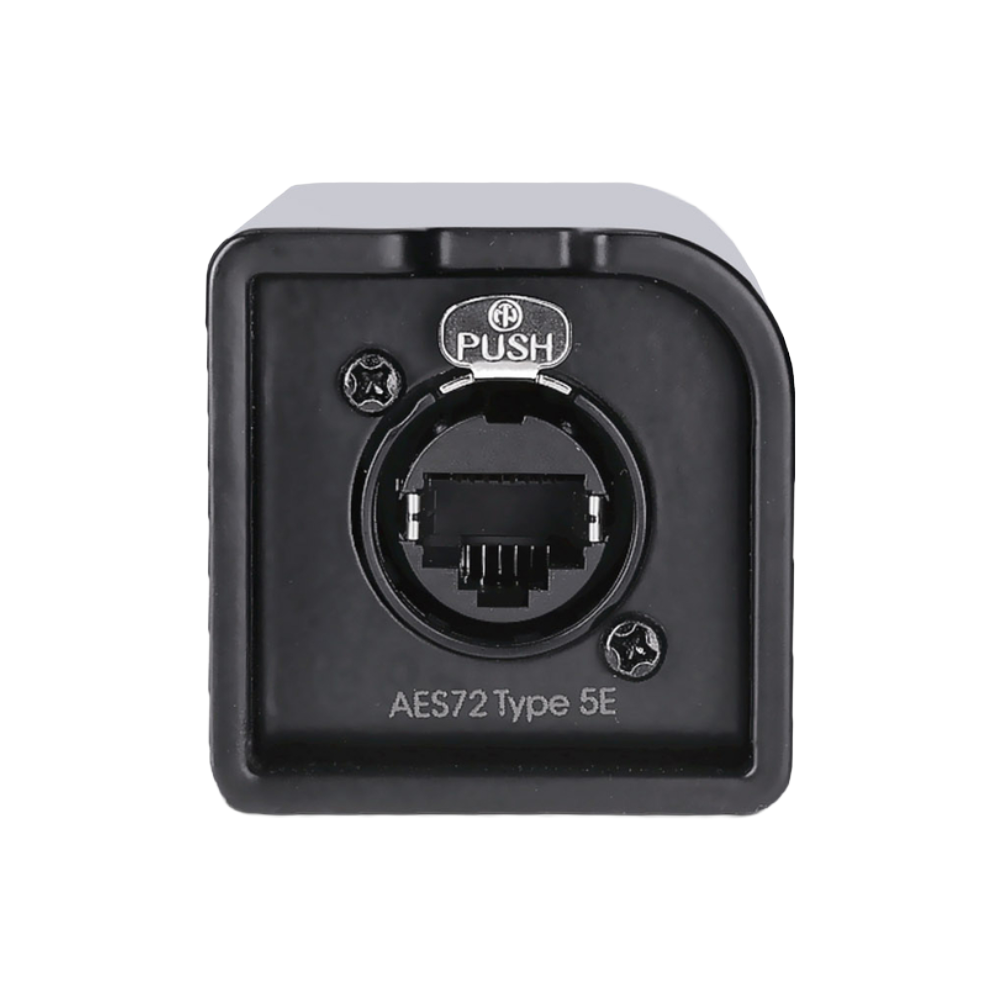

• RJ45 Pinout (AES72 Type 5E)
  • Pin 1/2: Channel 3 (- / +)
  • Pin 4/5: Channel 1 (+ / -)
  • Pin 7/8: Channel 2 (- / +)
  • Pin 3/6: Channel 4 (- / +)

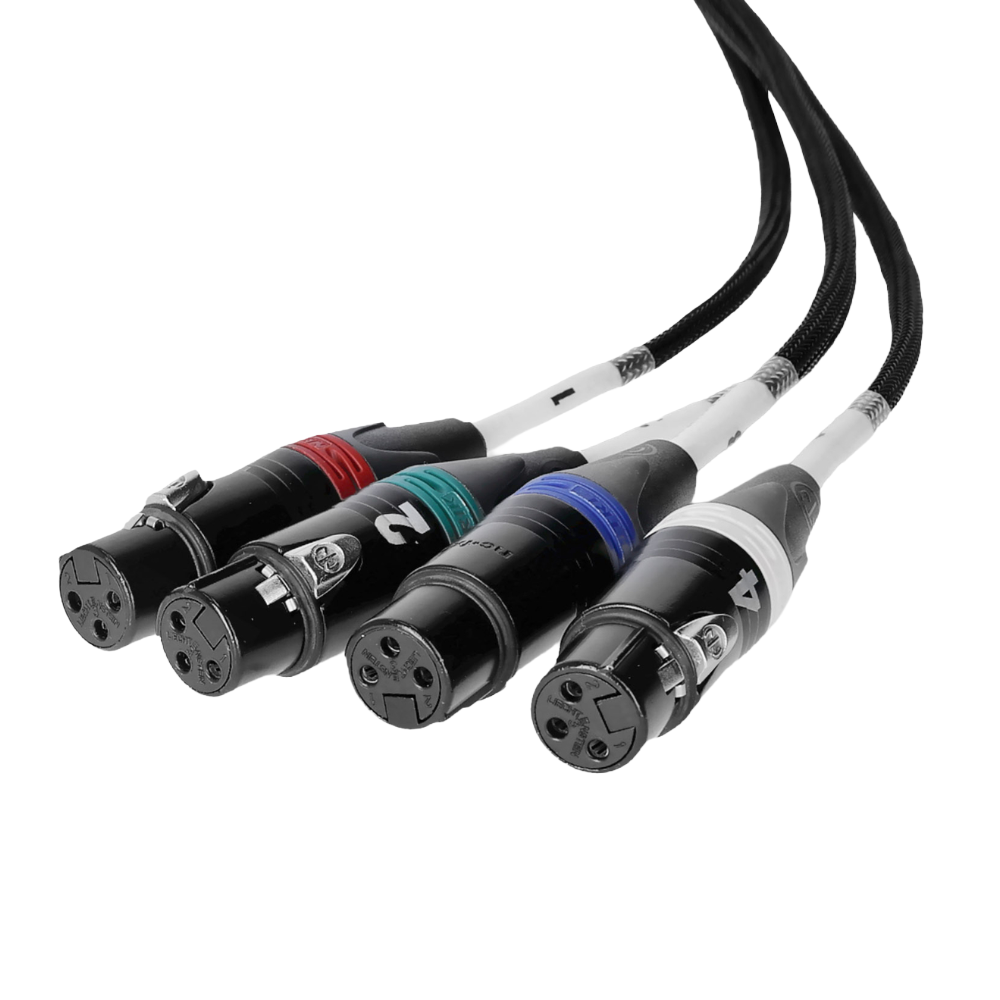

• Color coding channels
  • Channel 1: Red | Channel 2: Green | Channel 3: Blue | Channel 4: White

Description of the product

Palmer AoC Loom XLRf (P AOC L XLR F)

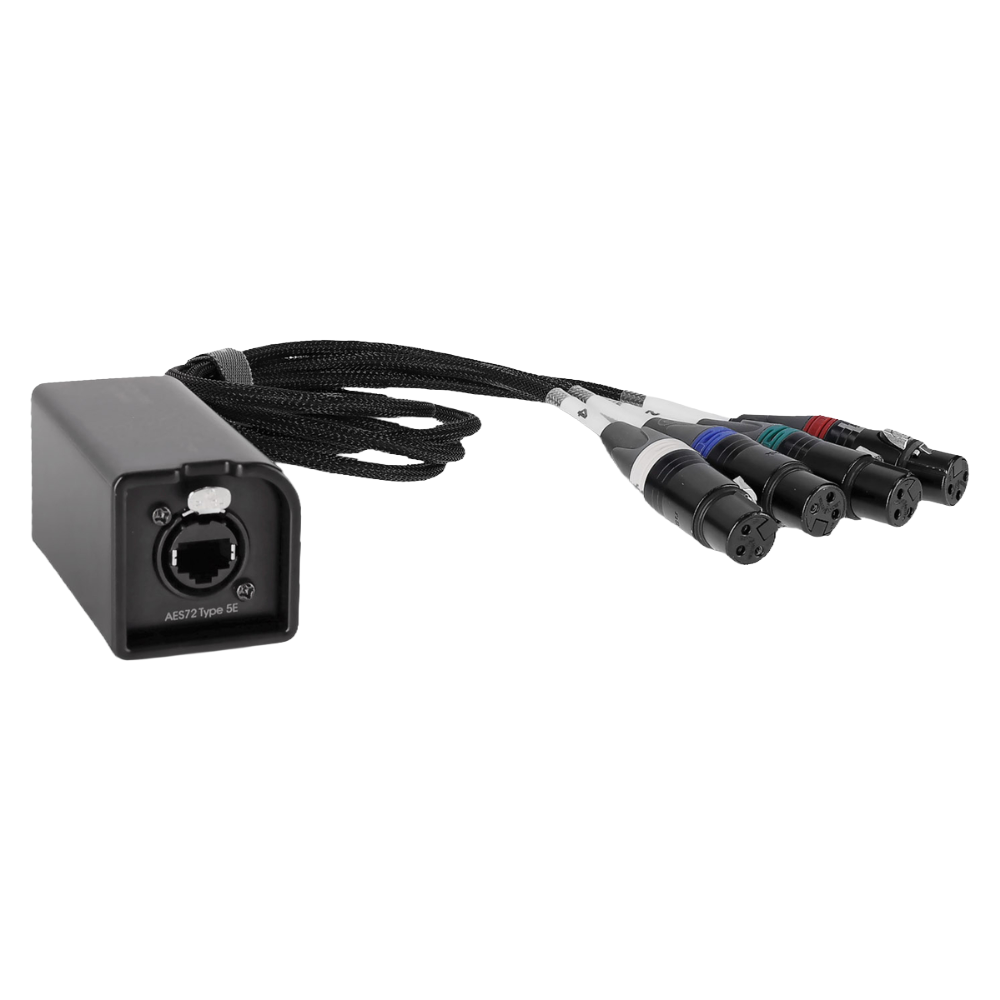

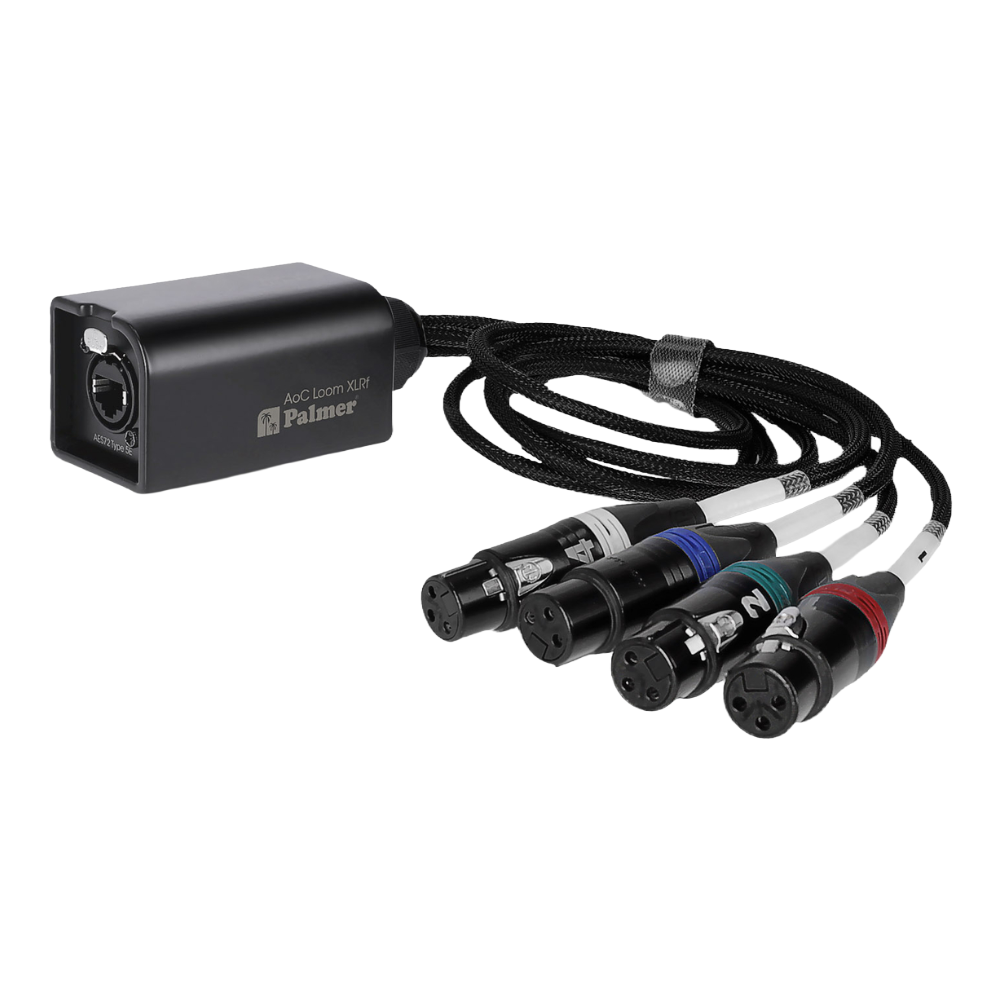

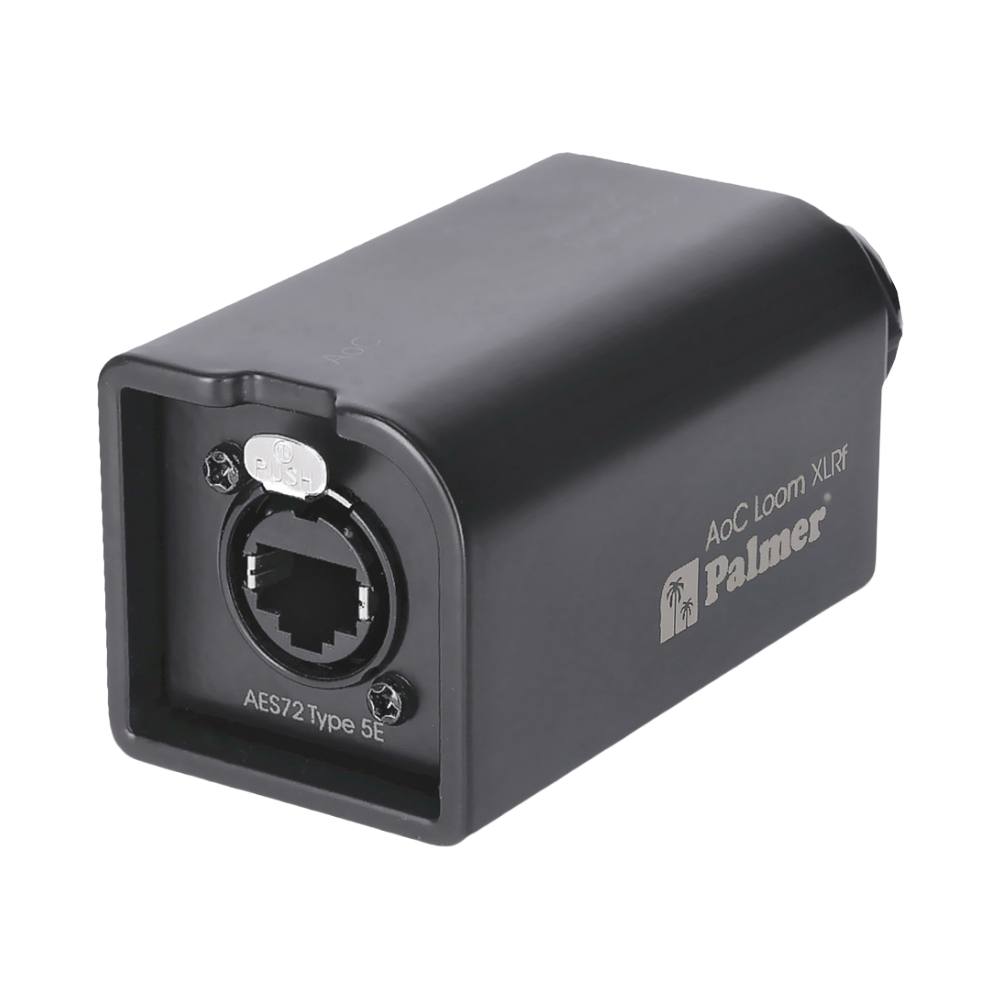

The P AOC L XLR F is a multicore adapter cable that enables the stable transmission of four separate analog balanced audio signals or eight digital AES3 signals via a standard network cable (not included). The female XLR connectors are numbered and color-coded for easy identification, and the Ethercon connector is lockable to prevent accidental disconnection.

In addition to audio signals, the P AOC L XLR F also allows for the transmission of DMX or MIDI control signals, along with 48-volt phantom power, via a single standard Ethernet cable. This versatility allows it to be used flexibly in a variety of applications - from live concerts and studio sessions to press conferences.

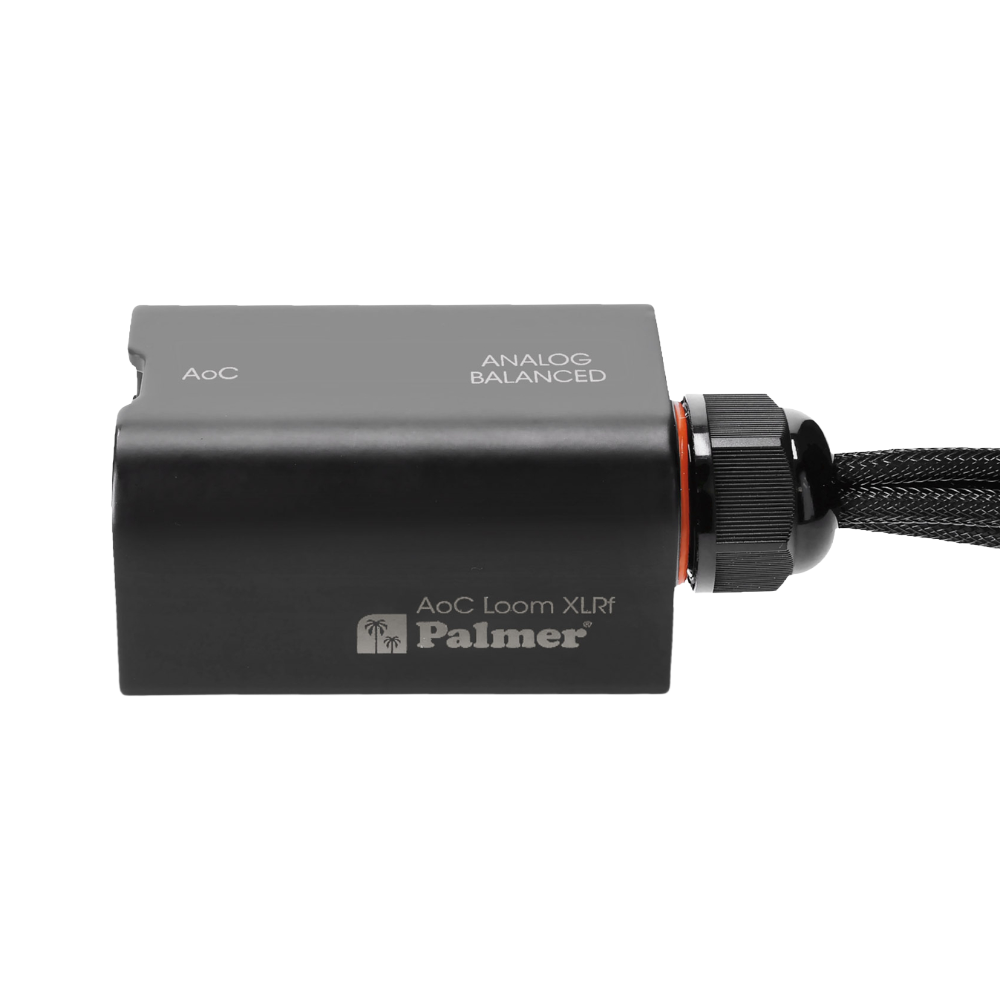

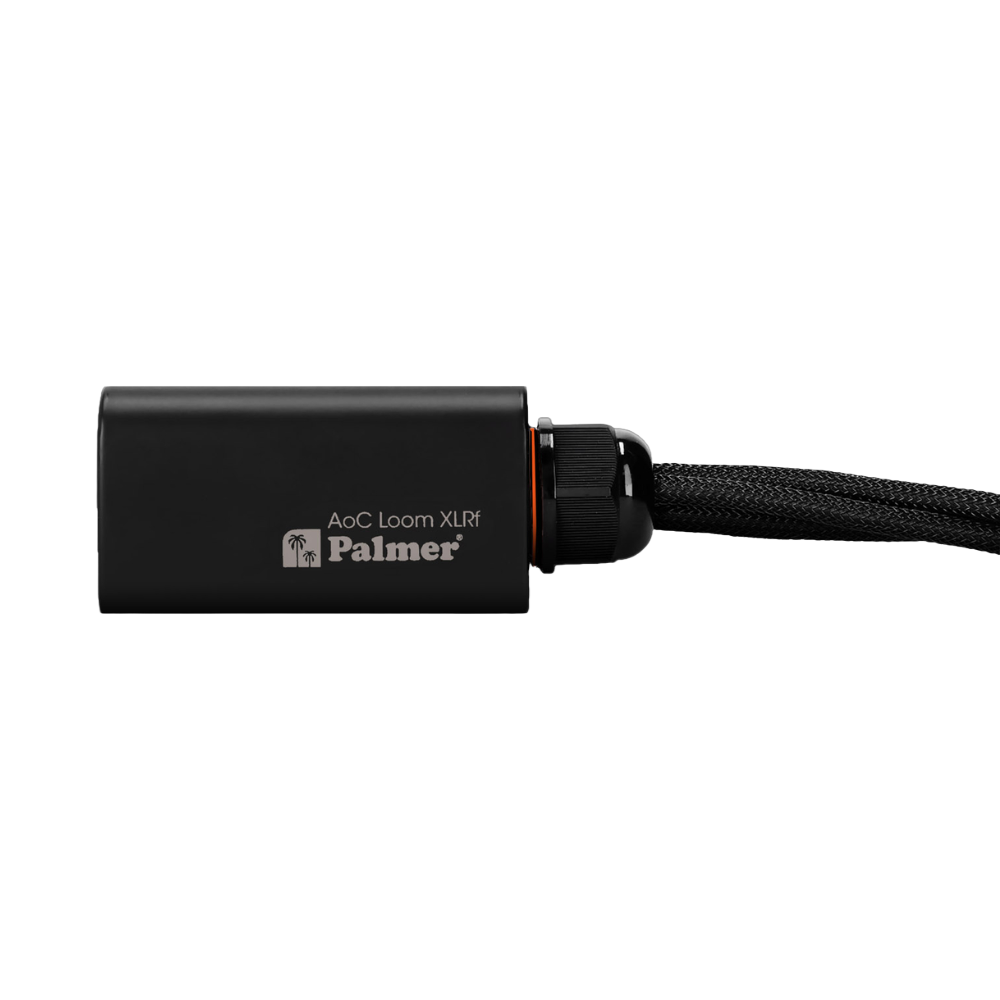

Thanks to high-quality Neutrik components, a solid aluminum and steel housing, as well as robust mesh sleeves over the cables (50 cm splits), reliable signal transmission and long durability in professional environments are guaranteed. Its elegant and high-quality design also enhances the visual impact of any setup.
