3 STAR H PCON D

• General
  • Cable length: 1.5 m - 10 m
  • Split length (ends): 40 cm
  • Total outer diameter: 15 mm
  • Color: Black
• Power supply (Power)
  • Connector 1 (In): Adam Hall 7923V2 (PowerCON compatible Blue)
  • Connector 2 (Out): Adam Hall 7924V2 (PowerCON compatible Gray)
  • Conductor area: 3 x 1.5 mm² (AWG 16)
  • Material: OFC (Oxygen Free Copper)
  • Cable diameter (Power): 10 mm
• Signal (DMX/Audio 3-pin)
  • Connector 1: XLR 3-pin female (Adam Hall K3CXF3BLK) | Silver plated
  • Connector 2: XLR 3-pin male (Adam Hall K3CXM3BLK) | Silver plated
  • Conductor area: 2 x 0.22 mm² (AWG 24)
  • Capacitance: 55 pF/m
  • Cable diameter (Signal): 5 mm
• Environment & Construction
  • Cable sheath: PVC (Polyvinyl chloride)
  • Operating temperature: -20 - 70 °C

Description of the product

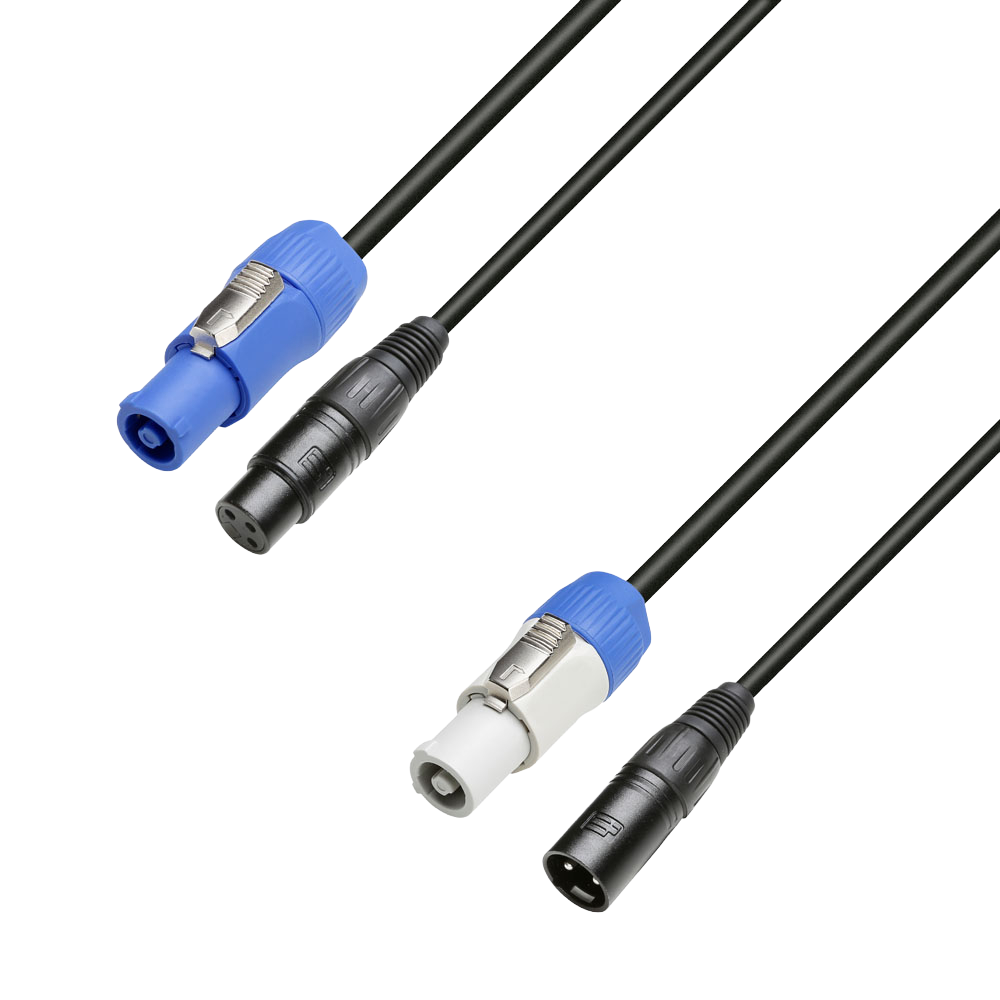

3 STAR H PCON D - The smart hybrid solution for Power & Signal

Streamline your lighting or audio rig with our hybrid cable from 3 STAR SERIES. By combining power and signal transmission in a single robust unit, you reduce the need for double cabling, saving time and creating a much neater and safer environment on stage or in the studio.

The cable is equipped with Adam Hall's reliable connectors: PowerCON-compatible connectors (blue/grey) for safe power supply and 3-pin XLR connectors for DMX or analog audio signals. With a conductor area of 1.5 mm² for power, it is perfectly sized for LED luminaires, moving lights and active speakers.

The construction is based on oxygen-free copper (OFC) for highest signal purity and a flexible PVC jacket that makes the cable easy to handle even with repeated rigging. With a 40 cm split at each end, you get full freedom to connect the cables to luminaires without compromising strain relief.
