5 STAR H PCON 5D

5 STAR H PCON 5D

Product benefits

✓ 5 STAR SERIES professional hybrid cable for simultaneous power and DMX feed
✓ Original Neutrik® connectors: 5-pin XLR (NC5FXX/MXX-BAG) and powerCON® (NAC3FXXA/B-W)
✓ Safety in focus: powerCON® connectors are approved for switching on and off under load
✓ High performance conductors: 2.5 mm² for power and 0.22 mm² for DMX - developed by Adam Hall Cables® in Germany
✓ Sheath in special soft PVC compound for maximum flexibility and easy handling on stage
✓ Supplied with cable ties and two transparent shrink tubes for professional labeling
Read more...

On order 1 week!

  • Phone number: 040-546511
  • E-Mail: contact@stagebrands.com
  • BrandAdam Hall
  • ManufacturerAdam Hall

Description

Article no.: 5 STAR H PCON 5D

Specifications

  • General
    • Cable length: 1.5 m - 10 m
    • Split length: 40 cm
    • Total outer diameter: 17 mm
    • Color: Black
  • Power supply (Power)
    • Contact 1 (In): Neutrik NAC3FXXA-W-L (powerCON® Blue)
    • Contact 2 (Out): Neutrik NAC3FXXB-W-L (powerCON® Gray)
    • Conductor area: 3 x 2.5 mm² (AWG 13)
    • Material: OFC (Oxygen Free Copper)
  • Signal (DMX 5-pin)
    • Connector 1: XLR 5-pin female (Neutrik NC5FXX-BAG)
    • Connector 2: XLR 5-pin male (Neutrik NC5MXX-BAG)
    • Conductor area: 2 x 0.22 mm² (AWG 24)
    • Shielding: Spiral wound copper shield
  • Construction & Environment
    • Cable sheath: PVC (Polyvinyl chloride)
    • Ambient temperature: -20 - 70 °C
    • European craftsmanship

Description of the cable

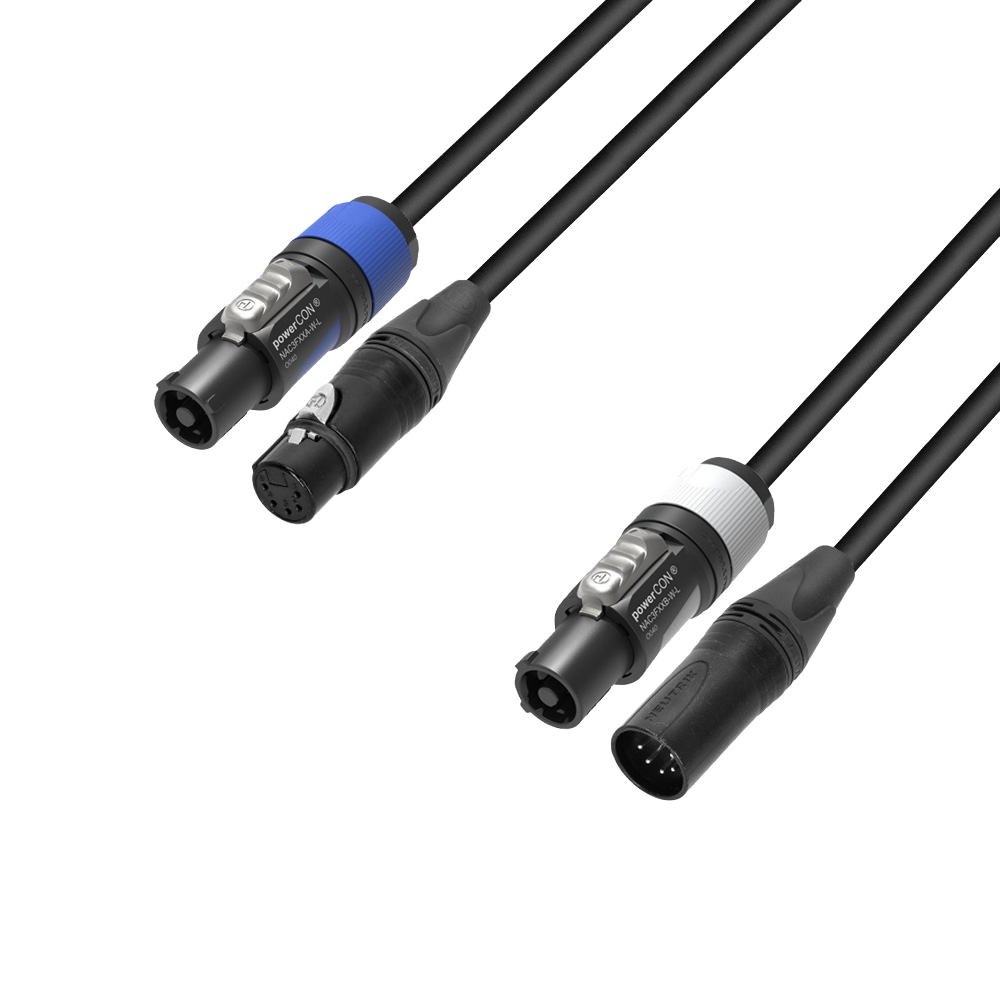

5 STAR H PCON 5D - Hybrid Cable for DMX & Power

Take your lighting rig to the next level with our advanced Hybrid DMX and Power Cable from 5 STAR SERIES. Specifically designed for professional lighting technicians, this versatile cable allows for simultaneous transmission of both 5-pin DMX signals and power, minimizing cable tangles and providing a more manageable rig.

The cable is equipped with original Neutrik® premium connectors, known for their extreme durability and ability to maintain signal integrity. It is perfect for efficiently connecting devices such as the Cameo AURO® SPOT Z300 through daisy-chaining.

Whether you are preparing a concert, theater production or any other event that requires sophisticated lighting control, our hybrid cable is the ultimate solution for reliability and fast rigging. With European build quality, you can count on the show running smoothly without interruption.
