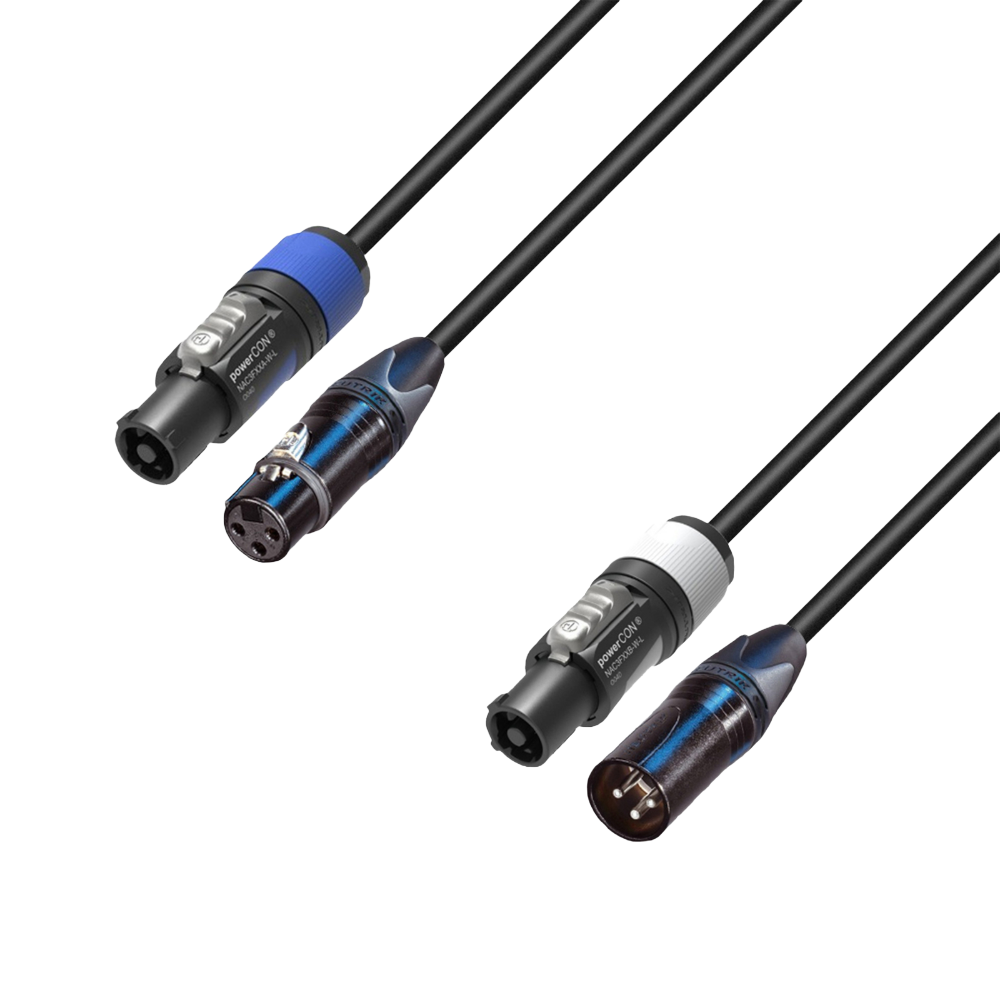

5 STAR H PCON D

Product benefits

✓ 5 STAR SERIES professional hybrid cable for simultaneous DMX and power transmission

✓ Original Neutrik® connectors: XLR with silver-plated surfaces and powerCON® for power supply

✓ Industry standard: powerCON connectors are safe to connect under load

✓ High-performance cross-section: 2.5 mm² for power and 0.22 mm² for DMX - developed in Germany

✓ Extremely flexible thanks to a special blend of soft PVC for the jacket material

✓ Supplied with Velcro and two transparent shrink tubes for professional labeling

Specifications

General
- Cable length: 1.5 m - 10 m
- Split length: 40 cm
- Total outer diameter: 17 mm
- Color: Black
Power supply (Power)
- Contact 1 (In): Neutrik NAC3FXXA-W-L (powerCON® Blue)
- Contact 2 (Out): Neutrik NAC3FXXB-W-L (powerCON® Gray)
- Conductor area: 3 x 2.5 mm² (AWG 13)
- Material: OFC (Oxygen Free Copper)
- Power cable diameter: 10 mm
Signal (DMX 3-pin)
- Connector 1: XLR 3-pin female (Neutrik NC3FXX-BAG)
- Connector 2: XLR 3-pin male (Neutrik NC3MXX-BAG)
- Conductor area: 2 x 0.22 mm² (AWG 24)
- Wave impedance: 110 Ohm
- Shielding: Spiral wound copper shield
Construction
- Cable sheath: PVC (Polyvinyl chloride)
- Origin: Made in the EU

Description of the cable

5 STAR H PCON D - Hybrid Cable for DMX & Power (3-pin)

Optimize your lighting rig with our groundbreaking Hybrid DMX and Power Cable from 5 STAR SERIES. Designed for professional lighting technicians, this versatile cable allows simultaneous transmission of both 3-pin DMX signal and power via PowerCON. The result is an efficient, tangle-free setup that saves valuable time during both rigging and dismantling.

The cable is equipped with original premium Neutrik® connectors, known for their mechanical precision and superior signal transmission. A generous 2.5 mm² conductor area for power ensures stable operation even when connecting multiple luminaires in series, while the 110-ohm rated signal section ensures that DMX data arrives without flicker or interference.

Whether for concerts, theater or live events, this hybrid cable offers top-class reliability. European craftsmanship and carefully selected components ensure a long lifetime in demanding environments.
