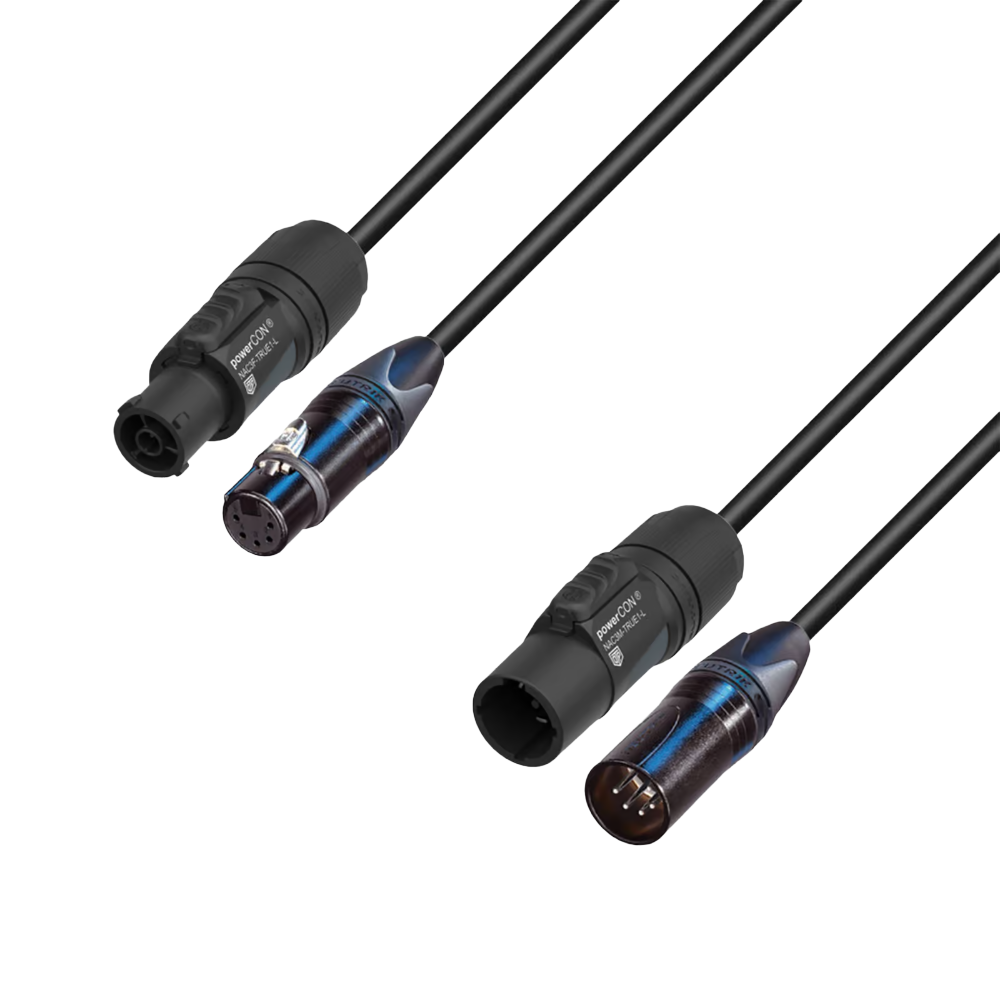

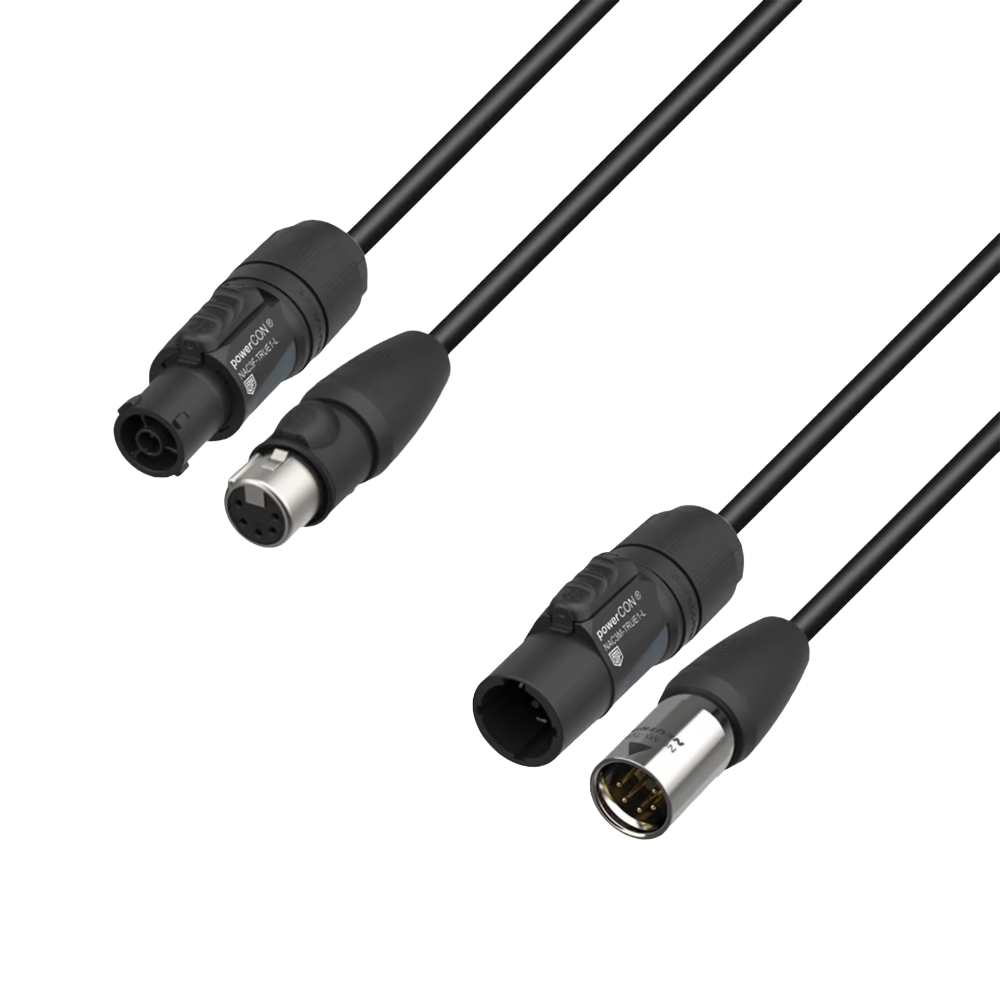

5 STAR H TCON 5D / IP65

Product benefits

✓ Professional hybrid cable (Power + DMX) from 5 STAR SERIES - made in the EU

✓ Equipped with original Neutrik powerCON TRUE1® and IP rated XLR connectors

✓ Fully IP65 rated - dustproof and water resistant for demanding outdoor use

✓ Safe handling: TRUE1 connectors can be plugged and unplugged under load (CBC rated)

✓ Heavy-duty construction: 2.5 mm² conductor area for power and 0.34 mm² for stable DMX signal

✓ Highly flexible special PVC for easy handling even in cold temperatures

✓ Supplied with cable ties and two transparent shrink tubes for professional labeling

Specifications

General
- Cable length: 1.5 m
- Split length: 40 cm
- Total outer diameter: 17 mm
- Color: Black
- Protection class: IP65 (True Outdoor Protection)
Power supply (Power)
- Connectors: Neutrik NAC3FXX-W-TOP / NAC3MX-W-TOP (TRUE1® compatible)
- Conductor area: 3 x 2.5 mm² (AWG 13)
- Material: OFC (Oxygen Free Copper)
- Cable diameter (Power): 10 mm
Signal (DMX 5-pin)
- Connectors: Neutrik NC5FXX-HD-TOP / NC5MXX-HD-TOP
- Conductor area: 2 x 0.34 mm² (AWG 22)
- Wave impedance: 120 Ohm
- Shielding: Braided copper shield
- Capacitance: 55 pF/m
Environment/Ambient
- Operating temperature: -20 - 70 °C

Description of the cable

5 STAR H TCON 5D 0150 IP65 - Professional Hybrid Cable for Power & Data

Maximize the efficiency of your light rig with our advanced Hybrid cable from 5 STAR SERIES. Designed specifically for professional lighting technicians, this cable allows simultaneous transmission of both 5-pin DMX signal and power via PowerCON TRUE1. This minimizes cable tangles and greatly simplifies rigging.

The cable is equipped with original Neutrik® TOP (True Outdoor Protection) connectors, which are known for their extreme durability and ability to withstand water and dust according to IP65 standards. This makes it ideal for e.g. connecting movable luminaires like Cameo OTOS H5 in demanding outdoor environments.

With a large conductor area for power (2.5 mm²) and optimized impedance for data signal, both voltage drop and signal loss are minimized. Rely on European craftsmanship and quality to keep your show running flawlessly, whether for concerts, theater productions or large outdoor events.
