5 STAR H TCON D

Product benefits

✓ Premium hybrid cable from 5 STAR SERIES for simultaneous DMX and power supply - made in the EU

✓ Original Neutrik powerCON TRUE1® and 3-pin XLR connectors for maximum lifetime

✓ Highest safety: TRUE1 connectors are IP rated and safe to plug in/out under load

✓ Professional performance: 2.5 mm² conductor for power and 0.34 mm² for stable DMX signal

✓ Extremely flexible thanks to a specially developed soft PVC jacket - developed in Germany

✓ Includes cable ties and two transparent shrink tubes for professional labeling

Specifications

General
- Cable length: 1.5 m - 10 m
- Split length: 40 cm
- Total outer diameter: 17 mm
- Color: Black
Power supply (Power)
- Connectors: Neutrik NAC3F-TRUE1 / NAC3M-TRUE1 (PowerCON TRUE1®)
- Conductor area: 3 x 2.5 mm² (AWG 13)
- Material: OFC (Oxygen Free Copper)
- Cable diameter (Power): 10 mm
Signal (DMX/Audio 3-pin)
- Connector 1: XLR 3-pin female (Neutrik NC3FXX-BAG)
- Connector 2: XLR 3-pin male (Neutrik NC3MXX-BAG)
- Conductor area: 2 x 0.34 mm² (AWG 22)
- Wave impedance: 120 Ohm
- Shielding: Spiral wound copper shield
Environment & Construction
- Cable sheath: PVC (Polyvinyl chloride)
- Operating temperature: -20 - 70 °C
- Origin: Made in the EU

Description of the product

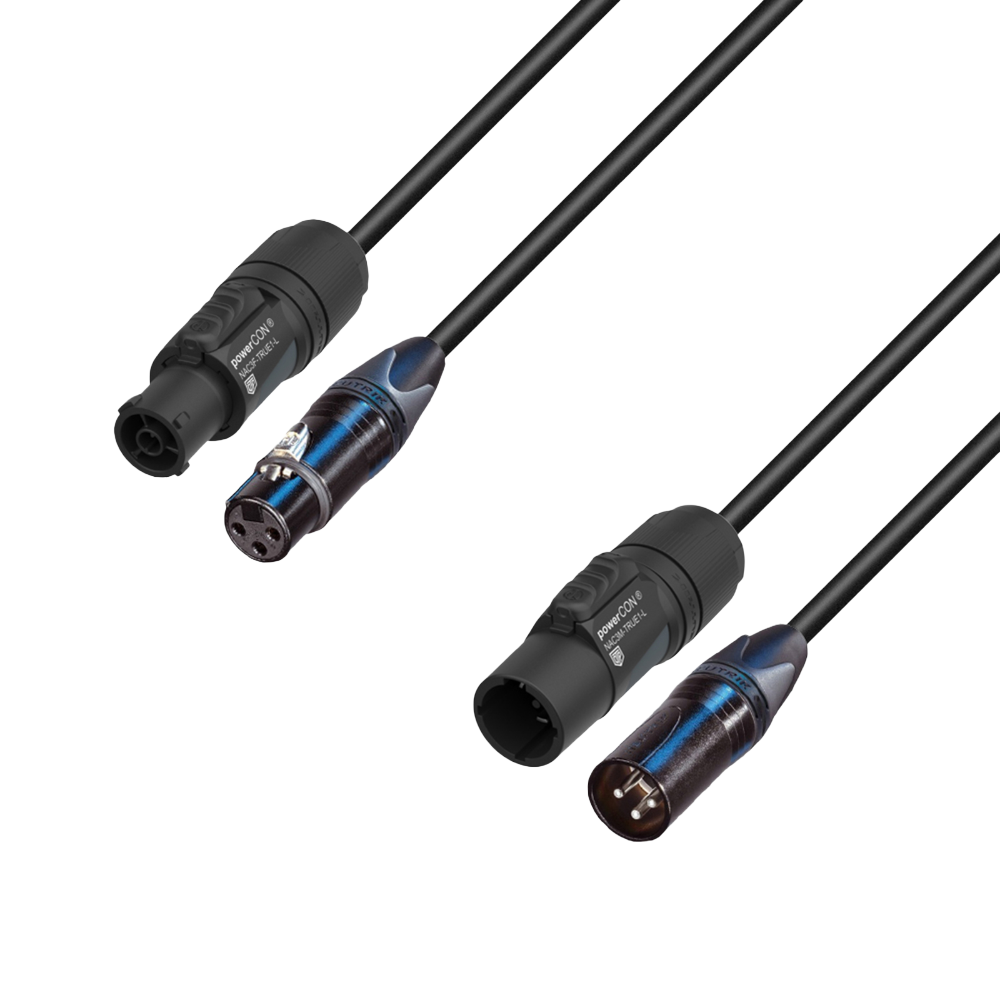

5 STAR H TCON D - Professional Hybrid Solution for Power & Data

Maximize the efficiency of your rig with our groundbreaking 5 STAR SERIES Hybrid cable. Designed for professional lighting technicians, this versatile cable allows simultaneous transmission of both 3-pin DMX signal and power via PowerCON TRUE1. It is the ultimate solution for creating a clean, safe and easy-to-manage setup.

The cable is equipped with original Neutrik® TRUE1 connectors for the power, allowing safe connection and disconnection under load, as well as premium XLR connectors for the signal. This minimizes signal loss and voltage drop, making it ideal for daisy-chaining high-performance luminaires such as the Cameo OTOS® S5.

Whether for concerts, theater or live events, this hybrid cable offers outstanding reliability. With its robust construction, a 40 cm split length for smooth connection and European build quality, it ensures your production runs smoothly.
