4 STAR DGH IP65

• General
  • Cable length: 1.5 m - 20 m
  • Cable sheath: PVC (Special soft compound)
  • Cable diameter: 6,5 mm
  • Color: Black
  • Protection class: IP65 (Dust and splash proof)
• Connectors
  • Connector 1: XLR 5-pin female (Adam Hall K4CXF5IP65) | Gold plated
  • Connector 2: XLR 5-pin male (Adam Hall K4CXM5IP65) | Gold plated
  • Construction: Die-cast zinc with sealing rubber rings
• Conductors & Shielding
  • Material: OFC (Oxygen Free Copper)
  • Conductor area: 2 x 0.34 mm²
  • Capacitance/m: 65 pF
  • Wave impedance: 110 Ohm (DMX & AES/EBU)
  • Shielding: Braided copper shield
• Environment/Ambient
  • Operating temperature: -20 - 70 °C

Description of the product

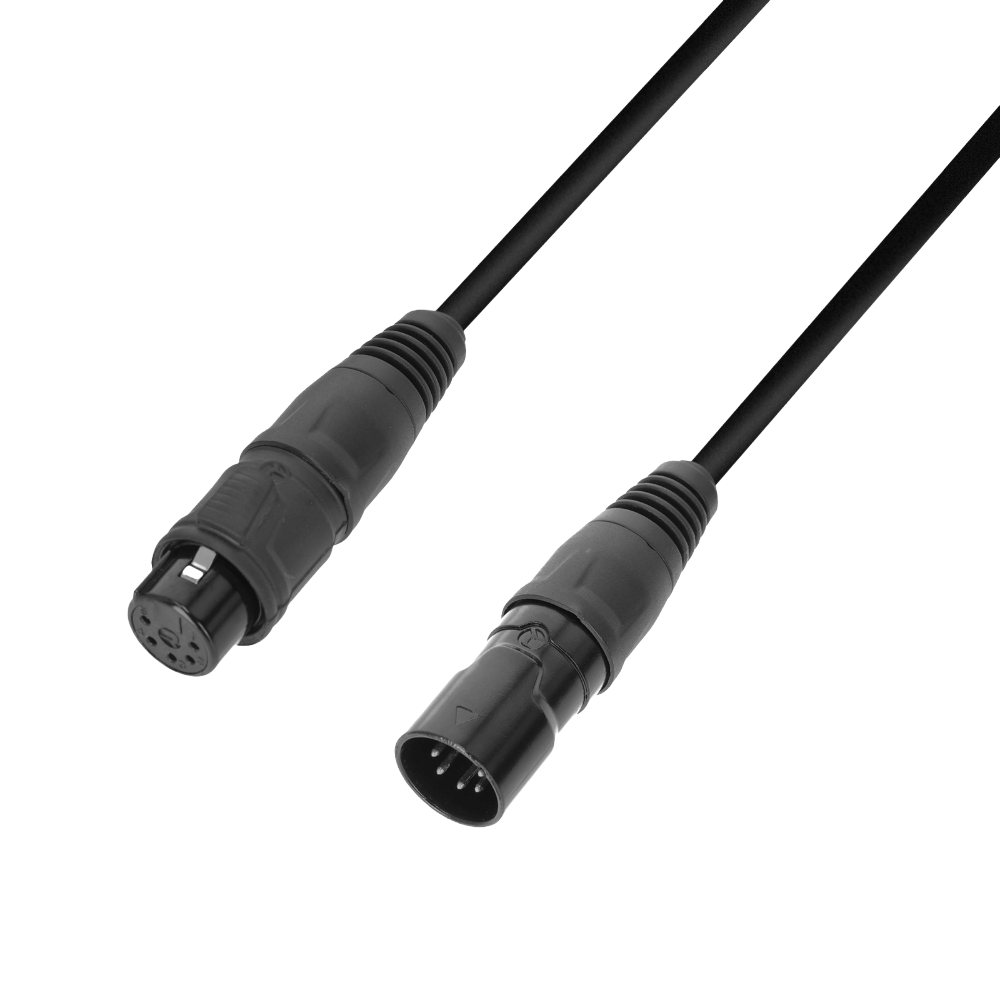

4 STAR DGH IP65 - Professional 5-pin DMX for outdoor use

This high-quality cable from 4 STAR SERIES is the solution for those who need reliable 5-pin DMX transmission in demanding outdoor environments. By combining an extremely flexible DMX cable with IP65-rated connectors, you get protection that resists both dust and water ingress.

The cable is constructed with double OFC conductors and a tightly braided copper screen to ensure interference-free signal transmission. The robust PVC jacket is made of a special soft plastic compound that maintains its flexibility even at sub-zero temperatures, making it ideal for year-round touring and event use.

Equipped with heavy-duty, IP65-rated 5-pin XLR connectors with gold-plated contact surfaces, the risk of corrosion and contact failure over time is minimized. With a wave impedance of 110 Ohm, the cable meets all requirements for both DMX lighting control and digital audio (AES/EBU).
