4 STAR DMF IP65
Product benefits
- Phone number: 040-546511
- E-Mail: contact@stagebrands.com
- BrandAdam Hall
- ManufacturerAdam Hall
Description
Article no.: 4 STAR DMF IP65
Specifications
- General
- Cable length: 1.5 m
- Cable sheath: PVC (Special soft compound)
- Cable diameter: 6,5 mm
- Color: Black
- Protection class: IP65 (Weatherproof)
- Connectors
- Connector 1: XLR 3-pin female (Adam Hall K4CXF3IP65) | Gold plated
- Connector 2: XLR 3-pin male (Adam Hall K4CXM3IP65) | Gold plated
- Material: Die-cast zinc with orange sealing elements
- Conductors & Shielding
- Material: OFC (Oxygen Free Copper)
- Conductor area: 2 x 0.34 mm²
- Capacitance/m: 65 pF
- Wave impedance: 110 Ohm (DMX & AES/EBU)
- Shielding: Braided copper shield
- Environment/Ambient
- Ambient temperature: -20 - 70 °C
Description of the product

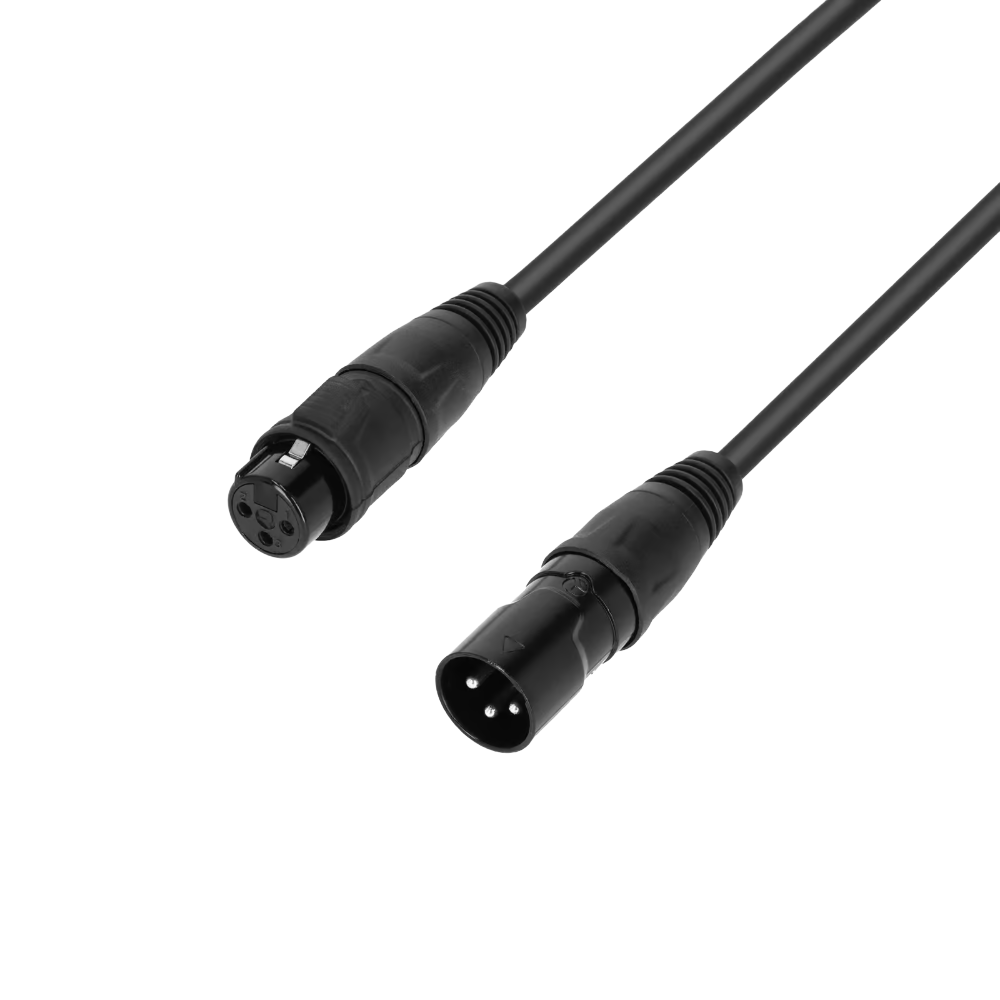

4 STAR DMF 0150 IP65
Professional outdoor cable for DMX & AES/EBU
For professional applications on stage, outdoor events or in the studio, our 4 STAR SERIES offers highest reliability even under harsh conditions. Developed entirely in Germany, this cable is specifically designed to meet the requirements of professional use in harsh environments.
With its IP65 rating, the cable is protected against dust and flushed water, making it the perfect choice for outdoor lighting and mobile rigs. We use a special soft PVC compound that makes the cable extremely flexible even at lower temperatures, while being very robust.
The cable is equipped with gold-plated connectors for optimum signal transmission and a braided copper screen that provides effective protection against electromagnetic interference. With a wave impedance of 110 Ohm, it is fully optimized for both digital audio (AES/EBU) and stable DMX lighting control.
