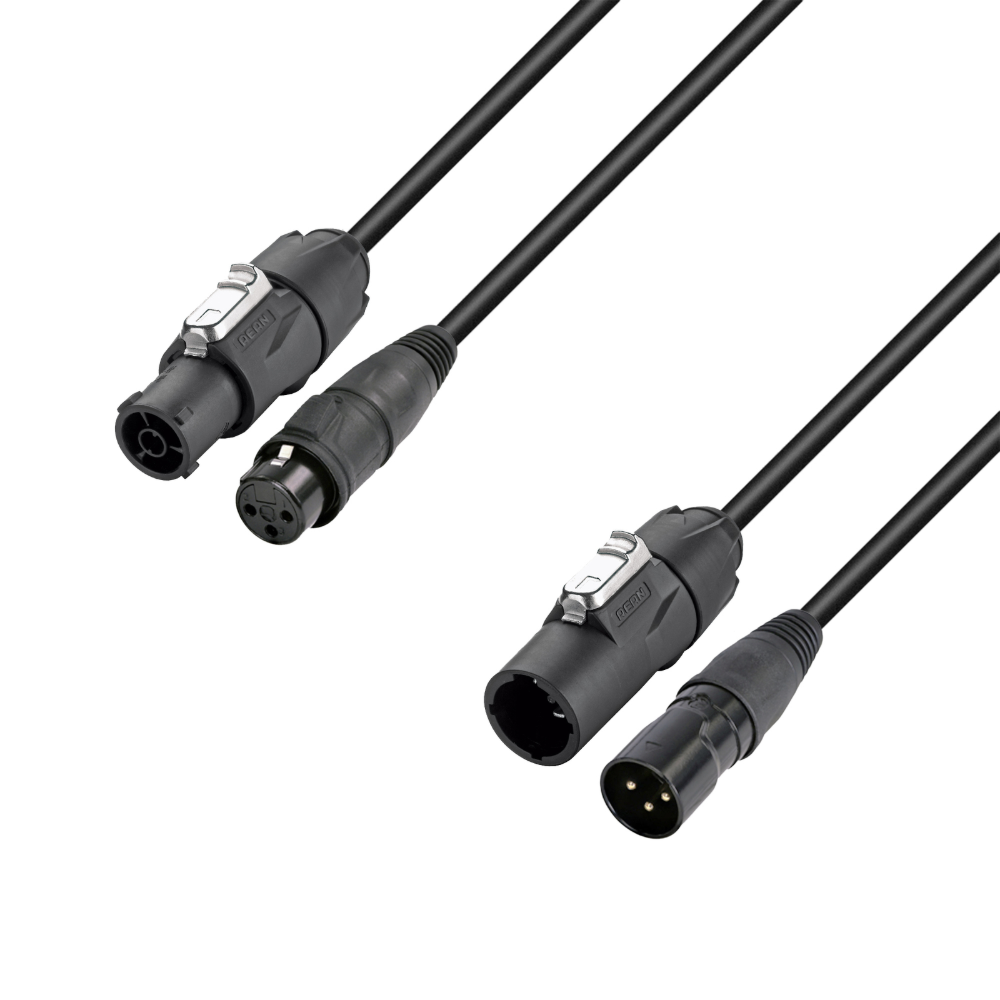

Name: 4 STAR H TCON D
Brand: Adam Hall
Availability: OutOfStock

Professional Hybrid Cable • Power & DMX (3-Pin XLR) • 4 Star Series

IP65 Outdoor-

Cable Type: Hybrid Cable (Power + Signal in One)

Cable Length & Color: 1.5 m - 10 m

Split Length (Ends): 40 cm on both ends

Total cable diameter: 15 mm (PVC outer jacket)

DMX connectors: 3-pin XLR (Female: RC3F-BAG / Male: RC3M-BAG)

DMX connector material: Silver-plated connectors

DMX conductors: Oxygen-free copper (OFC) 2 x 0.22 mm² (AWG24)

Impedance & Shielding: 110 Ω / Copper spiral shield (5 mm Ø)

Power connectors: Rean® X-Series (TRUE1®-compatible)

Power models: RCAC3F-X-000 & RCAC3M-X-000

Conductors: Oxygen-free copper (OFC) 3 x 1.5 mm² (AWG16)

Power cable diameter: 9 mm

Standards & Safety: IP65-rated (water/dust resistant) • Can be plugged in and out under voltage/load (CBC) • Fully Neutrik® TRUE1-compatible

Developed in Germany by the Adam Hall Cables® Crew. A smart and space-saving combination solution that guarantees stable, parallel, and interference-free transmission of both power and data.
